Home/Networking/Switch - Bridges/Allied Telesis AT x930-28GPX / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ / desktop, rack-mountable | AT-X930-28GPX

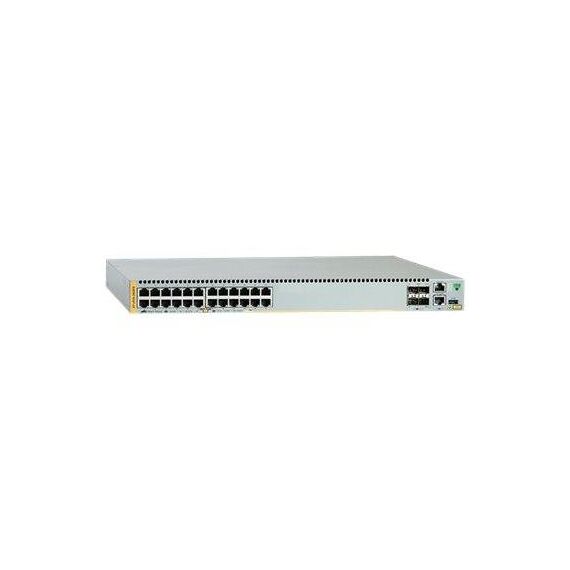

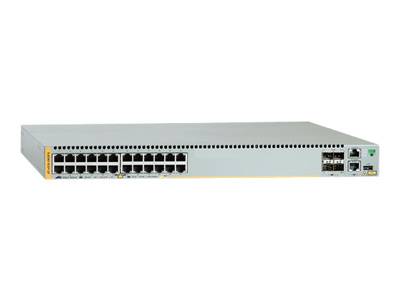

Allied Telesis AT x930-28GPX / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ / desktop, rack-mountable | AT-X930-28GPX

Brand: Allied Telesis

CODE (SKU):

AT-X930-28GPX

€5,112.88

(€6,084.33 inc. VAT)

Out of stock

Ask a question

Find similar

Delivery

Payment options

Product Code425A684 EAN Code0767035199474 ManufacturerAllied Telesis

Description
Features

Allied Telesis AT x930-28GPX / Switch / L3 / Managed / 24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+ / desktop, rack-mountable | AT-X930-28GPX

Description

Allied Telesis x930 series switches are a high-performing and feature-rich choice for today's networks. The x930 series has the flexibility and performance for key network connectivity.

Special Features

Unified network management
Network resiliency
Reliable
Secure

Product features

Unified network management
The x930 series has the capability to manage large-scale wired and wireless networks on a single platform to reduce complexity and increase administrative consistency. The Allied Telesis Management Framework (AMF) is the key to unifying network management. It saves time and reduces cost by automating many every day network management tasks.
Network resiliency
The convergence of network services in the enterprise has led to increasing demand for highly available networks with minimal downtime. VCStack, in conjunction with link aggregation, provides a network with no single point of failure and an easy, resilient solution for high availability applications. The x930 series can form a VCStack for enhanced resiliency and simplified device management. Stacks can be created over long distance fiber links with VCStack LD (Long Distance), making the x930 series the perfect choice for distributed environments. The addition of Ethernet Protection Switched Ring (EPSRing) resilient ring protocol ensures distributed network segments have high-speed, resilient access to online resources and applications.
Reliable
The x930 series was designed with reliability in mind, and guarantees continual delivery of essential services. With dual hot-swappable load-sharing power supplies and near-hitless online stack reconfiguration, maintenance may be performed without affecting network uptime.
Secure
Advanced security features protect the network from the edge to the core. The x930 series offers powerful control over network traffic types, protection against network attacks, secure management options, loop guard to detect cabling mistakes, and tri-authentication for comprehensive end-point access control.

Product Specification

Device Type	Switch - 24 ports - L3 - Managed - stackable
Enclosure Type	Desktop, rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x 1 Gigabit / 10 Gigabit SFP+
Performance	Stacking bandwidth: 40 Gbps ¦ Switching fabric bandwidth: 296 Gbps ¦ Forwarding performance: 214.3 Mpps ¦ Latency (10 Mbps): 47.4 µs ¦ Latency (100 Mbps): 7.9 µs ¦ Latency (1000Base-T): 3.7 µs ¦ Latency (10 Gbps): 2.6 µs
Capacity	Priority queues per port: 8 ¦ VLANs supported: 4096 ¦ Virtual Routing and Forwarding (VRF) entries: up to 64
MAC Address Table Size	64K entries
Jumbo Frame Support	13KB
Routing Protocol	BGP-4, RIP-1, RIP-2, BGP, IGMPv2, IGMP, OSPFv2, PIM-SM, PIM-DM, IGMPv3, OSPF for IPv6, OSPFv3, static IPv4 routing, static IPv6 routing, ECMP, policy-based routing (PBR), RIPng, MLDv2, MLD, VRRPv3
Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI
Encryption Algorithm	DES, Triple DES, MD5, SHA-1, TLS 1.0, SSL 3.0, SSL 2.0, PEAP, TTLS
Authentication Method	Secure Shell (SSH), RADIUS, X.509 certificates, TACACS+, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP)
Features	Full duplex capability, auto-negotiation, ARP support, VLAN support, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, IPv6 support, wall mountable, Digital Diagnostics Monitoring Interface (DDMI), sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), Jumbo Frames support, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), Equal-Cost Multipath (ECMP), STP Root Guard, IPv4 support, DHCP relay, NTP server, DNS relay, DHCP client, Network Access Control (NAC), 2MB packet buffer, loop prevention, Ethernet Protection Switched Ring (EPSRing), Bridge protocol data unit (BPDU), black hole routing, Control Plane Prioritisation (CPP), SuperLoop Protection (SLP), Long-Distance stacking (LD-VCStack), Secure Copy (SCP), Allied Telesis Management Framework (AMF), Built-In Self Test (BIST), Cable fault locator (TDR)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.3ac, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az, IEEE 802.1AX
RAM	2 GB DDR SDRAM
Flash Memory	256 MB
Built-in Devices	Led panel
Status Indicators	Port duplex mode, PoE, link/activity
Interfaces	24 x 1000Base-T - RJ-45 - PoE+ ¦ 4 x Gigabit / 10Gbit LAN - SFP+ ¦ 1 x console - RJ-45 ¦ 1 x management (Gigabit LAN) - RJ-45 ¦ 1 x USB - Type A
Expansion Slots	1 (total) / 1 (free) x Expansion Slot
Power Device	Internal power supply - hot-plug
Installed Qty	2 (installed) / 2 (max)
Power Redundancy	Yes
Power Redundancy Scheme	1+1
Voltage Required	AC 120/230 V (50/60 Hz)
Power Consumption Operational	84 Watt
Rack Mounting Kit	Included
Compliant Standards	FCC Class A certified, UL, cUL, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class A, AS/NZS 60950-1, ICES-003 Class A, RoHS, UL 60950-1, EN 60950-1, EN 60825-1, CAN/CSA C22.2 No. 60950-1-03, VCCI Class A, China RoHS
Width	44 cm
Depth	42 cm
Height	4.4 cm
Weight	5.1 kg
Min Operating Temperature	0 °C
Max Operating Temperature	45 °C
Humidity Range Operating	5 - 90% (non-condensing)
Min Storage Temperature	-25 °C
Max Storage Temperature	70 °C
Humidity Range Storage	5 - 95% (non-condensing)
