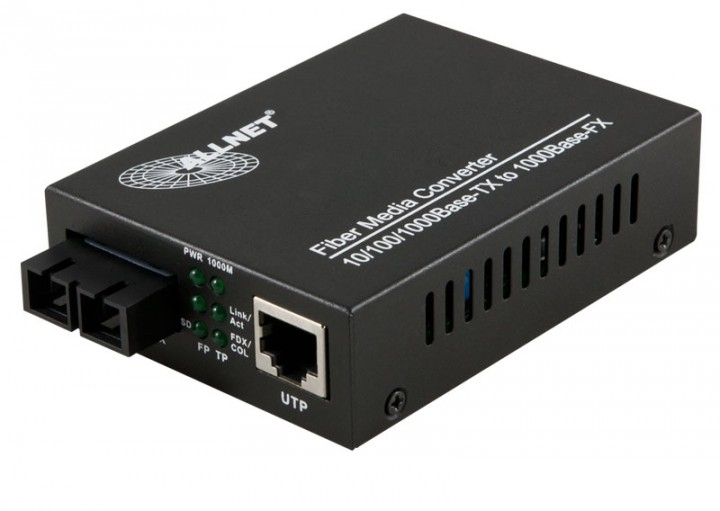

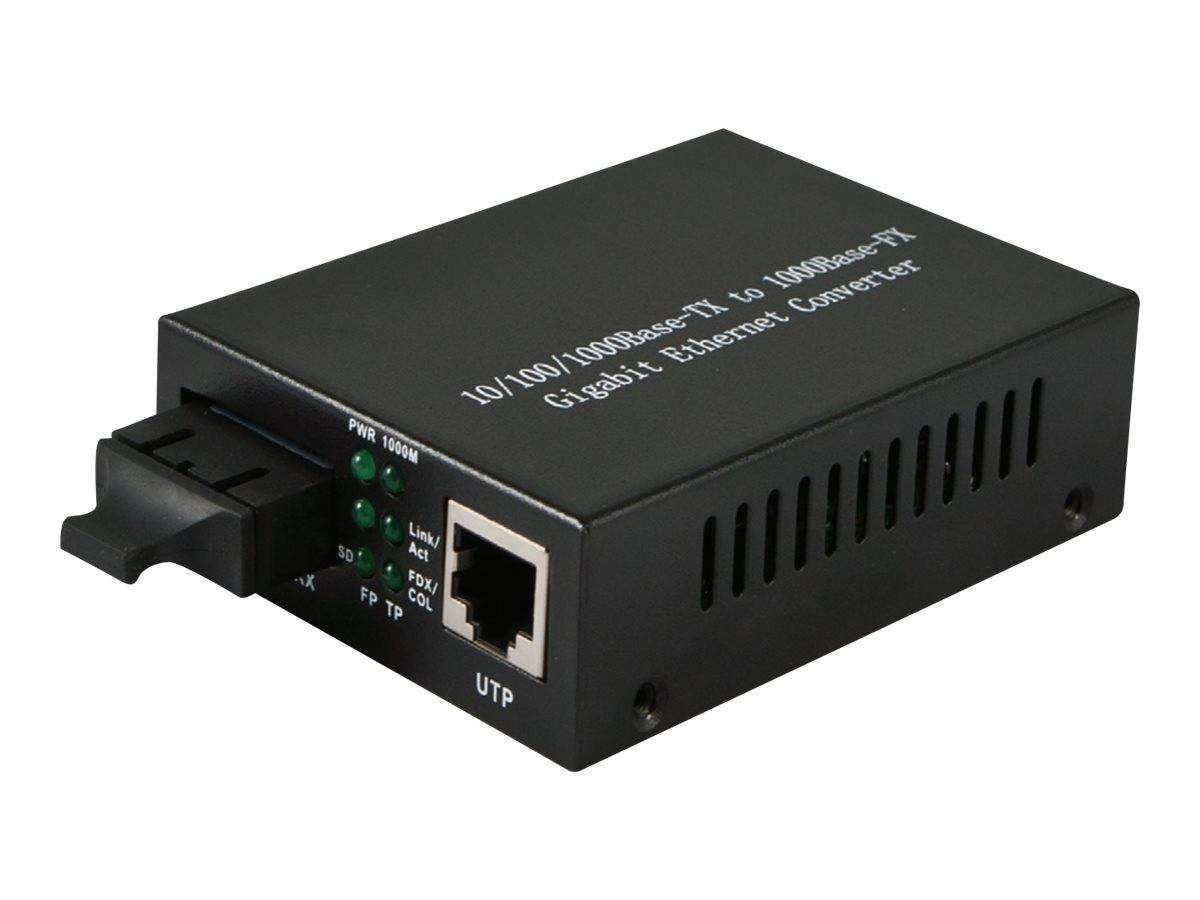

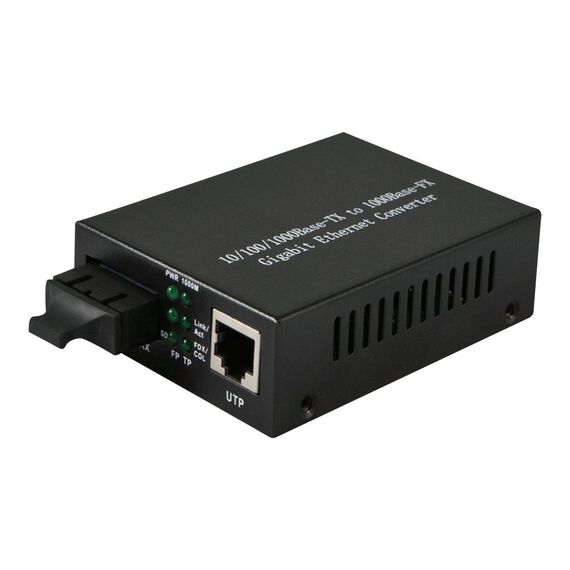

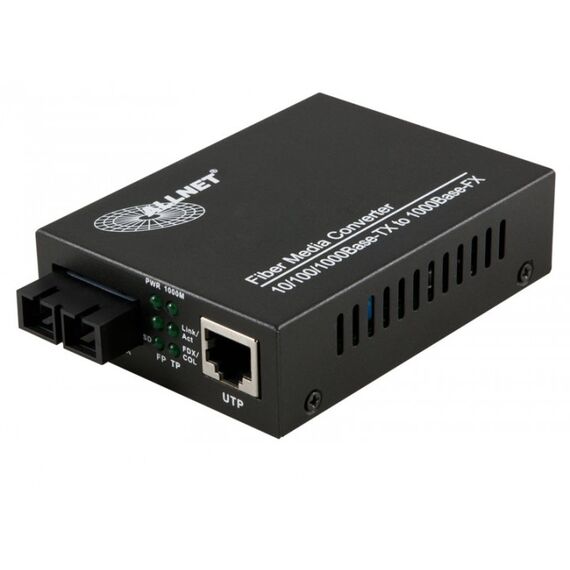

ALLNET ALL-MC105G-SC-SM / Media converter / 1GbE / 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T / RJ-45 / SC single-mode / up to 20 km | ALL-MC105G-SC-SM
Please sign in so that we can notify you about a reply
Special Features
- Ethernet 802.3x flow control
- Gigabit fiber port support
Product Specification
| Device Type | Media converter |
| Form Factor | External |
| Networking | Networking |
| Connectivity Technology | Wired |
| Cabling Type | 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T |
| Data Link Protocol | 10Mb LAN, 100Mb LAN, 1GbE |
| Data Transfer Rate | 1 Gbps |
| Max Transfer Distance | 20 km |
| Status Indicators | Power, transmit, receive, link/activity |
| Features | Flow control, auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female 1 x Ethernet 1000Base-LX - SC single-mode female x 2 |
| Power | Power |
| Power Consumption Operational | 3 Watt |
| Dimensions & Weight | Dimensions & Weight |
| Width | 7.1 cm |
| Depth | 9.4 cm |
| Height | 2.6 cm |
| Weight | 230 g |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - ALLNET - ALL-MC105G-SC-SM
More Details
Product Code
07:479106
EAN Code
4038816006479
Manufacturer
ALLNET
