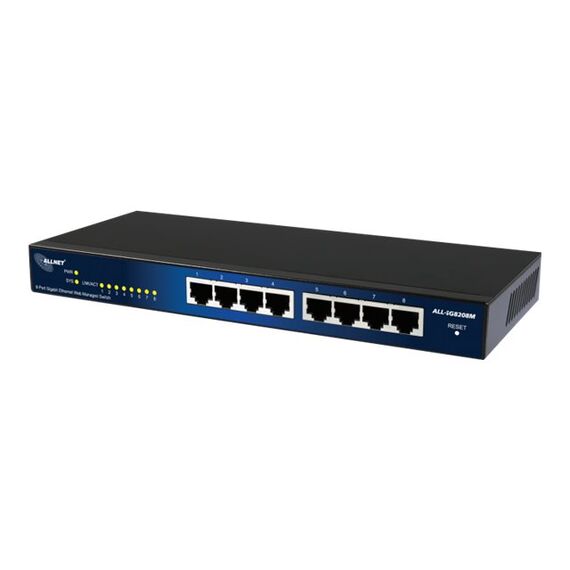

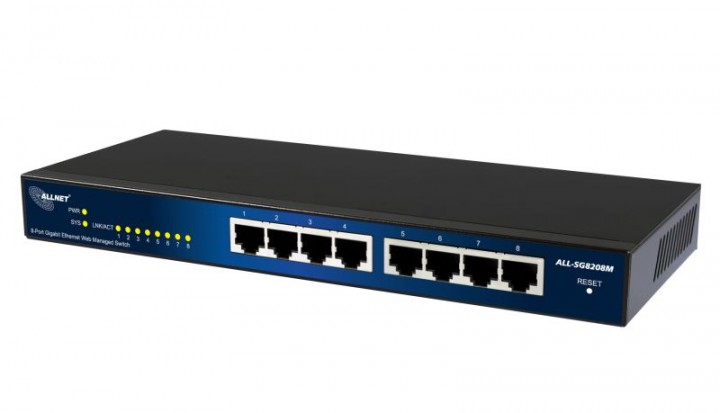

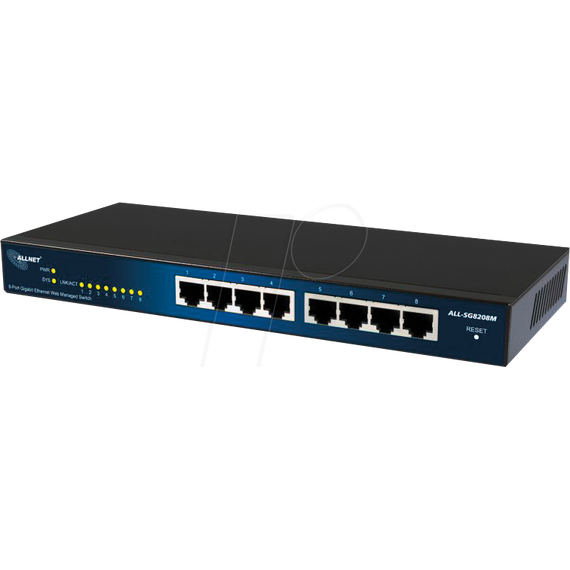

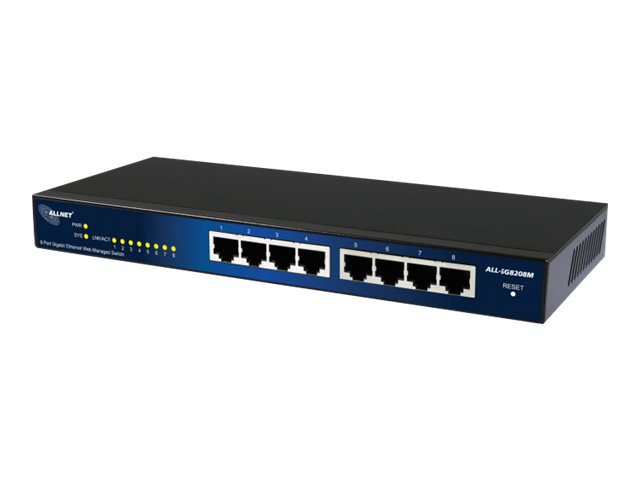

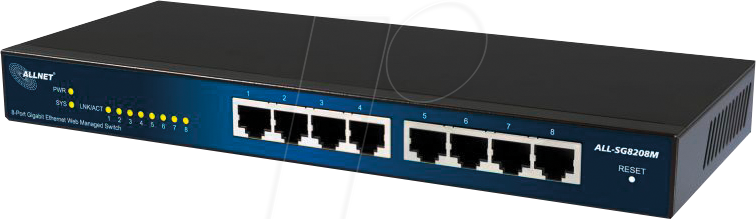

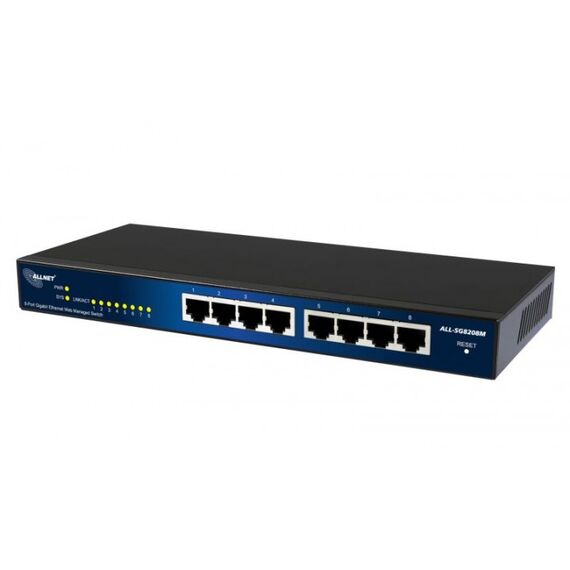

ALLNET ALL-SG8208M / Switch / Managed / 8 x 10/100/1000 / desktop | ALL-SG8208M

Product Features

• Secure networking
  The ALL-SG88208M switch provides IP-MAC-Port-VID Binding, Port Security, Storm control which protect against broadcast storms, ARP attacks, etc. It integrates some typical Dos attacks to select. You can protect these attacks more easily ever than before. In addition, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports and even VLAN ID.
• Advanced QoS features
  To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on different options like 8 Priority Queues, Class of Service, Queue Scheduling and Rate Limit. Voice and video are always clear, smooth and jitter free. In conjunction with the Voice VLAN the switch supporting, the voice applications will operate with much smoother performance.
• Abundant Layer 2 features
  For more application of layer 2 switches, ALL-SG88208M supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Mirroring, Spanning Tree STP/RSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switch provides advanced features for network maintenance. Such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
• Enterprise level management features
  ALL-SG88208M is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface (GUI), either administration traffic can be protected through HTTPS encryptions. SNMP (v1/2) support enables the switch to be polled for valuable status information and send traps on abnormal events.

Special Features

• 8 Port Gigabit non-blocking Switch Architecture
• Support 10/100/1000 Mbps and Duplex mode (half/full) auto-detection
• Support back-pressure (half duplex), flow control (IEEE 802.3x and IEEE 802.3az energy efficient Ethernet)
• VLAN "64 static/port-based/tagged based
• Link Aggregation (IEEE802.3ad LACP & Static Trunk)
• IGMP Snooping (v1/v2/v3)
• Storm control
• Fanless solution

Product Specification
