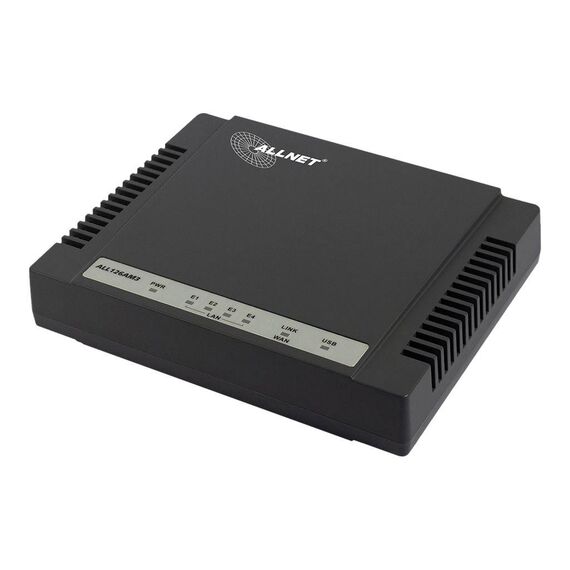

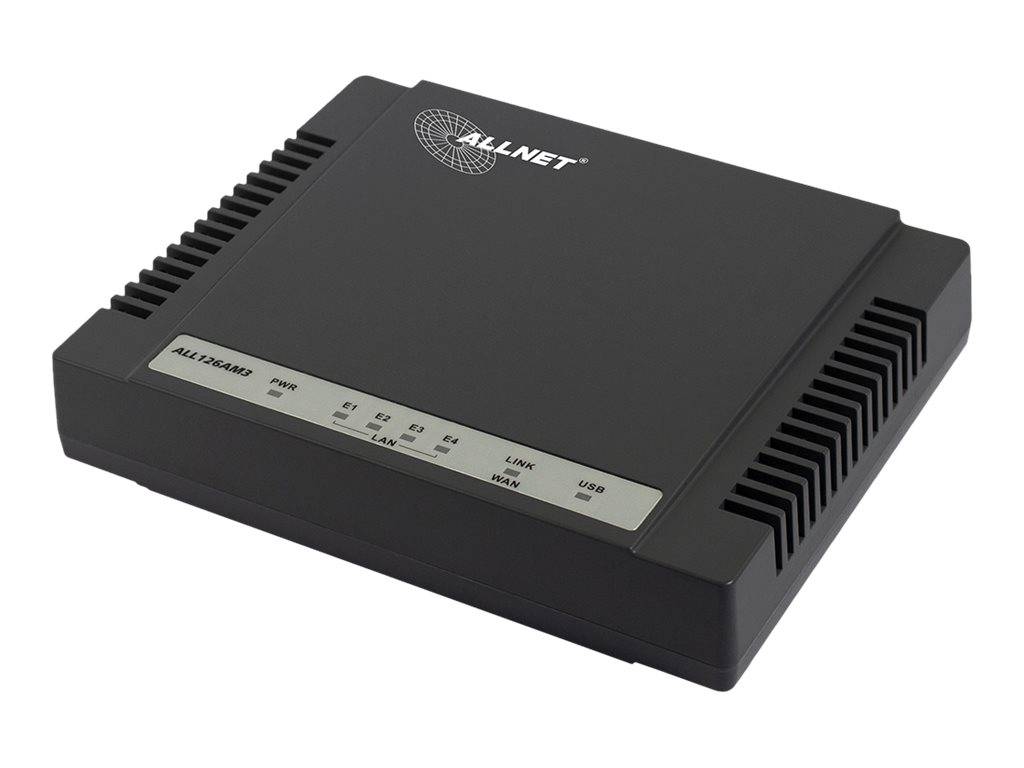

ALLNET ALL126AM3 VDSL2 Master Modem / - router / - DSL modem 4-port switch | ALL126AM3
Please sign in so that we can notify you about a reply
Special Features
- VDSL CO master modem according to VDSL2 standard for high data throughput
- Integrated 4-port Ethernet 10/100Mbps switch
- Two RJ11 sockets for telephone/line connection
- Integrated DSL splitter and overvoltage protection
- Various VDSL bandwidth profiles configurable
- Configuration via web browser (HTTP/HTTPS)
- Energy-saving, low power consumption (only approx. 5.5W)
- Can be used for pure point-to-point connection in connection with a slave CPE modem
- Network connection via twisted two-wire telephone cable
- Parallel telephony connection for analogue telephone on the same line possible
Product Specification
| Device Type | Router - 4-port switch (integrated) |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Data Transfer Rate | 100 Mbps |
| Remote Management Protocol | HTTP, HTTPS |
| Features | Store and forward, IPv6 support, firmware upgradable, built-in POTS splitter, IPv4 support, DSCP support |
| Compliant Standards | IEEE 802.3, IEEE 802.3u |
| Status Indicators | Power, link/activity |
| Communications | Communications |
| Type | DSL modem |
| Digital Signaling Protocol | VDSL, VDSL2 |
| Protocols & Specifications | ITU G.993.2, ITU G.998.4 |
| Expansion / Connectivity | Expansion / Connectivity |

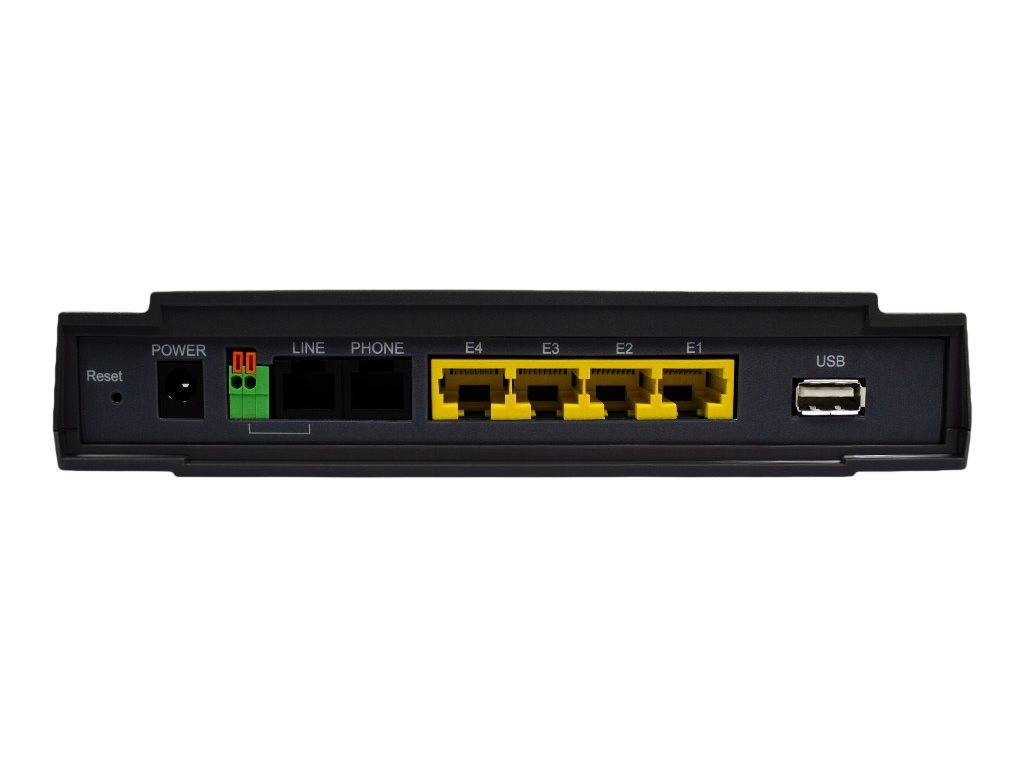

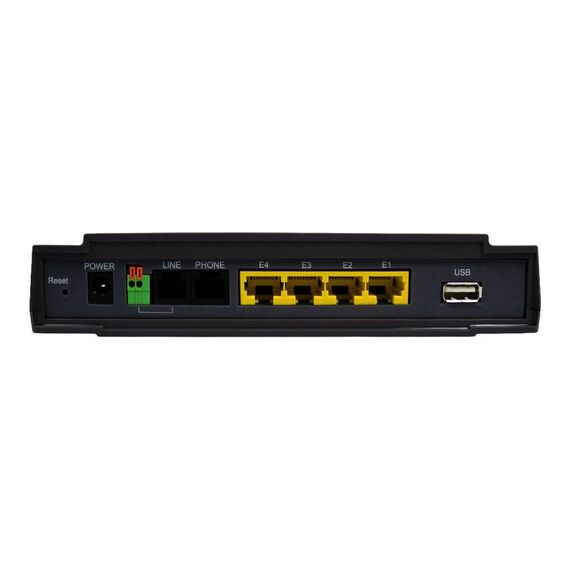

| Interfaces | WAN: 1 x VDSL2 - RJ-11 LAN: 4 x 10Base-T/100Base-TX - RJ-45 Phone line: 1 x RJ-11 USB 2.0: 1 x 4 pin USB Type A |
| Power | Power |
| Power Device | External power adapter |
| Power Consumption Operational | 5.52 Watt |
| Miscellaneous | Miscellaneous |
| Cables Included | 1 x network cable 1 x phone cable |
| Dimensions & Weight | Dimensions & Weight |
| Width | 18.4 cm |
| Depth | 14.6 cm |
| Height | 4 cm |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 10 - 90% (non-condensing) |
Features - ALLNET - ALL126AM3
More Details
Product Code
07:486885
EAN Code
4038816149855
Manufacturer
ALLNET
