ALOGIC / Docking station / Thunderbolt 4 / 3 x Thunderbolt / 1GbE | TB4D3TB
Product Features
- Thunderbolt 4 blazing performance
Designed for when speed and performance matter, the dock provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt docks which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE docking station can connect up to 3x downstream Thunderbolt 4 / USB 4.0 peripherals. With the addition of the inbuilt SD 4.0 card reader this dock offers unparalleled productivity for creative professionals. - Dual ultra-high definition display: 4K@60Hz

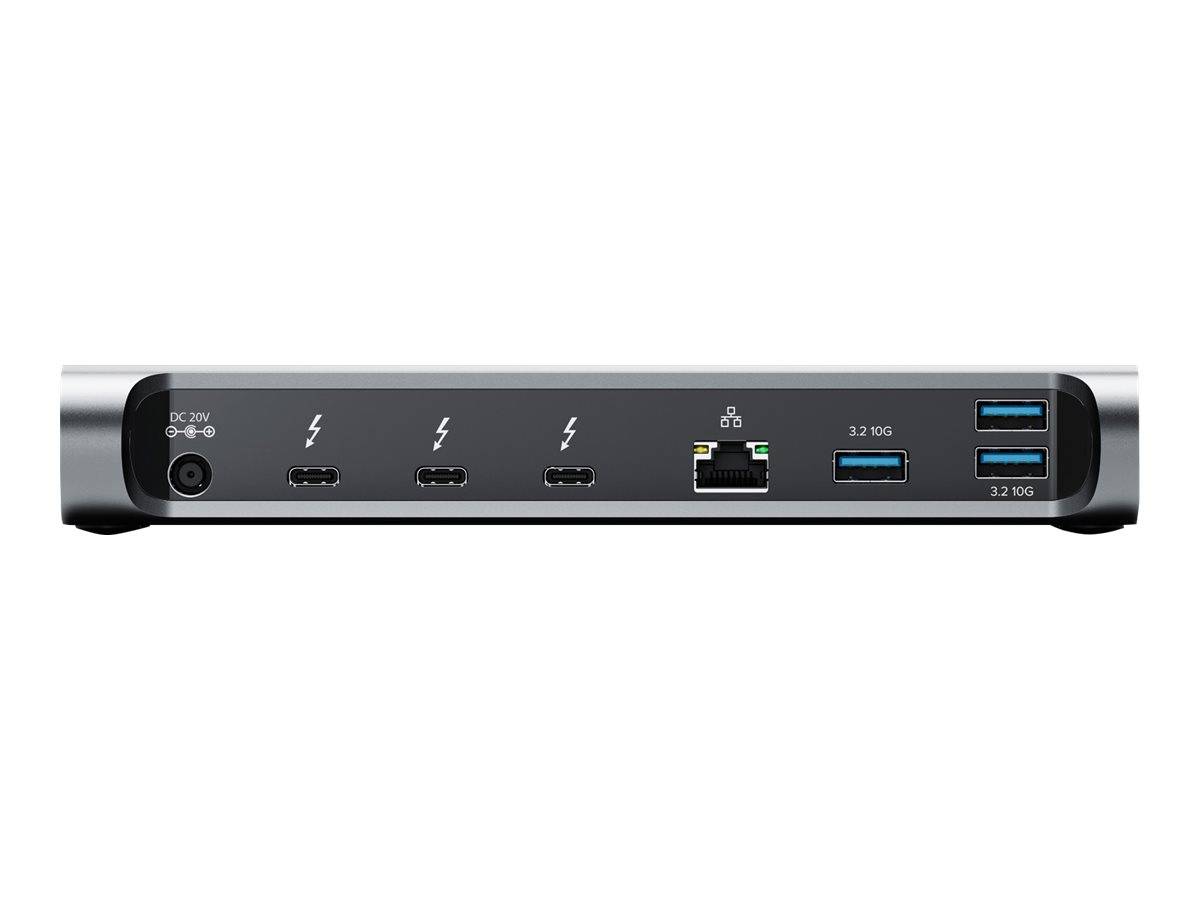

The BLAZE dock provides dual monitor support for Thunderbolt equipped host computers and single monitor support for hosts connected using USB as follows: The Thunderbolt/USB-C ports on the rear of the dock provide the video outputs and are designed to connect directly to late model monitors equipped with a USB-C video input. - Single cable simplicity - 96W charging
This dock truly does it all - and all over a single cable. In addition to transferring data and video over a single connection to the computer, the dock can also provide up to 96W of power to charge laptops using USB Power Delivery technology. This is sufficient to power almost any notebook PC including 16" MacBook devices.
Special Features
- Thunderbolt 4 blazing performance
- Dual ultra-high definition display: 4K@60Hz
- Single cable simplicity - 96W charging
Product Specification
Product Type | Docking station |
Width | 8.4 cm |
Depth | 19.4 cm |
Height | 3 cm |
Weight | 900 g |
Enclosure Colour | Space grey |
Video | Video |
Max Resolution Details | 4K - 60 Hz (Thunderbolt only) |
Networking | Networking |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Expansion / Connectivity | Expansion / Connectivity |
Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
Interfaces | 3 x USB-C / Thunderbolt 4 - 24 pin USB-C 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 3 x USB 3.1 Gen 2 - 9 pin USB Type A 1 x USB 2.0 - 4 pin USB Type A 1 x headphone/microphone combo jack - mini-phone 3.5 mm |
Miscellaneous | Miscellaneous |
Features | Aluminum enclosure, 2 security lock slots (cable lock sold separately), 90W power delivery |
Security Slot Type | Kensington security slot |
Power | Power |
Power Device | Power adapter |
Voltage Required | DC 20 V |
Manufacturer Warranty | Manufacturer Warranty |
Service & Support | Limited warranty - 2 years |
Features - Alogic - TB4D3TB
