ALOGIC MX3 TripleDisplay / Docking station / USB-C / 3 x DP++ / 1GbE / 135 Watt | DUPRMX3-WW
Please sign in so that we can notify you about a reply
Product Features
- Simplified connectivity
The MX3 makes multi-display set ups simple. Featuring DP Alt Mode technology, it connects directly with up to three displays and multiple other accessories. No need to install drivers or software. Plug in and go. - Single 5K display with mac
The MX3 is a powerful docking station for Mac users seeking to add a picture-perfect single display for their desk set up. - Triple 4K displays with Windows
Windows users can plug into the MX3 to run up to three ultra-polished external displays.
Special Features
- Simplified connectivity
- Single 5K display with Mac
- Triple 4K displays with Windows
Product Specification
| Product Type | Docking station |
| Width | 19 cm |
| Depth | 9 cm |
| Height | 2.65 cm |
| Weight | 535 g |
| Enclosure Colour | Black, space grey |
| Localisation | Australia, United Kingdom, United States, Europe |
| Video | Video |
| Max Resolution Details | 4K - 60 Hz (Dual Display (DisplayPort 1.4)) 4K - 30 Hz (Triple Display (3 x DisplayPort)) 5K (Single Display) |
| Networking | Networking |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card 1 (total) / 1 (free) x microSD |

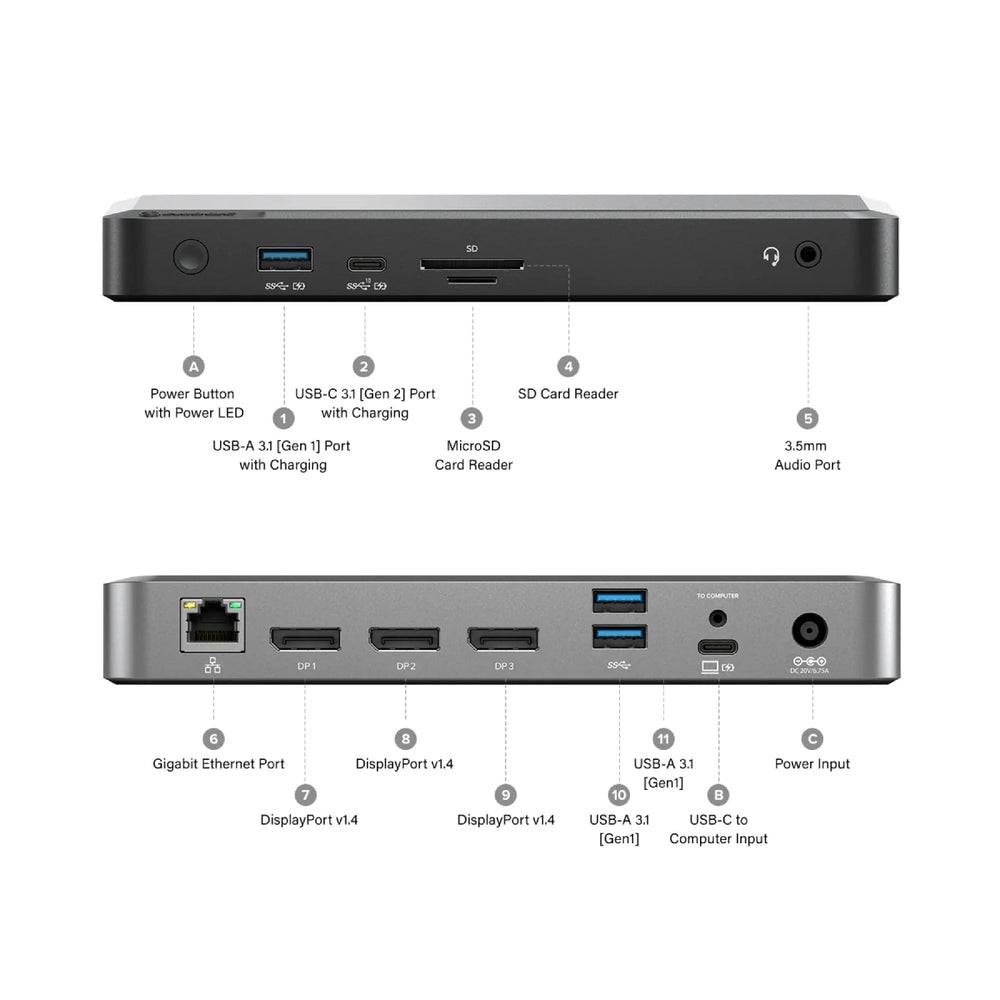

| Interfaces | 3 x display / video - DisplayPort output - 20 pin DisplayPort (1.4) 1 x USB-C 3.1 Gen 2 with Battery Charging 1.2 - 24 pin USB-C 1 x USB 3.1 Gen 1 with Battery Charging 1.2 - 9 pin USB Type A 2 x USB 3.1 Gen 1 - 9 pin USB Type A 1 x network - Ethernet 1000 - RJ-45 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm 1 x USB-C - 24 pin USB-C |
| Miscellaneous | Miscellaneous |
| Cables Included | USB-C cable |
| Features | Security lock slot (cable lock sold separately), DisplayPort Alt Mode, 100W power delivery, High Bit Rate 3 (HBR3) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | FCC, RoHS |
| Power | Power |
| Power Device | Power adapter |
| Power Provided | 135 Watt |
| System Requirements | System Requirements |
| OS Required | Apple MacOS, Microsoft Windows |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
Features - Alogic - DUPRMX3-WW
More Details
Product Code
CF51794
EAN Code
9350784023834
Manufacturer
Alogic
