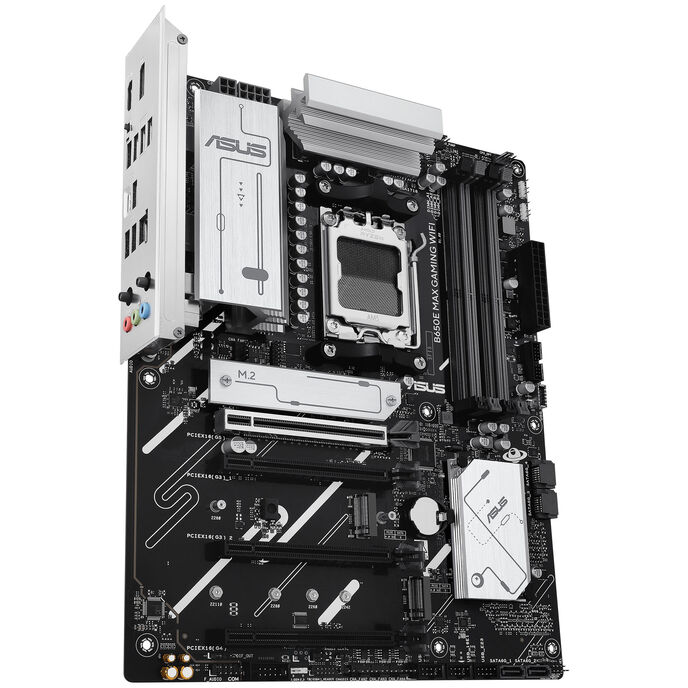

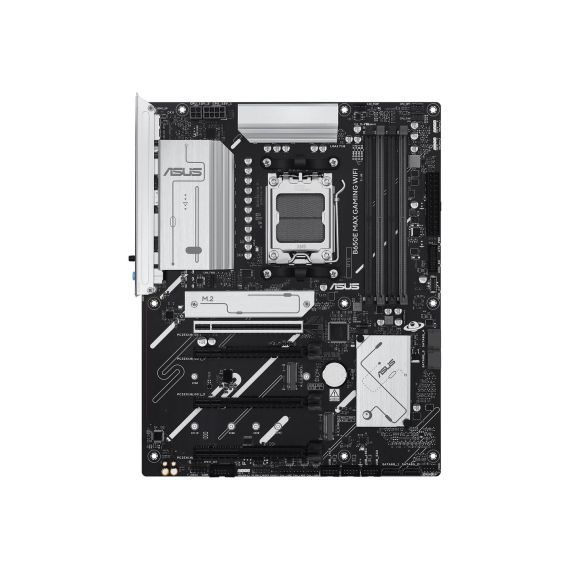

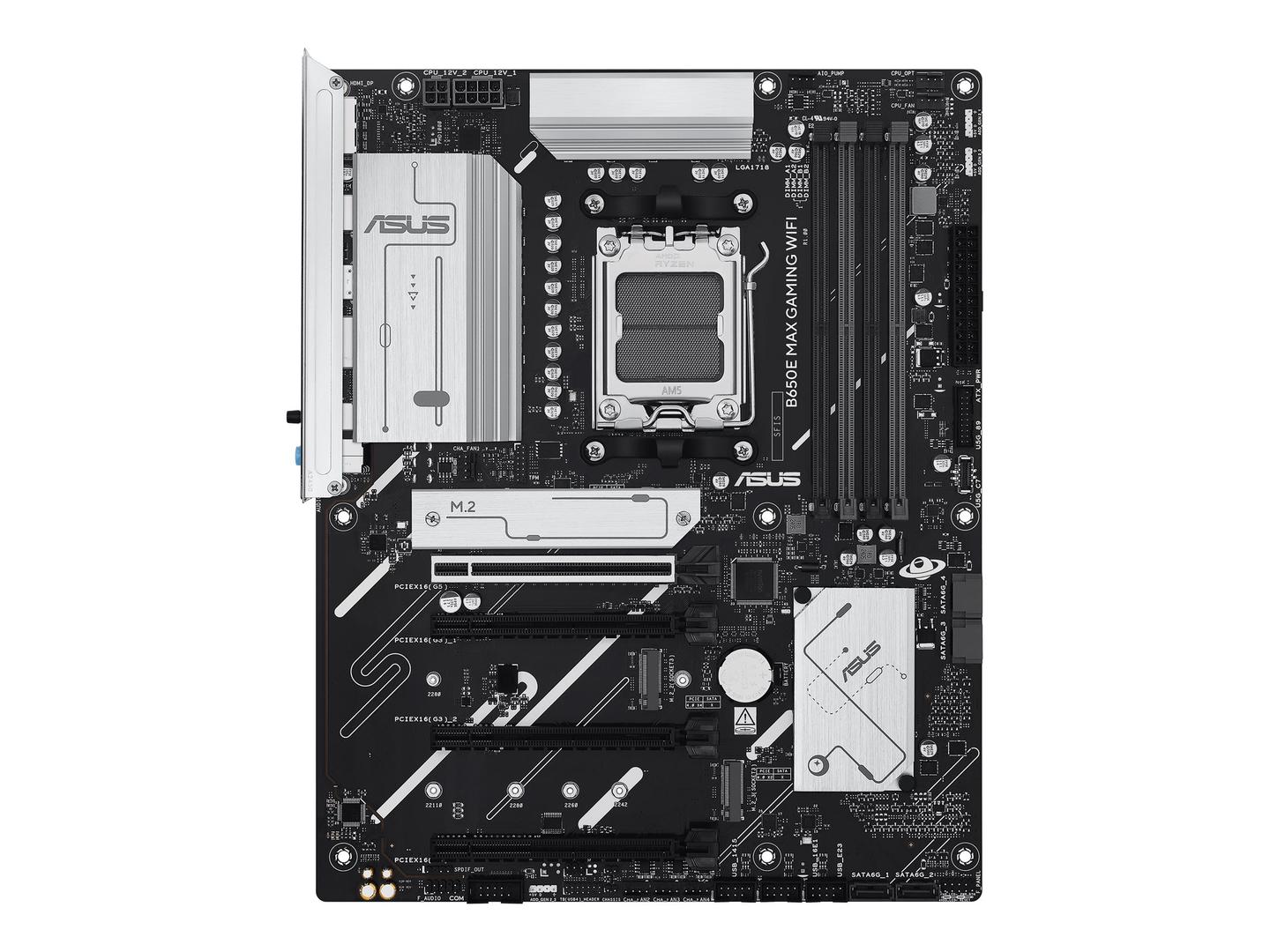

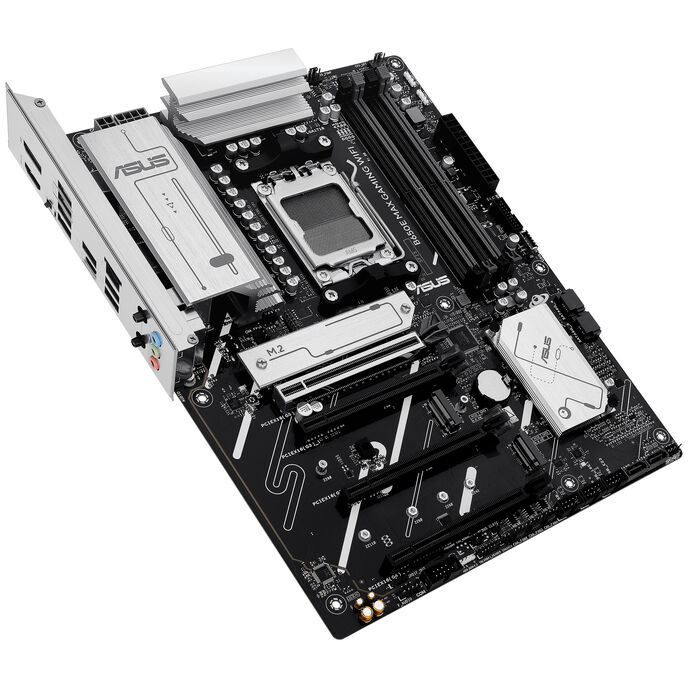

ATX - Socket AM5 - AMD B650 Chipset - USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1 - 2.5 Gigabit LAN, Wi-Fi 6E, Bluetooth - onboard graphics (CPU required) - High Definition Audio (7.1-channel) | 90MB1LD0-M0EAY0
Please sign in so that we can notify you about a reply
Product Features
- High-performance support
Designed to accommodate Ryzen processors from the 7000 to 9000 Series, providing a reliable platform for gaming and high-performance tasks. - Expansive memory options
Includes 4 DIMM slots that support DDR5 SDRAM with speeds up to 4000 MHz, enabling high-speed data handling and efficient multitasking. - Versatile connectivity
Features multiple USB ports including USB 3.2 Gen 1, Gen 2, and USB-C, allowing for fast data transfers and connectivity with a wide range of devices. - Enhanced audio experience
Provides 7.1-channel high definition audio output for immersive sound quality during gaming and multimedia applications. - Robust protection features
Incorporates ASUS protection technologies like overvoltage protection, SafeSlot, and LANGuard to ensure durability and long-lasting performance.
Special Fetures
- Supports AMD B650 chipset and Ryzen processors
- Equipped with 4 DIMM slots for DDR5 memory
- Offers multiple high-speed USB connectivity options
- Features 7.1-channel high definition audio output
- Includes advanced ASUS protection technologies
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD B650 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, on-die ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology |
| Audio | |
| Type | High Definition Audio (7.1-channel) |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | |
| Expansion Slots | 1 x CPU <br /> 4 x DIMM 288-pin <br /> 1 x PCIe 5.0 x16 <br /> 1 x PCIe 4.0 x16 (x8/x4 mode) <br /> 1 x PCIe 4.0 x16 (x4 mode) <br /> 1 x PCIe 3.0 x16 (x1 mode) <br /> 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) <br /> 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA <br /> PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 <br /> PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Interfaces | 1 x HDMI <br /> 1 x DisplayPort <br /> 1 x USB-C 3.2 Gen 2 <br /> 3 x USB 3.2 Gen 2 <br /> 2 x USB 3.2 Gen 1 <br /> 2 x USB 2.0 <br /> 1 x LAN (2.5Gigabit Ethernet) <br /> 1 x audio line-out - mini-jack <br /> 1 x microphone - mini-jack <br /> 1 x audio line-in - mini-jack <br /> 2 x aerial |
| Internal Interfaces | 2 x USB 2.0 - header <br /> 1 x USB-C 3.2 Gen 1 - header <br /> 2 x USB 3.2 Gen 1 - header <br /> 1 x audio - header <br /> 1 x SPDIF out - header <br /> 1 x Thunderbolt - header <br /> 1 x serial - header |
| Power Connectors | 24-pin main power connector, 4-pin ATX12V connector, 8-pin ATX12V connector |
| Features | |
| BIOS Type | AMI |
| Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
| Hardware Features | ASUS 5X Protection III, LANGuard, ASUS DIGI+ VRM, ASUS SafeSlot, ASUS Stainless Steel Back I/O, overvoltage protection, Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot, ASUS EZ DIY, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink design, M.2 heatsink, 8+2+1 Phase Power Design |
| Miscellaneous | |
| Included Accessories | ASUS Wi-Fi moving aerial, 1 x M.2 rubber package, 3 x M.2 screws |
| Cables Included | 2 x Serial ATA cable |
| Software Included | AIDA64 Extreme (60 days trial), WinRAR, ASUS CPU-Z |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - Asus - 90MB1LD0-M0EAY0
CPU Socket
- Socket AM5
More Details
Product Code
03:266152
EAN Code
4711387932445
Manufacturer
Asus
