Gigabyte X870 EAGLE WIFI7 / Motherboard / ATX / Socket AM5 / AMD X870 Chipset / USB-C 3.2 Gen 2x2, USB4, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | X870 EAGLE WIFI7
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 2200 MHz, 2400 MHz, 2600 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3100 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3333 MHz (O.C.), 3400 MHz (O.C.), 3500 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3900 MHz (O.C.), 4000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 2 x PCIe 3.0 x16 (x1 mode) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 |

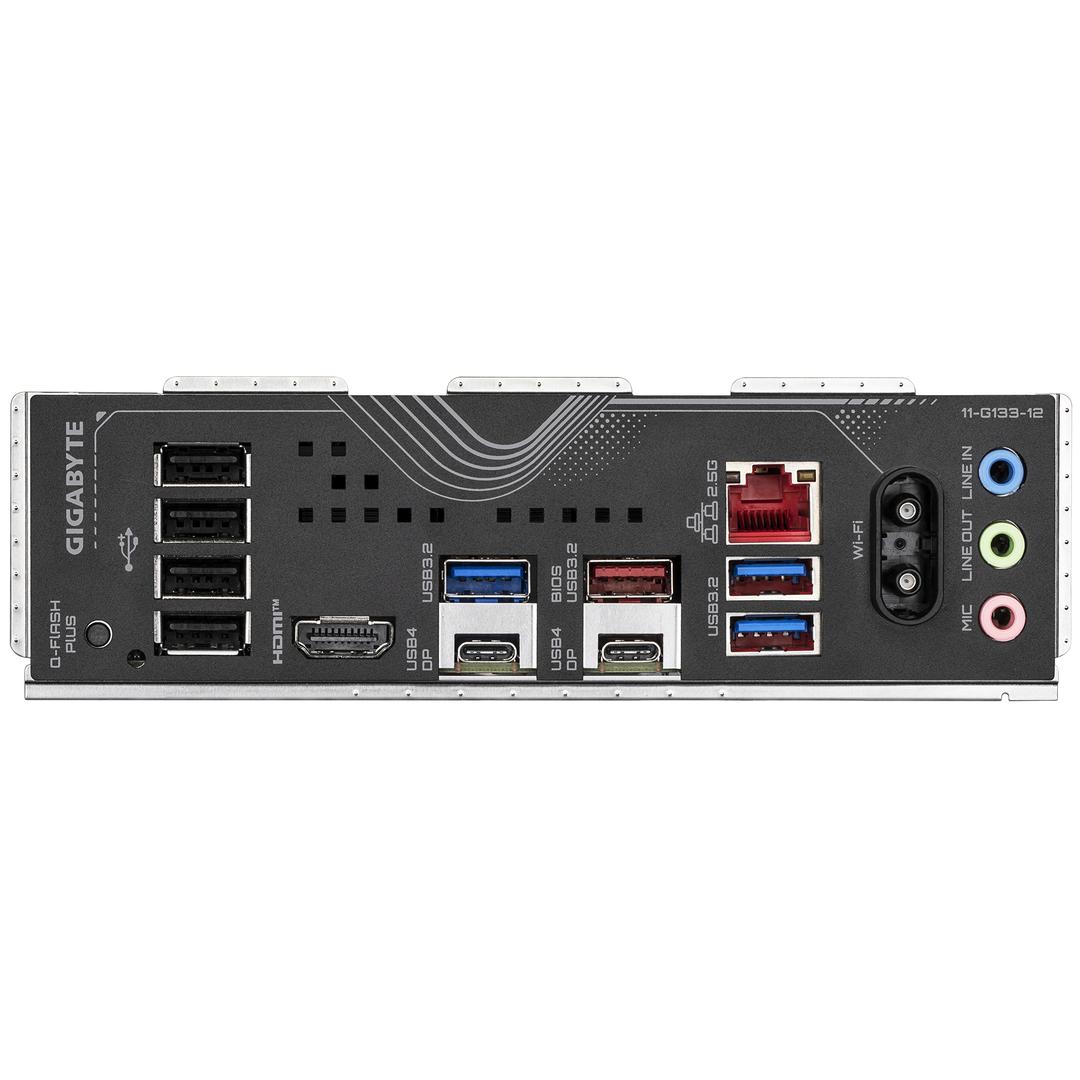

| Interfaces | LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 2 x aerial 3 x USB 3.2 Gen 1 1 x USB 3.2 Gen 2 2 x USB4/DisplayPort 1 x HDMI 4 x USB 2.0 |
| Internal Interfaces | 4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | 14+2+2 Phase Power Design, 2x Copper PCB, 6 Layer PCB, VRM Thermal Armor Advanced, pre-mounted I/O shield, M.2 Thermal Guard, RGB FUSION 2.0, EZ Plug, EZ Debug LED, M.2 EZ Latch plus, M.2 EZ Latch click, PCIe EZ Latch Plus |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version) |
| Compliant Standards | HDCP 2.3 |
| Width | 30.5 cm |
| Depth | 24.4 cm |
| Package Details | Box |
Features - GigaByte - X870 EAGLE WIFI7
CPU Socket
- Socket AM5
More Details
Product Code
03:252651
EAN Code
4719331864996
Manufacturer
GigaByte
