Annke N48WHS+I51CE*4 5 MP 8-CHANNEL WIFI camera set for video surveillance | N48WHS+I51CE*4

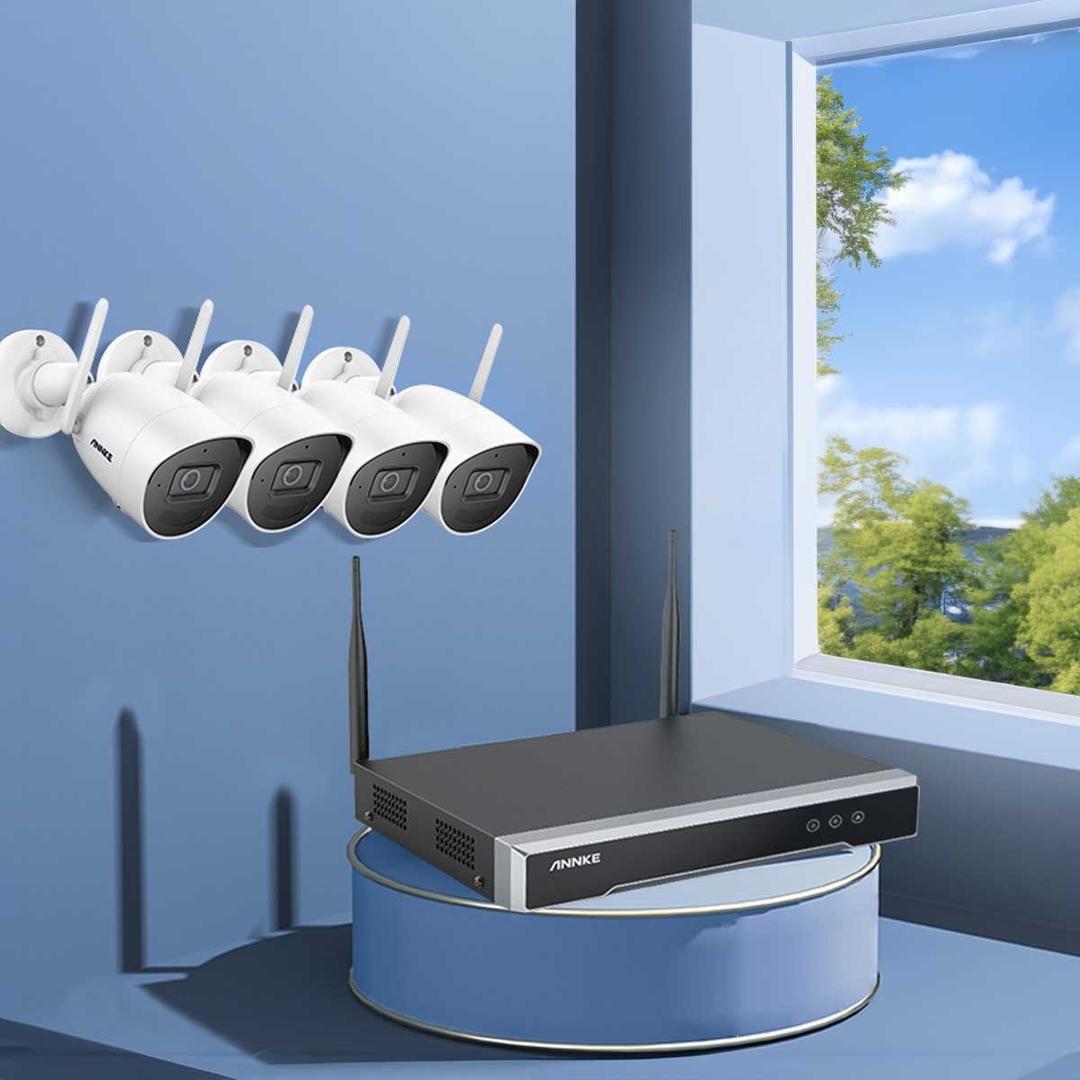

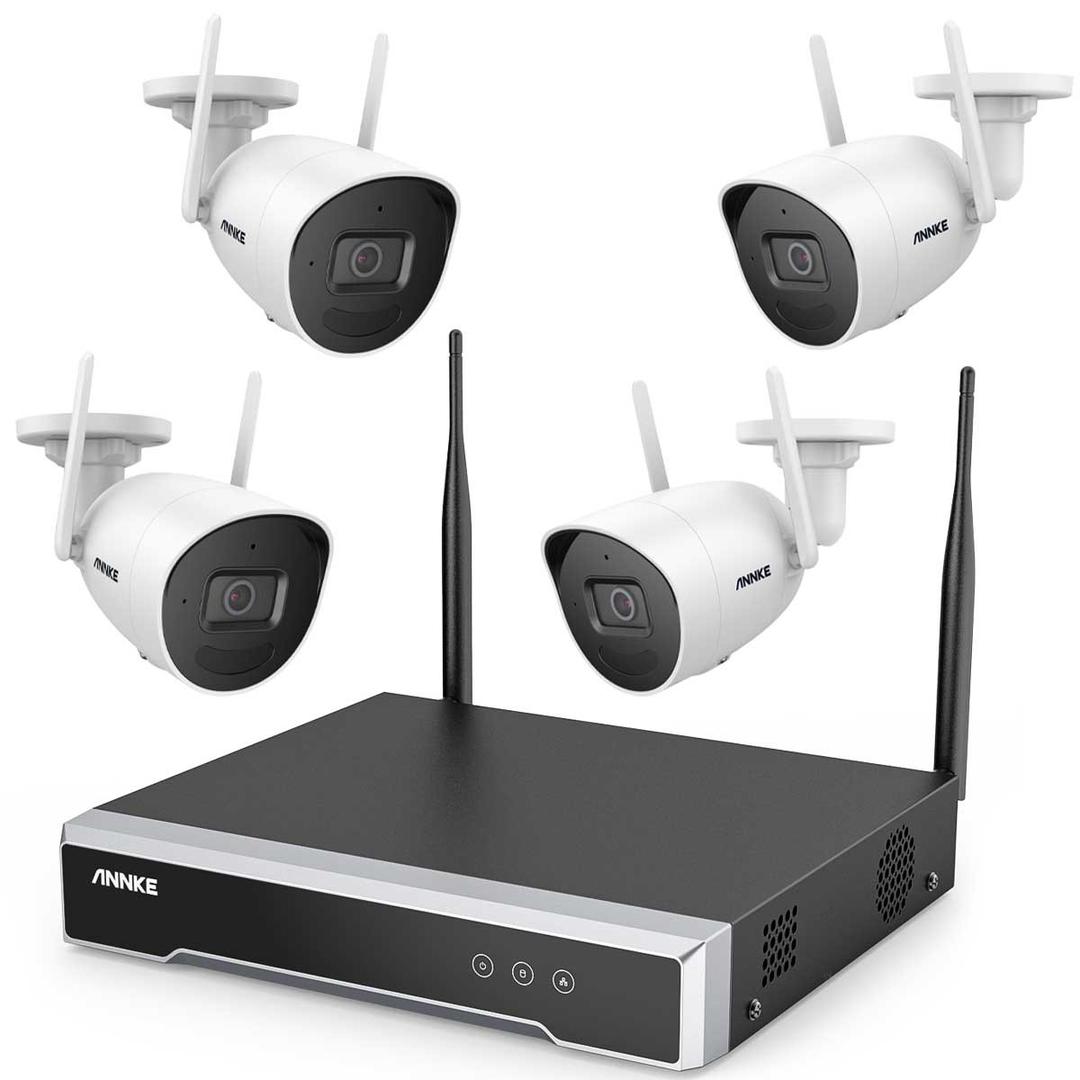

The Annke N48WHS+I51CE*4 WLAN surveillance set is a comprehensive complete solution for your individual security requirements. With the 4x ANNKE I51CE WLAN surveillance cameras and the Annke N48WHS 8-channel network video recorder (NVR), high-quality video and sound recordings, intelligent motion detection, simple remote monitoring and a robust camera design that can withstand all weather conditions can be easily implemented. With these reliable models you can conveniently monitor and secure your home, business or property.
After a simple installation, the NVRs and cameras connect to each other and record continuously 24 hours a day, 7 days a week, ensuring continuous surveillance.

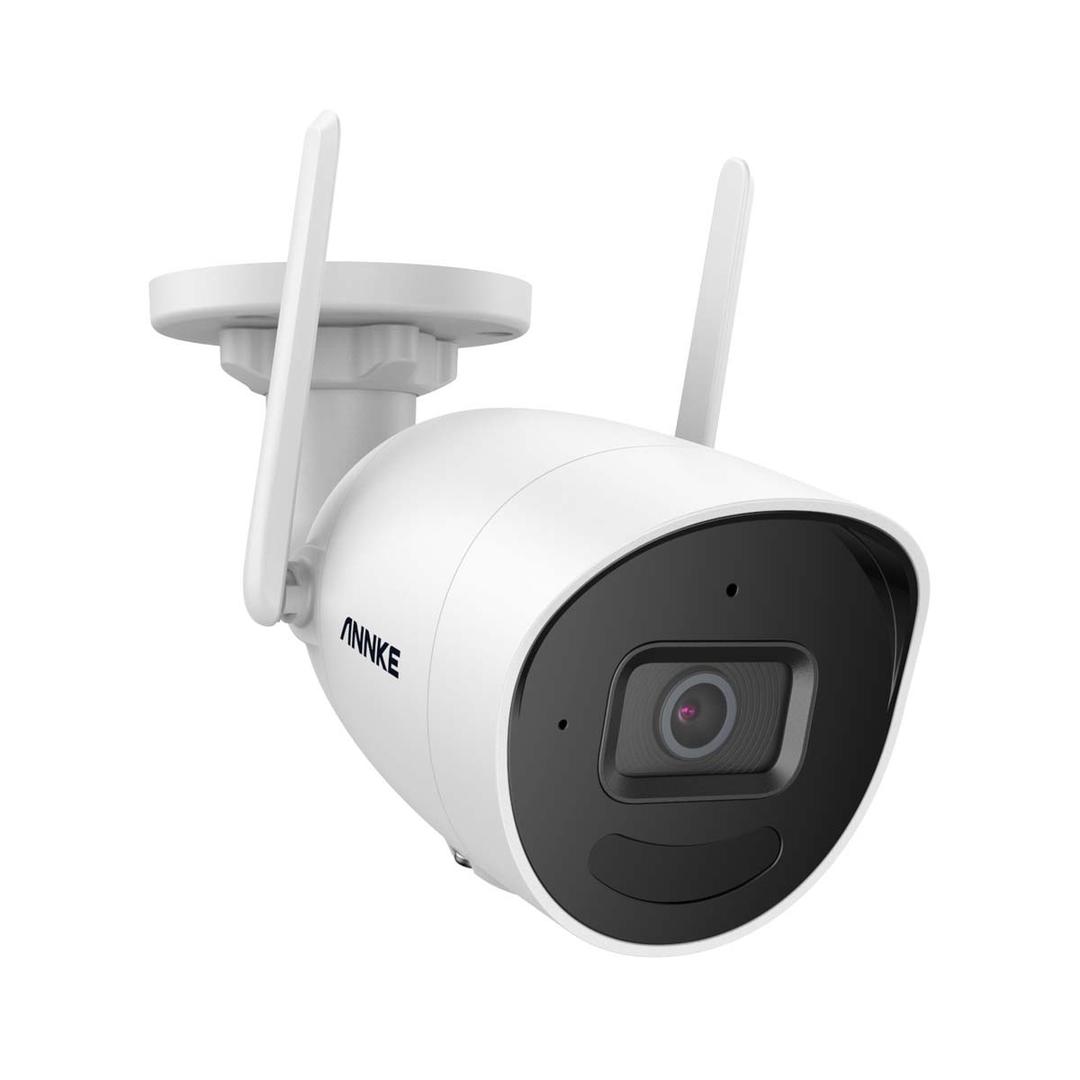

The modern ANNKE 51CE surveillance cameras deliver high-quality images with a 5 MP resolution (2560 x 1920 pixels) and the lens (2.8 mm) ensures flawless performance even in poor lighting conditions.
Thanks to advanced EXIR 3.0 night vision technology, the cameras deliver clear images at night with a range of up to 30 meters. Even in dimly lit environments, the powerful IR LEDs ensure uniform illumination and reliable monitoring around the clock.
The cameras are equipped with improved 2T2R MIMO antennas and provide a stable WiFi connection with a range of up to 100 meters outdoors and up to 50 meters with obstacles.
The use of H.265+ video compression technology enables maximum encryption and compatible file formats for efficient data storage and data transfer.
The built-in noise-cancelling microphone can automatically filter ambient noise and reproduce voice in high quality from a distance of up to 15 m.

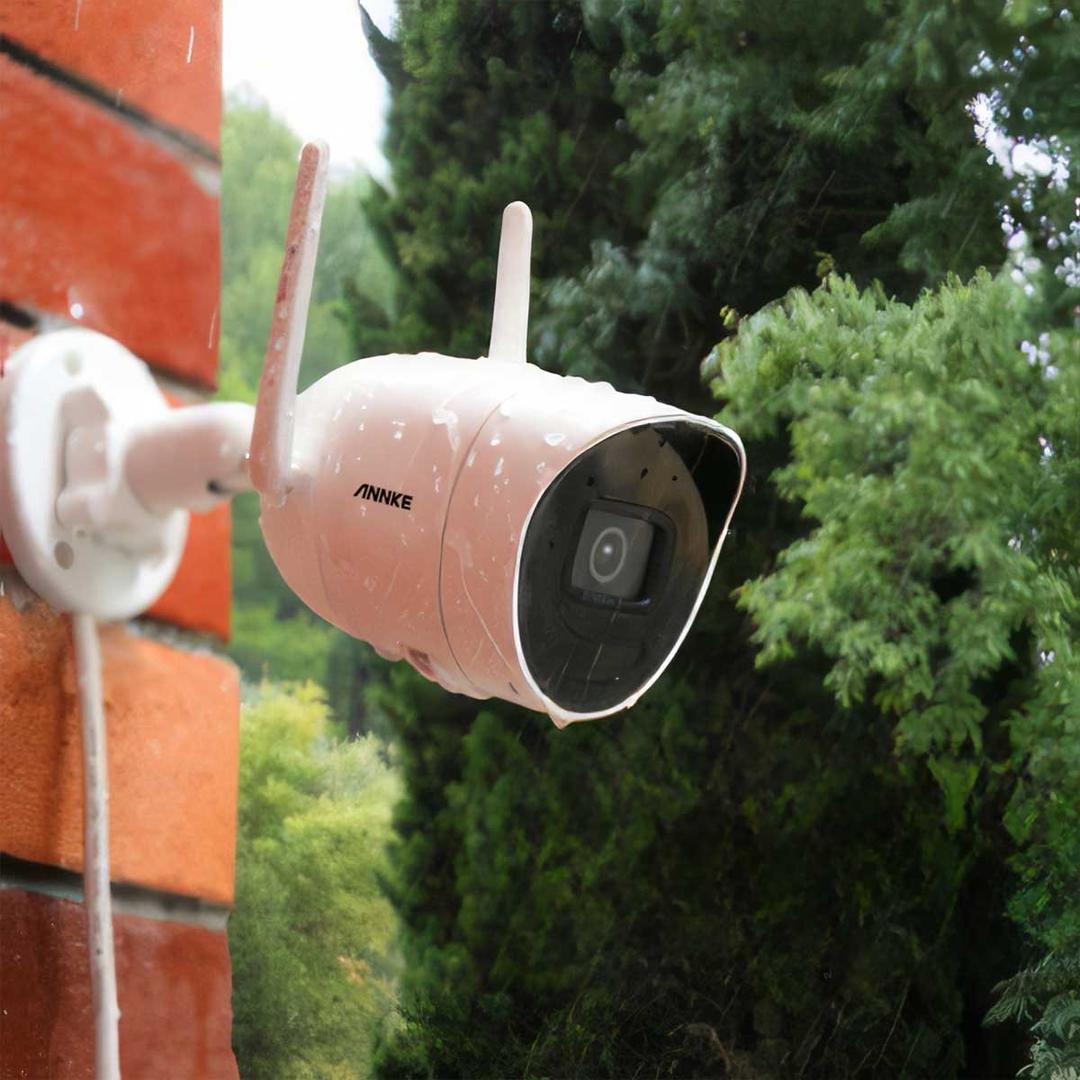

The cameras' robust aluminum housing is weatherproof and IP66 certified. It is corrosion resistant and ensures rapid heat dissipation and is protected against extreme temperatures from -30°C to +60°C.
With the free “Annke Vision” app, the security system can be easily integrated into a smartphone, tablet or PC. With simple QR code scanning, you can watch live videos from anywhere in the world.
Key Features
- 5 MP Super HD WiFi system for video surveillance
- 8-channel NVR with support for up to 8 cameras
- 4 WiFi 5 MP surveillance cameras
- EXIR 3.0 night vision technology for clear images at night
- Digital BLC and HLC for optimal image quality in any lighting condition
- Noise-cancelling microphone for clear audio recordings
- Improved 2T2R MIMO antennas for a smooth WiFi connection
- 265+ video compression for efficient storage and data transfer
- Robust, weatherproof IP66 housing for indoor and outdoor use
- Simple plug and play design without complicated wiring
- Remote control via the “ANNKE Vision” app
- Compatible with various recording modes: continuous, motion detection, manual, event and schedule.
Technical data
N48WHS+I51CE*4 | ||

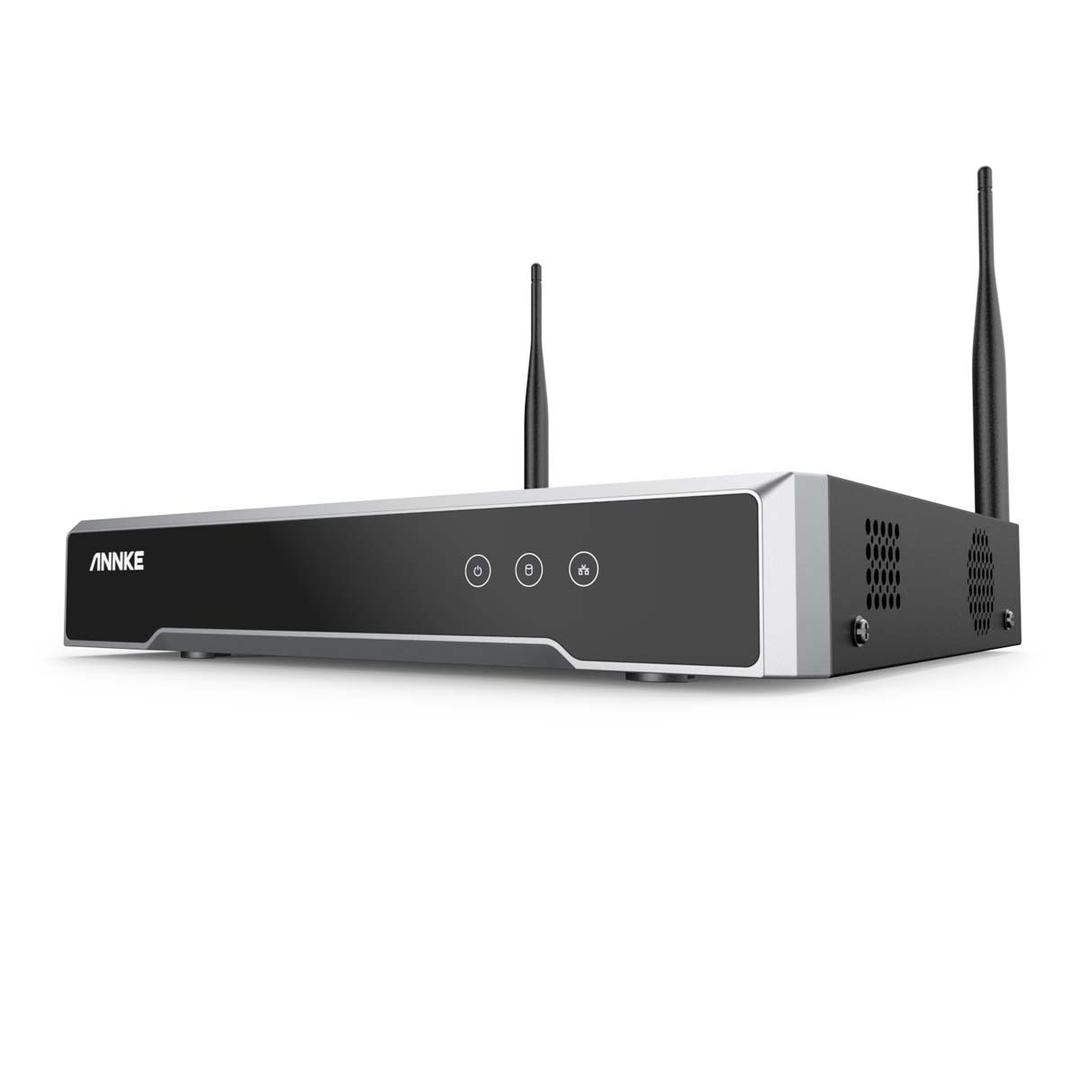

NVR | ||
NVR | Video compression | H.265+/H.264+/H.265/H.264 |
IP video input | 8 CH | |

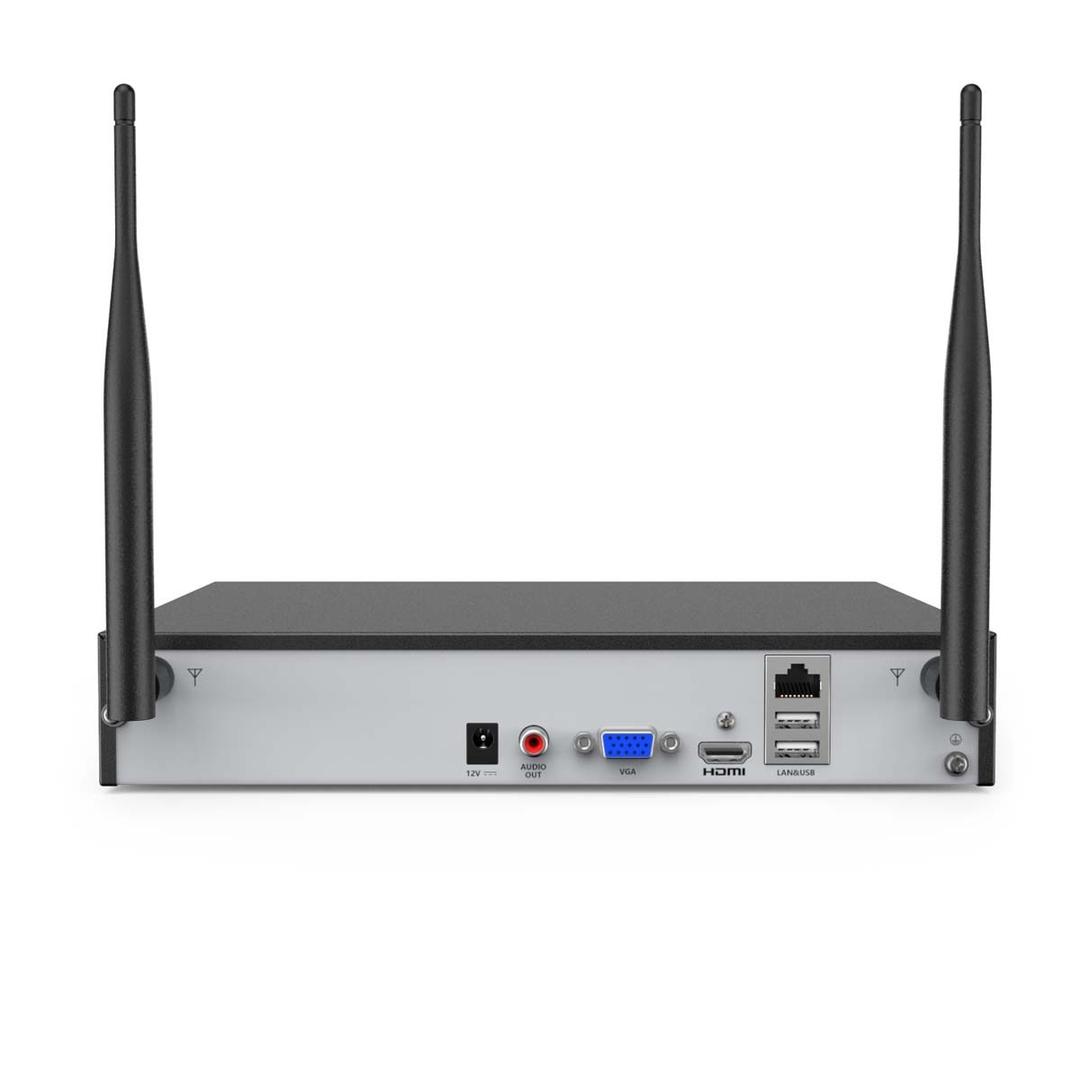

Video output | HDMI and VGA up to 1080p | |
Audio output | Support | |
Max. recording resolution | Up to 5MP (2560X1920) | |
Max. resolution during playback | Up to 5MP (2560X1920) | |
Max. playback channel | 4 CH | |
Max. playback capacity | 4CH 4MP / 3CH 5MP | |
Hard drives | HDD | 1 SATA interface |
Hard drive capacity | Up to 6TB capacity | |
External interface | Network interface | RJ45 X1 (10/100M) |
antenna | 2 ports (IEEE802.11b/g/n) | |
WIRELESS INTERNET ACCESS | 2.4 GHz (integrated antenna) | |
USB | 2x USB 2.0 | |
Generally | Housing | Metal for main part |
Power supply | DC 12V | |
Power consumption | <12W | |
Working temperature | 14°F - 131°F/-10°C - 55°C | |
Dimensions (WXHXT) | 265 x 225 x 48mm (10.4" x 8.9" x 1.9") | |
Weight (without hard drive) | ≤ 1.6kg (3.5lb.) | |
IP camera | ||
camera | Video resolution | 5MP (2560x1920) |
Image sensor | 1/2.8" CMOS with progressive scan | |
Audio compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC | |
Video compression | H.265+/H.264+/H.265/H.264 | |
lens | 2.8mm | |
Viewpoint | Horizontal: 97°; Vertical: 52°; Diagonal: 114° | |
Number of infrared LEDs | 2 | |
Night vision range | Up to 30 m (100 ft) | |
IR cut filter | Yes | |
Ethernet | RJ45 x1 (10M/100M) | |
Generally | WIRELESS INTERNET ACCESS | IEEE802.11b/g/n |
Housing | Front cover: Plastic, Camera body: Metal | |
Power supply | DC 12V | |
operating temperatur | -22°F - 140°F/-30°C - 60°C | |
Inside Outside | Indoor and outdoor | |
Weatherproof | IP66 | |
Dimensions (LXWXH) | 175.6 x 73.0 x 89.1mm (6.9'' x 2.9'' x 3.5'') | |
Weight | 330g (0.7lb.) |
