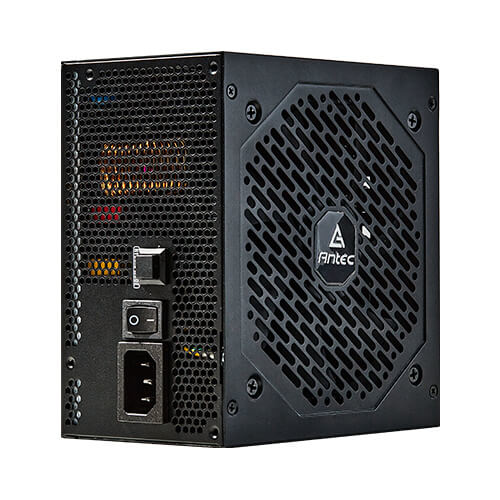

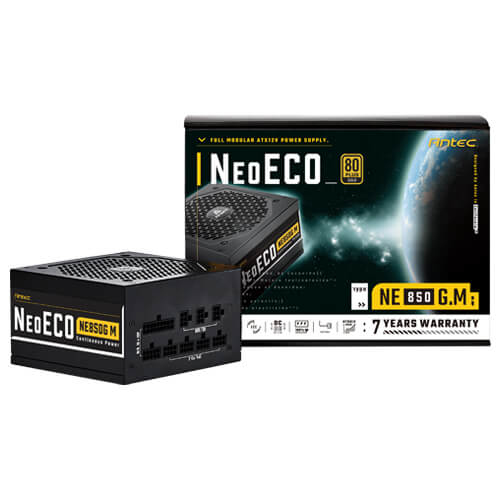

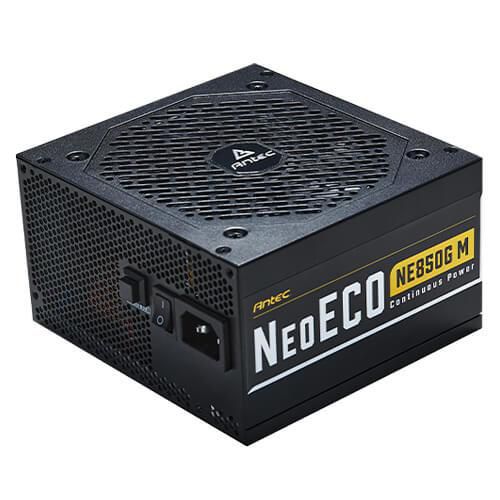

Antec NeoECO Gold Modular NE850G M - Power supply (internal) - ATX12V 2.4/ EPS12V - 80 PLUS Gold - AC 100-240 V - 850 Watt - active PFC - European Economic Area | 0-761345-11763-0
Please sign in so that we can notify you about a reply
Product Features

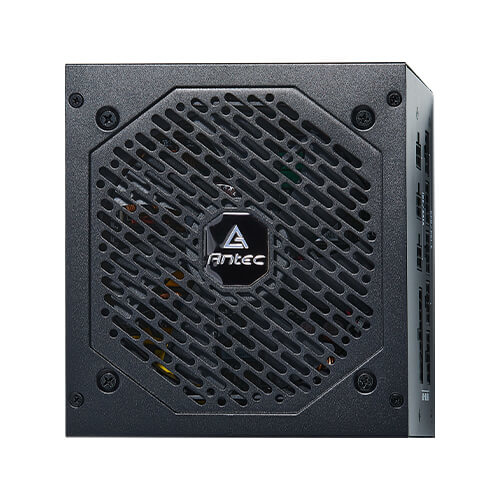

- 120mm silent fan
Features improvement for airflow and excellent durability. - Zero RPM mode
The Zero RPM fan mode further automatically ensures zero fan speed at low loads to reduce plenty of noise and keep absolute silence. - Japanese heavy-duty caps
Japanese capacitors ensure the tightest DC stability and regulation, for reliability that you and your system can count on. - PhaseWave LLC + DC to DC design
A server-class Half-Bridge LLC design with synchronous rectification based on a DC-DC topology to improve performance and stability. - 100% full modular

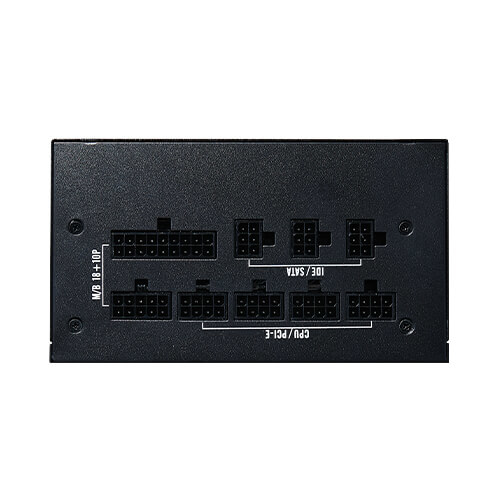

Enables users to use only the cables which are needed and help clear out excess cables that can obstruct and reduce airflow.
Special Fetures
- 120mm silent fan
- Zero RPM mode
- Japanese heavy-duty caps
- PhaseWave LLC + DC to DC design
- 100% full modular
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4/ EPS12V |
| PSU Form Factor | ATX |
| Localisation | European Economic Area |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section ¦ 6 x 8 pin PCI Express power with detachable 2 pin section ¦ 10 x 15 pin Serial ATA power ¦ 5 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 850 Watt |
| Output Current | +5V - 20 A ¦ +3.3V - 20 A ¦ +12V - 70 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 92% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | |
| Cooling System | 120 mm fan |
| Features | Overheat protection, over current protection, over voltage protection, overpower protection, undervoltage protection, short-circuit protection, PhaseWave design, DC-DC technology, Zero RPM fan mode, CircuitShield, no load operation protection, fully modular, Surge & Inrush Protection (SIP), LLC Half Bridge Topology |
| Compliant Standards | TUV, BSMI, CB, FCC, ICES, cTUVus, KC, RCM, BIS, UKCA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 7 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
| Weight | 1.38 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 2.55 kg |
Features - Antec - 0-761345-11763-0
More Details
Product Code
04:418082
EAN Code
0761345117630
Manufacturer
Antec
No posts found
