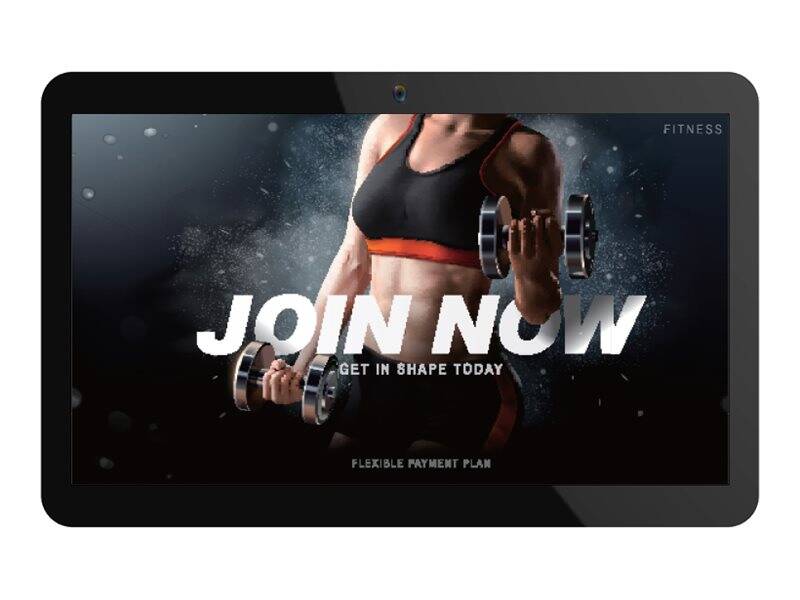

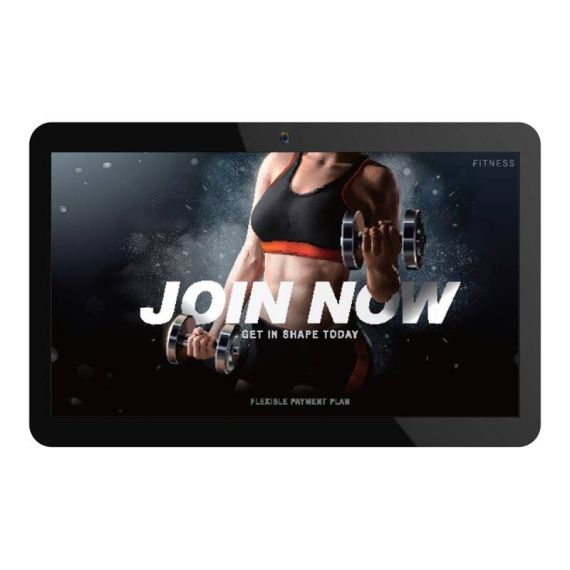

AOpen eTILE 19-FKB / All-in-one Core i5 7300U / up to 3.5 GHz / RAM 8 GB / SSD 128 GB / NVMe / HD Graphics 620 / Gigabit Ethernet / Windows 10 / monitor: LED 19.5" 1920 x 1080 (Full HD) touchscreen | 91.WT300.FK90
Please sign in so that we can notify you about a reply
Product Features
- Enhanced audio experience
Equipped with high definition audio standards and an integrated Realtek ALC269 audio codec chip, this device delivers crystal-clear stereo sound output. Paired with right/left channel speakers, it ensures an immersive audio experience for any multimedia content. - High-definition visuals
Featuring a 19.5-inch Full HD LED display with Projected Capacitive Touch (PCT) technology, the AOpen eTILE 19-FKB offers vivid image clarity and responsive 10-point multi-touch functionality. With a 178-degree viewing angle, images remain sharp and clear from almost any perspective. - Robust connectivity options
This all-in-one PC boasts a variety of connectivity options, including HDMI output, four USB 3.0 ports, Gigabit Ethernet, and multiple serial and audio connections, facilitating easy integration into any workspace or multimedia setup. - Durable and secure design
Designed with IP65 front and IPX2 back compliance standards, alongside an IK07 impact resistance rating, the AOpen eTILE 19-FKB is built to withstand challenging environments. Additionally, it features a Trusted Platform Module (TPM 2.0) security chip, ensuring data integrity and protection. - Powerful performance
Powered by an Intel Core i5-7300U processor with a dual-core architecture and speeds up to 3.5 GHz, along with 8 GB of dual-channel DDR4 RAM, this device is capable of handling demanding applications and multitasking with ease.
Special Features
- 19.5-inch Full HD 1080p display with LED backlight and touch functionality
- Integrated high definition audio with stereo speakers for an immersive sound experience
- Built-in 5.0 megapixel camera and microphone for high-quality video conferencing
- Robust connectivity with HDMI, USB 3.0, Gigabit Ethernet, and more
- Durable design with IP65 front protection against dust and water
Product Specification
| Type | Personal computer |
| Product Form Factor | All-in-one |
| Built-in Devices | Watchdog timer, stereo speakers, 5.0 megapixel camera, antenna |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i5 (7th Gen) 7300U |
| Clock Speed | 2.6 GHz |
| Max Turbo Speed | 3.5 GHz |
| Number of Cores | Dual-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Cache Memory | Cache Memory |
| Installed Size | 3 MB |
| Cache Per Processor | 3 MB |
| RAM | RAM |
| Installed Size | 8 GB (installed) / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Effective Memory Speed | 2133 MHz |
| Rated Memory Speed | 2133 MHz |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 0 (empty) |
| Features | Dual channel memory architecture |
| Configuration Features | 2 x 4 GB |
| Hard Drive | Hard Drive |
| Type | SSD - M.2 2280 |
| Capacity | 128 GB |
| Features | NVM Express (NVMe) |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | LED - VA |
| Touchscreen | Yes (10-point multi-touch) |
| Diagonal Size | 19.5" |
| Native Resolution | 1920 x 1080 (Full HD) |
| Widescreen Display | Yes |
| Image Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178 |
| Vertical Viewing Angle | 178 |
| Response Time | 25 ms |
| Image Brightness | 250 cd/m² |
| Image Contrast Ratio | 3000:1 |
| Monitor Features | Projected Capacitive Touch (PCT) technology, Slim Metal Design, detachable back cover, rubber bezel |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel HD Graphics 620 |
| Video Interfaces | HDMI |
| Multimedia Functionality | Multimedia Functionality |
| Supported Digital Video Standards | HEVC |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Speakers Included | 2 x right / left channel |
| Camera | Camera |
| Camera | Yes |
| Resolution (MP) | 5 Megapixel (front) |
| Resolution | Full HD |
| Audio Input | Audio Input |
| Type | Microphone |
| Networking | Networking |
| Ethernet Controller | Realtek RTL8111G |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Slots | 2 M.2 Card - 2242 (Key B) 1 M.2 Card - 2230 (Key E) |
| Interfaces | 1 x HDMI output 4 x USB 3.0 1 x LAN (Gigabit Ethernet) - RJ-45 4 x serial - RJ-50 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x AiCU remote LAN |
| Miscellaneous | Miscellaneous |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Compliant Standards | IP65 front, IK07, IPX2 back |
| Power | Power |
| Device Type | Power adapter |
| Voltage Required | AC 100-240 V |
| Power Provided | 90 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | Windows 10 |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 49.4 cm |
| Depth | 3.337 cm |
| Height | 30.8 cm |
| Weight | 5.97 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 90% RH (non-condensing) |
