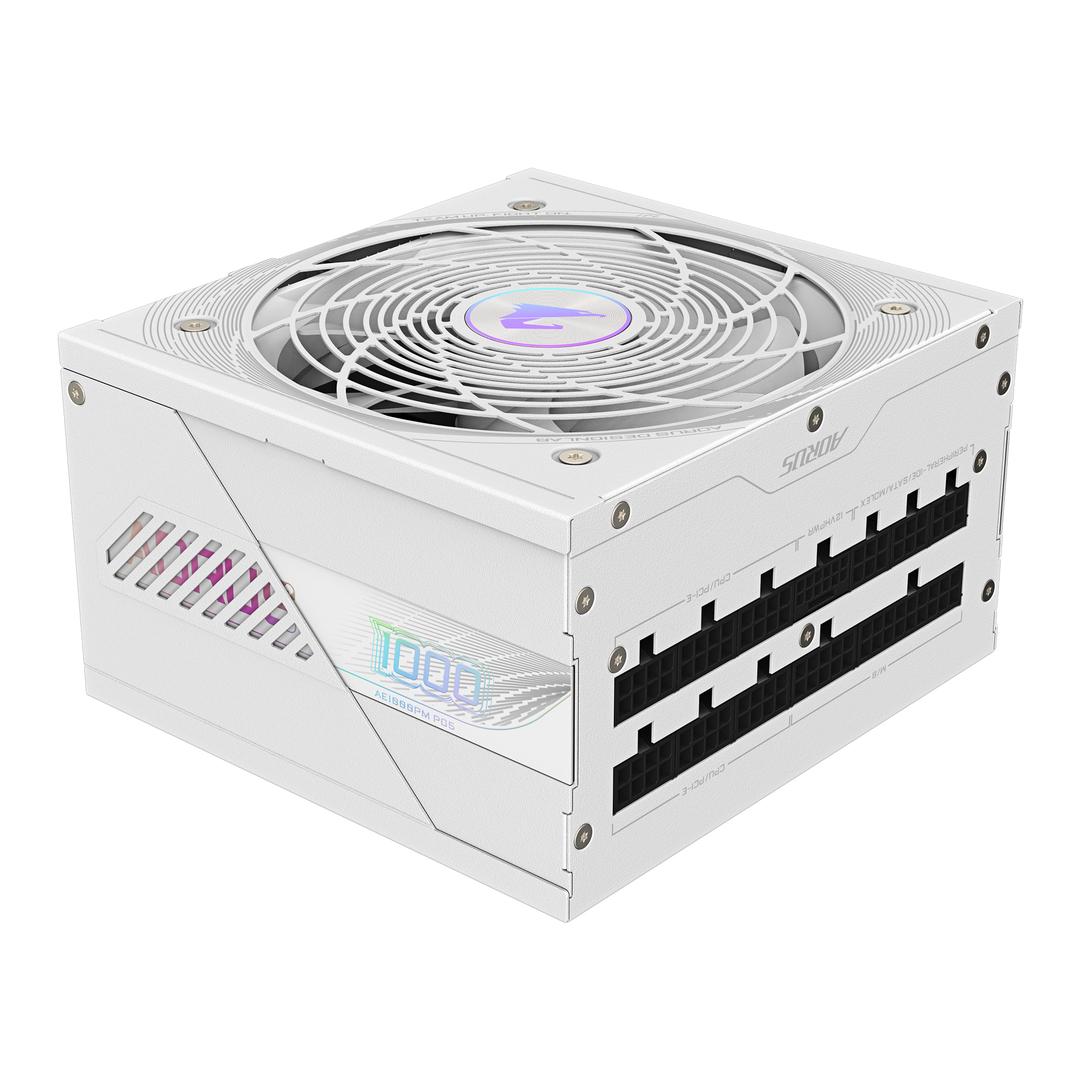

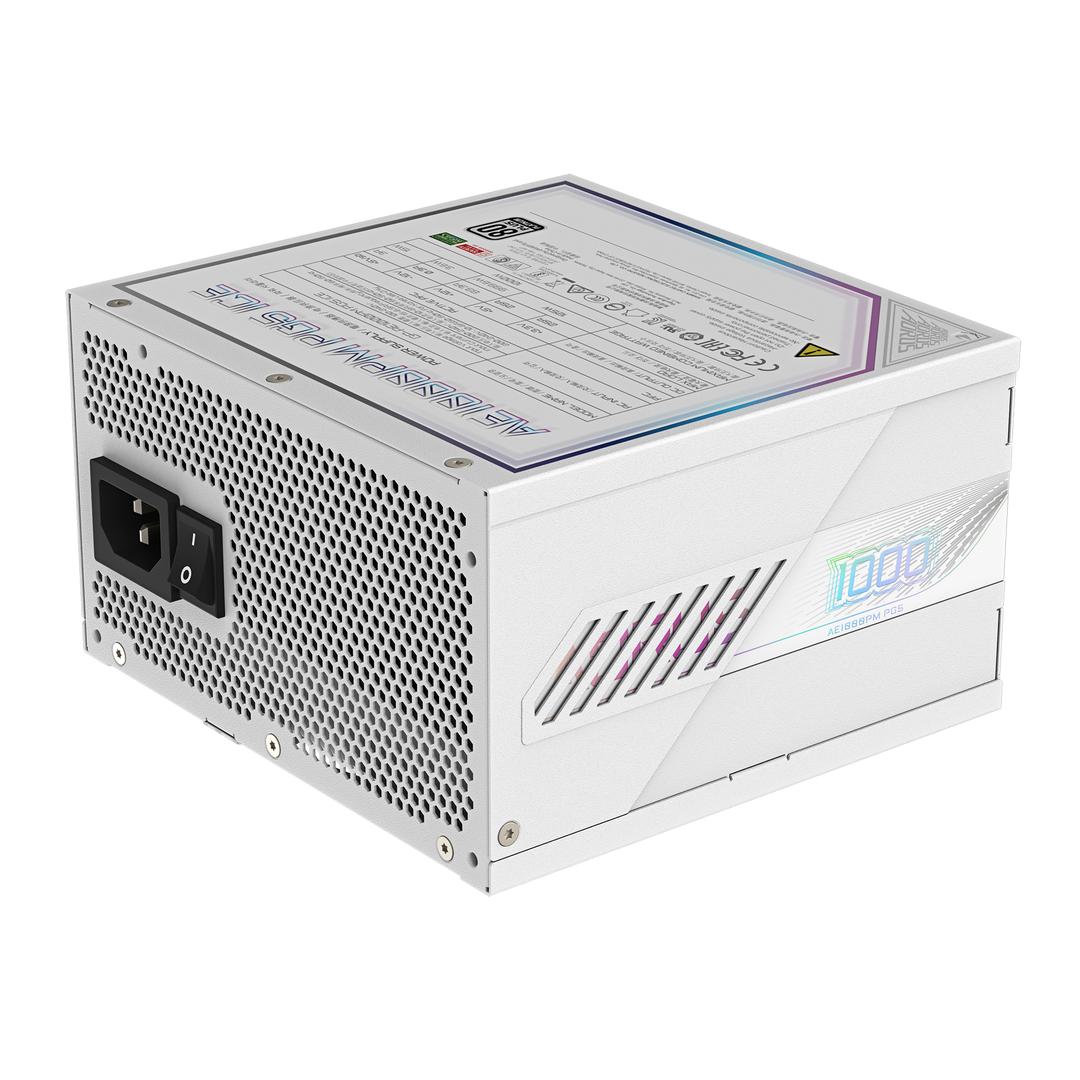

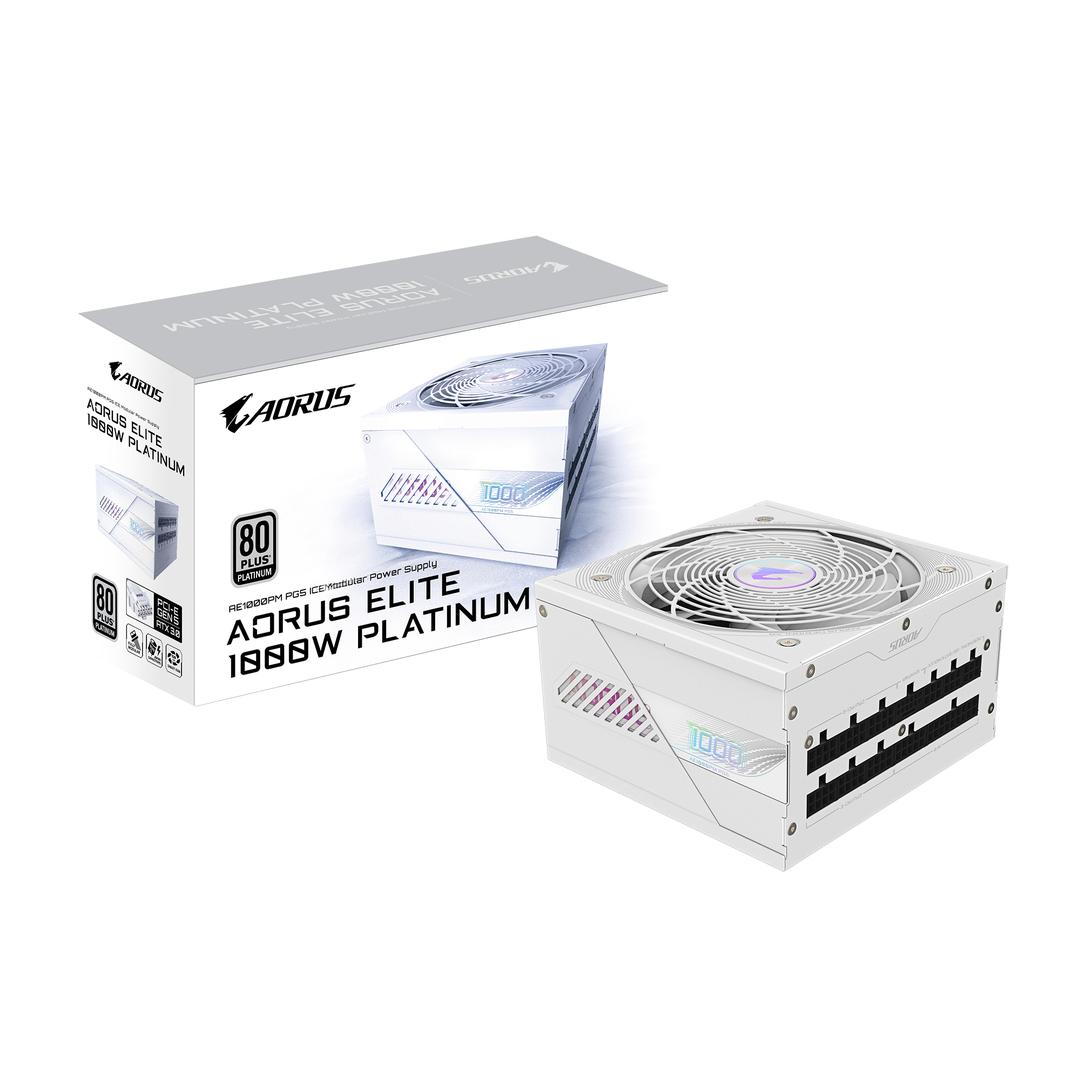

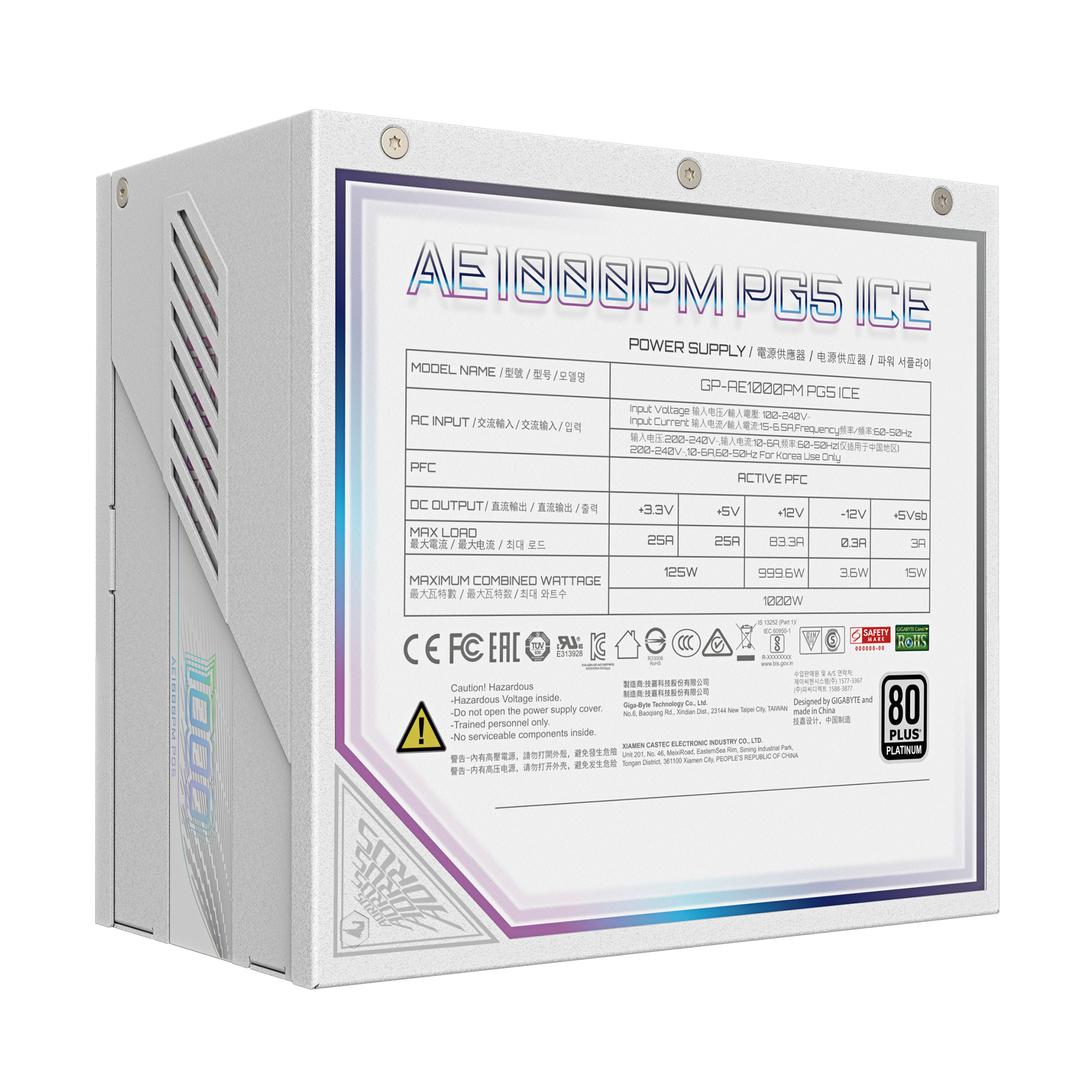

AORUS ELITE AE1000PM PG5 ICE - Power supply (internal) - ATX12V 3.0/ EPS12V - 80 PLUS Platinum - AC 100-240 V - 1000 Watt - active PFC | GP-AE1000PM PG5 ICE
Please sign in so that we can notify you about a reply
Product Features
- Reliable power output
The power supply provides consistent voltage outputs of +3.3V, +5V, and +12V, ensuring reliable power delivery for all connected components. - Advanced cooling system

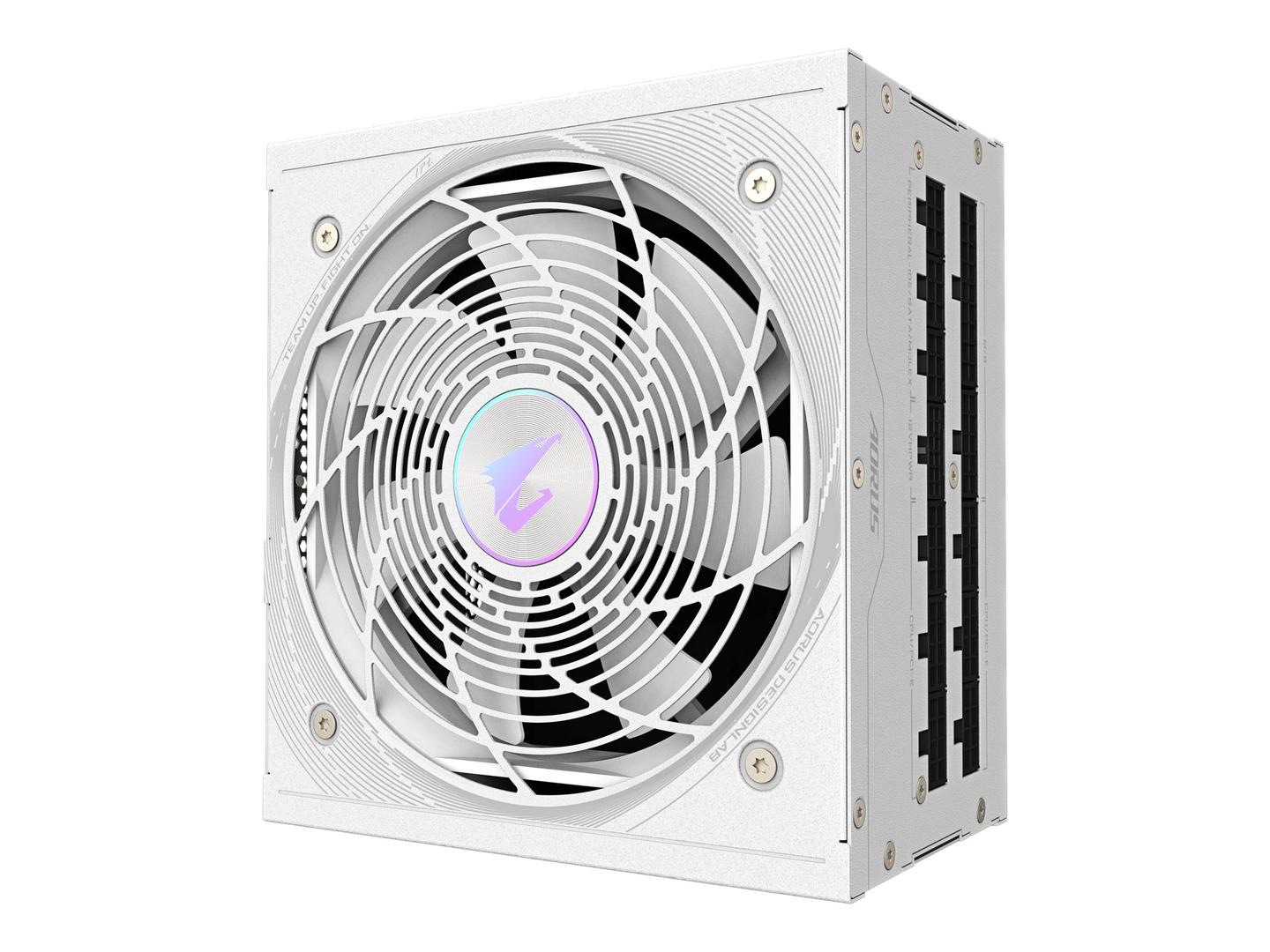

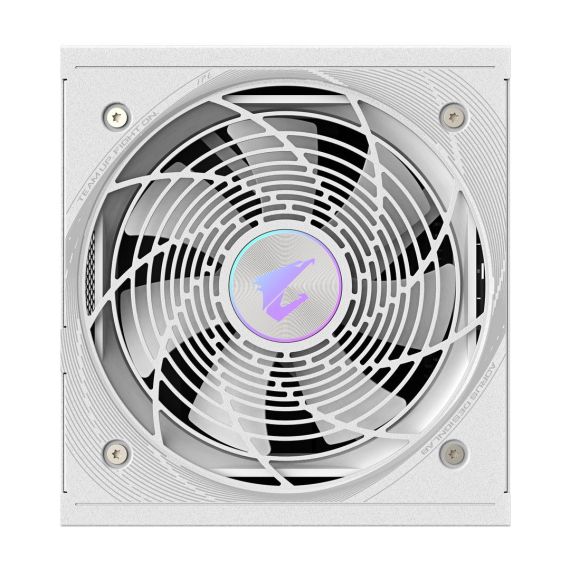

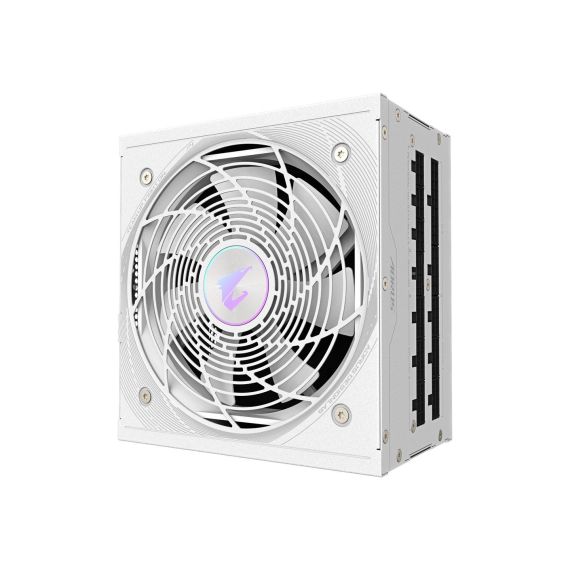

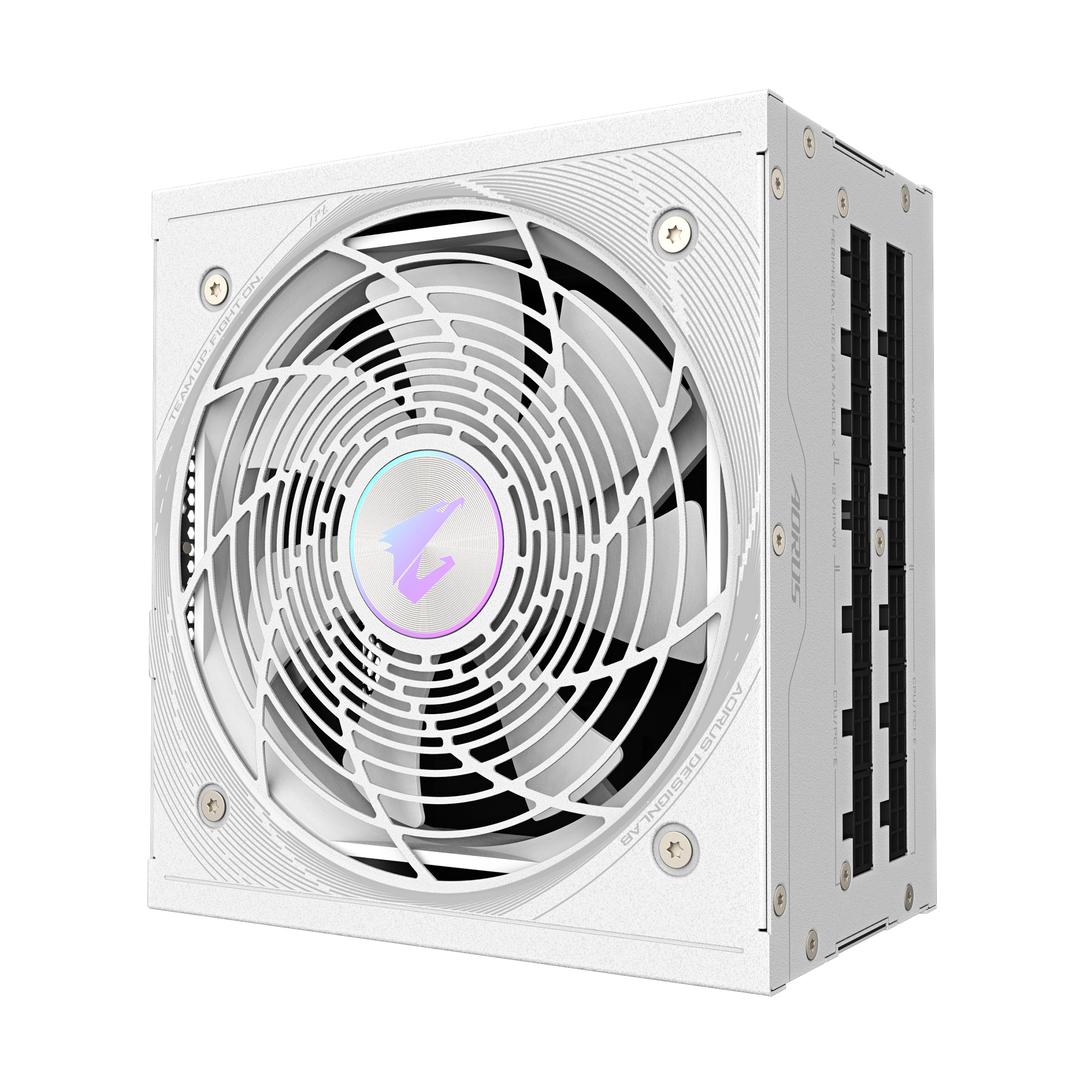

Incorporates a 120 mm fan with fluid dynamic bearings, promoting effective heat dissipation and minimal noise levels. - Modular cable management
Features a fully modular design, allowing users to connect only the cables they need for their build and enhance airflow inside the case. - Robust safety protections
Offers multiple layers of safety including overvoltage, overcurrent, and short-circuit protections to defend against electrical failures. - Long-lasting durability
Engineered with a MTBF of 100,000 hours, promising years of dependable use while meeting various compliance standards.
Special Fetures
- 1000 watts power output for high-performance systems
- 80 PLUS Platinum certification for high efficiency
- Fully modular cable design for optimized cable management
- Comprehensive protection features for safety
- Silent operation with Zero RPM fan mode
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 3.0/ EPS12V |
| PSU Form Factor | ATX |
| Power Device | |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50 - 60 Hz |

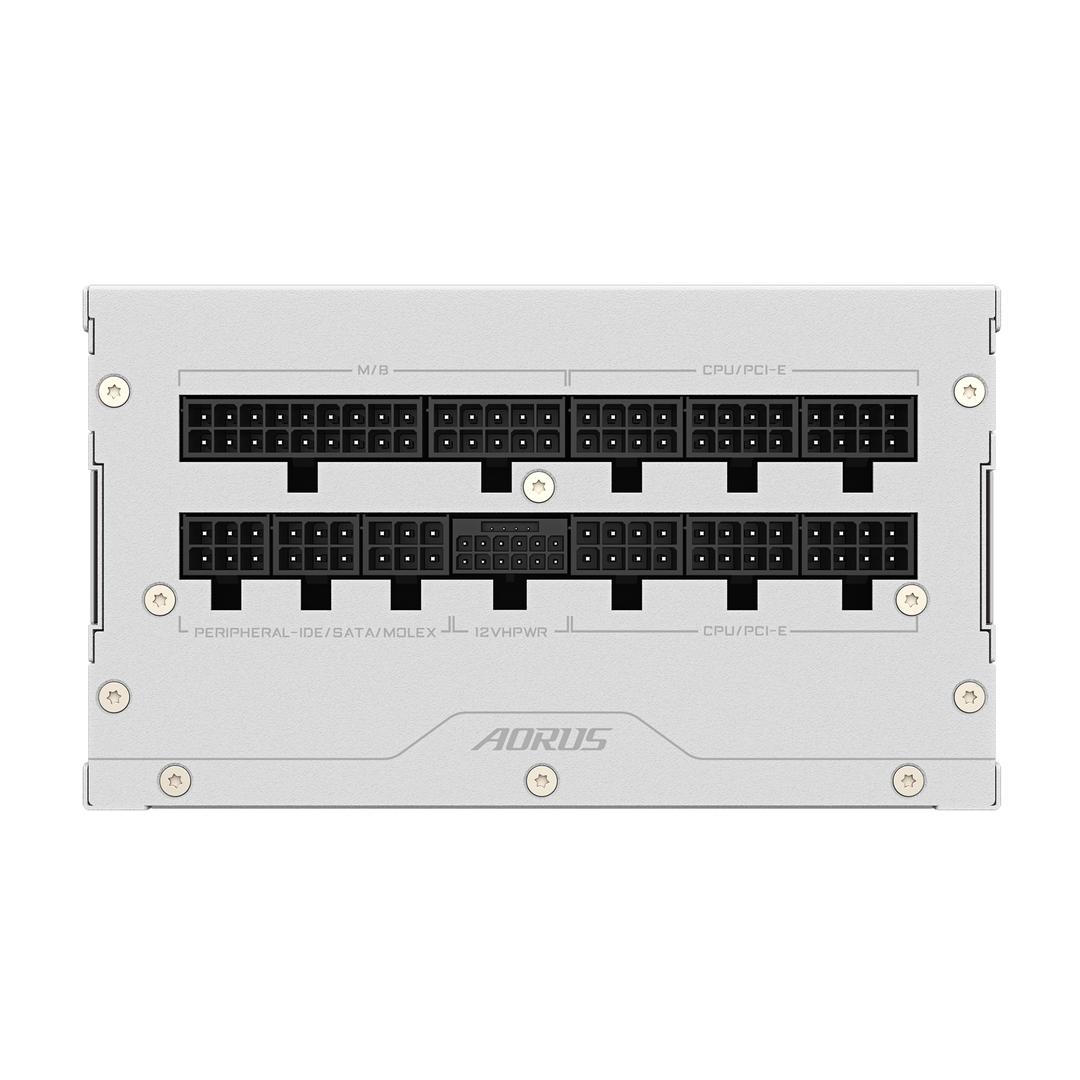

| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section <br /> 2 x power 8 pin EPS12V with detachable 4 pin ATX12V section <br /> 4 x 2 x 8 pin PCI Express power with detachable 2 pin section <br /> 16 x 15 pin Serial ATA power <br /> 4 x 4 PIN internal power <br /> 1 x 12VHPWR <br /> 2 x 8 pin PCI Express power with detachable 2 pin section |
| Output Voltage | +3.3, +5, ?12 V |
| Power Capacity | 1000 Watt |
| Output Current | +3.3V - 25 A <br /> +5V - 25 A <br /> +12V - 83.3 A <br /> -12V - 0.3 A <br /> +5VSB - 3 A |
| Efficiency | 92% |
| Modular Cable Management | Yes |
| 80 PLUS Certification | 80 PLUS Platinum |
| Miscellaneous | |
| Included Accessories | Magnetic side labels |
| Cables Included | AC power cable <br /> Power 24 pin ATX with detachable 4 pin section modular cable 65 cm <br /> 2 x power 8 pin +12V with detachable 4 pin section modular cable 70 cm <br /> 2 x 2x 8 pin PCI Express power with detachable 2 pin section modular cable 80 cm <br /> 2 x 8 pin PCI Express power with detachable 2 pin section modular cable 75 cm <br /> 16-pin 12VHPWR power modular cable 70 cm <br /> 2 x 15 pin Serial ATA power modular cable 1.05 m <br /> 4 pin power modular cable 95 cm |
| MTBF | 100,000 hours |
| Cooling System | 120 mm fan |
| Features | Fully modular, fluid dynamic bearing cooling fan, over voltage protection, overpower protection, short-circuit protection, undervoltage correction, over current protection, overheat protection, Zero RPM fan mode |
| Compliant Standards | FCC, EAC, CCC, WEEE, RoHS, KCC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 10 years |
| Dimensions & Weight | |
| Width | 15 cm |
| Depth | 14 cm |
| Height | 8.6 cm |
Features - GigaByte - GP-AE1000PM PG5 ICE
More Details
Product Code
04:504561
EAN Code
4719331554651
Manufacturer
GigaByte
