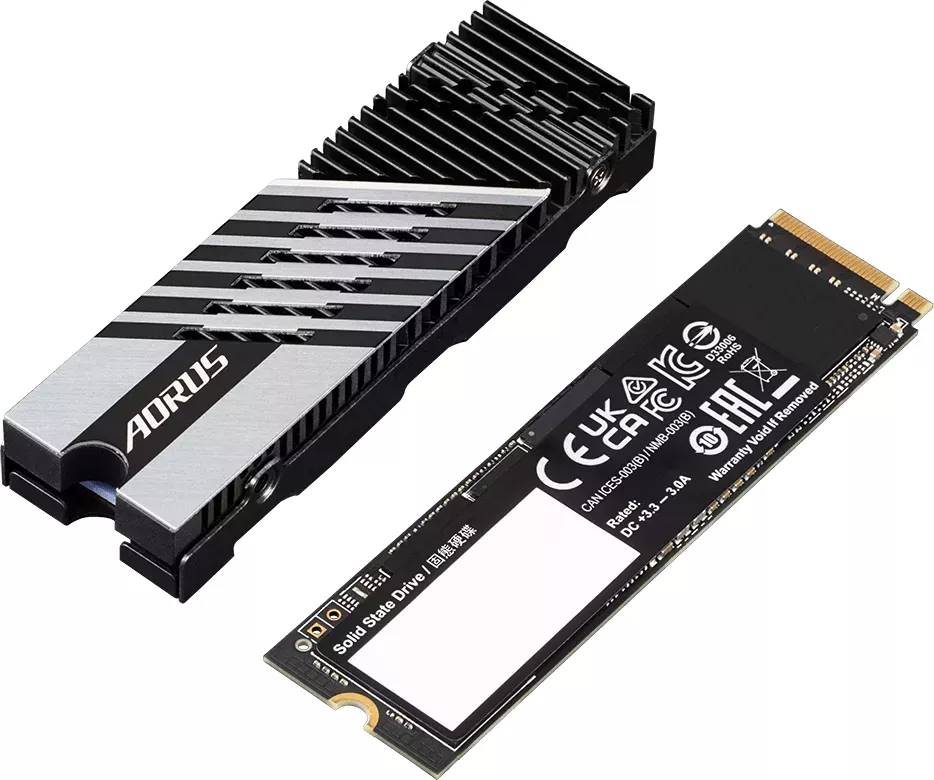

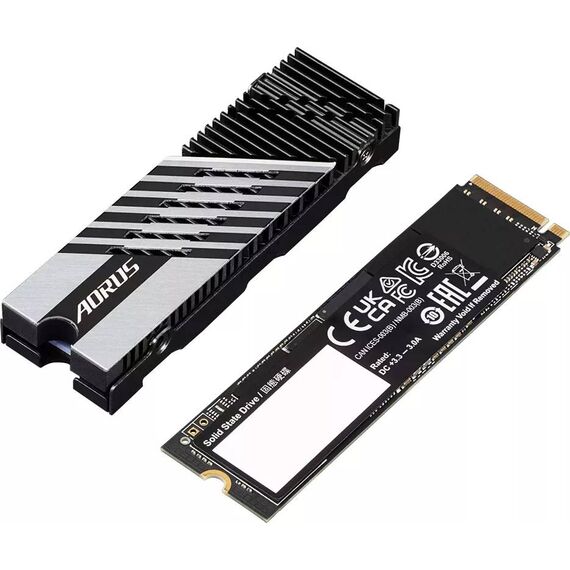

AORUS Gen4 7300 / SSD / encrypted / 2 TB / internal / M.2 2280 / PCIe 4.0 x4 (NVMe) / 256-bit AES | AG4732TB
Please sign in so that we can notify you about a reply
Product Features
- Extremely fast PCIe 4.0 throughput
AORUS Gen4 7300 SSD delivers sequential read up to 7.3 GB/s with 8 Channel controller- Phison E18- and 3D TLC NAND. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4. - Xtreme storage performance
By adopting Phison E18 controller and 3D TLC NAND, AORUS Gen4 7300 SSD delivers blazing speeds: up to 7,300 MB/s for sequential read, and up to 6,000 MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering. - Optimized aluminum heat spreaders with nanocarbon coating for 20% cooler
Challenged passive cooling to maximize surface area for heat dissipation with advanced thermal technology Nanocarbon coating. Applied with dual side high conductivity thermal pad ensures the heat transferring to the heatsink. The 7 mm height heatsink is compatible with all the M.2 slots including the one under graphic card. - Efficient heat spreader design
Compared with regular heat spreader, the high efficient heat spreader improves thermal dissipation to extend 46% more time running at high speed. In addition, compared to the one without heatsink, AORUS Gen4 7300 SSD running 5 times longer at 7.3 GB/s. Enjoy the smoother and upgraded storage performance. - AORUS Gen4 7300 SSD meets SSD expansion requirements of PS5
AORUS Gen4 7300 SSD with Aluminum Heat Spreaders meets the required performance and dimensions of PS5 M.2 SSD. Adopting by Aluminum Heat Spreaders with Nanocarbon Coating, AORUS Gen4 7300 SSD improves thermal dissipation and helps to prevent throttling. AORUS Gen4 7300 SSD is fully reach ps5 requirement and give the best gaming experience. Looking for the best partner for your PS5? Enjoy the thrilling gaming experience by applied AORUS Gen4 7300 SSD to your PS5 to expand more capacities.
Special Features
- Extremely fast PCIe 4.0 throughput
- Xtreme storage performance
- Optimized aluminum heat spreaders with nanocarbon coating for 20% cooler
- Efficient heat spreader design
- AORUS Gen4 7300 SSD meets SSD expansion requirements of PS5
Product Specification
| Device Type | Solid state drive - internal |
| Capacity | 2 TB |
| Hardware Encryption | Yes |
| Encryption Algorithm | 256-bit AES |
| NAND Flash Memory Type | 3D triple-level cell (TLC) |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 (NVMe) |
| Features | TRIM support, Wear Leveling Support, NVM Express (NVMe) 1.4, DDR4 DRAM Cache, Phison E18 controller, over-provision, 8-channel controller, PlayStation compatible, S.M.A.R.T. |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.3 mm |
| Performance | Performance |
| SSD Endurance | 14000 TB |
| Internal Data Rate | 7300 MBps (read) / 6850 MBps (write) |
| Reliability | Reliability |
| MTBF | 1,600,000 hours |
| Expansion & Connectivity | Expansion & Connectivity |
| Interfaces | 1 x PCI Express 4.0 x4 (NVMe) - M.2 Card |
| Compatible Bay | M.2 2280 |
| Power | Power |
| Power Consumption | 8.1 Watt (read) ¦ 7.4 Watt (write) ¦ 30 mW (idle) |
| Miscellaneous | Miscellaneous |
| Compliant Standards | C-Tick, FCC, RoHS, WEEE, EAC, UKCA |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years / 1400 TBW |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 70 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 85 °C |
Features - GigaByte - AG4732TB
Form Factor
- 2.5"
- Internal
Capacity
2TB
Interface
- M.2
More Details
Product Code
04:520081
EAN Code
4719331851651
Manufacturer
GigaByte
