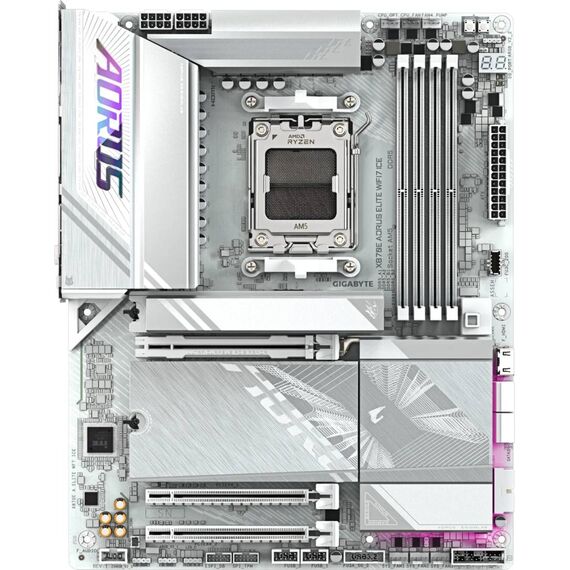

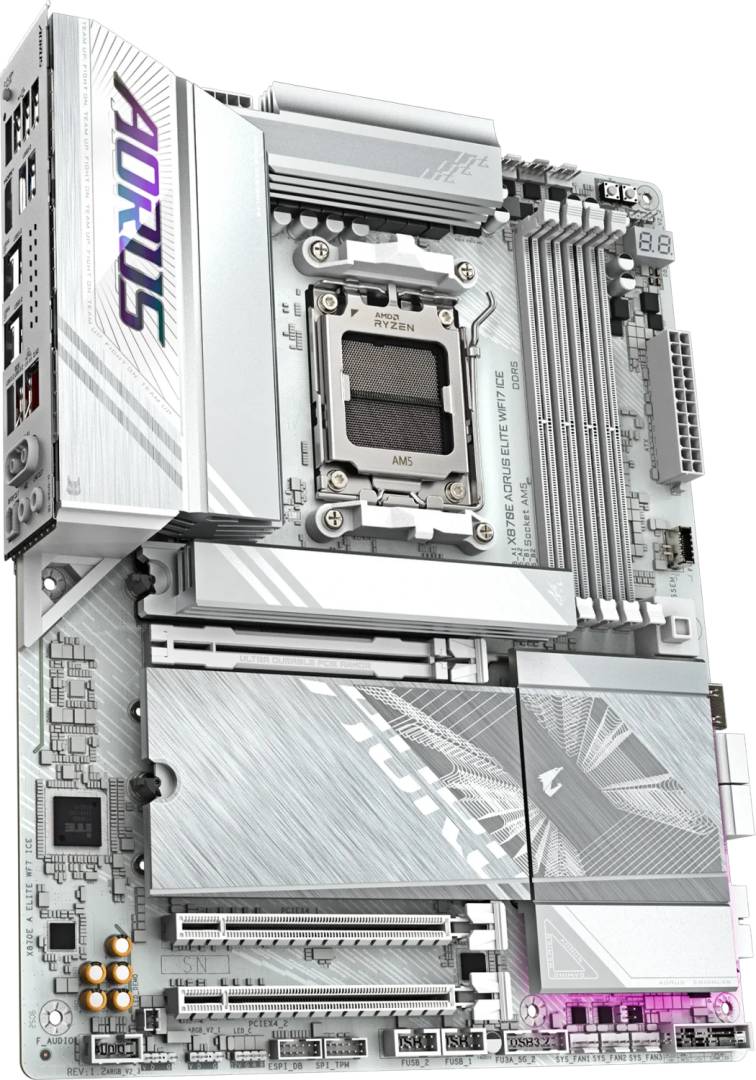

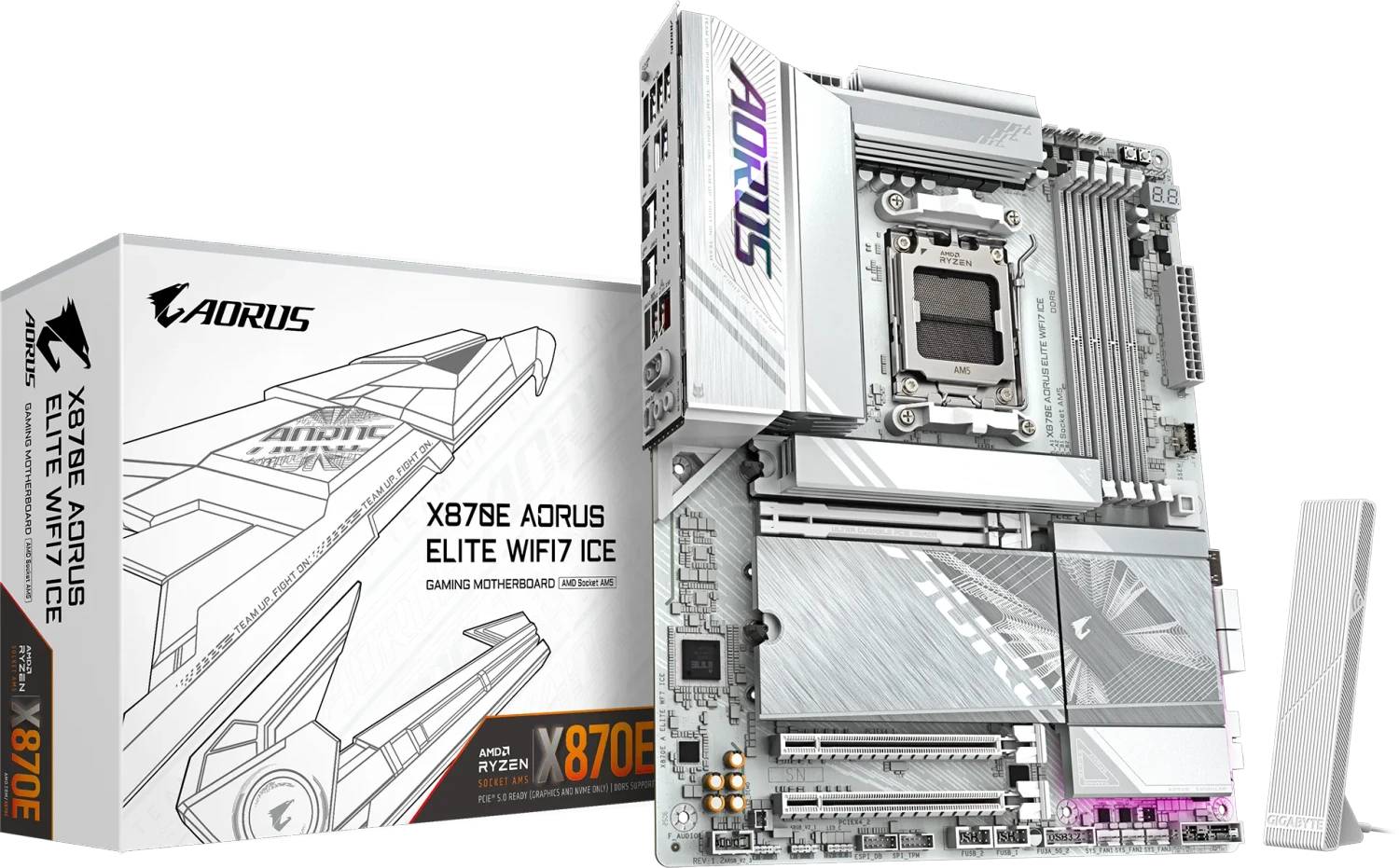

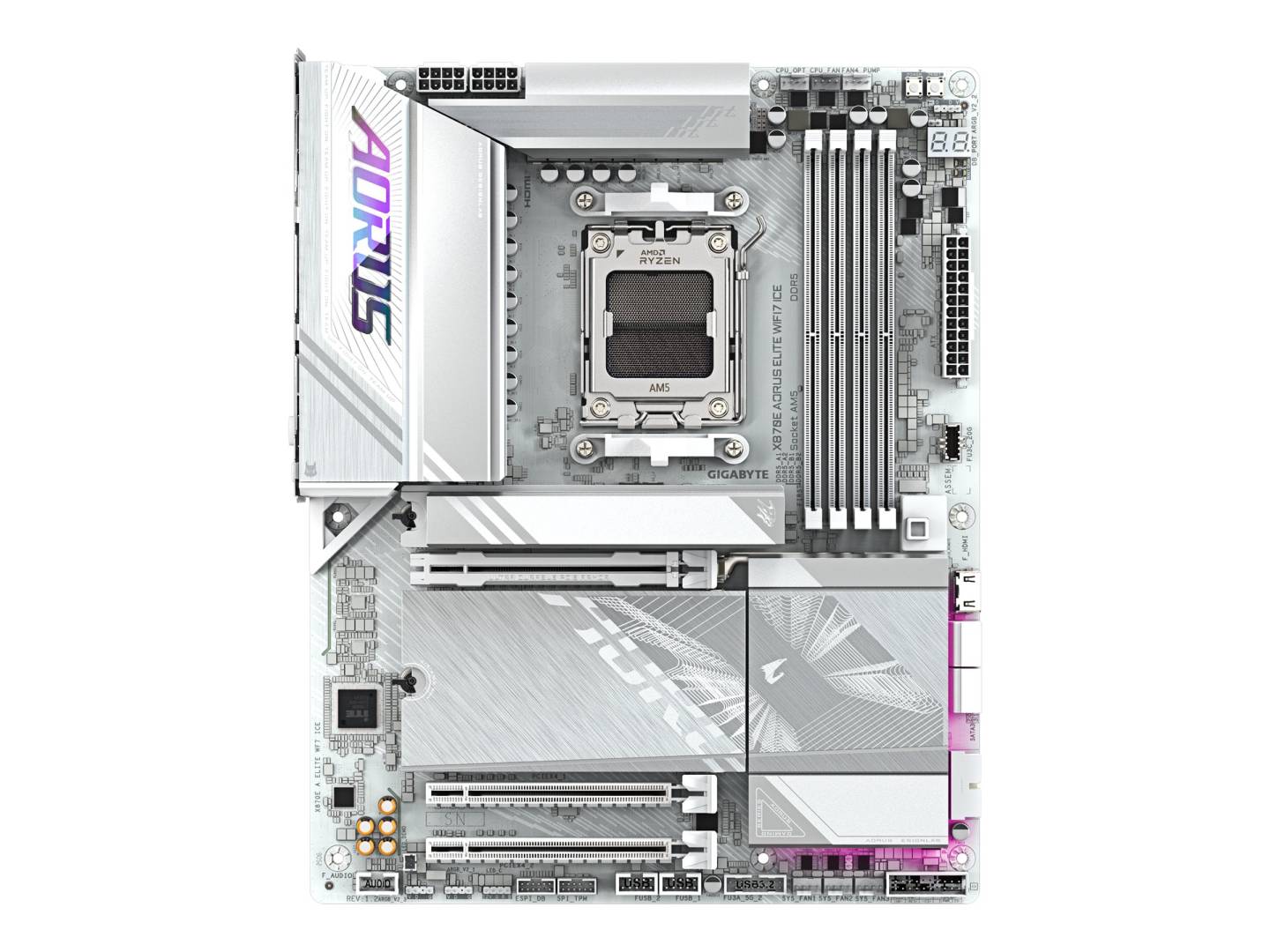

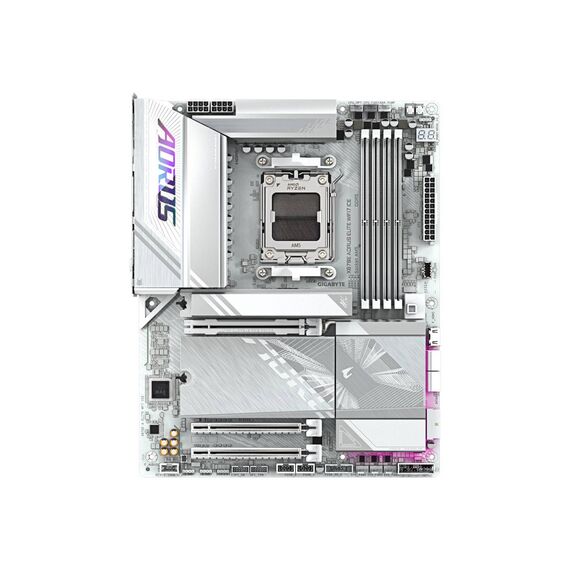

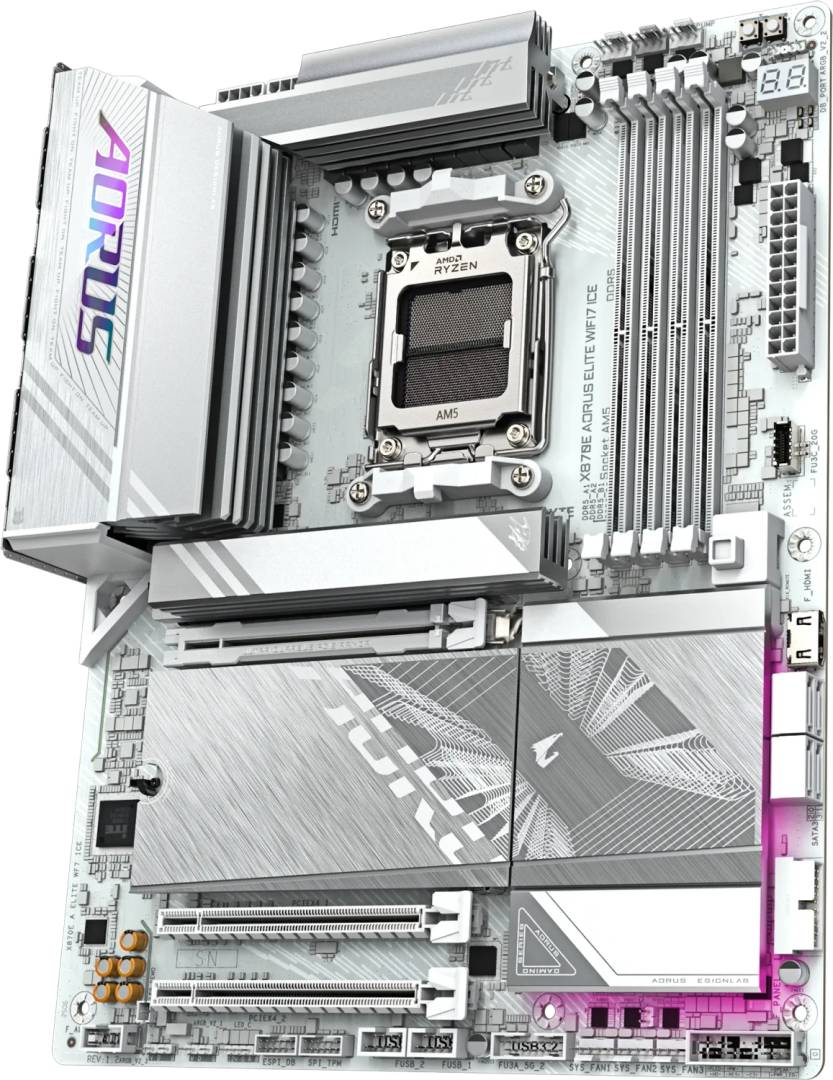

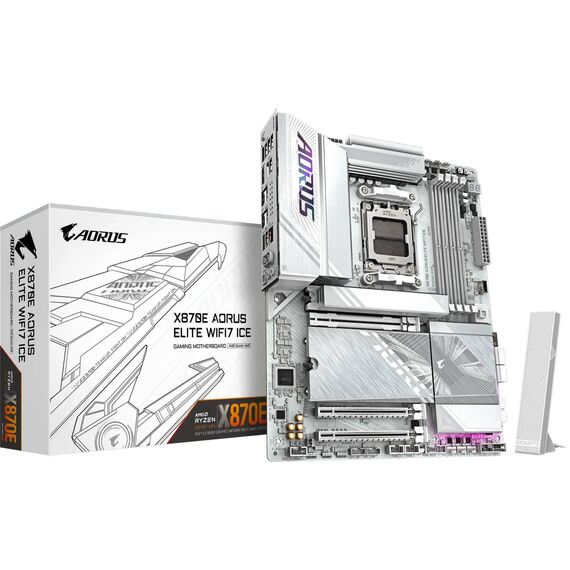

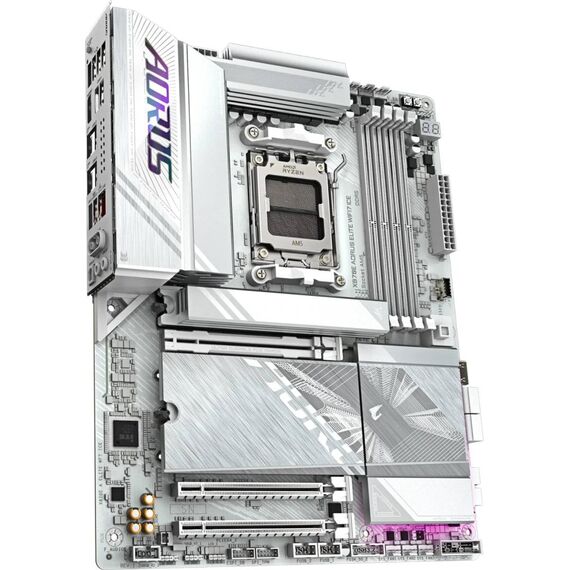

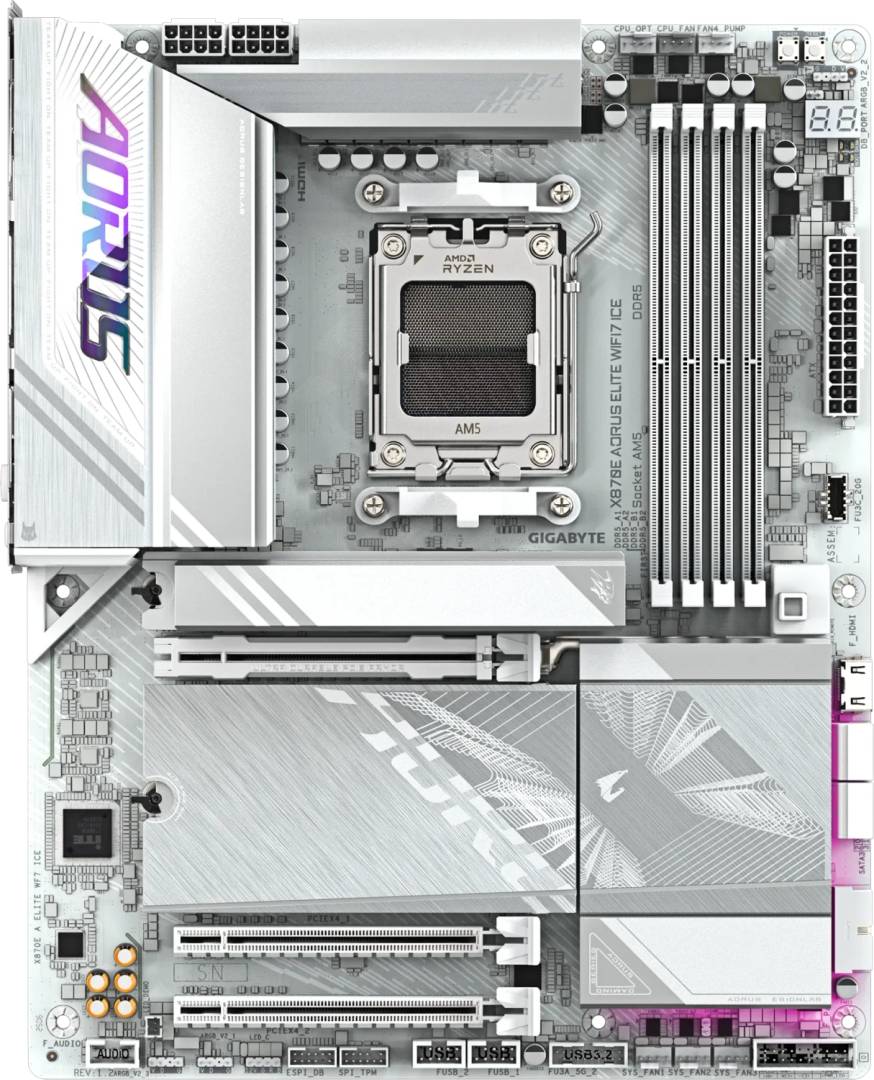

AORUS X870E ELITE WIFI7 ICE / Motherboard / ATX / Socket AM5 / AMD X870E Chipset / USB4, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi 7 / onboard graphics (CPU required) / HD Audio (8-chann | X870E A ELITE WIFI7 ICE
Please sign in so that we can notify you about a reply
Product Features
- Impressive audio capabilities
The motherboard features a high definition audio output powered by Realtek ALC1220, ensuring a rich and immersive sound experience for gaming and media consumption. - Versatile expansion options
With support for four M.2 slots and multiple SATA connections, this motherboard allows users to configure their storage solutions to meet varying performance and capacity needs. - Enhanced connectivity
Equipped with a variety of USB ports including USB4 and USB 3.2 Gen 2, users can enjoy faster data transfer rates and connect multiple devices without hassle. - Customizable aesthetics
The RGB FUSION technology integrated into the motherboard allows users to create a personalized lighting setup that complements their build, enhancing overall visual appeal. - Robust cooling management
Designed with GIGABYTE Smart Fan 6 technology, the motherboard provides efficient fan control and monitoring, ensuring optimal cooling performance during intensive workloads.
Special Features
- Supports Ryzen processors with Socket AM5
- Offers high definition audio with 8-channel output
- Includes multiple M.2 slots for flexible storage options
- Features extensive USB connectivity including USB4
- Equipped with advanced thermal management and RGB lighting
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870E |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 4100 Mhz (O.C), 4000 MHz (O.C.), 3900 MHz (O.C.), 3800 MHz (O.C.), 3600 MHz (O.C.), 3500 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3300 MHz (O.C.), 3200 MHz (O.C.), 3100 MHz (O.C.), 3000 MHz (O.C.), 2800 MHz (O.C.), 2600 MHz, 2400 MHz, 2200 MHz |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | AMD EXPO technology, dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8922AE |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x4 1 x PCIe 3.0 x4 1 x M.2 socket (2280/2580/22110/25110 M.2 Key M slot) 3 x M.2 socket (22110/2280) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 3 x M.2 PCIe 4.0 -connectors: 1 x M.2 |

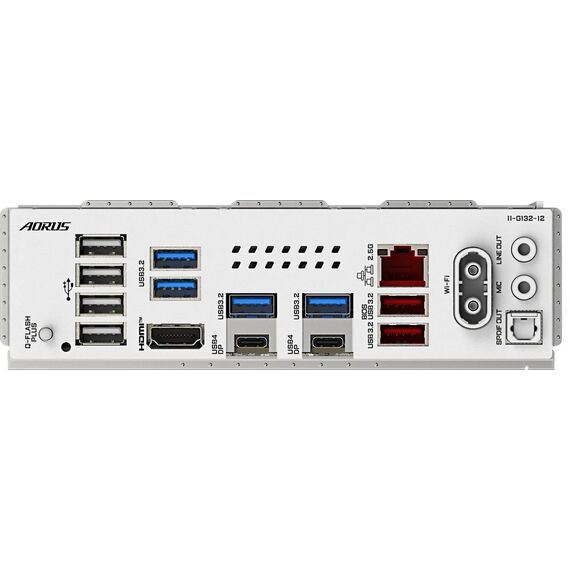

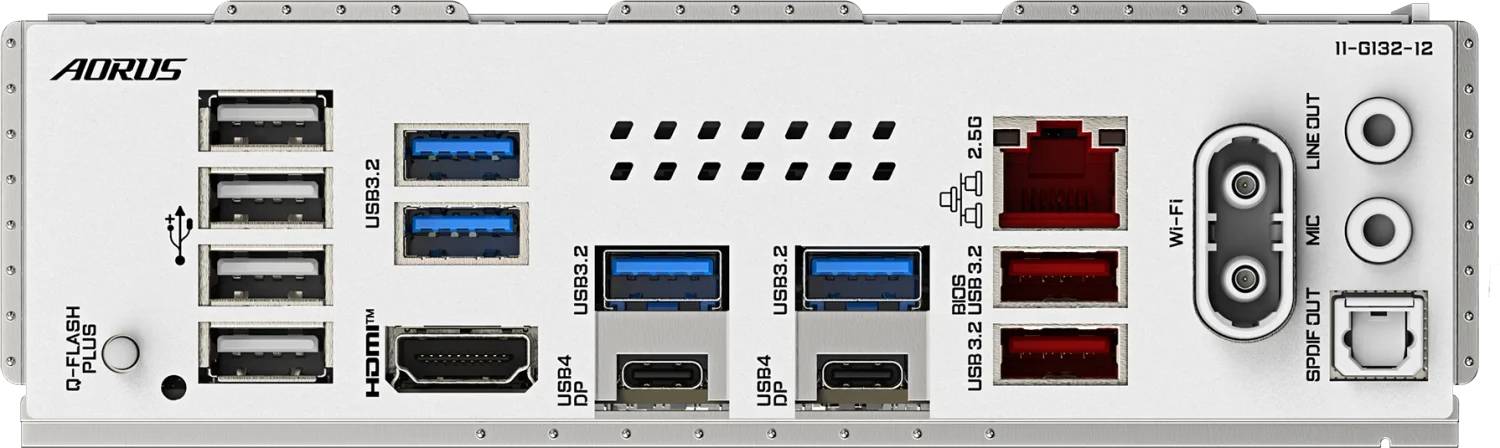

| Interfaces | 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x SPDIF out 2 x aerial 1 x HDMI 2 x USB4 4 x USB 3.2 Gen 1 2 x USB 3.2 Gen 2 4 x USB 2.0 |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x SPI - header 1 x HDMI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, temperature detection, fan speed detection, water cooling flow rate, fan fail warning, fan control |
| Hardware Features | 16+2+2 Phase Power Design, Q-Flash Plus button, WIFI EZ Plug, M.2 EZ Latch plus, M.2 EZ Latch click, M.2 Thermal Guard L, PCIe EZ Latch Plus, Ultra Durable PCIe Armor, VRM Thermal Armor Advanced, 2x Copper PCB, 6 Layer PCB, DIY Friendly Design, EZ Debug LED, GIGABYTE Smart Fan 6, M.2 Thermal Guard Ext., RGB FUSION, VRM Thermal Armor Fins-Array, RGB FUSION 2.0, EZ Plug, pre-mounted I/O shield |
| Miscellaneous | Miscellaneous |
| Included Accessories | Wi-Fi aerial, G-Connector, thermal pad for M.2 SSD, 3 x thermal pads for M.2 SSD thick/thin |
| Cables Included | 2 x SATA Express cable |
| Software Included | GIGABYTE Control Center, Norton Internet Security (OEM Version), Realtek Gaming LAN Bandwidth Control |
| Width | 30.5 cm |
| Depth | 24.4 cm |
Features - GigaByte - X870E A ELITE WIFI7 ICE
CPU Socket
- Socket AM5
More Details
Product Code
07:21231215
EAN Code
4719331871529
Manufacturer
GigaByte
