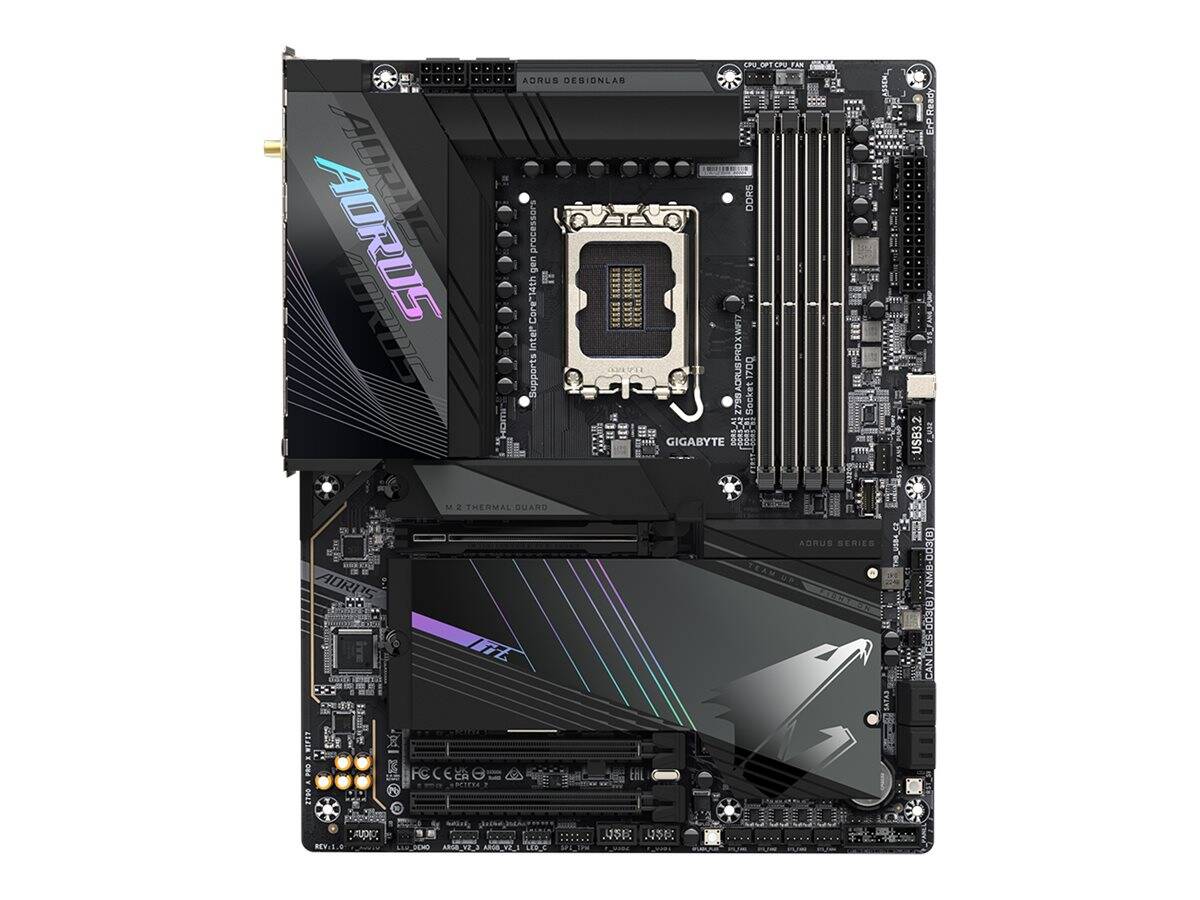

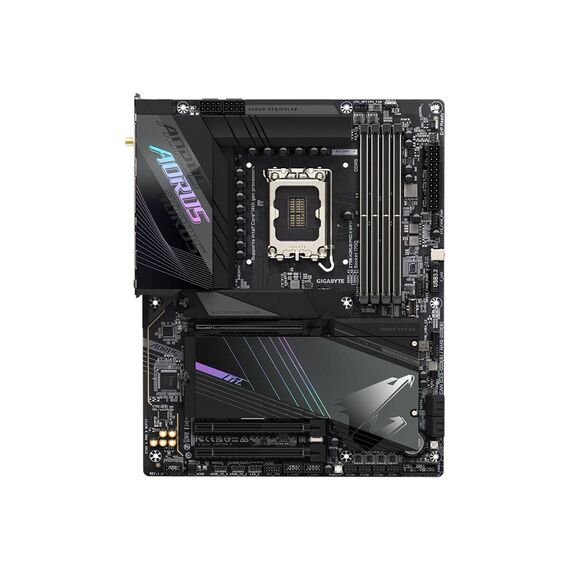

AORUS Z790 PRO X WIFI7 / Motherboard / ATX / LGA1700 Socket / Z790 Chipset / USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2 / 5 Gigabit Ethernet, Bluetooth, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-chann | Z790 A PRO X WIFI7
Z790 A PRO X WIFI7
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | Intel Z790 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | Supported RAM |
| Max Size | 192 GB |
| Technology | DDR5 |
| Bus Clock | 5200 MHz (O.C.), 5400 MHz (O.C.), 5600 MHz (O.C.), 5800 MHz (O.C.), 6000 MHz (O.C.), 4000 MHz, 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.), 7900 MHz (O.C.), 7950 MHz (O.C.), 8200 MHz (O.C.), 8266 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220-VB |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Interfaces | 5 Gigabit Ethernet, Bluetooth 5.3, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 5.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 1 x M.2 socket (25110/2580 M.2 Key M slot) ¦ 2 x M.2 socket (2280/22110 M.2 Key M slot) ¦ 2 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 3 x M.2 ¦ SATA-600 / PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 2 x USB 3.2 Gen 2 ¦ 4 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 2 x aerial ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x SPDIF out ¦ 1 x LAN (5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 2x2 - header ¦ 1 x USB-C - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 2 x Thunderbolt - header ¦ 1 x audio - header ¦ 1 x SPI - header |
| Power Connectors | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, PnP 1.0a support |
| Hardware Monitoring | System voltage, water cooling flow rate, fan fail warning, fan control, noise detection, fan speed detection, temperature detection |
| Hardware Features | Q-Flash, Ultra Durable, 8 Layer PCB, Q-Flash Plus, RGB FUSION, VR Ready, TPM-M 2.0 ready, DIY Friendly Design, GIGABYTE VisionLINK, GIGABYTE Smart Fan 6, Shielded Memory Routing, VRM heatsink design, M.2 EZ Latch, PCIe EZ Latch, M.2 Thermal Guard XL, M.2 Thermal Guard Ext., M.2 EZ Latch click, M.2 EZ Latch plus, 18+1+2 Phase Power Design |
| Miscellaneous | Miscellaneous |
| Software Included | GIGABYTE Control Center, LAN manager, Norton Internet Security (OEM Version) |
| Width | 30.5 cm |
| Depth | 24.4 cm |
