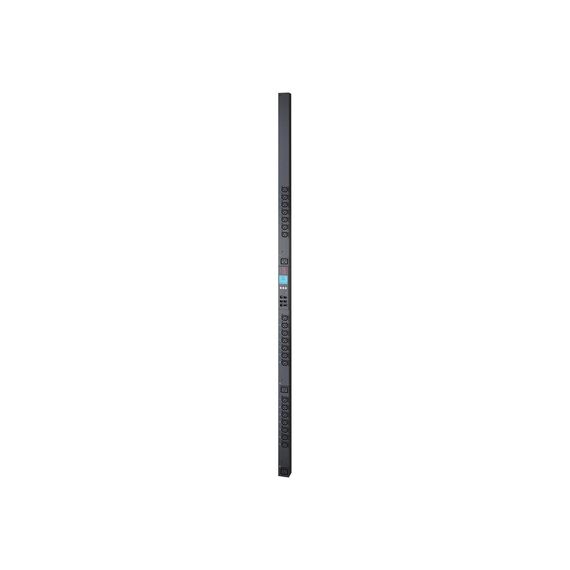

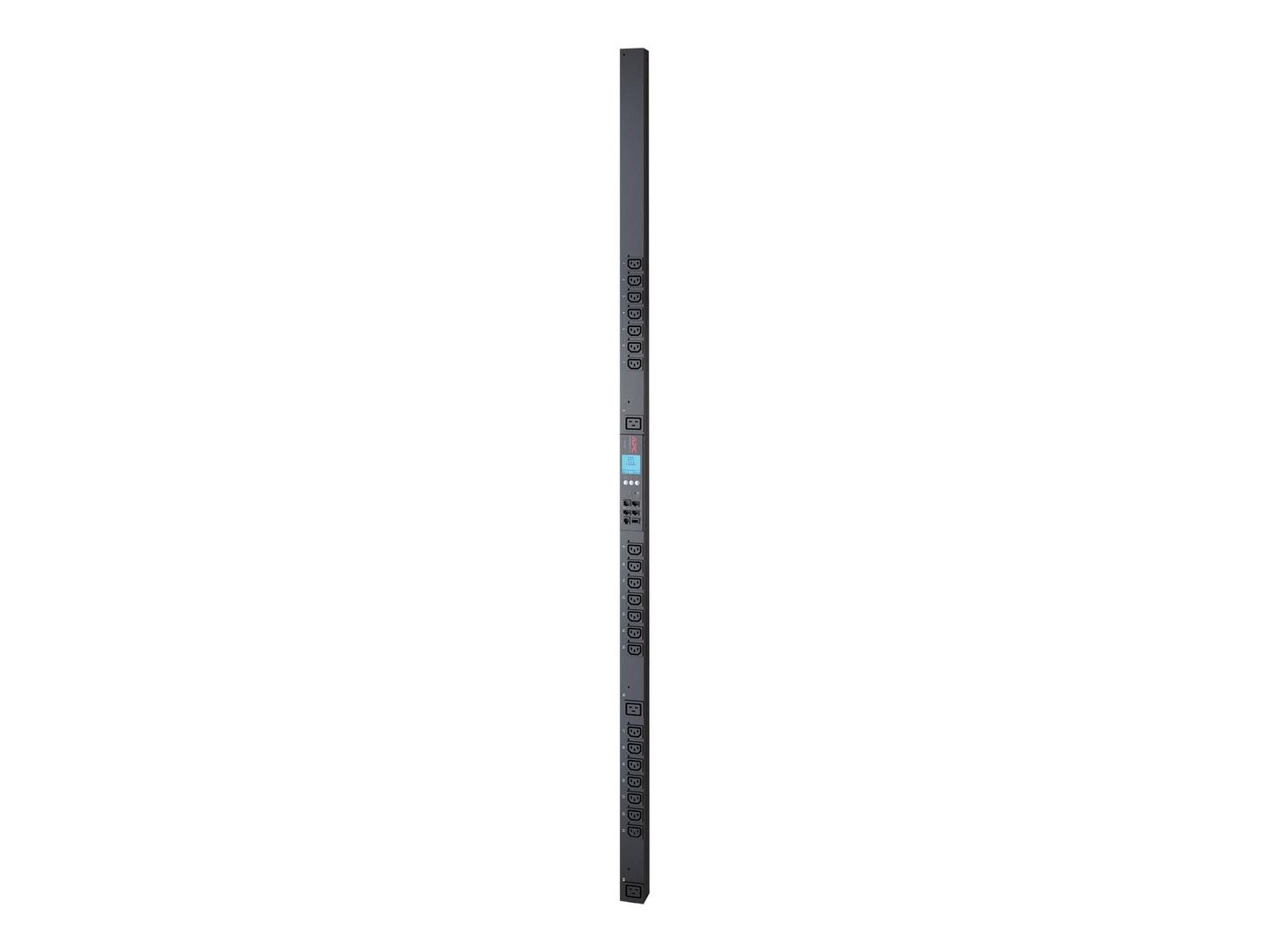

APC Metered-by-Outlet with Switching Rack PDU ZeroU 2G / Power distribution unit (rack-mountable) / AC 200/208/230 V / 3.3 kW / Ethernet 10/100 / input: IEC 60320 C20 / output connectors: 24 / 0U / black / for P/N: SMX1000C, SMX1500RM2UC, SMX150 | AP8659
Please sign in so that we can notify you about a reply
Product Features
- Metering-by-outlet capability
Individual outlet level power metering provides a more granular view of the power distributed to equipment within the enclosure. It also provides the ability to analyze component power trends and perform capacity planning. - Network management capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements. - Alarm thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. - Power delays
Allows users to configure the sequence in which power is turned on or off for each outlet. This helps avoid in-rushes at start-up, which can cause overloaded circuits and dropped loads. Sequencing also allows users to predetermine which piece of equipment is turned on first so other equipment dependant on that unit will function properly. - Load indicator LED
Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits. - Flash upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. It eliminates the need to replace products already installed in the field when features are released. - Integrates with StruxureWare data center expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.
Special Features
- Metering-by-outlet capability
- Network management capabilities
- Alarm thresholds
- Power delays
- Load indicator LED
- Flash upgradeable
- Integrates with StruxureWare data center expert
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 200/208/230 V |
| Input Voltage Range | AC 100 - 240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C20 |
| Power Output Connectors Details | 21 x power IEC 60320 C13 ¦ 3 x power IEC 60320 C19 |
| Output Voltage | AC 208 V |
| Max Electric Current | 16 A |
| Power Capacity | 3.3 kW |
| Networking | Networking |
| Remote Management Interface | Ethernet 10/100 |
| Remote Management Protocol | SNMP, Telnet, HTTPS, SSH |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x LAN - RJ-45 ¦ 1 x management - RJ-12 |
| Miscellaneous | Miscellaneous |
| Cables Included | Serial cable - external |
| Rack Mounting Kit | Included |
| Features | E-mail notification, audible alarm, LED display, voltage monitoring, LED indicators, peripherals power switching (automatic), vertical orientation, firmware upgradable |
| Compliant Standards | UL, EN 61000-3-2, ICES-003, VDE, VCCI Class A ITE, EN 61000-3-3, EN55024, EN55022 Class A, RoHS, FCC Part 15 A, PSE Mark, REACH |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 5.6 cm |
| Depth | 5.1 cm |
| Height | 182.9 cm |
| Weight | 6.09 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 16.2 cm |
| Shipping Depth | 11.7 cm |
| Shipping Height | 203.8 cm |
| Shipping Weight | 8.36 kg |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: AP6201CH, AP7950B, AR2200, AR2280, AR2487G, AR3100G, AR3100TAA, AR3100W, AR3105SP, AR3105W, AR3107G, AR3107SP, AR3140G, AR3140W, AR3150SP, AR3150W, AR3155SP, AR3155W, AR3157SP, AR3180G, AR3300G, AR3300SP, AR3300W, AR3305SP, AR3305W, AR3307SP, AR3307W, AR3340G, AR3340W, AR3350SP, AR3350W, AR3355SP, AR3355W, AR3357SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, NBES0302, NBPD0160A, NBPD0180, NBWL0355A, NBWL0356A, SMC1000-BR, SMC1000I, SMC1000I-2U, SMC1000I-2UC, SMC1000I-BR, SMC1000IC, SMC15002U-BR, SMC1500-BR, SMC1500I, SMC1500I-2U, SMC1500I2U-BR, SMC1500I-2UC, SMC1500I-BR, SMC1500IC, SMC2000I, SMC2000I-2U, SMC3000I, SMC3000RMI2U, SMT1500RM1U, SMT1500RMI1U, SMT2200I-AR, SMT2200IC, SMT2200R2I-AR, SMT2200RM2UC, SMT2200RMI2UC, SMT2200RMI2UNC, SMT3000I2U-BR, SMT3000I-AR, SMT3000IC, SMT3000R2I-6W, SMT3000R2I-AR, SMT3000RM2UC, SMT3000RMI2UC, SMT3000RMI2UNC, SMX1000C, SMX1000US, SMX1500RM2UC, SMX1500RM2UCNC, SMX1500RMNCUS, SMX1500RMUS, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX2200R2HVNC, SMX2200RMHV2U, SMX2200RMLVUS, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS, SMX3000RMLVUS, SMX3KRMLVNCUS, SMX750C, SMX750CNC, SMX750US, SRT1000RMXLA, SRT1000RMXLA-NC, SRT1000RMXLI, SRT1000RMXLI-NC, SRT10KRMXLI, SRT10KRMXLT-IEC, SRT10KXLI, SRT10KXLT-IEC, SRT10RMXLIX806, SRT1500RMXLA, SRT1500RMXLA-NC, SRT2200RMXLI, SRT2200RMXLI-NC, SRT2200XLI, SRT3000RMXLI, SRT3000RMXLI-NC, SRT3000RMXLW-IEC, SRT3000XLI, SRT3000XLW-IEC, SRT5KRMXLI, SRT5KRMXLI-6W, SRT5KRMXLIM, SRT5KRMXLT, SRT5KRMXLT-IEC, SRT5KRMXLTUS, SRT5KRMXLW-HW, SRT5KRMXLW-TW, SRT5KXLI, SRT6KRMXLI, SRT6KRMXLI-6W, SRT6KRMXLIM, SRT6KRMXLT, SRT6KRMXLT-IEC, SRT6KXLI, SRT6KXLT-IEC, SRT8KRMXLI, SRT8KRMXLT, SRT8KRMXLT-IEC, SRT8KXLI, SRT8KXLT-IEC, SUA2200ICH-45, SUA3000ICH-45, SUA3000I-IN, SURT3000XLI-ET, SURT5000XLIX438, SURTD5000XLI-ET, SYAF16KRMICH |
Features - APC - AP8659
More Details
Product Code
270A613
EAN Code
0731304299509
Manufacturer
APC
