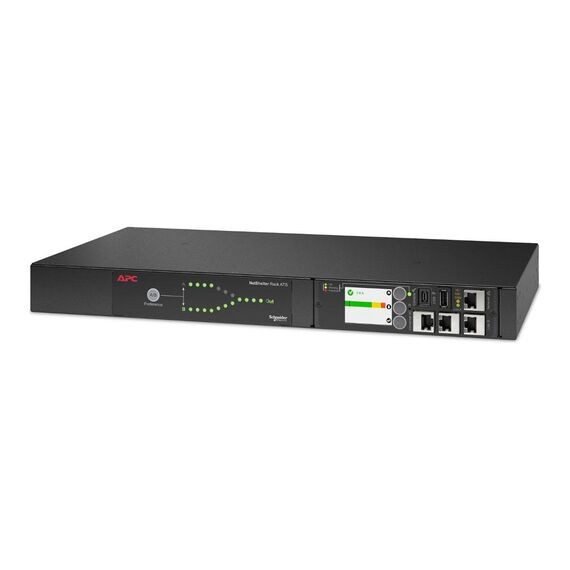

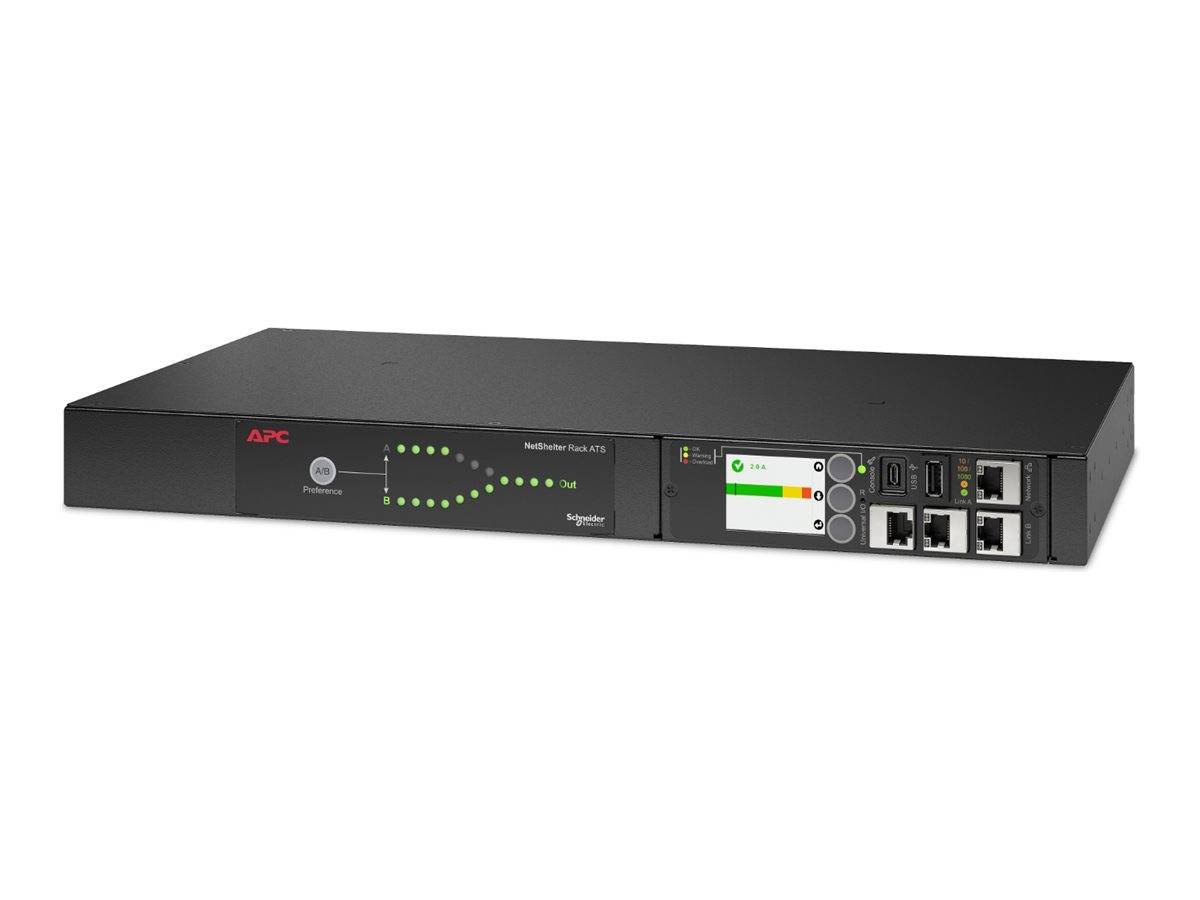

APC NetShelter / Automatic transfer switch (rack-mountable) / AC 208 V / 3300 VA / 1-phase / USB, Ethernet 10/100/1000 / input: IEC 60320 C20 16A / output connectors: 9 (IEC 60320 C19 16A, 8 x power IEC 60320 C13 12A) / 1U / 2.44 m cord / black | AP4434A
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Automatic transfer switch - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 2.44 m |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 208 V |
| Input Voltage Range | AC 187 - 228 V |
| Input Voltage Margin | ± 10% |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C20 16A |
| Power Output Connectors Details | 8 x power IEC 60320 C13 12 A ¦ 1 x power IEC 60320 C19 16 A |
| Output Voltage | AC 208 V |
| Max Electric Current | 20 A |
| Power Capacity | 3300 VA |
| Circuit Protection | Circuit breaker |
| Networking | Networking |
| Remote Management Interface | USB, Ethernet 10/100/1000 |
| Remote Management Protocol | SNMP, CLI |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 1 x universal I/O port ¦ 3 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x console - 5 pin Micro-USB Type B |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting kit, rack mounting brackets |
| Cables Included | 2 x power cable - integrated - 2.44 m ¦ Serial cable - external |
| Rack Mounting Kit | Included |
| Features | Mercury free, horizontal mount, LCD display, LED indicators, short-circuit protection, temperature sensor |
| Compliant Standards | UL, cUL, WEEE, REACH, China RoHS, EN 55022 Class A, FCC CFR47 Part 15 A, EU RoHS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.2 cm |
| Depth | 23.6 cm |
| Height | 4.4 cm |
| Weight | 3.74 kg |
