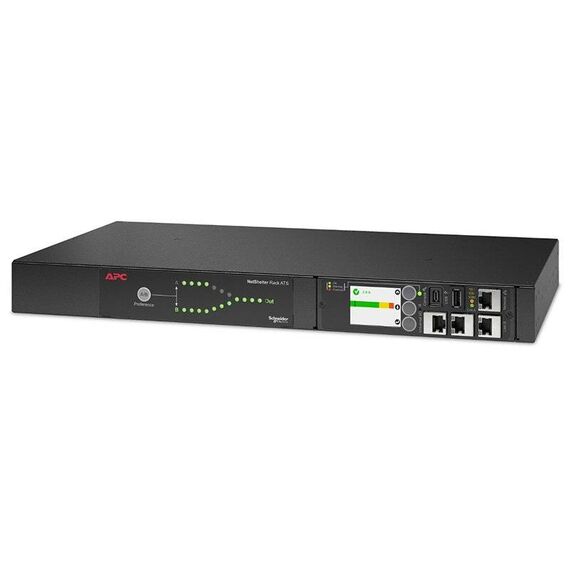

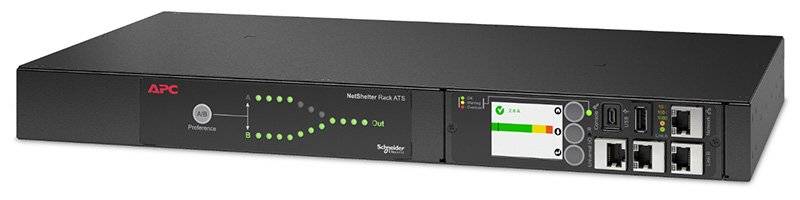

APC NetShelter / Automatic transfer switch (rack-mountable) / AC 207-253 V / 3700 VA / 1-phase / USB, Ethernet 10/100/1000 / output connectors: 9 / 1U / 2.44 m cord / black | AP4423A
Please sign in so that we can notify you about a reply
Product Specification
| Device Type | Automatic transfer switch - rack-mountable |
| Height (Rack Units) | 1U |
| Cord Length | 2.44 m |
| Colour | Black |
| Power Device | Power Device |
| Input Voltage | AC 207-253 V |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz |
| Input Connectors | Power IEC 60320 C20 16A |
| Power Output Connectors Details | 9 x power IEC 60320 C13 ¦ 1 x power IEC 60320 C19 |
| Output Voltage | AC 230 V |
| Max Electric Current | 20 A |
| Power Capacity | 3700 VA |
| Networking | Networking |
| Remote Management Interface | USB, Ethernet 10/100/1000 |
| Expansion / Connectivity | Expansion / Connectivity |
| Interfaces | 4 x LAN - RJ-45 ¦ 1 x USB - 4 pin USB Type A ¦ 1 x USB - 5 pin Micro-USB Type B |
| Miscellaneous | Miscellaneous |
| Included Accessories | Mounting kit, rack mounting brackets |
| Cables Included | Power cable 2.44 m |
| Rack Mounting Kit | Included |
| Features | Horizontal orientation, mercury free, box package, LED indicators |
| Compliant Standards | UL, cUL, WEEE, FCC Part 15 A, REACH, China RoHS, EN 55022 Class A, EU RoHS |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - replace or repair - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | -5 °C |
| Max Operating Temperature | 45 °C |
| Humidity Range Operating | 5 - 95% |
| Dimensions & Weight | Dimensions & Weight |
| Width | 43.2 cm |
| Depth | 23.6 cm |
| Height | 4.4 cm |
| Weight | 3.74 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 60 cm |
| Shipping Depth | 35.6 cm |
| Shipping Height | 11.4 cm |
| Shipping Weight | 5.51 kg |
Features - APC - AP4423A
More Details
Product Code
CF69040
EAN Code
0731304432449
Manufacturer
APC
