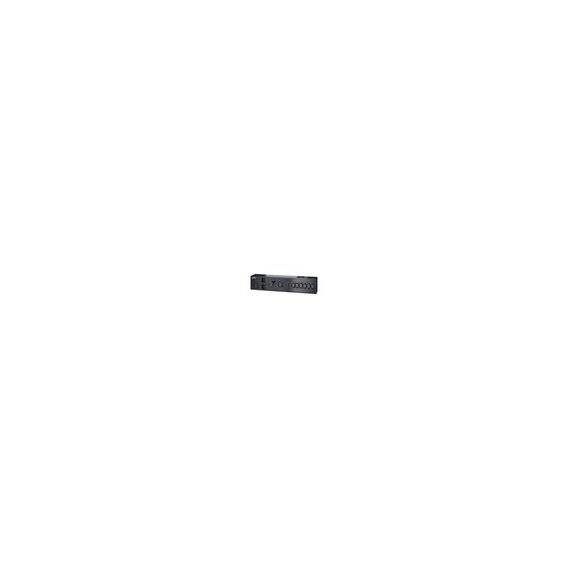

APC SBP3000RMI APC SVCS BYPASS PAN (SBP3000RMI)
Please sign in so that we can notify you about a reply
APC SBP3000RMI APC SBP3000RMI APC SVCS BYPASS PAN (SBP3000RMI)
APC SBP3000RMI APC SVCS BYPASS PAN (SBP3000RMI)
APC Maintenance Bypass Panels , Input: 230V , Input Connections: IEC-320 C20 , Cord Length: 8.2 feet 2.5 meters , Output: 230V , Output Connections: IEC 320 C13,IEC 320 C19,IEC JumpersQuick Transfer Rate
Transfer rate is within the industry standard and within the time power supplies will typically drop loads. The transfer of one power source to another is seamless to the connected equipment avoiding disruption of equipment performance.
Wrap Around System Bypass
3 Breaker maintenance bypass panel to isolate the UPS from the critical load
Feature list
| Nominal input voltage: | 230 V |
| Power plug: | C20 coupler |
| Input frequency: | 50/60 Hz |
| Maximum input current per phase: | 16 A |
| AC outlets quantity: | 7 |
| Nominal output voltage: | 230 V |
| Maximum total current draw per phase: | 16 A |
| Load capacity: | 3000 VA |
| Colour of product: | Black |
| PDU types: | Basic |
| Cable length: | 2.5 m |
| Input connection type: | IEC-320 C20 |
| Output connections: | 6 x IEC 320 C13, 1 x IEC 320 C19 |
| Dimensions WxDxH: | 432 x 76 x 89 mm |
| Weight: | 2090 g |
| Operating temperature range T-T: | 0 - 40 °C |
| Storage temperature range T-T: | -15 - 45 °C |
| Operating relative humidity range: | 0 - 95 % |
| Storage relative humidity range: | 0 - 95 % |
| Operating altitude: | 0 - 4500 m |
| Non-operating altitude: | 0 - 15000 m |
| RoHS compliance: | Y |
| Certification: | VDE, REACH |
| Package dimensions WxDxH: | 463 x 295 x 151 mm |
| Package weight: | 3910 g |
APC SBP3000RMI APC SVCS BYPASS PAN (SBP3000RMI)
Features - APC - SBP3000RMI
More Details
Product Code
2709216
EAN Code
0731304266747
Manufacturer
APC
