APC Service Bypass Panel / Power distribution unit (rack-mountable) / AC 230 V / 1500 VA / input: IEC 60320 C14 / output connectors: 7 / 2U / black / for P/N: SMC1500I-2UC, SMC1500IC, SRTL1000RMXLI-NC, SRTL1500RMXLI, SRTL1500RMXLI-NC | SBP1500RMI
Description
Extremely reliable service bypass panels designed for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS products.

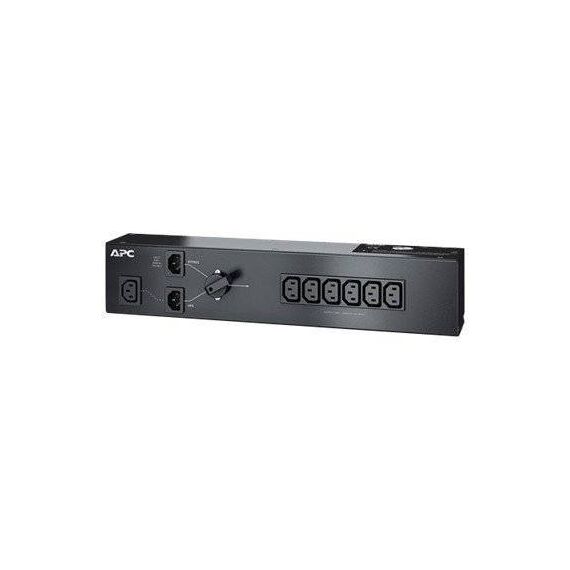

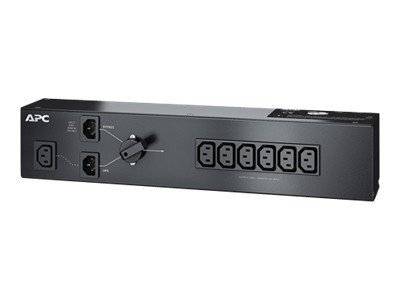

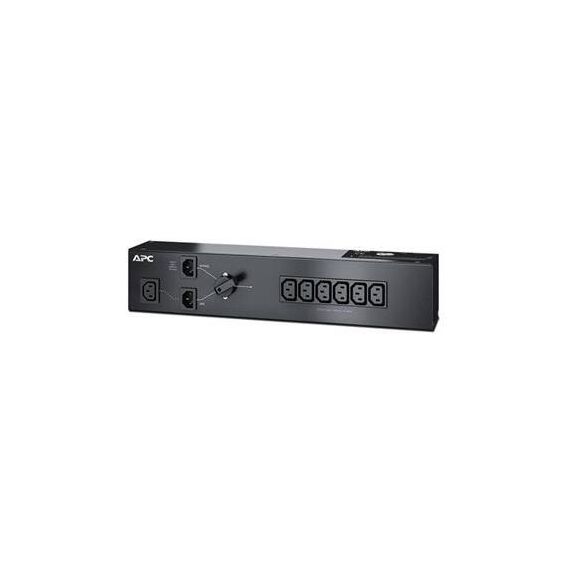

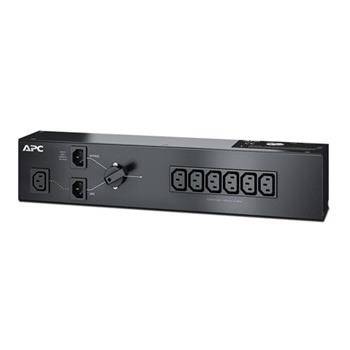

APC Service Bypass Panel / Power distribution unit (rack-mountable) | SBP1500RMI
Special Features
- 19 inch rack-mountable
- Meets UL requirements
- Quick transfer rate
- Wrap around system bypass
Product Specification
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 2U |
| Colour | Black |
| Input Voltage | AC 230 V |
| Input Voltage Range | AC 220 - 240 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 2 x power IEC 60320 C14 |
| Power Output Connectors Details | 7 x power IEC 60320 C13 |
| Output Voltage | AC 230 V |
| Max Electric Current | 10 A |
| Power Capacity | 1500 VA |
| Cables Included | Power cable 2 m |
| Rack Mounting Kit | Included |
| Features | Built-in bypass switch, overload protection |
| Compliant Standards | VDE, RoHS Exemption 7b, REACH |
| Service & Support | Limited warranty - 2 years |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% |
| Width | 43.2 cm |
| Depth | 7.6 cm |
| Height | 8.9 cm |
| Weight | 2 kg |
| Shipping Width | 46.3 cm |
| Shipping Depth | 29.5 cm |
| Shipping Height | 15.1 cm |
| Shipping Weight | 3.5 kg |
| Designed For | P/N: SMC1500I-2UC, SMC1500IC, SMT750I, SRTL1000RMXLI, SRTL1000RMXLI-NC, SRTL1500RMXLI, SRTL1500RMXLI-NC, SURT1000XLI |
Features - APC - SBP1500RMI
More Details
Product Code
2709057
EAN Code
0731304263593
Manufacturer
APC
