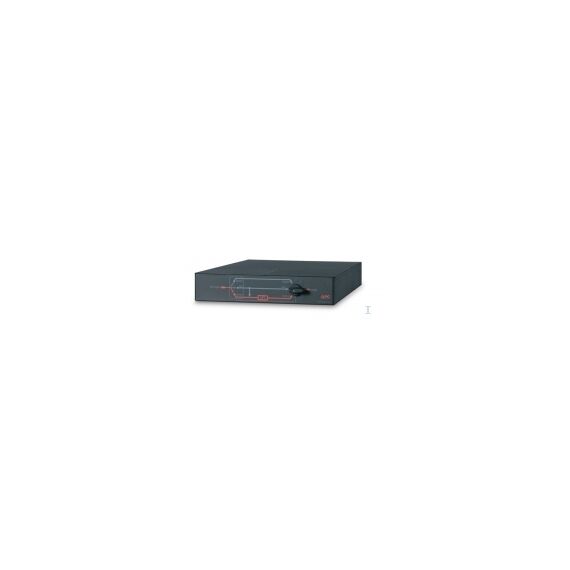

APC Service Bypass Panel / Bypass switch (rack-mountable) / AC 230 V / output connectors: 4 / 2U / 19" / black / for Symmetra 4KVA, 6kVA | SBP6KRMI2U
Please sign in so that we can notify you about a reply
APC Service Bypass Panel / Bypass switch (rack-mountable) / AC 230 V / output connectors: 4 / 2U / 19" / black / for Symmetra 4KVA, 6kVA | SBP6KRMI2U
|
Description Extremely reliable service bypass panels designed for APC InfraStruXure Type A, Smart-UPS, and Symmetra UPS products. Special Features
|
Product Specification
| Device Type | Bypass switch - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Colour | Black |
| Input Voltage | AC 230 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | 1 x hardwire |
| Power Output Connectors Details | 4 x power IEC 60320 C19 |
| Output Voltage | AC 230 V |
| Rack Mounting Kit | Included |
| Compliant Standards | CSA, GOST, EN 60950, UL 1778, IEC 60950 |
| Service & Support | Limited warranty - parts - 2 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Min Storage Temperature | -40 °C |
| Max Storage Temperature | 65 °C |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
| Width | 43.2 cm |
| Depth | 66 cm |
| Height | 8.9 cm |
| Weight | 11.4 kg |
| Designed For | APC Symmetra 4KVA, 6kVA |
Features - APC - SBP6KRMI2U
More Details
Product Code
2702053
EAN Code
0731304212614
Manufacturer
APC
