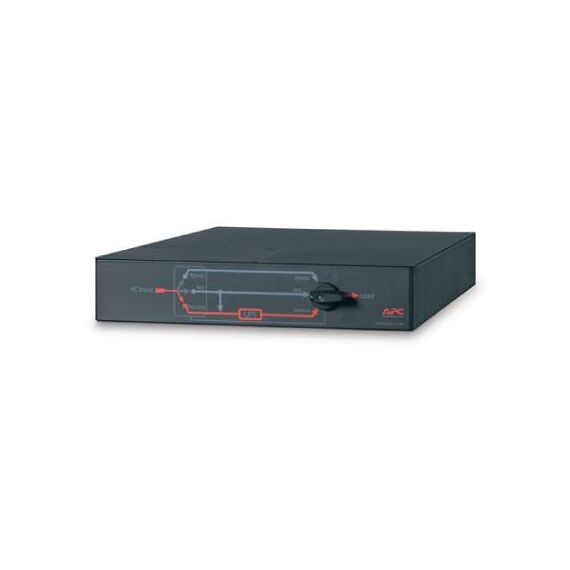

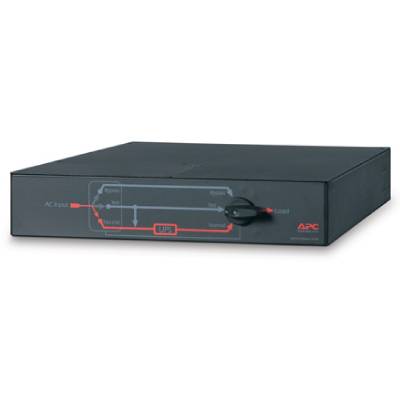

APC Service Bypass Panel / Bypass switch (rack-mountable) / AC 230 V / input: hardwire / output connectors: 10 / 2U / 19" / black / for InfraStruXure Type A 4-12 / Smart-UPS 3000, 3000R3IBX120, 3000RM X-93, 5000 | SBP5000RMI2U
Please sign in so that we can notify you about a reply
APC Service Bypass Panel / Bypass switch (rack-mountable) / AC 230 V / input: hardwire / output connectors: 10 / 2U / 19" / black / for InfraStruXure Type A 4-12 / Smart-UPS 3000, 3000R3IBX120, 3000RM X-93, 5000 | SBP5000RMI2U
|
Description APC sets the standard in its industry for quality, innovation and support. Its comprehensive solutions, which are designed for both home and corporate environments, improve the manageability, availability and performance of sensitive electronic, network, communications and industrial equipment of all sizes. The mission of APC is to improve the manageability, availability, and performance of information and communication systems through rapid development and delivery of innovative solutions to real customer problems.This product is designed for 230V Smart-UPS 3-5kVA. Special Features
|
Product Specification
| Device Type | Bypass switch - rack-mountable |
| Height (Rack Units) | 2U |
| Rack Size | 19" |
| Colour | Black |
| Input Voltage | AC 230 V |
| Frequency Required | 50/60 Hz |
| Input Connectors | Hardwire |

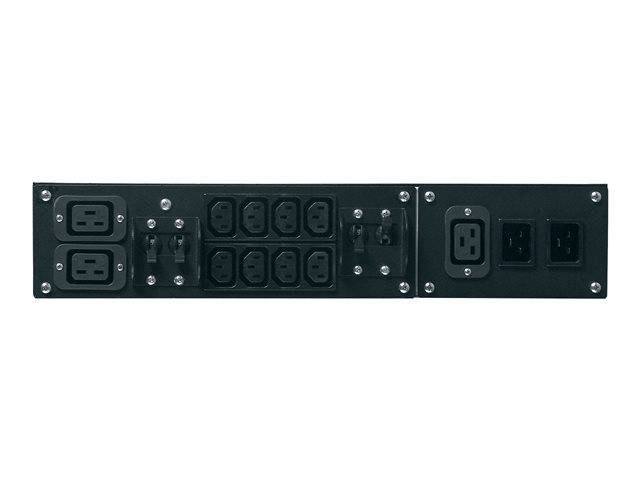

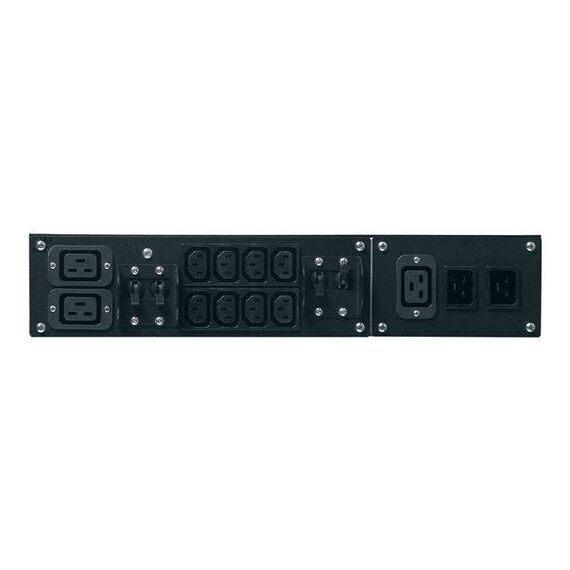

| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 |
| Output Voltage | AC 230 V |
| Rack Mounting Kit | Included |
| Compliant Standards | CSA, GOST, EN 60950, UL 1778, IEC 60950 |
| Service & Support | 2 years warranty |
| Service & Support | Limited warranty - parts - 2 years |
| Min Operating Temperature | -20 °C |
| Max Operating Temperature | 50 °C |
| Min Storage Temperature | -25 °C |
| Max Storage Temperature | 65 °C |
| Humidity Range Operating | 0 - 95% |
| Humidity Range Storage | 0 - 95% |
| Width | 43 cm |
| Depth | 66 cm |
| Height | 9 cm |
| Weight | 11 kg |
| Designed For | APC InfraStruXure Type A 4-12kVA Base Unit ¦ APC Smart-UPS 3000, 3000 NS, 3000 RM 5U, 3000R3BX, 3000R3IBX, 3000R3IBX120, 3000RM, 3000RM X-93, 3000RM3U, 3000RMI3U, 3000RMI5U, 3000RMINET, 3000RMJ3U, 3000RMNET, 3000RMT, 3000RMT3U, 3000RMTX, 3000RMXL3U, 3000VA, 3000VA USB & Serial, 3000VA XL, 5000R5IBX, 5000RM, 5000RMI5U, 5000RMINET, 5000RMT |
Features - APC - SBP5000RMI2U
More Details
Product Code
2701911
EAN Code
0731304212591
Manufacturer
APC
