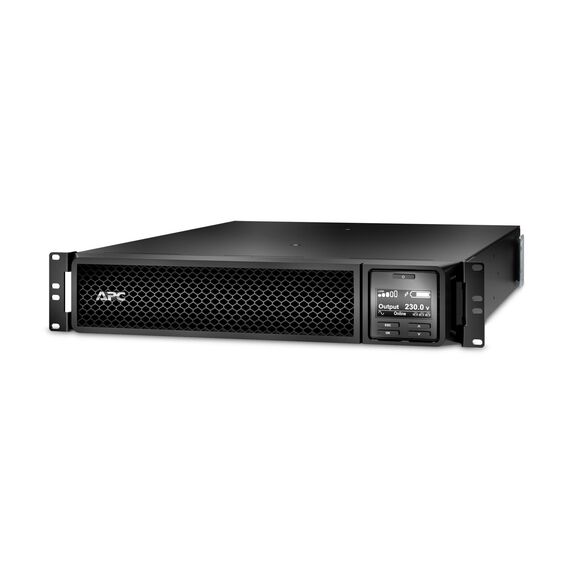

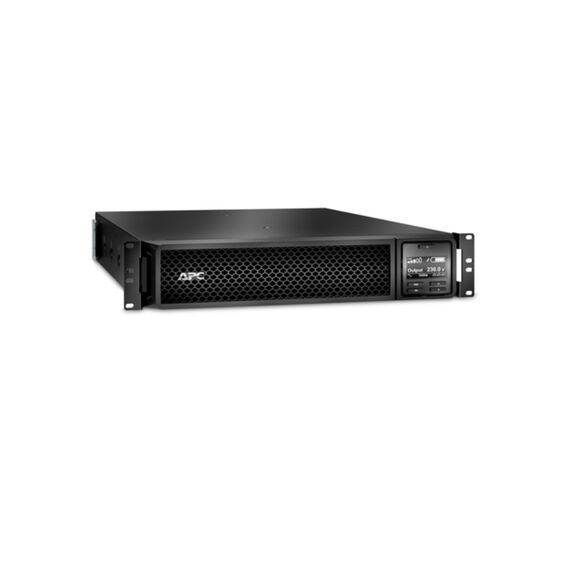

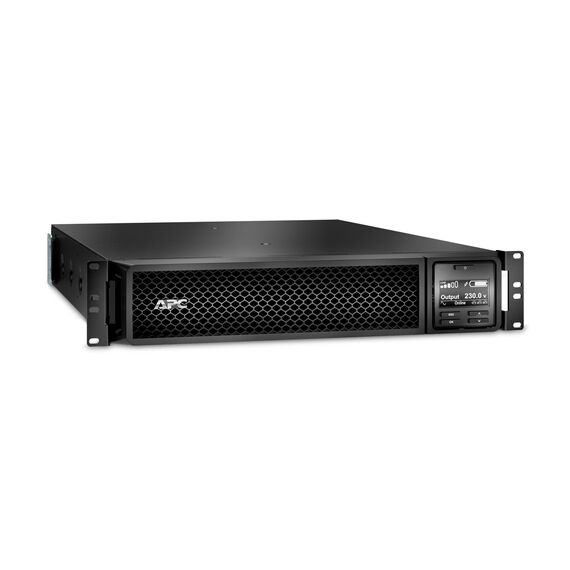

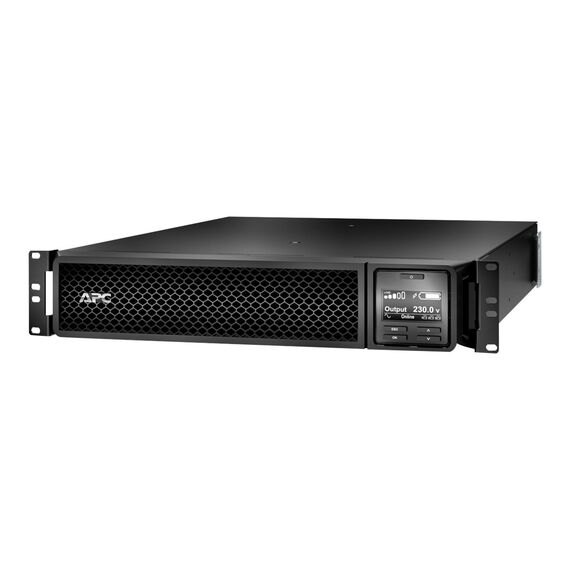

APC Smart-UPS SRT 2200VA RM - UPS (rack-mountable / external) | SRT2200RMXLI-NC
Please sign in so that we can notify you about a reply
Product Features
- Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry's most rigorous standards. - Avoids costly power problems by keeping your IT equipment and data protected and available
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation, and zero transfer time to battery during power events. - Low operating and maintenance costs with proven reliability and intelligent battery management
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. - Save time with easy and convenient remote accessibility
Network manageable via serial, USB or optional Ethernet. Includes Powerchute Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Special Fetures
- Peace of mind that comes with full equipment compatibility and reliability of a leader
- Avoids costly power problems by keeping your IT equipment and data protected and available
- Low operating and maintenance costs with proven reliability and intelligent battery management
- Save time with easy and convenient remote accessibility
Product Specification
| Device Type | UPS - rack-mountable / external |
| Height (Rack Units) | 2U |
| Colour | Black |
| Bundled with | APC UPS Network Management Card |
| Power Device | |
| UPS Technology | On-line |
| Input Voltage | AC 220/230/240 V |
| Input Voltage Range | AC 160 - 275 V |
| Input Voltage Range (Adjustable) | AC 100 - 275 V |
| Frequency Provided | 50/60 Hz |
| Frequency Required | 40 - 70 Hz |
| Input Connectors | 1 x power IEC 60320 C20 |

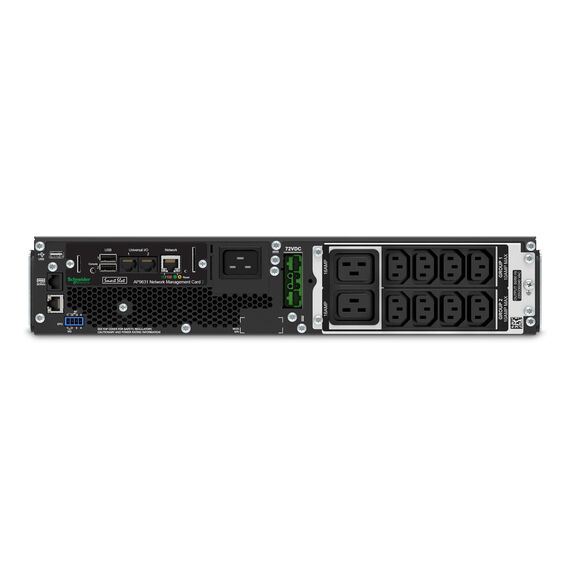

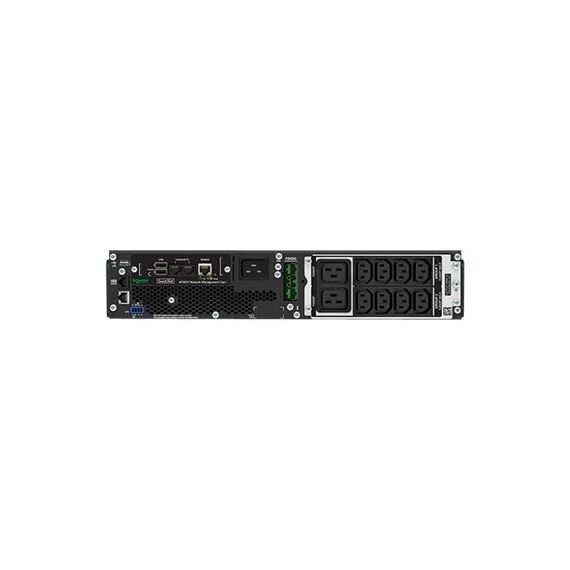

| Power Output Connectors Details | 8 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 |
| Output Voltage | AC 220/230/240 V 50/60 Hz |
| Power Capacity | 1980 Watt / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 340 Joules |
| Circuit Protection | Circuit breaker |
| Efficiency | 87.1% at 25% Load, 92.2% at 100% Load, 91.1% at 50% Load, 92% at 75% Load |
| Battery | |
| Technology | Lead Acid Lead Acid |

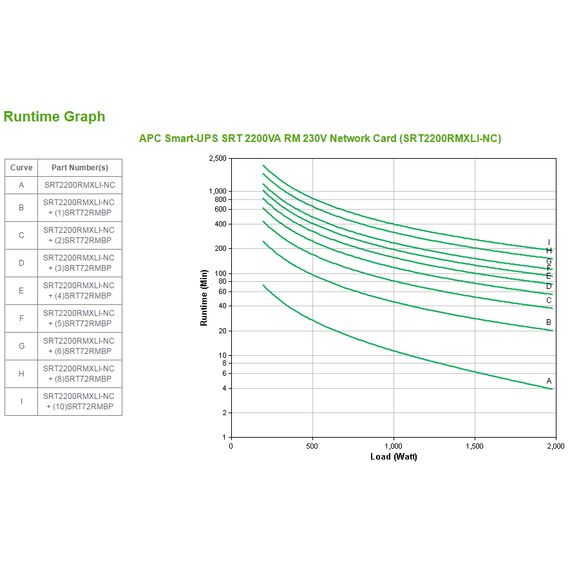

| Run Time (Up To) | 4 min at full load ¦ 12 min at half load |
| Recharge Time | 3 hours |
| Features | Maintenance free, sealed, leak-proof |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) ¦ 1 x management (USB) - 4 pin USB Type A |
| Expansion Slots | 1 (total) / 0 (free) x SmartSlot |
| Miscellaneous | |
| Cables Included | 3 x power cable - external ¦ USB cable - external ¦ Network cable - external ¦ Power extension cable - external ¦ EPO cable |
| Rack Mounting Kit | Included |

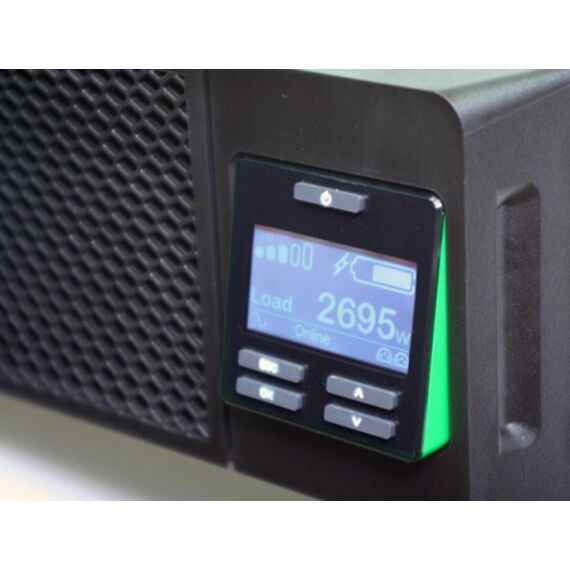

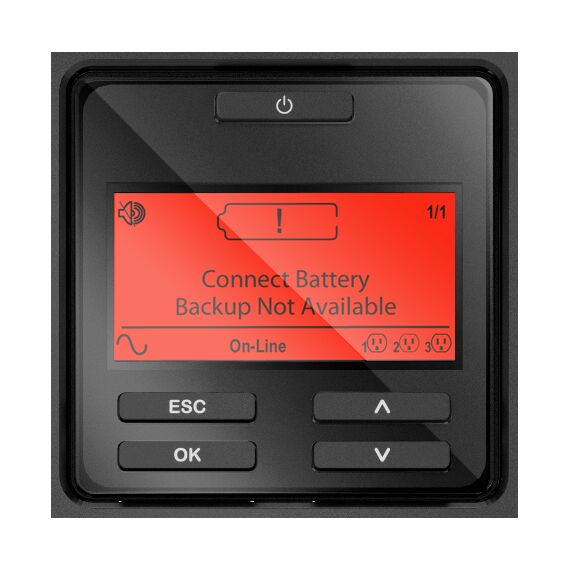

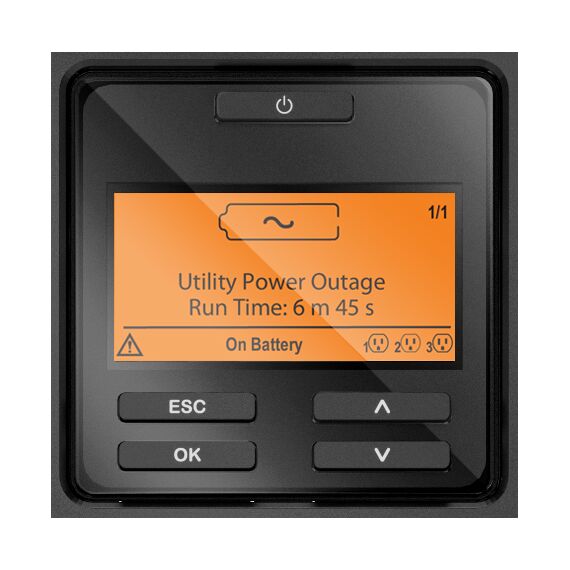

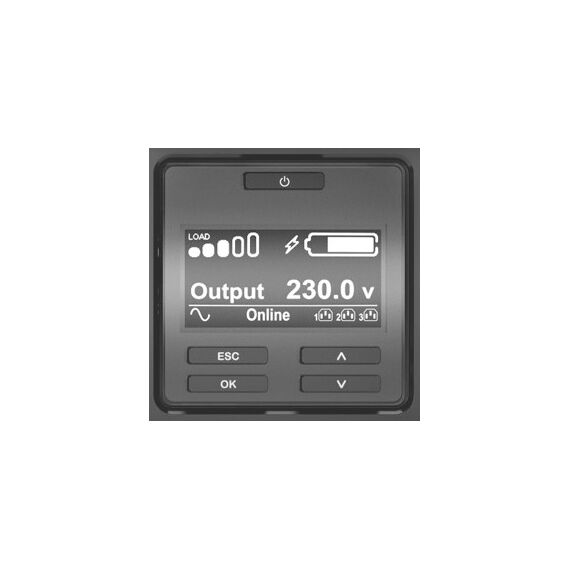

| Features | Audible alarm, LCD display, internal bypass, Eco-Mode |
| Compliant Standards | VDE, IEC 62040-2, RoHS, EN 62040-2, IP20, EAC, RCM, IEC 62040-1, EN 62040-1 |
| Software / System Requirements | |
| Software Included | APC PowerChute Business Edition |
| Environmental Standards | |
| ENERGY STAR | Yes |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Sound Emission | 55 dBA |
| Dimensions & Weight | |
| Width | 43.2 cm |
| Depth | 58.4 cm |
| Height | 8.5 cm |
| Weight | 25 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 59.9 cm |
| Shipping Depth | 81 cm |
| Shipping Height | 24.6 cm |
| Shipping Weight | 34.02 kg |
| Compatibility Information | |
| Designed For | P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR3810, AR3812, AR3814, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, NBWL0356A |
Features - APC - SRT2200RMXLI-NC
More Details
Product Code
270B667
EAN Code
0731304327561
Manufacturer
APC
