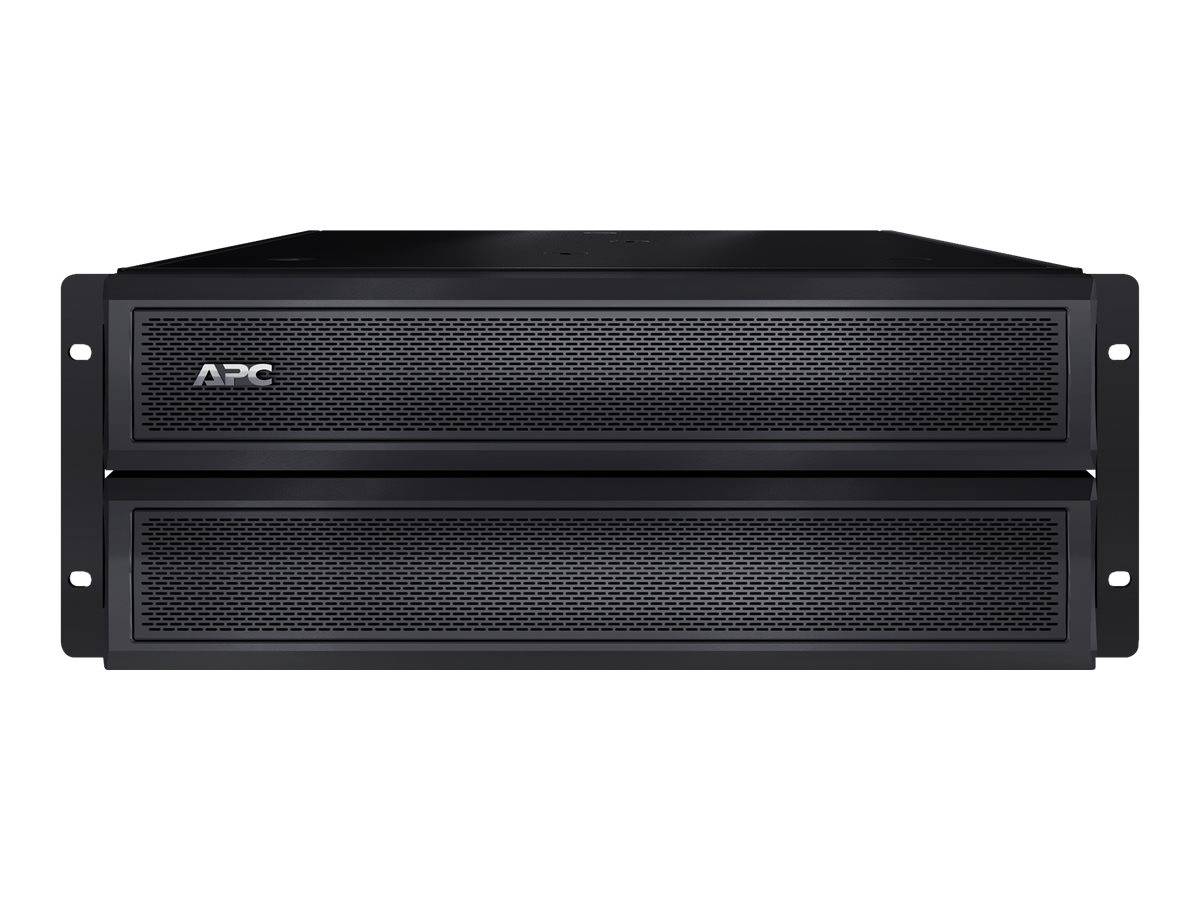

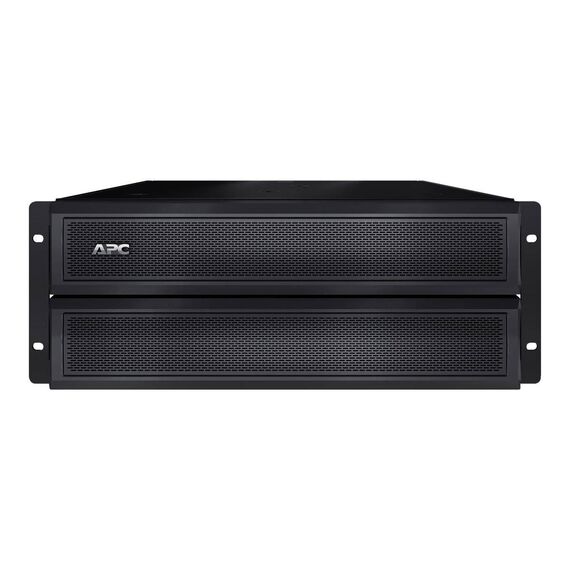

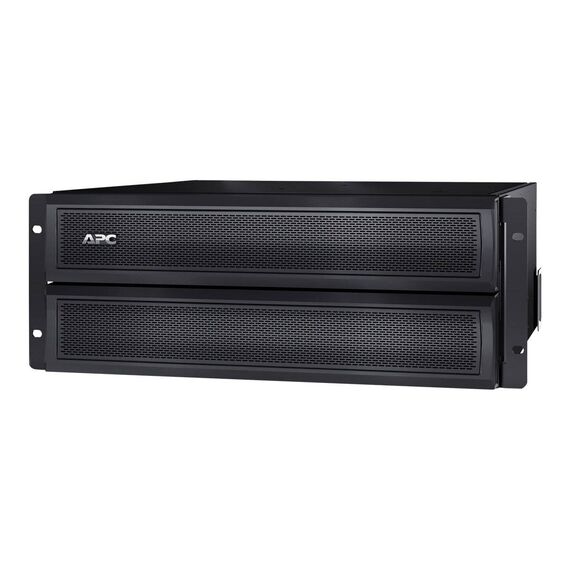

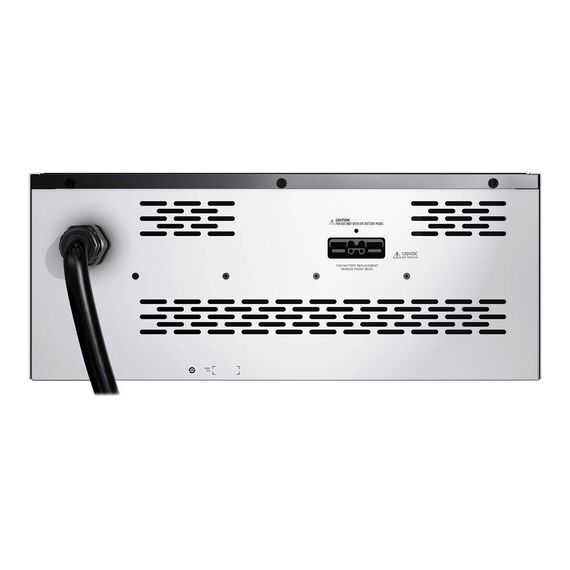

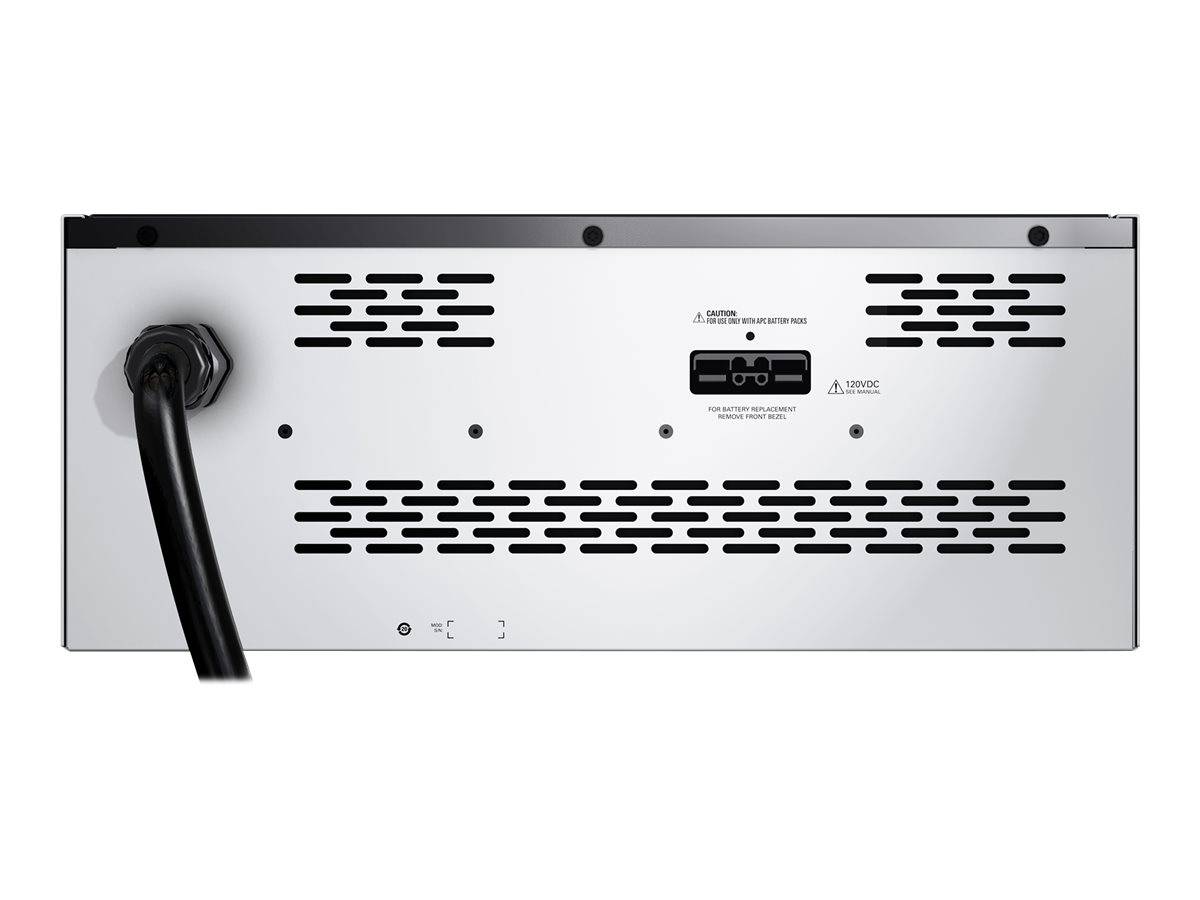

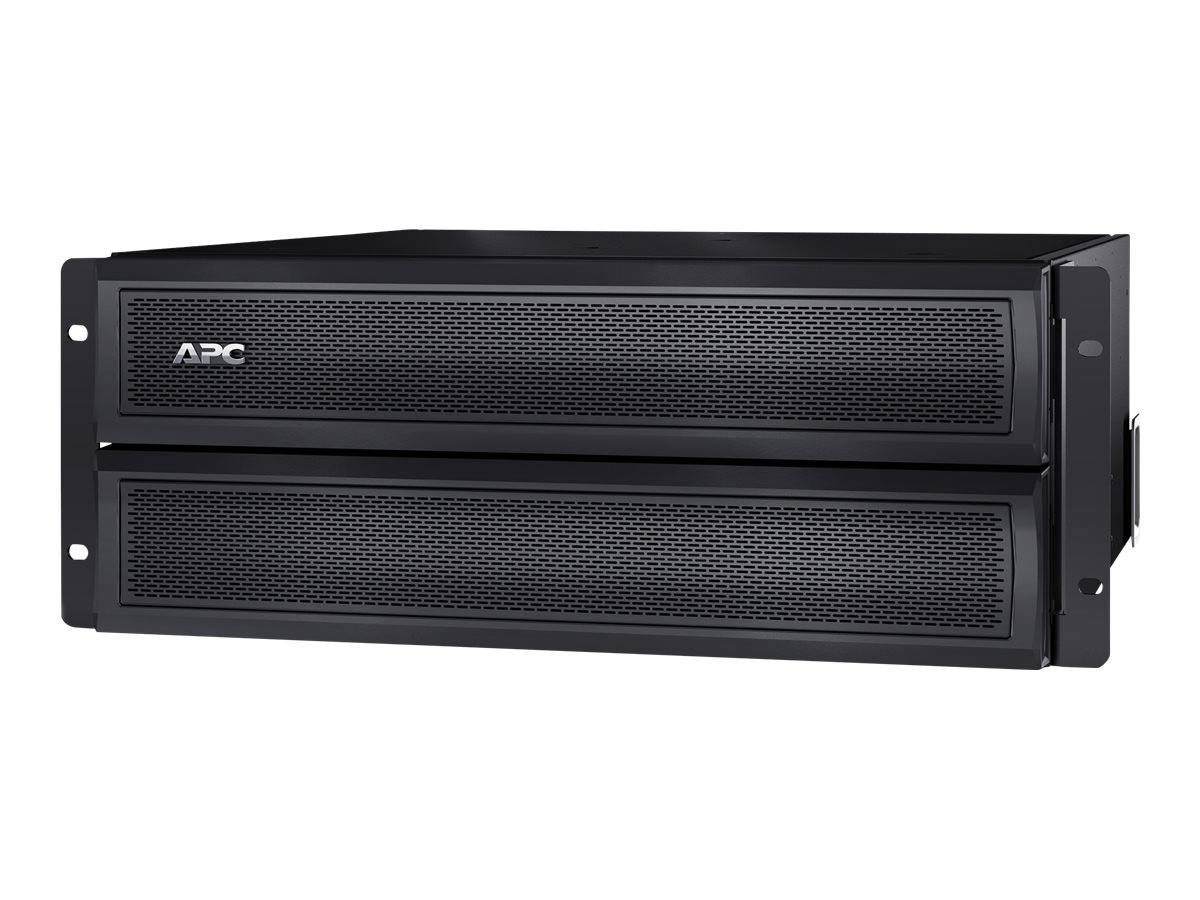

APC Smart-UPS X 120V External Battery Pack Rack/Tower / Battery enclosure (rack-mountable / external) / 2 x Lead Acid / 4U / black / for P/N: AR106SH6, AR109SH6, AR112SH6, AR3006, AR3006SP, AR3103, AR3103SP, | SMX120BP
Please sign in so that we can notify you about a reply
Product Features
- Hot-swappable batteries
It ensures clean, uninterrupted power to protected equipment while batteries are being replaced. - User-replaceable batteries
It increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR). - Scalable runtime
It allows additional run time to be quickly added as needed. - Intelligent battery management
It maximizes battery performance, life, and reliability through intelligent, precision charging. - Rack/tower convertible
It protects the initial investment in the UPS when migrating from tower to rack-mount environment.
Special Features
- Hot-swappable batteries
- User-replaceable batteries
- Scalable runtime
- Intelligent battery management
- Rack/tower convertible
Product Specification
| Device Type | Battery enclosure - rack-mountable / external |
| Height (Rack Units) | 4U |
| Colour | Black |
| Power Device | Power Device |
| Output Voltage | 120 V |
| Battery | Battery |
| Quantity | 2 |
| Technology | Lead Acid |
| Miscellaneous | Miscellaneous |
| Rack Mounting Kit | Included |
| Compliant Standards | RoHS, REACH |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | Dimensions & Weight |
| Width | 178 cm |
| Depth | 48.3 cm |
| Height | 43.2 cm |
| Weight | 60.91 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Width | 58.6 cm |
| Shipping Depth | 63.3 cm |
| Shipping Height | 33 cm |
| Shipping Weight | 65.45 kg |
| Compatibility Information | Compatibility Information |
| Designed For | P/N: AR106SH6, AR109SH6, AR112SH6, AR3003, AR3003SP, AR3006, AR3006SP, AR3103, AR3103SP, AR3106, AR3106SP, AR3357X674, AR9300SP, AR9300SP-R, AR9307SP, AR9307SP-R, SMX2000LV, SMX2000LVNC, SMX2000LVNCUS, SMX2000LVUS, SMX2200HV, SMX2200HVNC, SMX3000HV, SMX3000HV-BR, SMX3000HVNC, SMX3000HVT, SMX3000HVTUS, SMX3000LV, SMX3000LV2U-BR, SMX3000LVNC, SMX3000LVNCUS, SMX3000LVUS |
Features - APC - SMX120BP
More Details
Product Code
270A790
EAN Code
0731304292562
Manufacturer
APC
