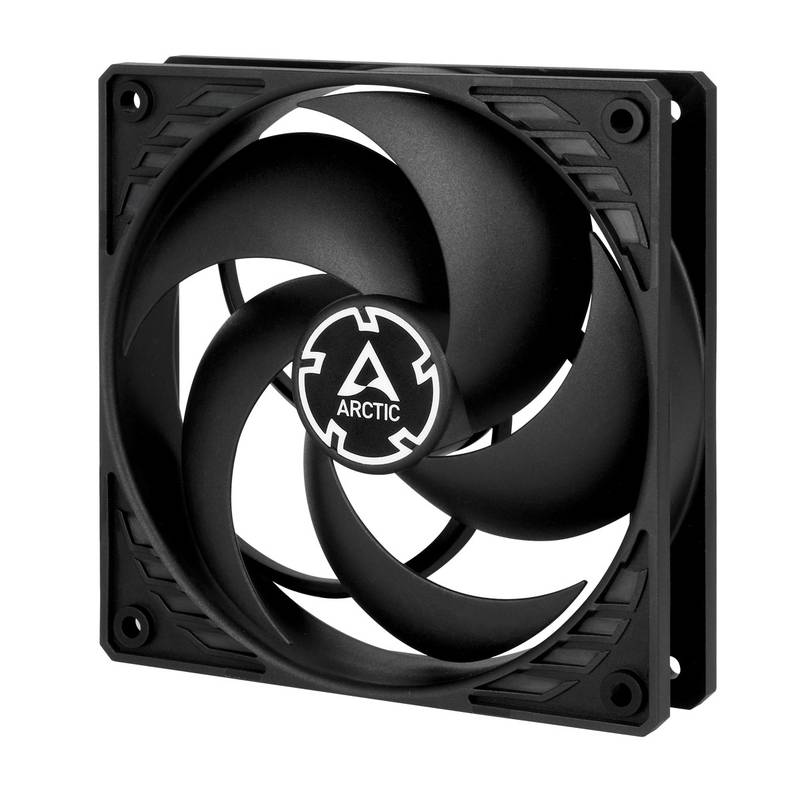

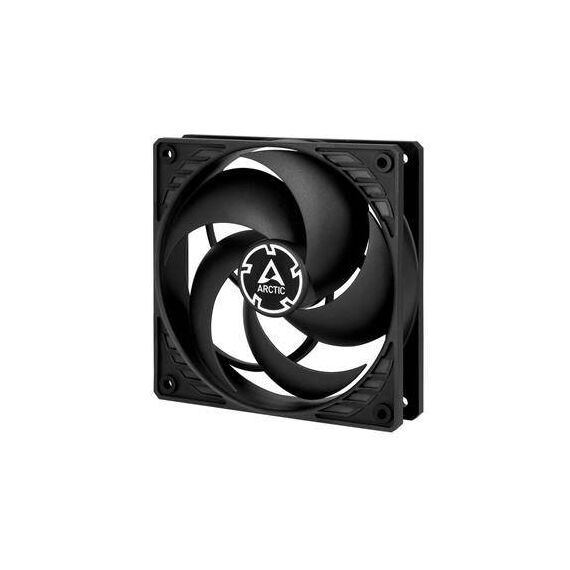

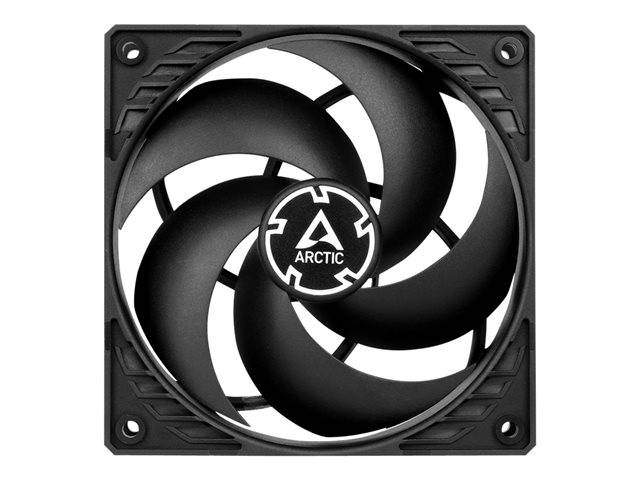

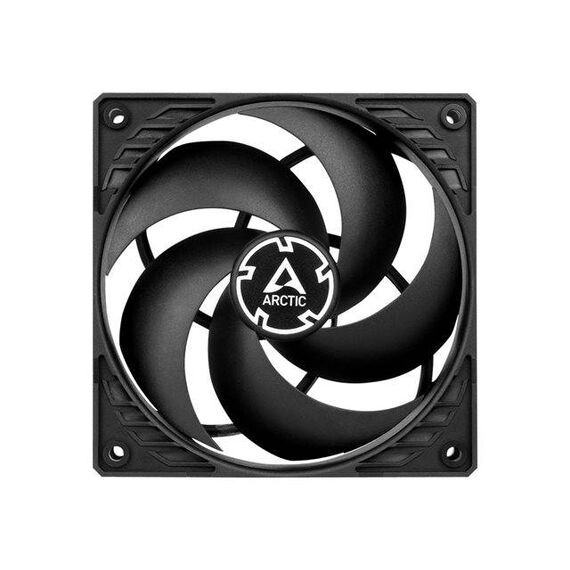

ARCTIC P12 PWM PST CO / Case fan / 120 mm / black | ACFAN00121A

ACFAN00121A
8.82
(10.50 inc. VAT)
Out of stock
Find similar
Delivery
Payment options
Product Code07:119807 EAN Code4895213701358 ManufacturerArctic Cooling

ARCTIC P12 PWM PST CO / Case fan / 120 mm / black | ACFAN00121A

Description

During the development of the P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators. The motor is powered by a neodym-iron-boron-magnet ring, which allows the P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearing and thus make it the perfect choice when reliability is essential.Even at low speeds the operating sound of the Arctic motor is barely noticeable.Due to a sinus-magnetizing the innovative motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the motor.A lower motor temperature roughly doubles the life span of a fan. The Arctic motor has a longer service life through its low coil temperature. The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5% due to its motor. This allows working at your PC in complete silence without any unwanted noise.



ARCTIC P12 PWM PST CO / Case fan | ACFAN00121A

Special Features

  • Optimized for static pressure
  • More efficient technology
  • For continuous operation
  • Maximum quietness, minimum vibration
  • Extended life span
  • 0 dB Mode

Product features

  • Optimized for static pressure
    During the development of the P12 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P12 PWM PST CO is particularly suitable for use on heatsinks and radiators.
  • More efficient technology
    The motor is powered by a neodym-iron-boron-magnet ring, which allows the P12 PWM PST CO to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.
  • For continuous operation
    The premium quality Japanese dual ball bearing allows continuous operation 24/7 without the slightest compromise in performance. Dust and high temperature are affecting this bearing a lot less than generic sleeve or one ball bearing and thus make it the perfect choice when reliability is essential.
  • Maximum quietness, minimum vibration
    Even at low speeds the operating sound of the Arctic motor is barely noticeable.Due to a sinus-magnetizing the innovative motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the motor.
  • Extended life span
    A lower motor temperature roughly doubles the life span of a fan. The Arctic motor has a longer service life through its low coil temperature.
  • 0 dB Mode
    The P12 PWM PST CO is able to switch into silent passive mode when PWM signal is below 5% due to its motor. This allows working at your PC in complete silence without any unwanted noise.

Product Specification

Product Type Case fan
Package Content 4 x screws
Width 12 cm
Depth 12 cm
Height 2.5 cm
Weight 145 g
Shipping Dimensions (WxDxH) / Weight 12.3 cm x 12.3 cm x 2.7 cm / 176 g
Colour Black
Fan Diameter 120 mm
Fan Height 25 mm
Fan Bearing Dual ball bearing
Rotation Speed 200-1800 rpm
Air Flow 56.3 cfm
Air Pressure 2.2 mm
Noise Level 0.3 Sone
Power Connector 4-pin fan connector, 4-pin fan socket
Rated Voltage 12 V
Start Voltage 3.9 V
Rated Current 0.08 A
Cable Length 40 cm
Features Pulse-width modulation (PWM) support
Service & Support Limited warranty - 10 years

Features - Arctic Cooling - ACFAN00121A

More Details
Product Code
07:119807
EAN Code
4895213701358
Manufacturer
Arctic Cooling
