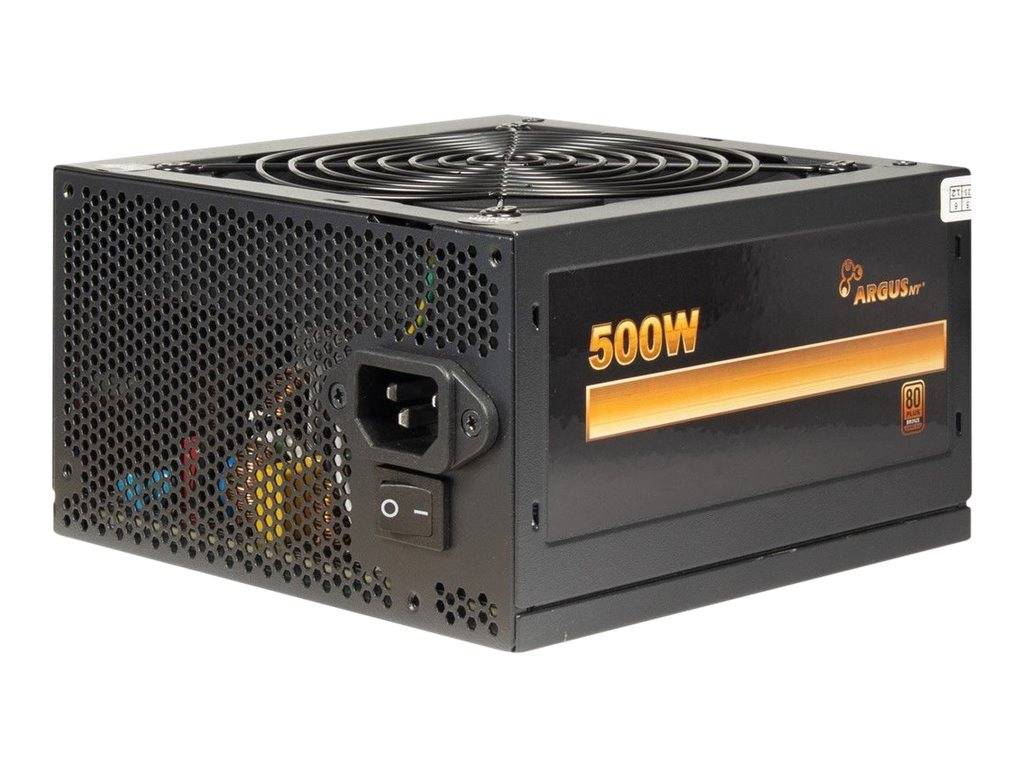

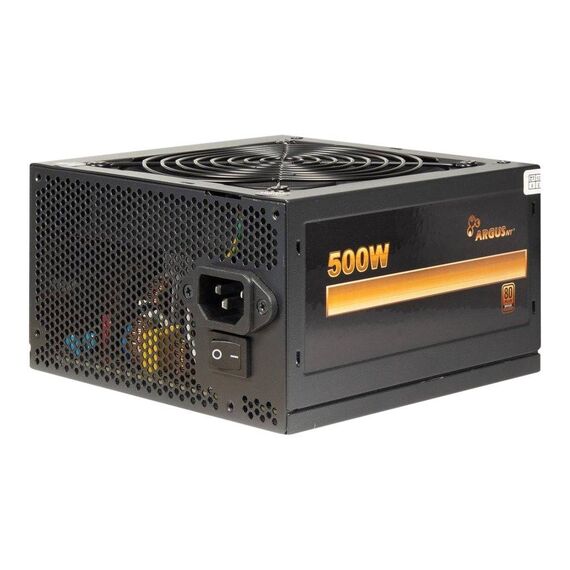

Argus BPS-500 / Power supply (internal) / ATX12V 2.4 / 80 PLUS Bronze / AC 100/240 V / 500 Watt / active PFC | 88882177

88882177
63.38
75.42 inc. VAT
Available on order: 500 item(s)
Standard DeliveryStandard delivery within 4 to 8 business days.
Product Code04:378263 EAN Code4260455645249 ManufacturerINTERTECH
Delivery
Payment options

Special Features

  • 80PLUS Bronze 230V EU certification (up to 88.4% efficiency)
  • 41A on the 12V line
  • OPP, SCP, OVP, OCP and NLP

Product Specification

Device Type Power supply - active Power Factor Correction (PFC) - internal
Specification Compliance ATX12V 2.4
PSU Form Factor ATX
Power Device Power Device
Input Voltage AC 100/240 V
Frequency Required 47 - 63 Hz
Power Output Connectors Details 1 x power 24 pin ATX with detachable 4 pin section ¦ 1 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector
Output Voltage +3.3, +5, ±12 V
Power Capacity 500 Watt
Output Current +12V - 41 A ¦ +3.3V - 15 A ¦ +5V - 15 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A
Efficiency 88.4% at 50% Load, 80.5% at 20% Load, 85.3% at 20% Load, 85.3% at 100% Load
80 PLUS Certification 80 PLUS Bronze
Miscellaneous Miscellaneous
Included Accessories Screws, cable ties
Cooling System 120 mm fan
Features Over current protection, over voltage protection, short-circuit protection, thermal protection
Compliant Standards FCC, RoHS, WEEE
Manufacturer Warranty Manufacturer Warranty
Service & Support Limited warranty - 3 years
Dimensions & Weight Dimensions & Weight
Width 15 cm
Depth 14 cm
Height 8.6 cm
Weight 1.67 kg
Dimensions & Weight (Shipping) Dimensions & Weight (Shipping)
Shipping Weight 2.02 kg
