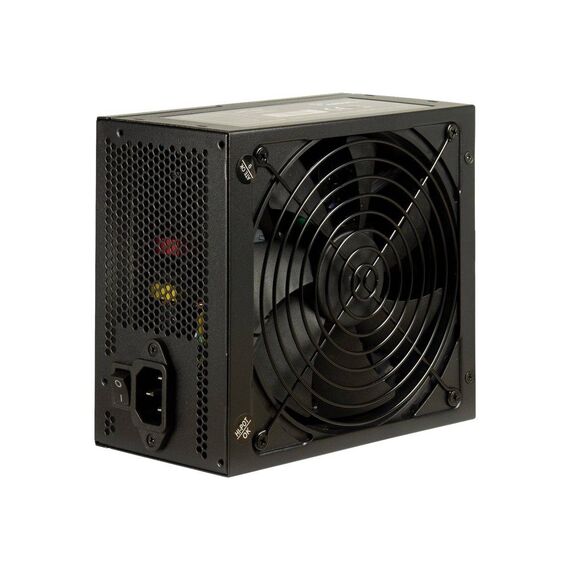

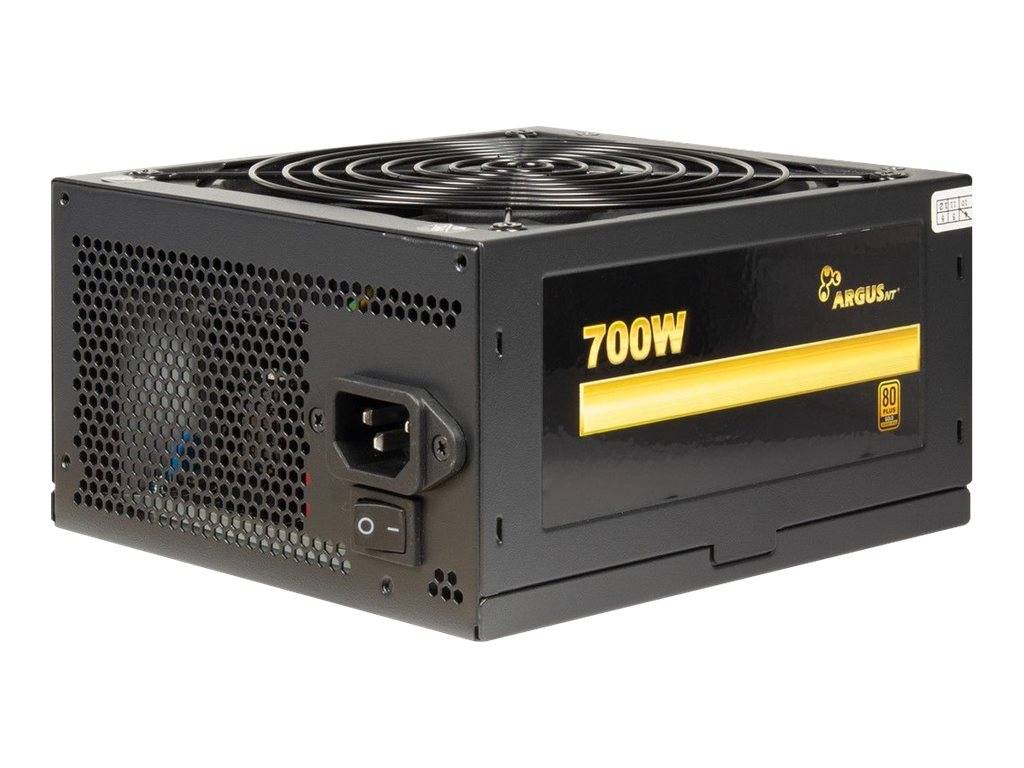

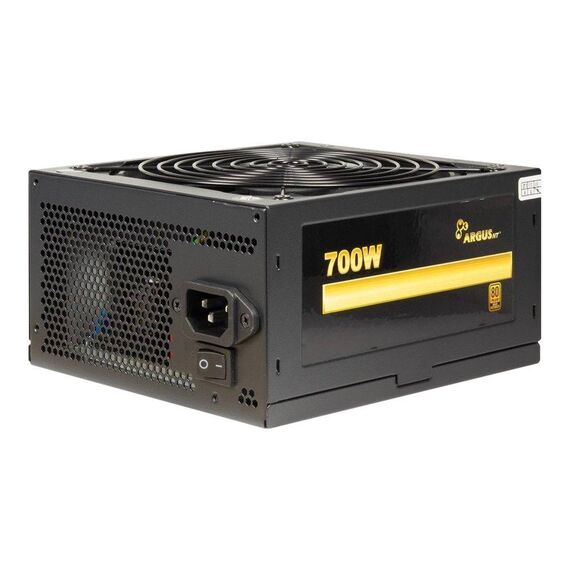

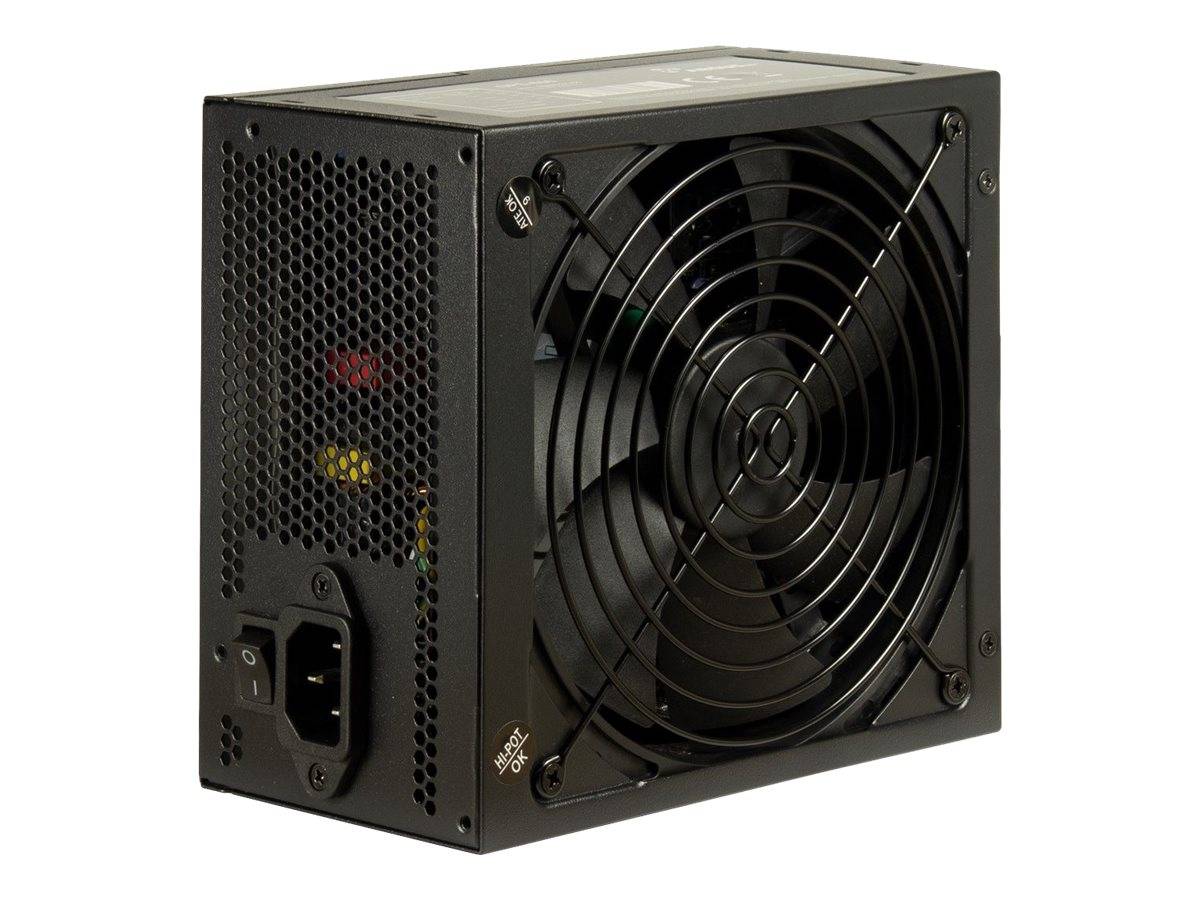

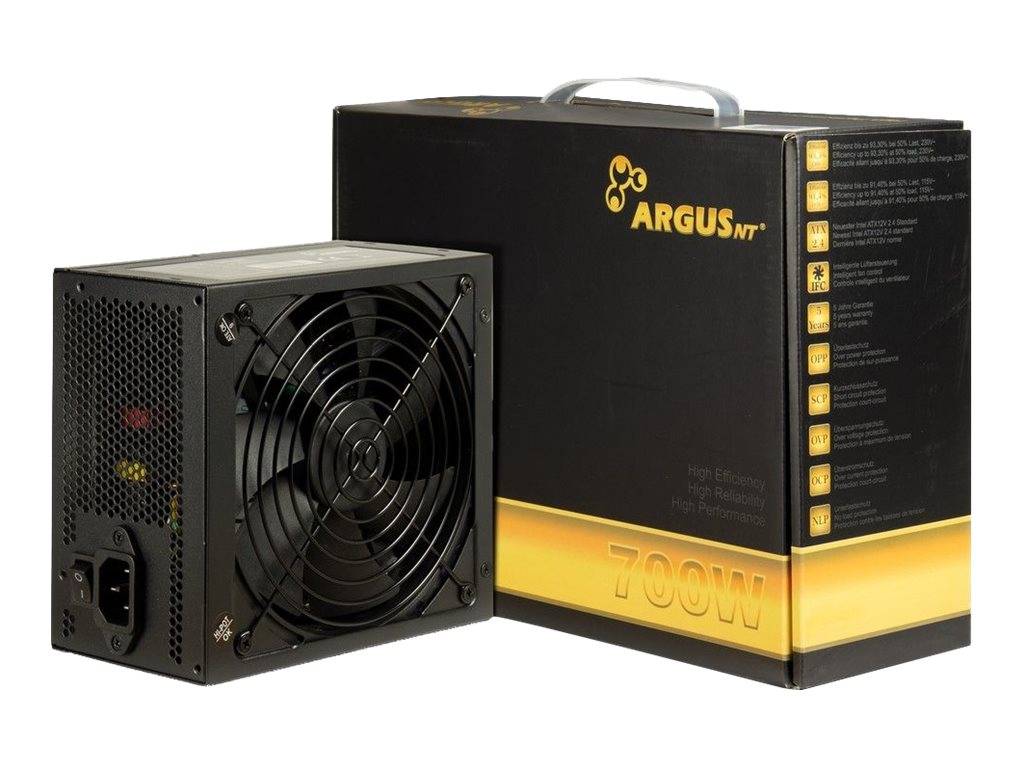

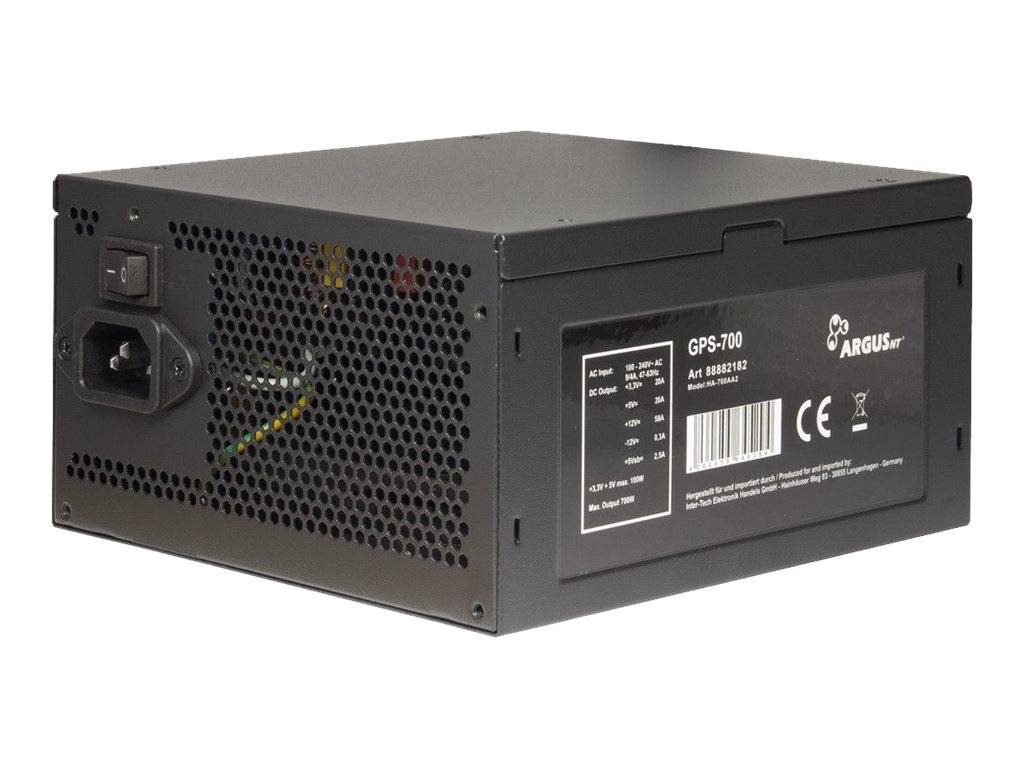

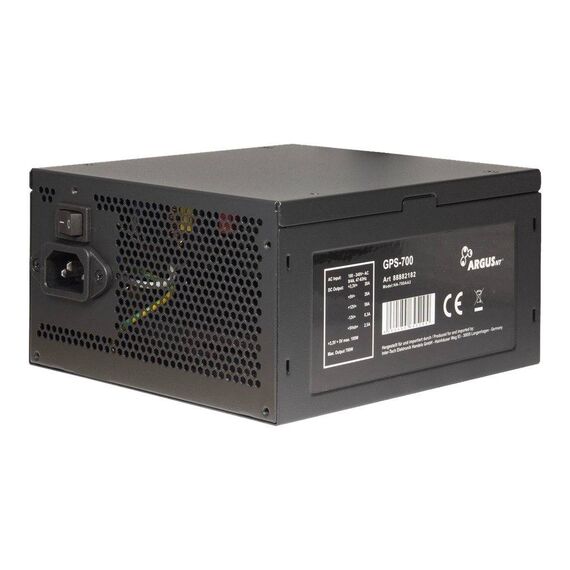

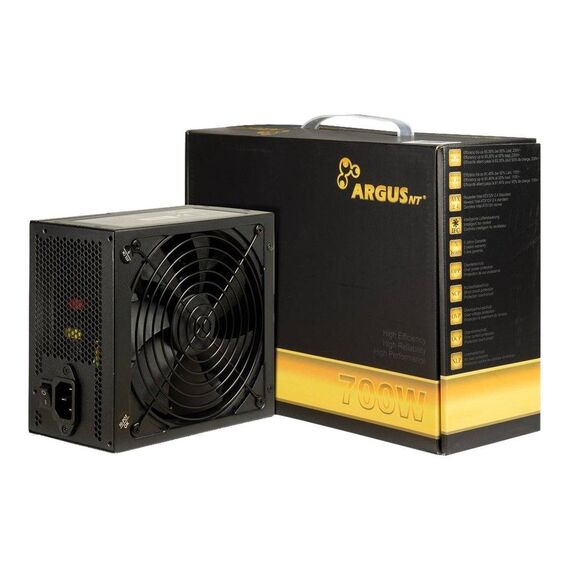

Argus GPS-700 / Power supply (internal) / ATX12V 2.4 / 80 PLUS Gold / AC 100/240 V / 700 Watt / active PFC | 88882182
Please sign in so that we can notify you about a reply
Special Features
- 80PLUS Gold 230V EU certification (up to 92.9% efficiency)
- Intelligent fan control (IFC)
- OPP, SCP, OVP, OCP and NLP
- 50A on the 12V line
Product Specification
| Device Type | Power supply - active Power Factor Correction (PFC) - internal |
| Specification Compliance | ATX12V 2.4 |
| PSU Form Factor | ATX |
| Power Device | Power Device |
| Input Voltage | AC 100/240 V |
| Frequency Required | 47 - 63 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 4 x 8 pin PCI Express power with detachable 2 pin section ¦ 6 x 15 pin Serial ATA power ¦ 3 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 700 Watt |
| Output Current | +12V - 58 A ¦ +3.3V - 20 A ¦ +5V - 20 A ¦ -12V - 0.3 A ¦ +5VSB - 2.5 A |
| Efficiency | 89.4% at 10% Load (115 VAC), 90.6% at 10% Load (230 VAC), 91.4% at 20% Load (115 VAC), 93.2% at 20% Load (230 VAC), 91.4% at 50% Load (115 VAC), 93.3% at 50% Load (230 VAC), 87.2% at 100% Load (115 VAC), 90.2% at 100% Load (230 VAC) |
| 80 PLUS Certification | 80 PLUS Gold |
| Miscellaneous | Miscellaneous |
| Included Accessories | Screws, cable ties |
| Cooling System | 140 mm fan |
| Features | Over current protection, over voltage protection, overpower protection, short-circuit protection, Intelligent Fan Control Technology, no load operation protection |
| Manufacturer Warranty | Manufacturer Warranty |
| Service & Support | Limited warranty - 5 years |
| Dimensions & Weight | Dimensions & Weight |
| Width | 15 cm |
| Depth | 16 cm |
| Height | 8.6 cm |
| Weight | 1.97 kg |
| Dimensions & Weight (Shipping) | Dimensions & Weight (Shipping) |
| Shipping Weight | 2.31 kg |
Features - INTERTECH - 88882182
More Details
Product Code
04:378273
EAN Code
4260455645294
Manufacturer
INTERTECH
