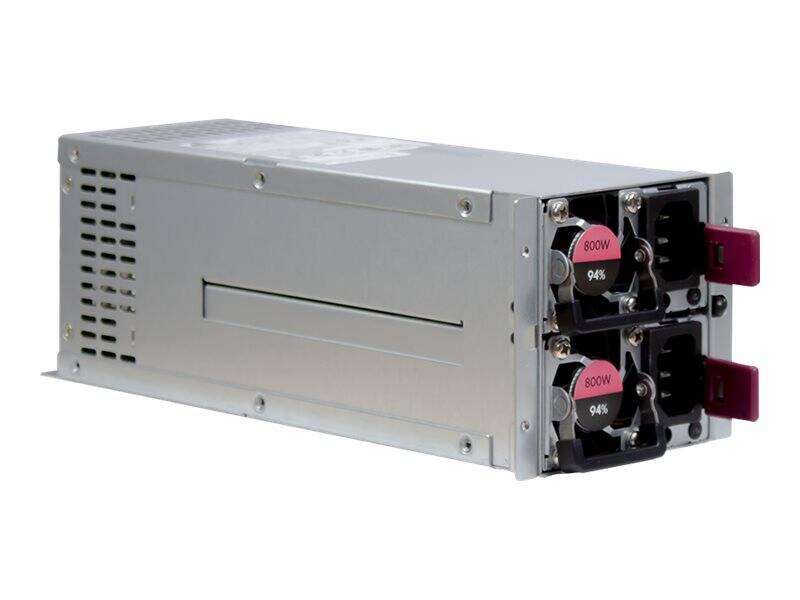

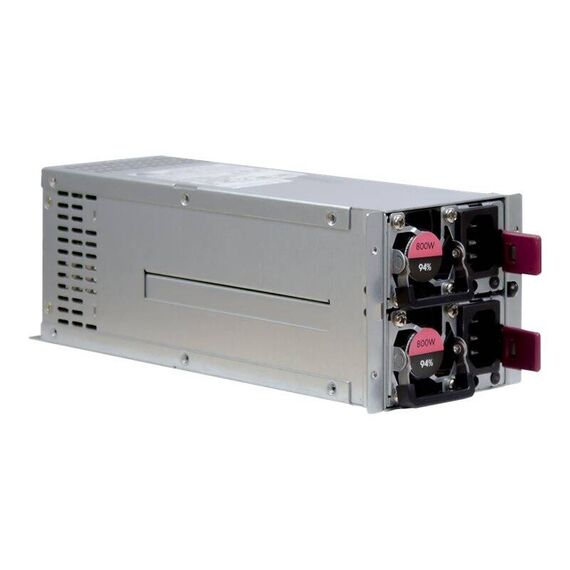

ASPOWER R2A-DV0800-N - Power supply (internal) - 80 PLUS Platinum - AC 100-240 V - 800 Watt | 99997247
Please sign in so that we can notify you about a reply
Special Fetures
- 800 Watt
- Full range input
- 80PLUS Platinum
Product Specification
| Device Type | Power supply - internal |
| Power Device | |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 |
| Input Voltage | AC 100-240 V |
| Frequency Required | 50/60 Hz |
| Power Output Connectors Details | 1 x power 24 pin ATX with detachable 4 pin section ¦ 2 x power 8 pin +12V with detachable 4 pin section ¦ 2 x 15 pin Serial ATA power ¦ 6 x 4 PIN internal power ¦ 1 x 4 PIN mini-power connector |
| Output Voltage | +3.3, +5, ±12 V |
| Power Capacity | 800 Watt |
| Output Current | +3.3V - 30 A ¦ +5V - 25 A ¦ +12V - 66.5 A ¦ -12V - 1 A ¦ +5VSB - 4 A |
| 80 PLUS Certification | 80 PLUS Platinum |
| Miscellaneous | |
| MTBF | 100,000 hours |
| Cooling System | 2 x 40 mm fans |
| Features | LED display, overheat protection, over current protection, over voltage protection, overpower protection, short-circuit protection, fan speed control |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Dimensions & Weight | |
| Width | 10 cm |
| Depth | 27 cm |
| Height | 8.4 cm |
| Weight | 3.1 kg |
| Dimensions & Weight (Shipping) | |
| Shipping Weight | 3.42 kg |
