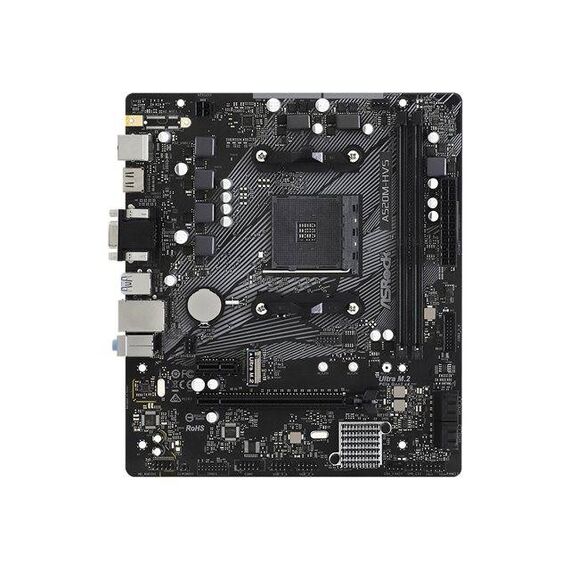

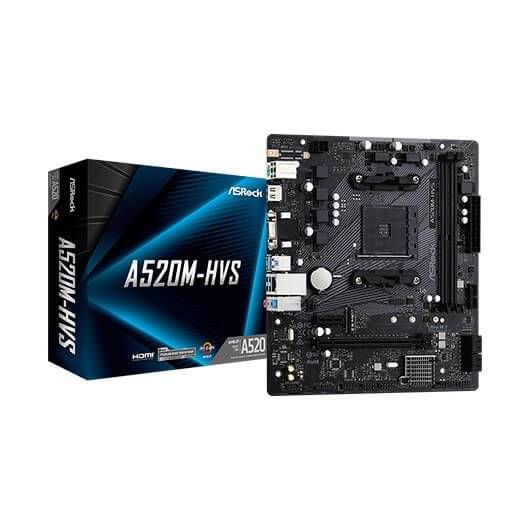

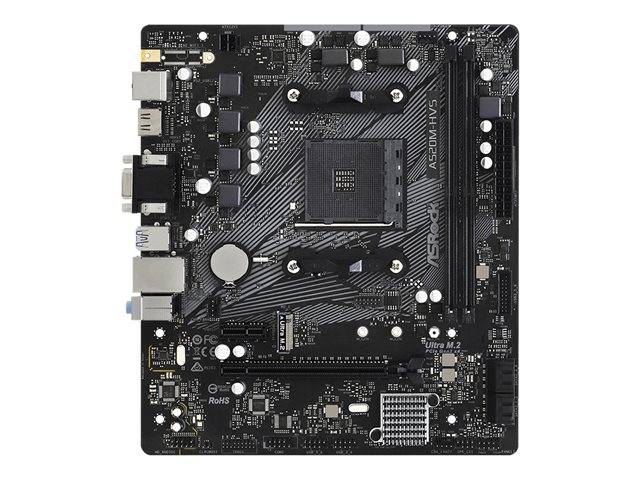

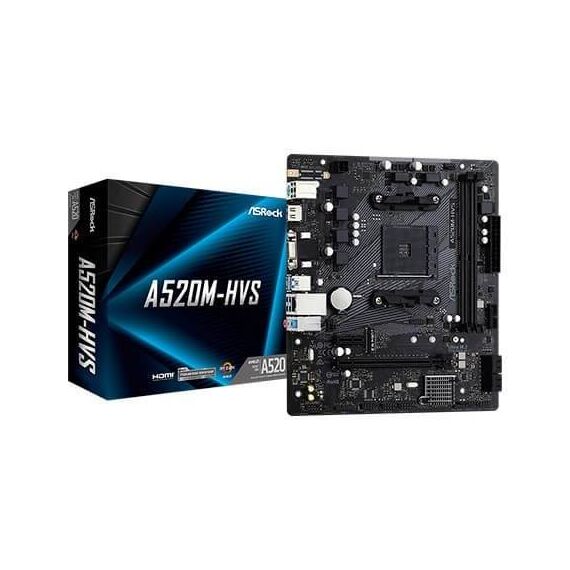

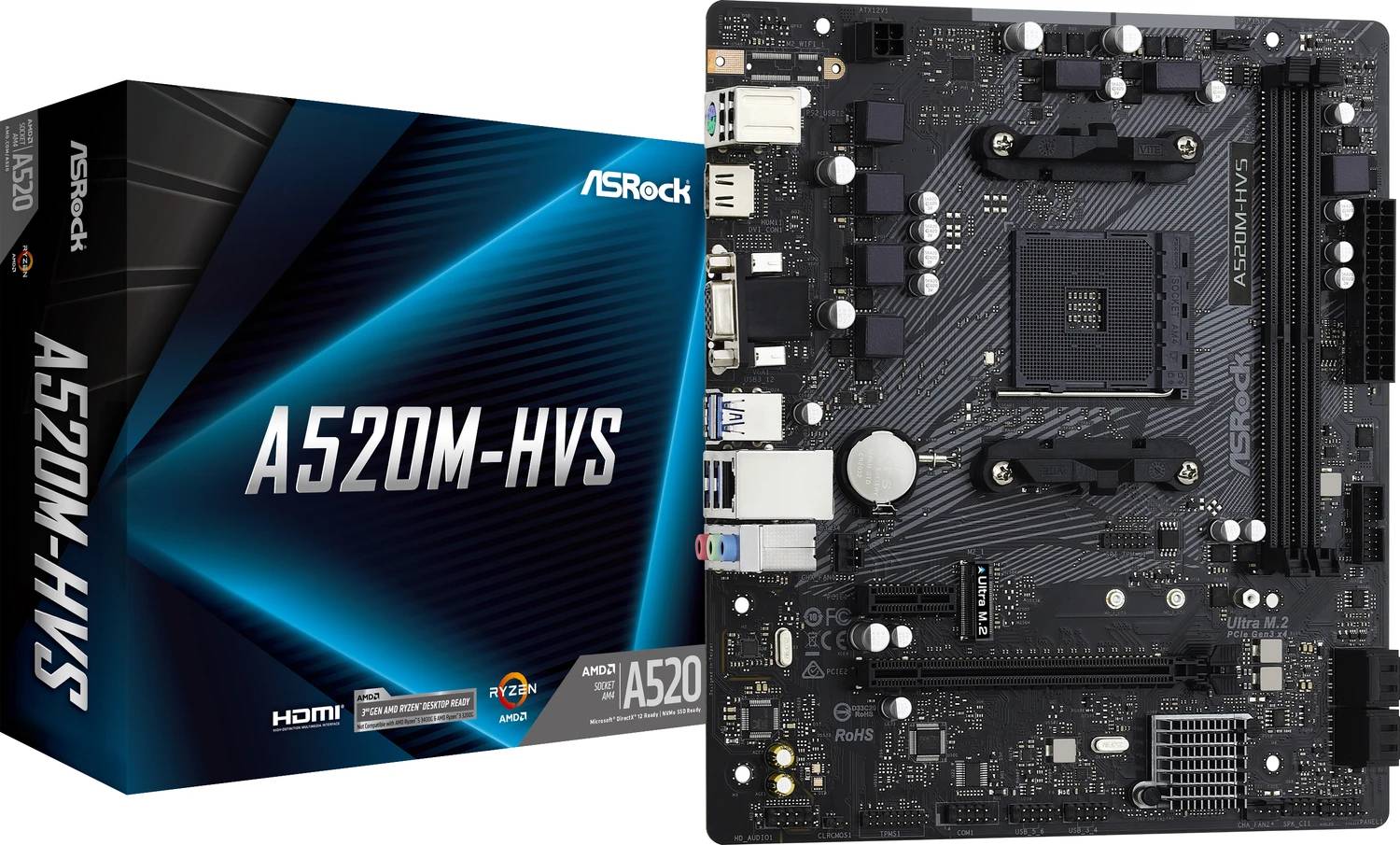

ASRock A520M-HVS / Motherboard / micro ATX / Socket AM4 / AMD A520 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBE60-A0UAYZ
Special Features
- Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
- HDMI 4k @60Hz
- Dual graphics outputs
- Premium 50A power choke
- High Density Glass Fabric PCB
- Sapphire Black PCB
- Full Spike Protection
- Live Update & APP Shop
Product features
- Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules. - HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry. - Dual graphics outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now. - Premium 50A power choke
Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity. - Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch. - Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes. - Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. ASRock provides various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A520 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports 3rd Generation Ryzen) |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz, 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4200 MHz (O.C.), 4333 MHz (O.C.), 4600 MHz (O.C.), 4533 MHz (O.C.), 3200 MHz, 4466 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) |
| Max Allocated RAM Size | 16 GB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC887 |
| Compliant Standards | High Definition Audio |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 ¦ 1 x PCIe 3.0 x1 |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |

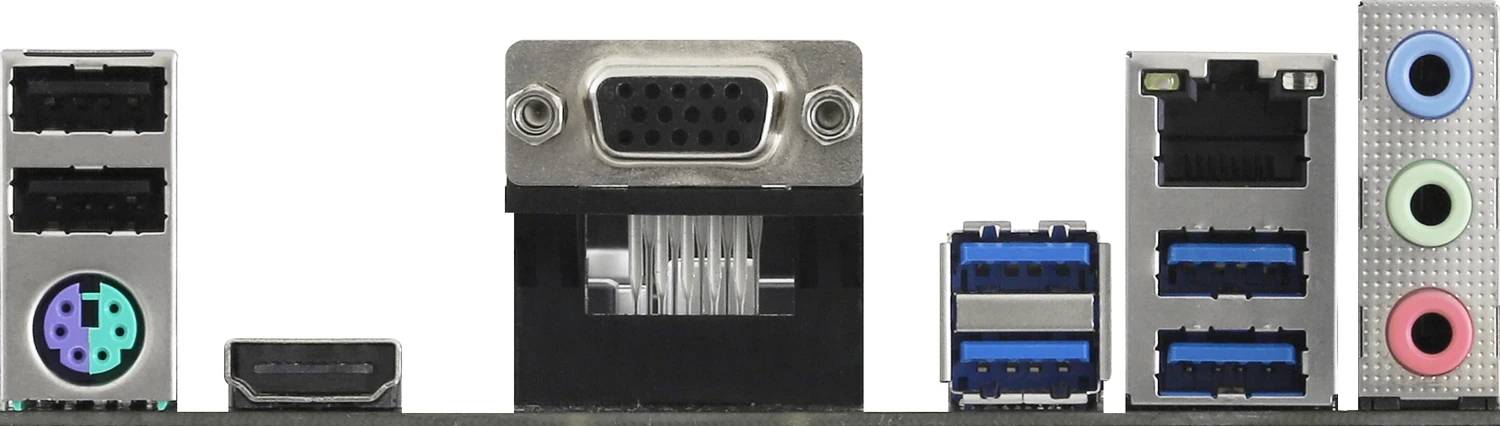

| Interfaces | 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 1 x HDMI ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x PS/2 keyboard / mouse ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) |
| Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| BIOS Type | AMI |
| BIOS Features | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Instant Flash, All-Solid Capacitor motherboard Design, 15µ Gold Contact, 6 Phase Power Design, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, Sapphire Black PCB, ASRock Live Update, ASRock Ultra M.2, Premium 50A Power Choke |

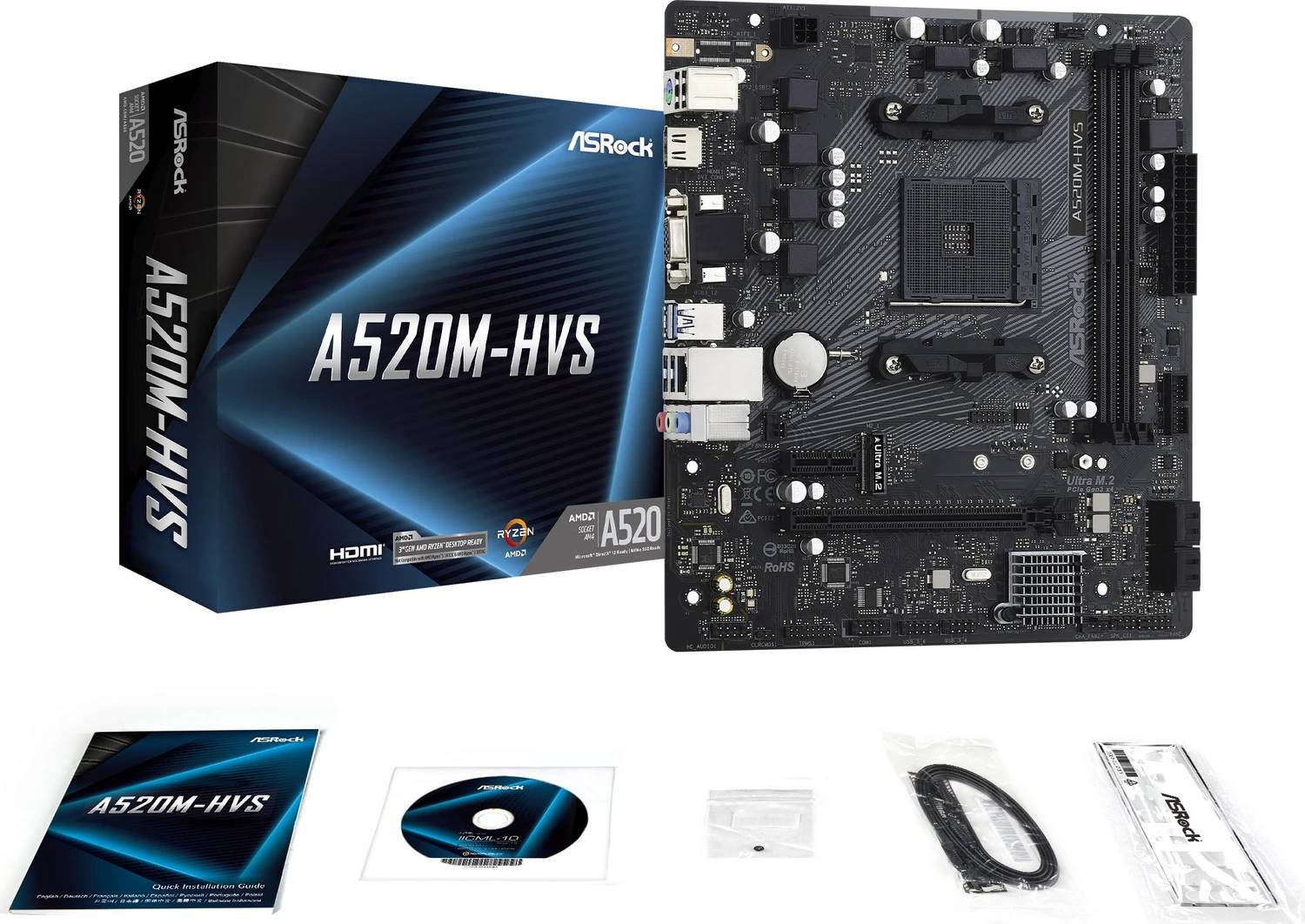

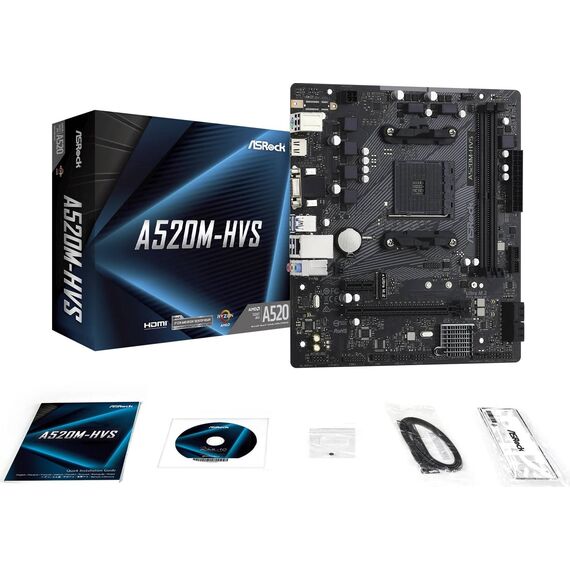

| Included Accessories | I/O back plate, 1 x M.2 screw |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, ASRock A-Tuning, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN |
| Compliant Standards | FCC, EuP Ready, ErP Ready |
| Width | 23 cm |
| Depth | 20.1 cm |
| Service & Support | Limited warranty - 3 years |
Features - Asrock - 90-MXBE60-A0UAYZ
More Details
Product Code
07:115954
EAN Code
4710483932311
Manufacturer
Asrock
