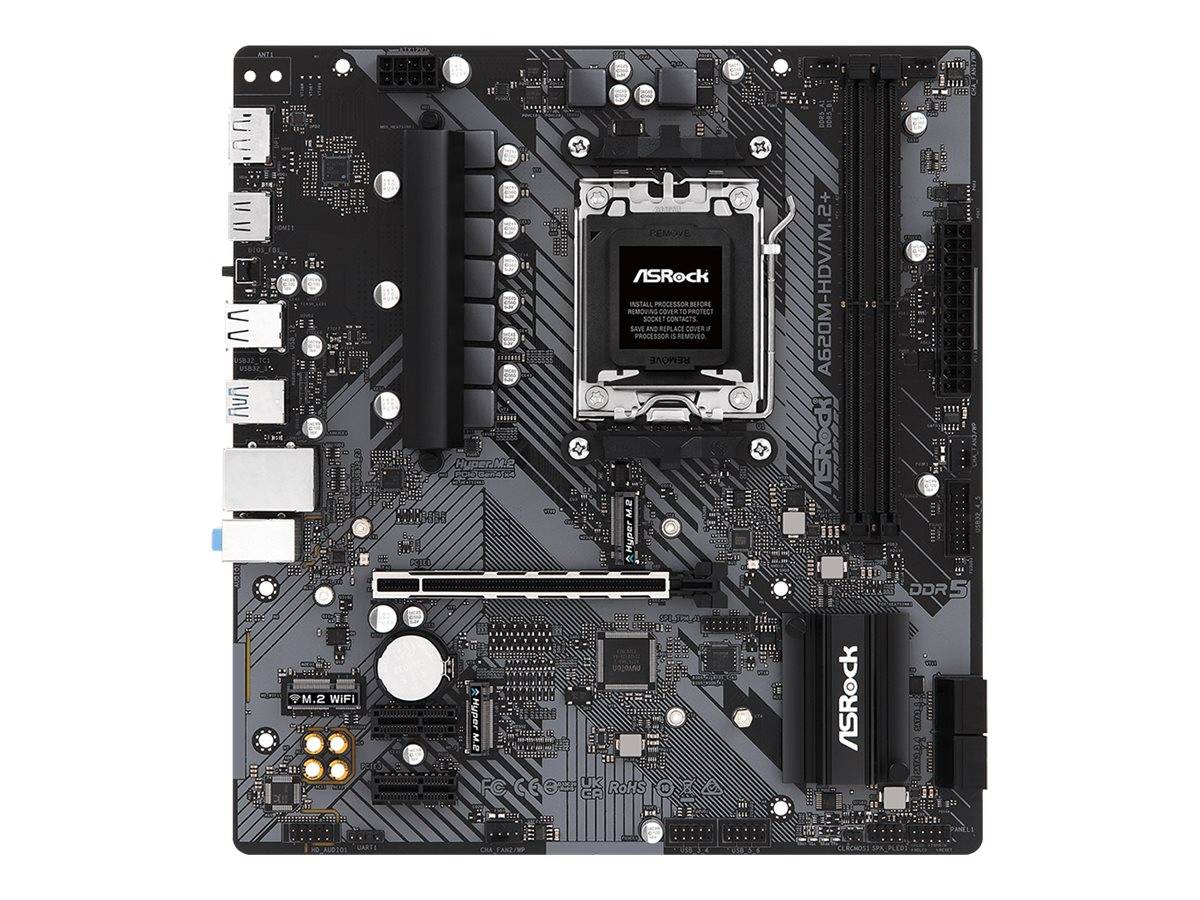

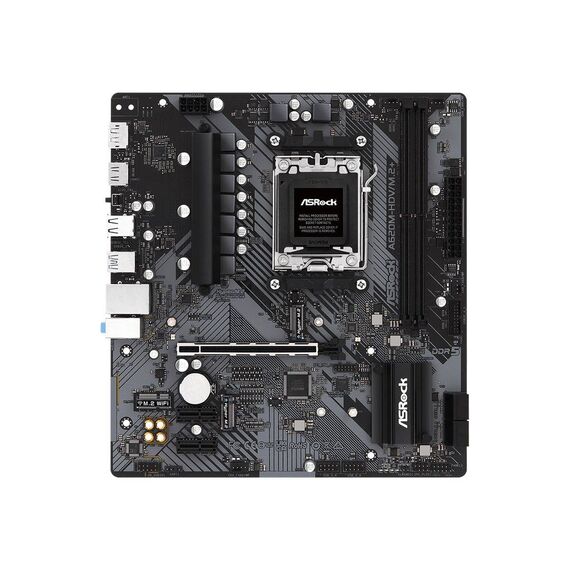

ASRock A620M-HDV/M.2+ / Motherboard / micro ATX / Socket AM5 / AMD A620 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBLK0-A0UAYZ
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD A620 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR5 |
| Bus Clock | 6400 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2260/2280 M.2 Key M slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen 1 ¦ 3 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ LAN (Gigabit Ethernet) ¦ 2 x aerial ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x SPI - header ¦ 1 x audio - header ¦ 1 x speaker - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, ASRock Full HD UEFI, 6 Layer PCB, ASRock Steel Slots, Water Pump Header, ASRock POST Status Checker (PSC), 6+1+1 DrMOS Power Stages, BIOS FlashBack button, 50A Power Stage |
| Miscellaneous | Miscellaneous |
| Included Accessories | 3 x M.2 screws, IO shield |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock XFast LAN |
| Compliant Standards | RoHS, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, FCC Part 15 Subpart B |
| Width | 22.6 cm |
| Depth | 24.4 cm |
Features - Asrock - 90-MXBLK0-A0UAYZ
More Details
Product Code
04:429638
EAN Code
4710483943034
Manufacturer
Asrock
