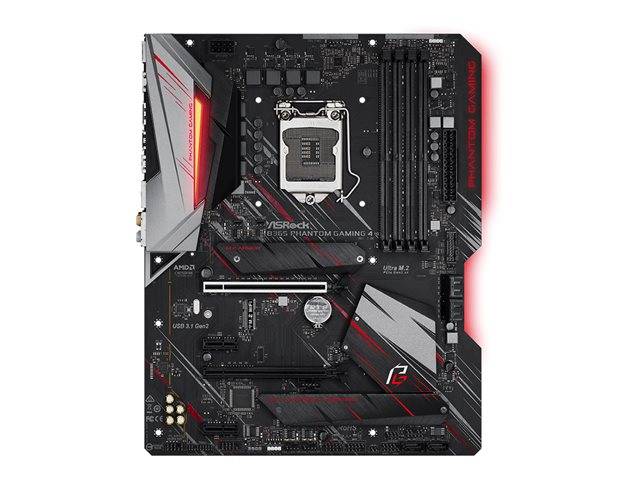

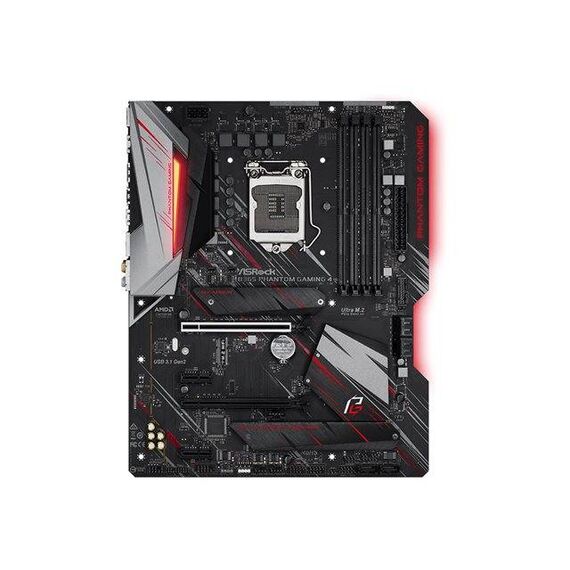

ASRock B365 Phantom Gaming 4 / Motherboard / ATX / LGA1151 Socket / B365 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB9U0-A0UAYZ
ASRock B365 Phantom Gaming 4 / Motherboard / ATX / LGA1151 Socket / B365 / USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB9U0-A0UAYZ
Description
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and the ASRock's VR Ready motherboard is definitely the one you're looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.
ASRock B365 Phantom Gaming 4 / Motherboard | 90-MXB9U0-A0UAYZ
Special Features
- Polychrome RGB
- M.2 Armors
- Dual USB 3.1 Gen2 (Type-A + Type-C)
- Intel LAN
Product features
- Polychrome RGB
In addition to the built-in RGB illumination, this motherboard also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects. - M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution on B365 platform that makes SSDs to run in a certain low temperature. - Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear I/O for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates. - Intel LAN
Intel LAN provides advanced throughput performance, lower CPU utilization and enhanced stability and is able to deliver ultimate network experience to users!
Product Specification
Product Type | Motherboard - ATX |
Chipset Type | Intel B365 |
Processor Socket | LGA1151 Socket |
Max Processors Qty | 1 |
Compatible Processors | (supports 9th and 8th Generation Intel Core, Maximum TDP 95W) |
Max Size | 64 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2666 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC1220 |
Compliant Standards | DTS Connect, High Definition Audio, Premium Blu-ray audio support |
Network Controller | Intel I219V |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (dual x16, x4 mode; single card: x16 mode) ¦ 2 x PCIe 3.0 x1 ¦ 1 x M.2 socket (Key E) |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 ¦ PCIe 3.0 -connectors: 1 x Ultra M.2 |
RAID Features | Intel Rapid Storage Technology |
Interfaces | 1 x DisplayPort ¦ 1 x HDMI ¦ 1 x PS/2 keyboard / mouse ¦ 1 x TOSLINK ¦ 1 x USB-C Gen2 ¦ 2 x USB 2.0 ¦ 4 x USB 3.1 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x USB 3.1 Gen 2 |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.1 Gen 1 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header |
Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | Multilingual BIOS, UEFI BIOS, SMBIOS 2.7 support, ACPI 6.0 support |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | 8 Phase Power Design, ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, Intel Turbo Boost Technology 2.0, Intel Clear Video HD Technology, ASRock XFast LAN, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Internet Flash, Digi Power Design, Intel InTru 3D Technology, Intel Insider, Intel Quick Sync Video, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock My Favorites in UEFI, Sapphire Black PCB, XXL Aluminum Alloy Heatsink, I/O Armor, ASRock Live Update, ASRock EZ Mode, Intel Optane Memory Ready, ASRock Ultra M.2, Premium 50A Power Choke, Nichicon 12K Black Caps, Matte Black PCB, ASRock Intel 4-Layer Memory POOL (Planes on Outer Layers) Technology, ASRock Steel Slots, PCB Isolate Shielding, ASRock POST Status Checker (PSC) |
Included Accessories | I/O back plate, 3 x M.2 screws |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar, ASRock XFast LAN, ASRock Polychrome RGB, ASRock Phantom Gaming Tuning |
Compliant Standards | FCC, EuP Ready, ErP Ready |
Width | 30.5 cm |
Depth | 24.4 cm |
