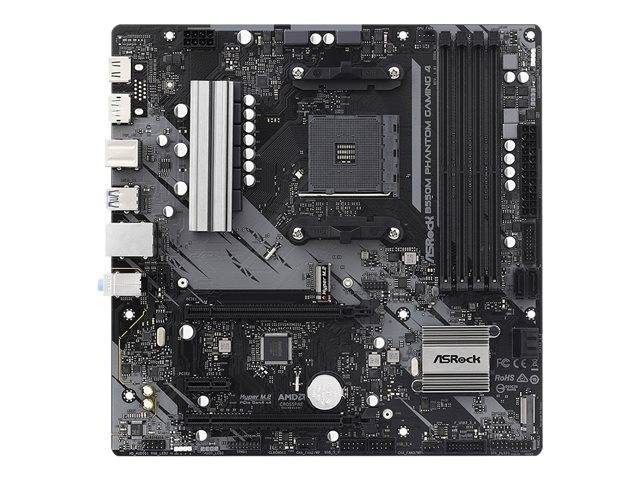

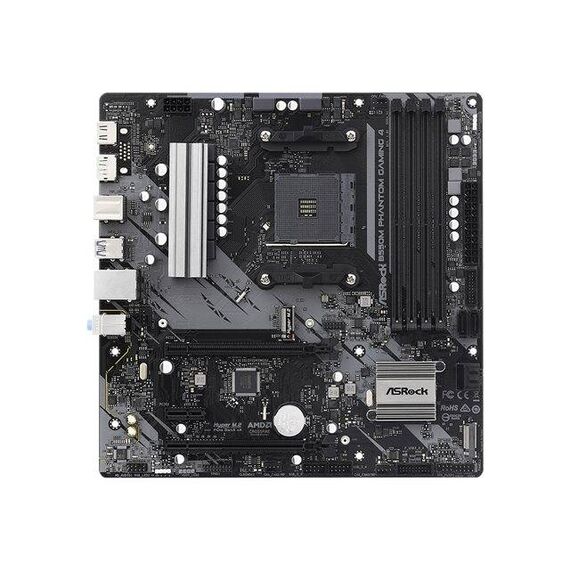

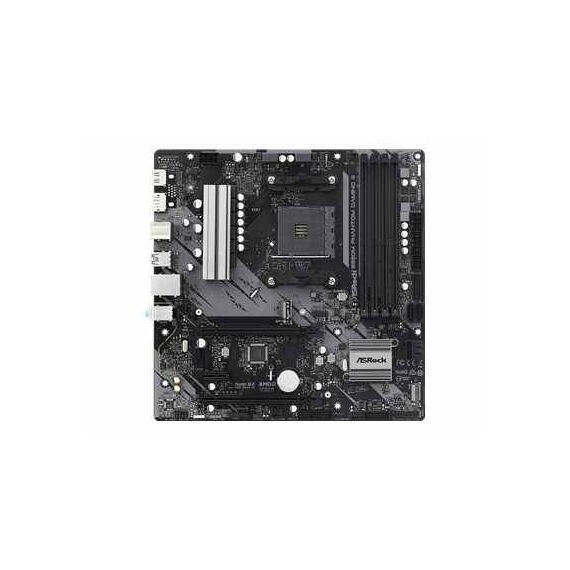

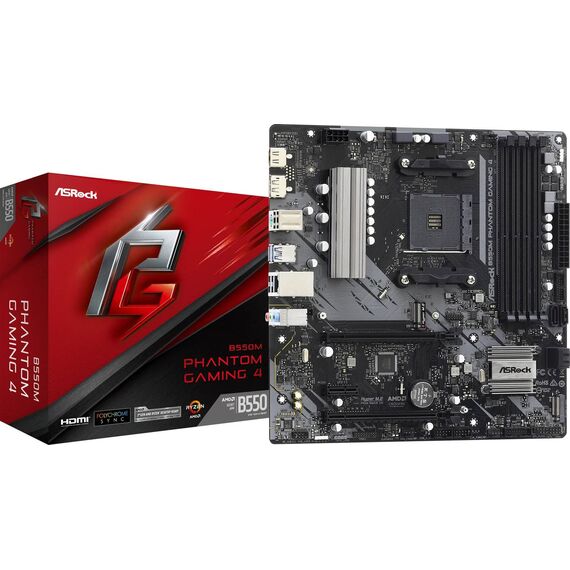

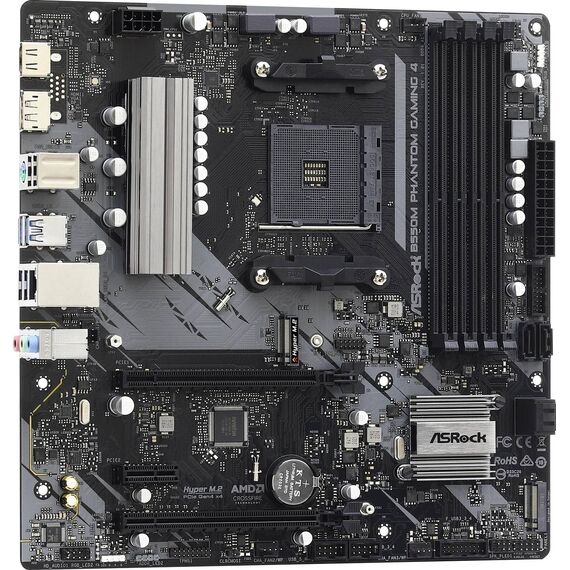

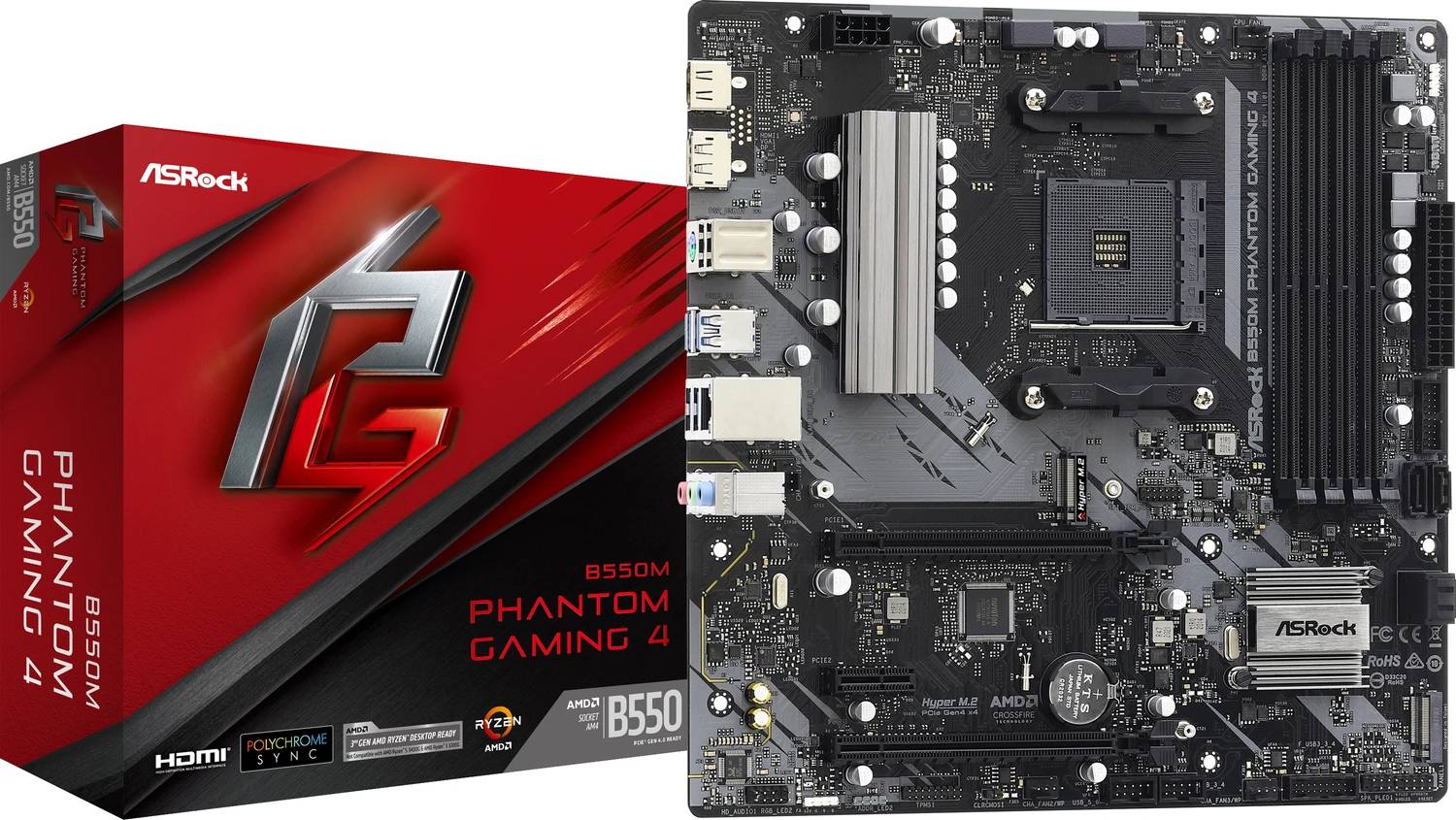

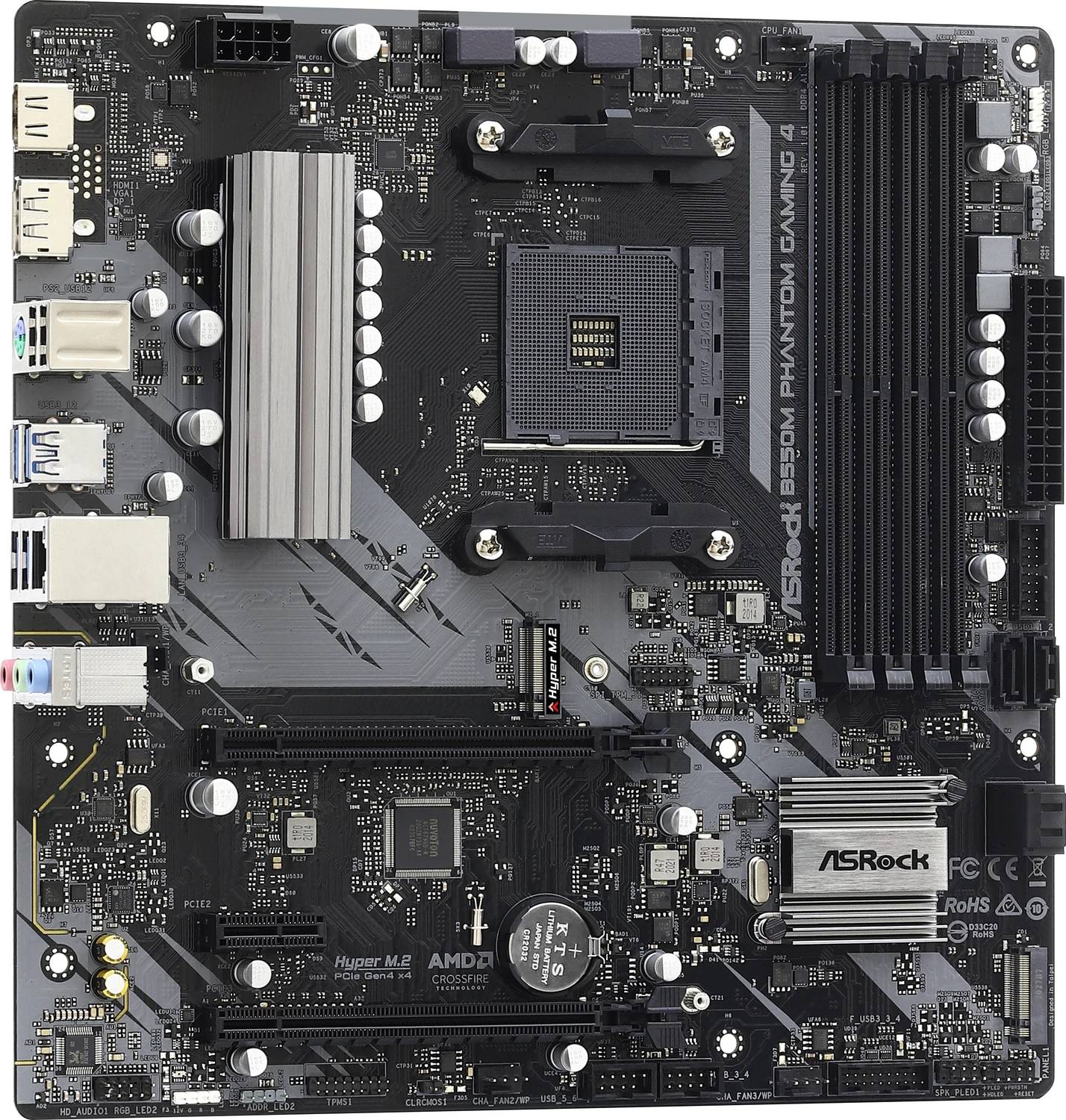

ASRock B550M Phantom Gaming 4 / Motherboard / micro ATX / Socket AM4 / AMD B550 / USB 3.2 Gen 1 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBE90-A0UAYZ

Description

Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming-oriented features and excellent gaming capabilities. It's all about bringing a new gaming experience to gamers!

ASRock B550M Phantom Gaming 4 / Motherboard | 90-MXBE90-A0UAYZ

Special Features

• Supports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen processors (3000 and 4000 series processors)
• 8 power phase design
• Supports DDR4 4733+ (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• Supports AMD CrossFireX

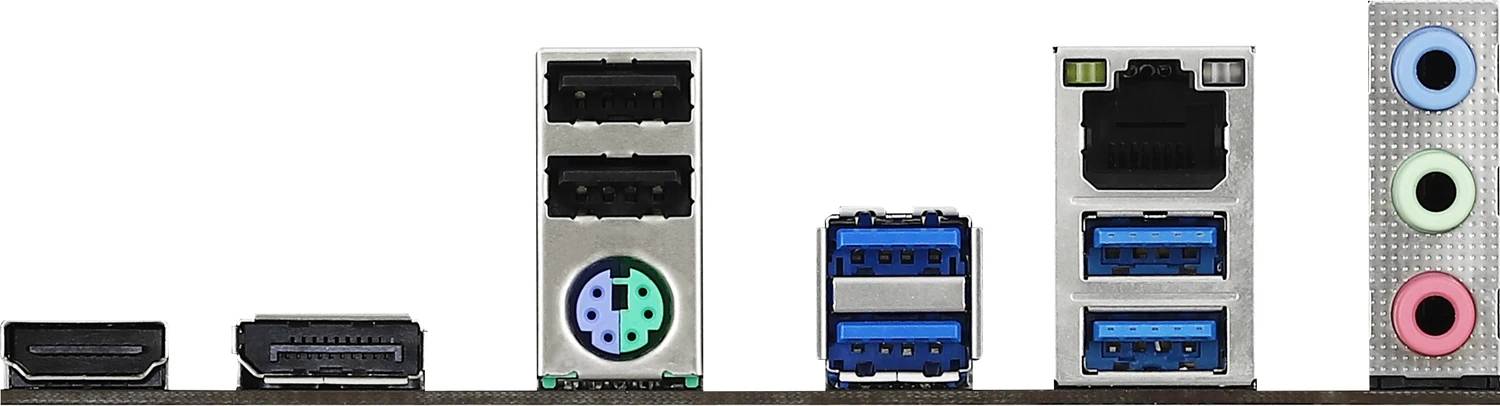

• Graphics output options: HDMI, DisplayPort
• 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
• 4 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4), 1 x M.2(PCIe Gen3 x2 & SATA3)
• 8 x USB 3.2 Gen1 (4 Front, 4 Rear)
• 6 x USB 2.0 (4 Front, 2 Rear)
• Realtek Gigabit LAN

Product features

• 8 power phase design
  Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers.
• Premium 50A power choke
  Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
• Dual M.2 for SSD, supports Type 2280 M.2
  Ready for higher capacity and even faster Type 2280 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
• 2oz copper PCB
  2-ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!
• Dual graphics outputs
  Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
• HDMI 4k @60Hz
  Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
• AMD StoreMI technology
  A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology "combines" these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.
• Full Spike Protection
  Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.
