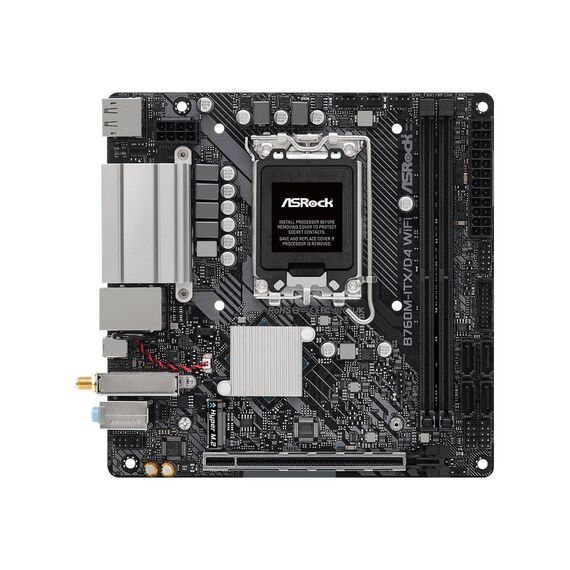

ASRock B760M-ITX/D4 WiFi / Motherboard / mini ITX / LGA1700 Socket / B760 Chipset / USB 3.2 Gen 1, USB-C 3.2 Gen 2x2 / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXBKY0-A0CAYZ
Please sign in so that we can notify you about a reply
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | Intel B760 |
| Processor Socket | LGA1700 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | (supports 12th and 13th Generation Intel Core) |
| Supported RAM | Supported RAM |
| Max Size | 64 GB |
| Technology | DDR4 |
| Bus Clock | 5333 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP) 2.0, supported ECC modules operate in non-ECC mode |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x M.2 socket (2230 M.2 Key E slot) ¦ 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ PCIe 4.0 -connectors: 1 x M.2 |
| Interfaces | 2 x aerial ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x USB-C 3.2 Gen2x2 ¦ 2 x USB 3.2 Gen 1 ¦ 2 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-in - mini-jack |
| Internal Interfaces | 2 x USB 3.2 Gen 1 - header ¦ 4 x USB 2.0 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, ESD Protection, ASRock Full HD UEFI, ASRock My Favorites in UEFI, ASRock Easy RAID Installer, 6 Layer PCB, Dr.MOS MOSFET, ASRock EZ Mode, Intel Turbo Boost Max Technology 3.0, 5+1+1 Phase Power Design, reinforced PCIe slots, Intel Hybrid Technology, ASRock Auto Driver Installer, Intel Adaptive Boost Technology (ABT), Intel Thermal Velocity Boost (TVB), 50A Power Stage |
| Miscellaneous | Miscellaneous |
| Included Accessories | 1 x M.2 screw, IO shield, 2 x ASRock WiFi 2.4/5/6 GHz Antennas |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock A-Tuning, ASRock XFast LAN |
| Compliant Standards | RoHS, EuP Ready, ErP Ready, DisplayPort 1.4, HDCP 2.3, FCC Part 15 Subpart B |
| Width | 17 cm |
| Depth | 17 cm |
Features - Asrock - 90-MXBKY0-A0CAYZ
CPU Socket
- Socket 1700
More Details
Product Code
04:422357
EAN Code
4710483942242
Manufacturer
Asrock
