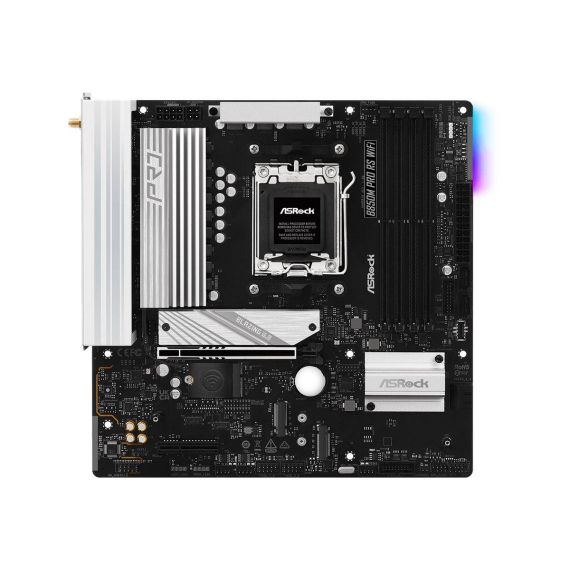

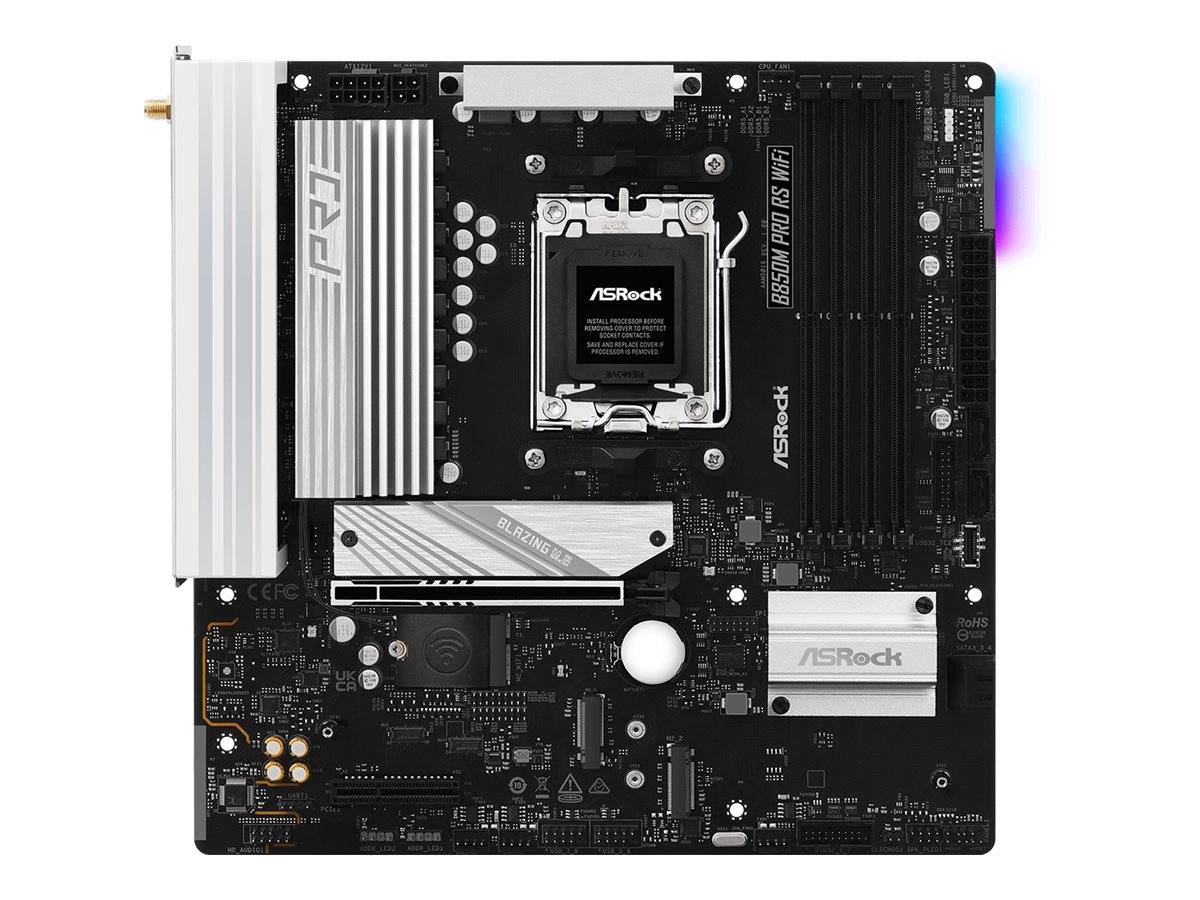

ASRock B850M Pro RS WiFi / Motherboard / micro ATX / Socket AM5 / AMD B850 Chipset / USB-C 3.2 Gen2, USB-C 3.2 Gen 1, USB 3.2 Gen 2, USB 3.2 Gen 1 / 2.5 Gigabit LAN, Bluetooth, Wi-Fi 6E / onboard graphics (CPU required) / HD Audio (8-c | 90-MXBR70-A0UAYZ
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Features
- Versatile connectivity options
The motherboard comes with multiple interfaces including USB 3.2 Gen 1, USB 3.2 Gen 2, and USB-C, offering extensive connectivity for various devices and peripherals. - Efficient power design
Equipped with an 8+2+1 Phase Power Design, the ASRock B850M Pro RS WiFi motherboard ensures stable power delivery for optimal performance, especially under heavy workloads. - Advanced audio technology
Featuring high definition audio output with an 8-channel system, this motherboard delivers clear and detailed sound, enhancing the multimedia experience. - User-friendly BIOS interface
The UEFI BIOS provides an intuitive interface for easy configuration and system adjustments, making it accessible for both novice and experienced users. - Robust cooling features
An aluminum heatsink design is included to promote effective thermal management, keeping the system cool during extensive usage.
Special Features
- Compatible with Ryzen 7000/8000/9000 Series processors
- Supports high speed DDR5 RAM up to 8000 MHz (O.C.)
- Robust storage options with 2 x Hyper M.2 and 1 x Blazing M.2
- Incorporates 2.5 Gigabit Ethernet and Wi-Fi 6E for fast networking
- High definition audio output for immersive sound experience
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | AMD B850 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | Ryzen (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 8000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), AMD EXPO technology |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Dragon RTL8125BG |
| Network Interfaces | 2.5 Gigabit Ethernet, Bluetooth 5.2, 802.11a/b/g/n/ac/ax (Wi-Fi 6E) |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (Key E, for wireless module) 3 x M.2 socket (2280 M.2 slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 1 x HDMI 1 x DisplayPort 1 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 1 4 x USB 2.0 1 x speaker - mini-jack 1 x microphone - mini-jack 1 x audio line-in - mini-jack 2 x aerial 1 x LAN (2.5Gigabit Ethernet) |
| Internal Interfaces | 1 x USB-C 3.2 Gen 1 - header 4 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x SPI - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | 8+2+1 Phase Power Design, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash, Dr.MOS MOSFET, 6 Layer PCB, DIY Friendly Design, aluminium heatsink design, ASRock FAN-Tastic Tuning, ASRock Polychrome RGB, Hi-Density Power Connectors, pre-mounted I/O shield |
| Miscellaneous | Miscellaneous |
| Software Included | ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, ASRock A-Tuning |
| Compliant Standards | FCC, ErP Ready, EuP Ready |
| Width | 24.4 cm |
| Depth | 24.4 cm |
CPU Socket
- Socket AM5
Χαρακτηριστικά
Product Code
03:262377
EAN Code
4711581490352
Manufacturer
Asrock
