ASRock DeskMini H470 / Barebone / mini PC / LGA1200 Socket / Intel H470 / no CPU / RAM 0 GB / GigE | 90BXG3R01-A10GA0W
Special Features
- Dual DDR4-2933MHz SO-DIMMs
- Multi video outputs: 2x DisplayPort, HDMI and D-Sub
- 1x Alternate Mode USB Type-C
- 1x USB 3.2 Gen1 Type-C port
- 1x Ultra M.2 PCIe Gen3 x4 slot
- 2x 2.5" HDD/SSD tray with RAID 0/1
- 1x M.2 (2230) Wi-Fi slot
Product features
- Dr.MOS
The integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance. - Premium 60A power choke
Compared to traditional chokes, ASRock' premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard. - Heatsink on MOSFET
ASRock DeskMini H470 features aluminum MOSFET heatsink providing great heat dissipation to ensure system's stability in loading. - ASRock BFB Technology
ASRock DeskMini H470 supports exclusive Base Frequency Boost (BFB) Technology, allows user to bump non-K processors speed to enhance system performance. - Dual-channel DDR4-2933
ASRock DeskMini H470 supports dual-channel DDR4-2933MHz high-speed memory. It is 10% faster than the previous generation and brings higher performance. - USB Alternate Mode
ASRock DeskMini H470 adopts Rear USB Type-C USB Alternate Mode providing 4K resolution DisplayPort signal, up to 60 watt power delivery, and 5Gbps data transfer through one cable. - Rapid USB connectivity

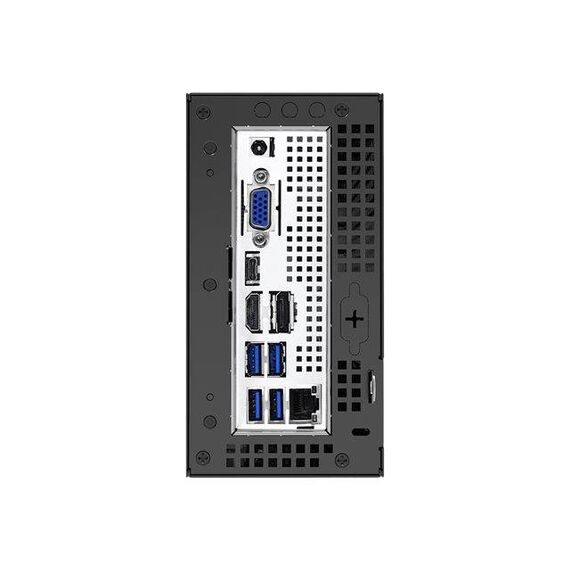

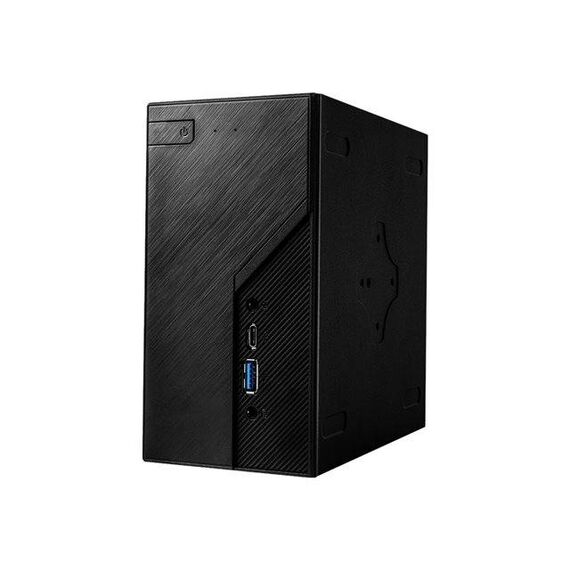

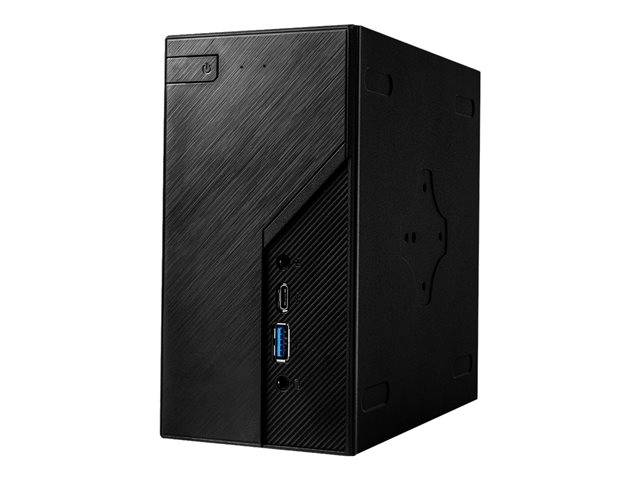

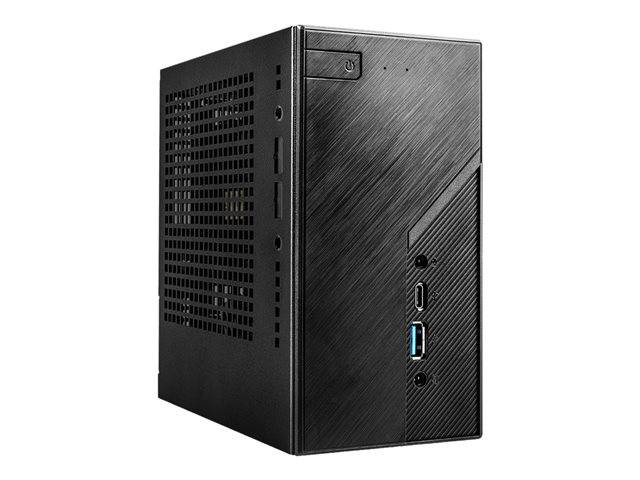

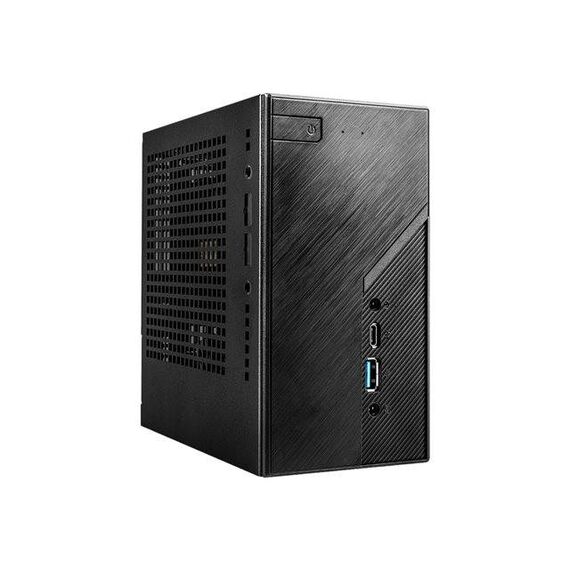

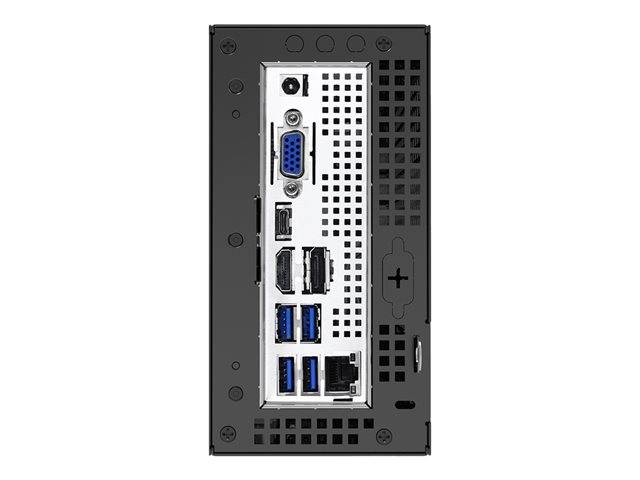

ASRock DeskMini H470 supports USB 3.2 Gen2 Type-A on front panel, delivering 10Gbps speedy data transfer bandwidth. In addition, DeskMini H470 brings 4x USB 3.2 Gen1 ports on rear side. - Triple 4K displays
DeskMini H470 supports 3 displays output simultaneously! Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1200 Socket |
| Chipset Type | Intel H470 |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM - non-ECC |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | 1 x RAID |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 2 |
| RAID Level | RAID 0, RAID 1 |
| Type | No optical drive |
| Monitor Type | None. |
| Graphics Processor | No graphics |
| Sound Output Mode | Stereo |
| Ethernet Controller | Intel I219-V |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bays | 2 (total) / 2 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2230 (Key E) ¦ 1 (total) / 1 (free) x M.2 Card - 2280 |
| Interfaces | 1 x USB 3.2 Gen 2 (1 in front) ¦ 1 x USB-C 3.2 Gen 1 (1 in front) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x microphone (1 in front) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x USB 3.2 Gen 1 ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DisplayPort/USB-C 3.2 Gen 1 |
| Cables Included | Serial ATA cable (2 pcs.) |
| Device Type | Power adapter |
| Power Provided | 120 Watt |
| OS Provided | No operating system |
| Width | 8 cm |
| Depth | 15.5 cm |
| Height | 15.5 cm |
Features - Asrock - 90BXG3R01-A10GA0W
More Details
Product Code
04:343854
EAN Code
4710483931963
Manufacturer
Asrock
