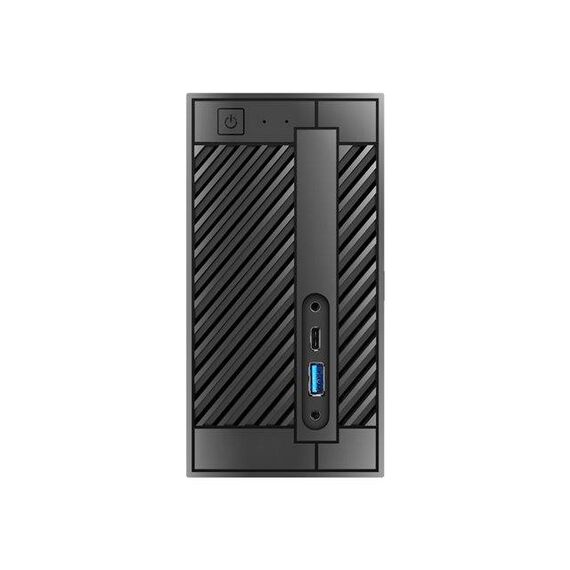

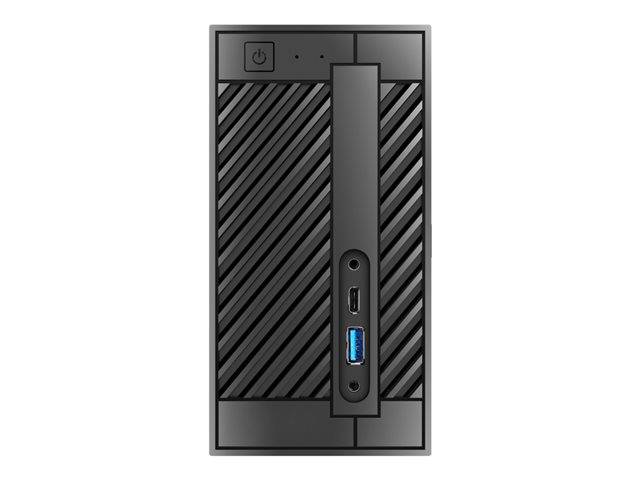

ASRock DeskMini 310 / Barebone / mini PC / LGA1151 Socket / Intel H310 / GigE | 90BXG3701-A10GA0W
Please sign in so that we can notify you about a reply
ASRock DeskMini 310 / Barebone / mini PC / LGA1151 Socket / Intel H310 / GigE | 90BXG3701-A10GA0W
|
Special Features
|
Product Specification
| Type | PC barebone |
| Product Form Factor | Mini PC |
| CPU | No CPU |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| CPU Socket | LGA1151 Socket |
| Chipset Type | Intel H310 |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Type | No HDD |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Channel Qty | 2 |
| Type | No optical drive |
| Type | Card reader |
| Supported Flash Memory Cards | microSD |
| Monitor Type | None. |
| Graphics Processor | No graphics |
| Ethernet Controller | Intel I219-V |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Bays | 2 (total) / 2 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2230 ¦ 1 (total) / 1 (free) x M.2 Card - 2280 |
| Interfaces | 1 x USB-C 3.1 Gen 1 (1 in front) ¦ 2 x USB 3.1 Gen 1 (1 front, 1 rear) ¦ 1 x headphones/microphone (1 in front) ¦ 1 x microphone (1 in front) ¦ 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 1 x USB 2.0 ¦ 1 x LAN (Gigabit Ethernet) |
| OS Provided | No operating system |
| Width | 8 cm |
| Depth | 15.5 cm |
| Height | 15.5 cm |
Features - Asrock - 90BXG3701-A10GA0W
More Details
Product Code
04:270425
EAN Code
4717677335651
Manufacturer
Asrock
No posts found
