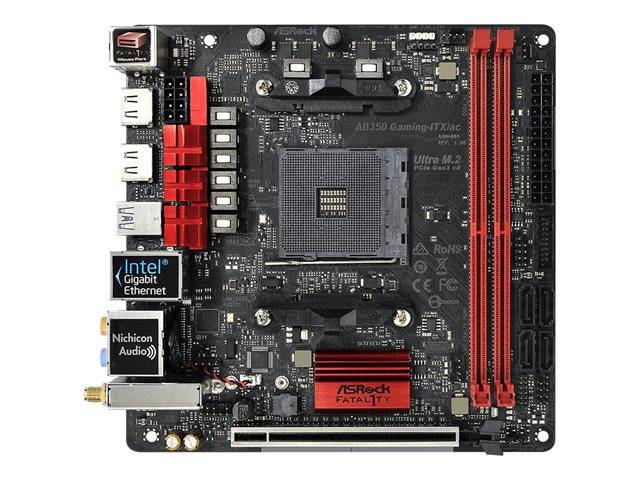

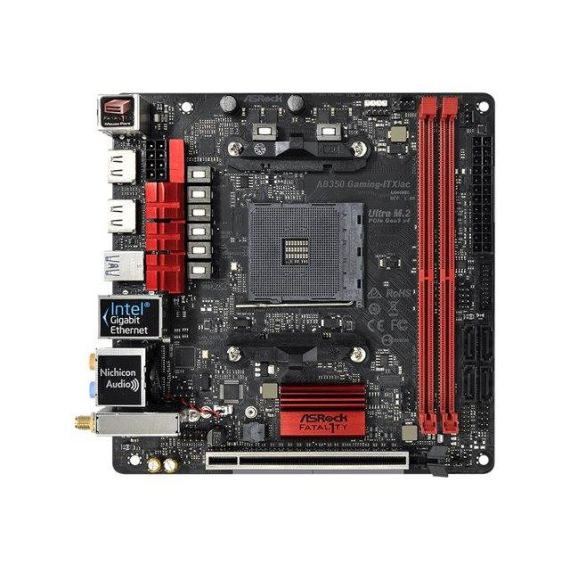

ASRock Fatal1ty AB350 Gaming-ITX/ac / Motherboard / mini ITX / Socket AM4 / AMD B350 / USB 3.0, USB-C / Bluetooth, Gigabit LAN, Wi-Fi / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB5P0-A0UAYZ
|
Description No one has time for weak Wi-Fi signals and sluggish Internet! That's why this motherboard comes with a 802.11ac Wi-Fi module which supports wireless networks and Bluetooth. The advanced PCI-E steel slots packed with solid cover that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely. Everything will wear off in time, but gold looks better! Gold audio jack provides stable sound transmission! Special Features
Product features
|
Product Specification
| Product Type | Motherboard - mini ITX |
| Chipset Type | AMD B350 |
| Processor Socket | Socket AM4 |
| Max Processors Qty | 1 |
| Compatible Processors | A series, Ryzen |
| Max Size | 32 GB |
| Technology | DDR4 |
| Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.), 3466 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Max Allocated RAM Size | 2 GB |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC1220 |
| Compliant Standards | High Definition Audio, Premium Blu-ray audio support, Sound Blaster Cinema 3 |
| Network Controller | Intel I211-AT |
| Network Interfaces | Bluetooth, Gigabit Ethernet, 802.11a/b/g/n/ac |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series CPU)) ¦ 1 x M.2 socket |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - 4 devices - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |
| Interfaces | 1 x PS/2 keyboard / mouse ¦ 2 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 3 x USB 3.0 ¦ 2 x USB 2.0 ¦ 1 x USB-C ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| BIOS Type | AMI |
| BIOS Features | JumperFree, SMBIOS 2.3 support, UEFI BIOS, ACPI 5.1 support |
| Manual Settings | Processor core voltage, memory voltage |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | 8 Phase Power Design, ASRock Instant Flash, HDCP compliant, 15µ Gold Contact, ASRock XFast LAN, ASRock Crashless BIOS, ASRock Internet Flash, Digi Power Design, Fatal1ty Mouse Port, Fatal1ty F-Stream, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), CPU/Chassis Quiet Fan, CPU/Chassis Fan Multi-Speed Control, ASRock Key Master, 4K resolution support, Direct Drive Technology, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Nichicon Fine Gold Series Audio Capacitors, ASRock Live Update, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium Power Choke, ASRock RGB LED, 120dB SNR DAC with Differential Amplifier, Pure Power-In, PCB Isolate Shielding, 2oz Copper PCB, Dual-N MOSFET, Gaming Armor |
| Included Accessories | I/O back plate, ASRock WiFi 2.4/5GHz Antenna, 1 x M.2 screw |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar |
| Compliant Standards | Plug and Play, FCC, EuP Ready, ErP Ready |
| Width | 17 cm |
| Depth | 17 cm |
