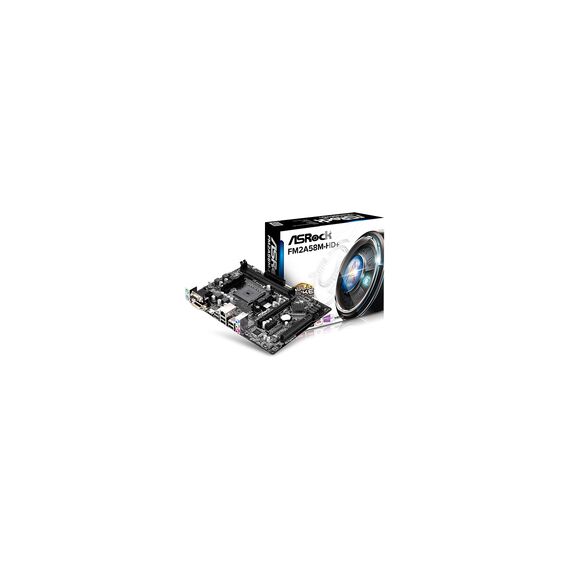

Asrock FM2A58M-HD+ FM2 A58 MATX (FM2A58M-HD+)

Asrock FM2A58M-HD+ Asrock FM2A58M-HD+ FM2 A58 MATX (FM2A58M-HD+)

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.

Surge Protection
Protects the motherboard from excessive surges from the power supply unit.
Lightning Protection
The onboard LAN chip is protected against sudden and violent voltage spikes caused by lightning.
ESD Protection
- USB : Added ICs to protect the onboard USB ports from electrostatic discharges.
- LAN : Prevents the onboard LAN from being damaged by electrostatic discharges.
- MOSFETs : MOSFETs in critical areas use a special design for protecting them from electrostatic discharge during the installation process.

High Density Glass Fabric PCB
What you’ve never understood about your computer is that it is scared to death of water, H2O, humidity or whatever you’d like to name it. And even though you do not see the water, actually there may be lots of excessive moist in the air killing your motherboard silently and slowly. No, your motherboard doesn’t melt when in contact with water like the wicked witch of the west, but it dies of short circuit. Luckily, ASRock has a new High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

FM2/FM2 APU Support
This motherboard is compatible with both AMD FM2 and FM2 APUs. Please note that some new features may be only supported by FM2 APUs.

All Solid Capacitor Design
ASRock is determined to use high quality materials to build the best motherboards, that's why all the capacitors on this motherboard are built with 100% solid capacitors. These solid capacitors bring long lasting durability and ultra stable performance.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub DVI HDMI combo. Plus the HDMI port supports Full HD 1080p Blu-ray BD playback.

4K x 2K
4K is a new standard for display resolutions with a minimum of 3840 x 2160 pixels, which is twice the horizontal and vertical resolution of the 1080p format and four times as many pixels overall. Get ready to lose yourself in this eye popping virtual reality.
Only FM2 APU can support up to 4096 x 2160 resolution display via HDMI port.

Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.

Next-Gen PCIe 3.0
This motherboard supports the next-gen PCIe 3.0! Compared to PCIe 2.0, PCIe 3.0 offers up to 2X data transferring bandwidth for VGA cards, thus providing ultimate graphics performance. Available only with AMD FM2 CPUs

Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.

A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including EZ OC, Auto Tuning, XFast LAN, XFast RAM, OC Tweaker, System Browser, Live Update, Tech Service and a whole lot more!

ASRock APP Shop
ASRock APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can easily optimize your system and keep your motherboard up to date with ASRock APP Shop.

Orbweb ME
Your Personal Cloud, Easy and Always Connects
ASRock Cloud technology makes your mobile devices connect to your PC seamlessly and supports multi devices for accessing File Explorer cloud service simultaneously! We offer a one-year subscription to Orbweb.ME Professional version, a personal cloud service which is $49.99 per year. It allows you to get connected with your PC's files, music, photos, and video clips remotely with tablets anytime, anywhere. Plus an additional one-month upgrade to Orbweb.ME Ultimate package with Remote Desktop function is also available. Now, download Orbweb Me Host, enter ASRock Cloud promotion code "ASR2014B", ASRock's users are allowed to enjoy all services above.

Personal Cloud for Everyone
Cloud service should be simple and personal. Don't take time to upload the files to the public cloud again. Stop spending money on setting up another NAS device you don't know. Orbweb ME's file browser is your solution to zero adaption, managing your folders and files in the cloud. Accessing and exchanging files instantly among all of your PC and storages. All your folders and files are sitting just where you know they are.

Media Library and Streaming
Orbweb Personal's media library takes care of your media content. Organize all your photos, videos and music across your PCs and online storages. Diverse, intuitive and smart sorting help finding desired movies in few clicks. Progressive streaming lets you enjoy your music collection almost no download time. Web browser based and mobile app portal keep you connected in any device any time.

Access File Explorer From Multiple Devices
Orbweb ME allows you to access your own personal File Explorer from multiple devices, bringing your tablets, laptops and PC together. Forgot an important file in your computer at home which you need for the next meeting Another hard day hiding in the office bathroom, missing your massive collection of funny videos and music clips You can get it all by connecting your tablets or laptops to access File Explorer and immerse into the paradise in few seconds.

Remote Desktop Anywhere
Laying in the bedroom or sitting in the office, tablet in your hands just becomes smarter. Pick up any work sheet left in office or start any application from you home PC. Orbweb ME's remote desktop not only mobilized your PC but also empower your tablet. No matter the device, No matter the location, Orbweb ME always keeps your PC by you.
Remote Desktop comes with the Ultimate package which is only free for the first month.

Wake On WAN
The latest technology that WOWs you with the ability to wake up your PC remotely over the internet. Turn your PC on/off only when you need to. Keep your PC healthy and save energy at the same time.
Apply on certain motherboards with wake on wan support

Orbweb ME is provided by Kloudian Systems Inc. Restriction may apply and the offer is subject to change, termination or discontinuation by Kloudian Systems Inc. without prior notice.

FAN-Tastic Tuning
Configure different fan speeds for respective temperatures using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.

USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows Why should we even bother memorizing those foot long passwords Nobody has time for that! Just plug in the USB Key and let your computer log in to windows automatically!

UEFI Tech Service
Contact ASRock Tech Service by sending a support request from the UEFI setup utility if you are having trouble with your personal computer. Users may try to choose the category of the issue they have encountered, describe the problem in detail, and then attach an optional picture or log file for our technical support team.

Dehumidifier
Dampness kills most electronics, so it's a better idea to keep your personal computer dry. Now users may prevent motherboard damages due to dampness by enabling Dehumidifier. When it is enabled, the computer will power on automatically to dehumidify the system after entering S4/S5 state.

Easy Driver Installer
For users that don’t have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically through the internet. Completely no CD or optical disk drive required!

ASRock OMG Online Management Guard
Limit and control your children's time spent on the internet. ASRock OMG Online Management Guard technology allows you to establish an internet curfew or restrict internet access at specified times. Administrators are able to schedule the starting and ending hours of internet access granted to other users.

ASRock XFast RAM fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. It shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.

When Internet Explorer loads very slowly for no clear reason, it's usually due to inefficient management. ASRock is rolling out super efficient web management in the motherboard industry. XFast LAN is a convenient tool that controls internet related applications easily and efficiently. Creating a perfect Internet environment, all you need is a smart manager. ASRock XFast LAN allows you to enjoy more speed, easier multitasking, enhanced multimedia experience, and more – all without weighing you down.

This motherboard supports HDMI™ High-Definition Multimedia Interface which is an interface standard for transferring uncompressed video data and delivering multi-channel audio through a single cable. Both video and audio data signals transferred through the HDMI™ interface are digital without being converted into analog, therefore it delivers the richest pictures and the most realistic sounds.

Feature list

Supported memory types:	DDR3-SDRAM
Memory slots type:	DIMM
Memory channels:	Dual
ECC:	N
Non-ECC:	Y
Supported memory clock speeds:	1066, 1333, 1600, 1866 MHz
Maximum internal memory:	32 GB
Unbuffered memory:	Y
Memory slots:	2
USB 2.0 connectors:	2
Supported hard disk drive interfaces:	Serial ATA II
Number of COM connectors:	1
ATX Power connector 24-pin:	Y
Chassis intrusion connector:	Y
Number of chassis fan connectors:	1
Front panel audio connector:	Y
Power fan connector:	Y
TPM connector:	Y
Peripheral Molex power connectors 4-pin:	1
Number of SATA II connectors:	6
USB 2.0 ports quantity:	6
Ethernet LAN RJ-45 ports:	1
PS/2 ports quantity:	2
Headphone outputs:	2
Microphone in:	Y
VGA D-Sub ports quantity:	1
DVI-D ports quantity:	1
HDMI ports quantity:	1
Ethernet LAN:	Y
LAN controller:	Realtek RTL8111FR
Wake-on-LAN ready:	Y
Ethernet interface type:	Gigabit
Component for:	PC
Motherboard chipset family:	AMD
Motherboard chipset:	AMD A58 FCH Bolton D2
Motherboard form factor:	Micro ATX
Audio output channels:	5.1
RAID levels:	0, 1, 10
Audio system:	Realtek ALC662
Windows operating systems supported:	Y
Energy Star certified:	Y
Certification:	- FCC, CE, WHQL- ErP/EuP ready ErP/EuP ready power supply is required
Maximum graphics adapter memory:	2048 MB
HDCP:	Y
DirectX version:	11.1
Maximum resolution:	4096 x 2160 pixels
PCI Express x1 Gen 2.x slots:	1
PCI Express x16 Gen 3.x slots:	1
PCI slots:	1
BIOS type:	UEFI AMI
BIOS memory size:	64 MB
ACPI version:	1.1
Cables included:	SATA
Drivers included:	Y
Quick installation guide:	Y
