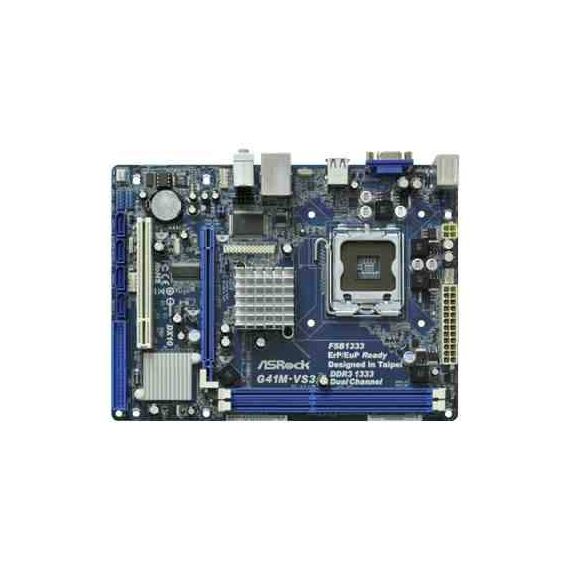

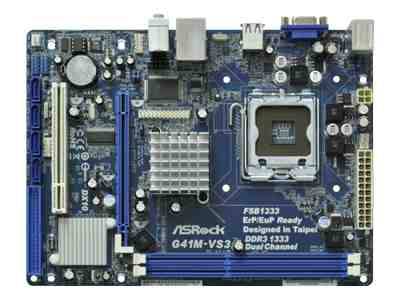

ASRock G41M-VS3 / 2.0 / motherboard / micro ATX / LGA775 Socket / G41 / LAN / onboard graphics / HD Audio (6-channel) | 90-MXGI40-A0PAYZ
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
ASRock G41M-VS3 / 2.0 / motherboard / micro ATX / LGA775 Socket / G41 / LAN / onboard graphics / HD Audio (6-channel) | 90-MXGI40-A0PAYZ
|
Special Features
|
Product Specification
| Product Type | Motherboard - micro ATX |
| Chipset Type | Intel G41 Express / Intel ICH7 |
| Max Bus Speed | 1333 MHz |
| Processor Socket | LGA775 Socket |
| Max Processors Qty | 1 |
| Compatible Processors | Pentium, Celeron, Celeron D, Pentium D, Core 2 Duo, Core 2 Extreme, Core 2 Quad |
| Max Size | 8 GB |
| Technology | DDR3 |
| Bus Clock | 1066 MHz, 800 MHz, 1333 MHz (O.C.) |
| Speed | PC3-10600, PC3-8500, PC3-6400 |
| Supported RAM Integrity Check | Non-ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture |
| Graphics Controller | Intel GMA X4500 |
| Memory Allocation Technology | Dynamic Video Memory Technology 5.0 |
| Max Allocated RAM Size | 1759 MB |
| Type | HD Audio (6-channel) |
| Audio Codec | Realtek ALC662 / VIA VT1705 |
| Compliant Standards | High Definition Audio |
| Network Controller | Atheros AR8152 |
| Network Interfaces | Ethernet |
| Expansion Slots | 1 x CPU ¦ 2 x DIMM 240-pin ¦ 1 x PCIe x16 ¦ 1 x PCI |
| Storage Interfaces | Intel ICH7: SATA-300 -connectors: 4 x 7pin Serial ATA - 4 devices ¦ Intel ICH7: ATA-100 -connectors: 1 x 40pin IDC - 2 devices |
| Interfaces | 1 x PS/2 mouse ¦ 1 x PS/2 keyboard ¦ 1 x VGA ¦ 4 x USB 2.0 ¦ 1 x LAN ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
| Internal Interfaces | 1 x serial - header ¦ 1 x parallel - header ¦ 1 x audio - header ¦ 2 x USB 2.0 - header |
| Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
| BIOS Type | AMI |
| BIOS Features | SMBIOS 2.3.1. support, Hyper-Threading Technology, ACPI 1.1 support, Untied Overclocking Technology |
| Manual Settings | Memory voltage |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Sleep / Wake Up | Wake on LAN (WOL) |
| Hardware Features | ASRock Hybrid Booster, ASRock U-COP, Intelligent Energy Saver, ASRock Instant Boot, ASRock OC Tuner, ASRock OC DNA, ASRock Instant Flash, ASRock CPU Frequency Stepless Control, ASRock Boot Failure Guard (B.F.G.), ASRock APP Charger, ASRock SmartView, ASRock XFast USB |
| Included Accessories | I/O back plate |
| Cables Included | 2 x Serial ATA cable |
| Software Included | Drivers & Utilities, Cyberlink MediaEspresso 6.5 (30-day trial), Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar |
| Compliant Standards | Plug and Play, WHQL, FCC, ACPI 1.1, EuP Ready, ErP Ready |
| Width | 22.6 cm |
| Depth | 17 cm |
| Package Type | Retail |
Χαρακτηριστικά
Product Code
03:212892
EAN Code
4711140876979
Manufacturer
Asrock
