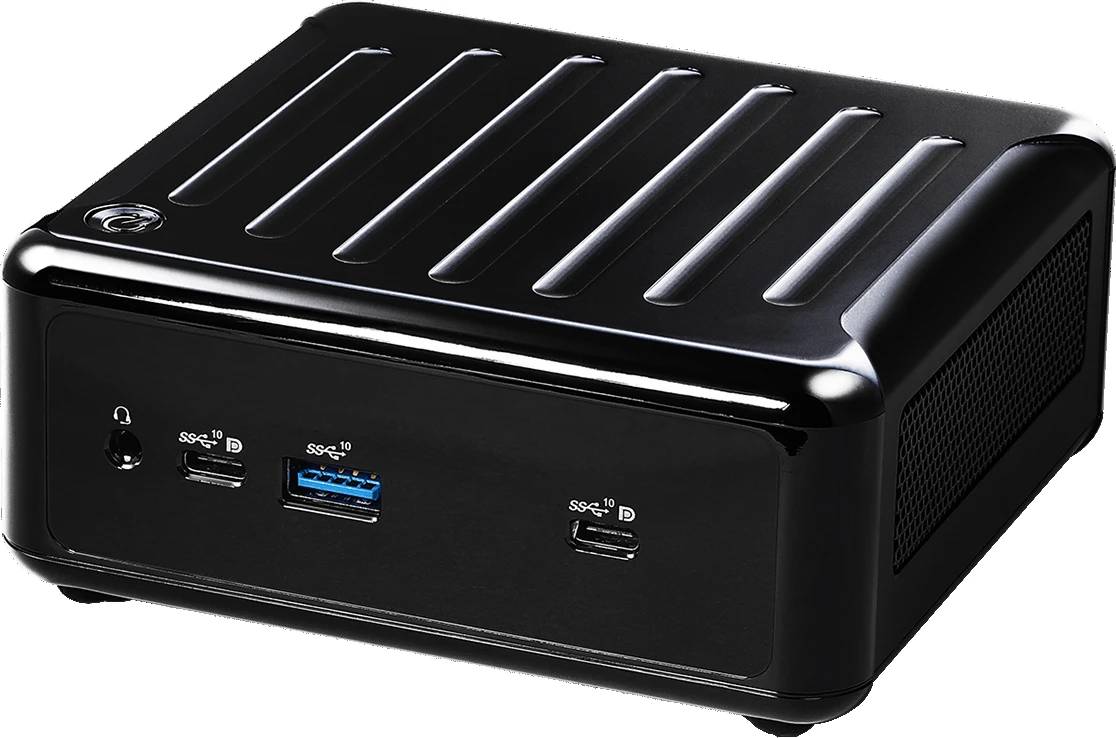

ASRock Industrial NUC BOX / Barebone / box / 1 x Core i7 1165G7 / 2.8 GHz / RAM 0 GB / Iris Xe Graphics / GigE, 2.5 GigE / WLAN: 802.11a/b/g/n/ac/ax | 90PXG7T0-P0EAY100
Please sign in so that we can notify you about a reply
Product Features
- Compact design

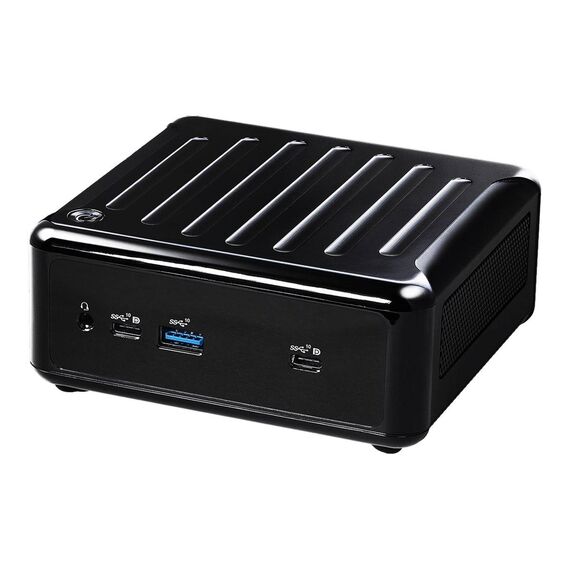

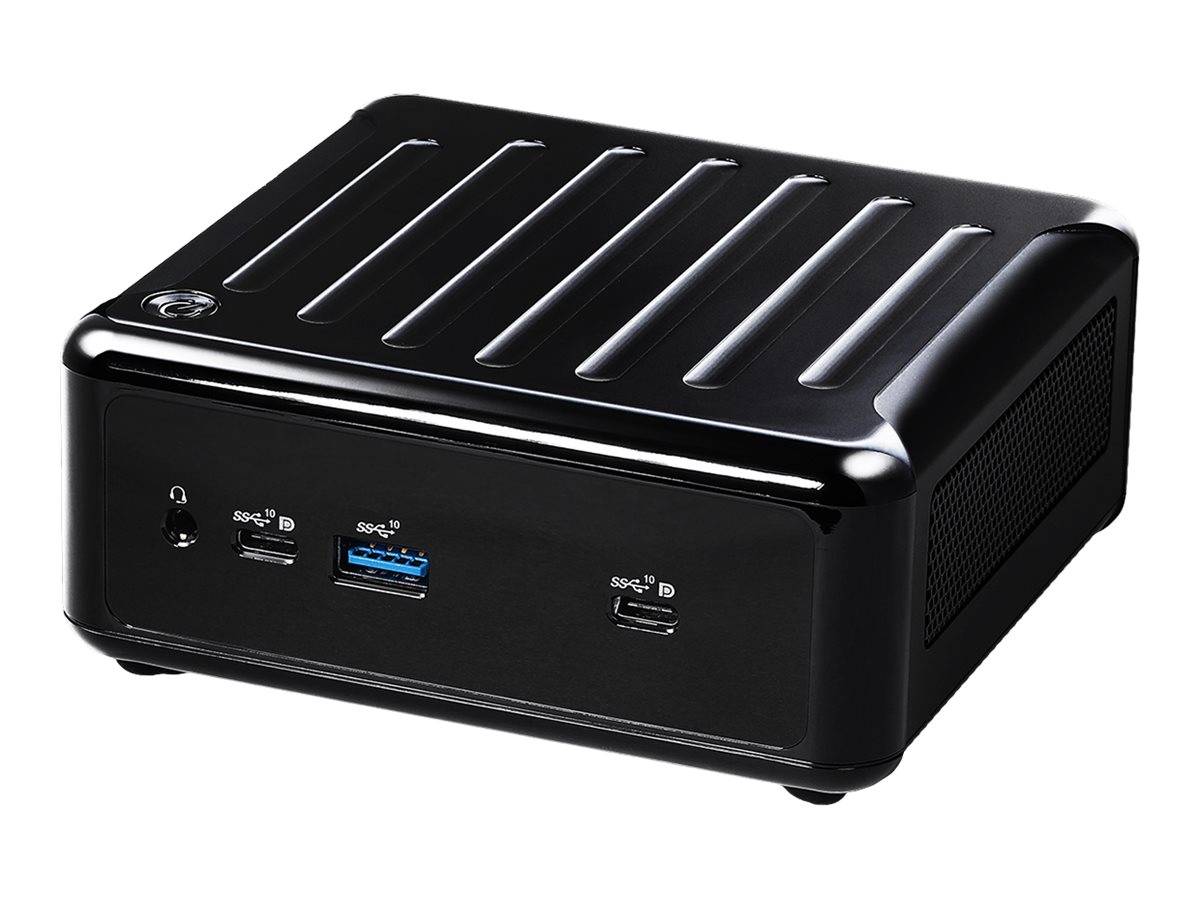

With its compact size, the NUC 1100 BOX series can be easily held in one hand. - Built-in Intel 11th Gen CPU
The NUC 1100 BOX series is designed with an 11th Gen Intel Core processor to deliver optimal performance for multiple, real-time computing workloads. - Quad display outputs
Featuring the Intel Iris Xe graphics, it provides four display outputs in 4K supporting one HDMI 2.0a and three DP 1.4 with two Type-C ports for enhanced simultaneous visual experience. - Intel Wi-Fi 6 and 2.5GbE Ethernet connectivity
The NUC 1100 BOX series has one Intel 2.5 Gigabit LAN, one Intel 1 Gigabit LAN, plus one M.2 for Intel Wi-Fi 6 to speed up data transmission and lower latency. - Dual storage support
There is 2.5-inch SATA3 HDD/SSD tray support for optimized storage capacity, making it easy to carry out essential upgrades and supercharge your productivity.
Special Features
- Compact design
- Built-in Intel 11th Gen CPU
- Quad display outputs
- Intel Wi-Fi 6 and 2.5GbE Ethernet connectivity
- Dual storage support
Product Specification
| Type | PC barebone |
| Product Form Factor | Box |
| Built-in Devices | Watchdog timer |
| Embedded Security | Trusted Platform Module (TPM) Security Chip |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Core i7 (11th Gen) 1165G7 |
| Clock Speed | 2.8 GHz |
| Max Turbo Speed | 4.7 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Cache Memory | Cache Memory |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | RAM |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort, USB-C |
| Max Monitors Supported | 4 |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Compliant Standards | High Definition Audio |
| Networking | Networking |
| Ethernet Ports | 1 x 2.5 Gigabit Ethernet, 1 x Gigabit Ethernet |
| Ethernet Controller | Intel I219-V / I225-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wi-Fi 6 AX 200 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6) |
| Expansion / Connectivity | Expansion / Connectivity |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 0 (free) x M.2 Card - 2230 (for wireless module) ¦ 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 |

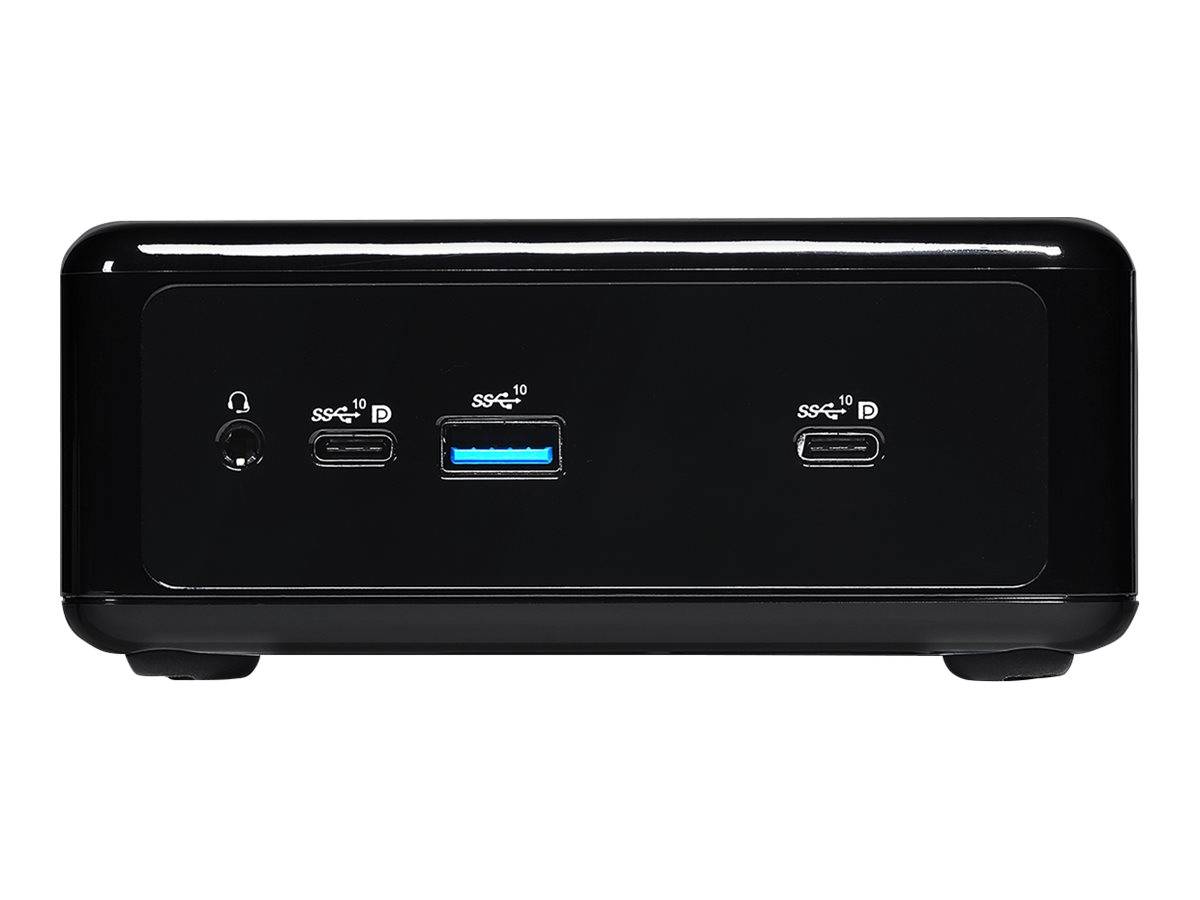

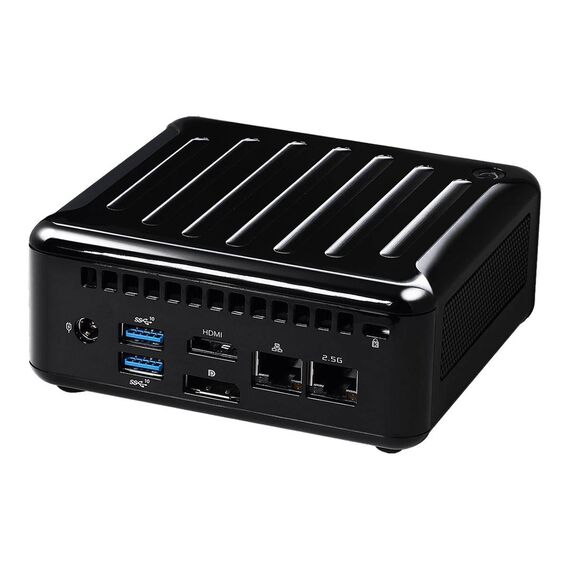

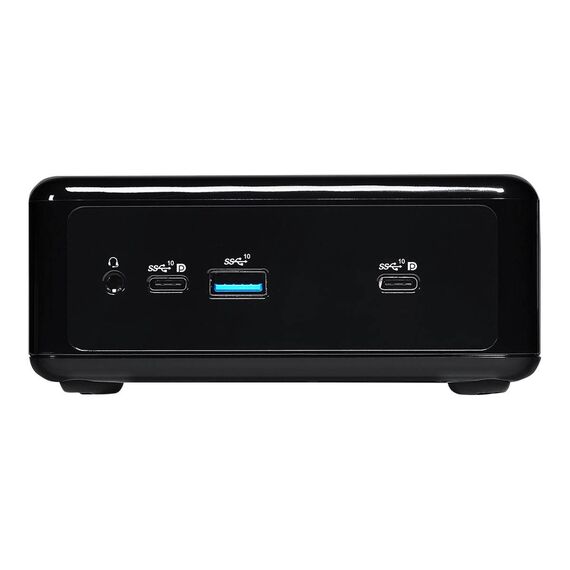

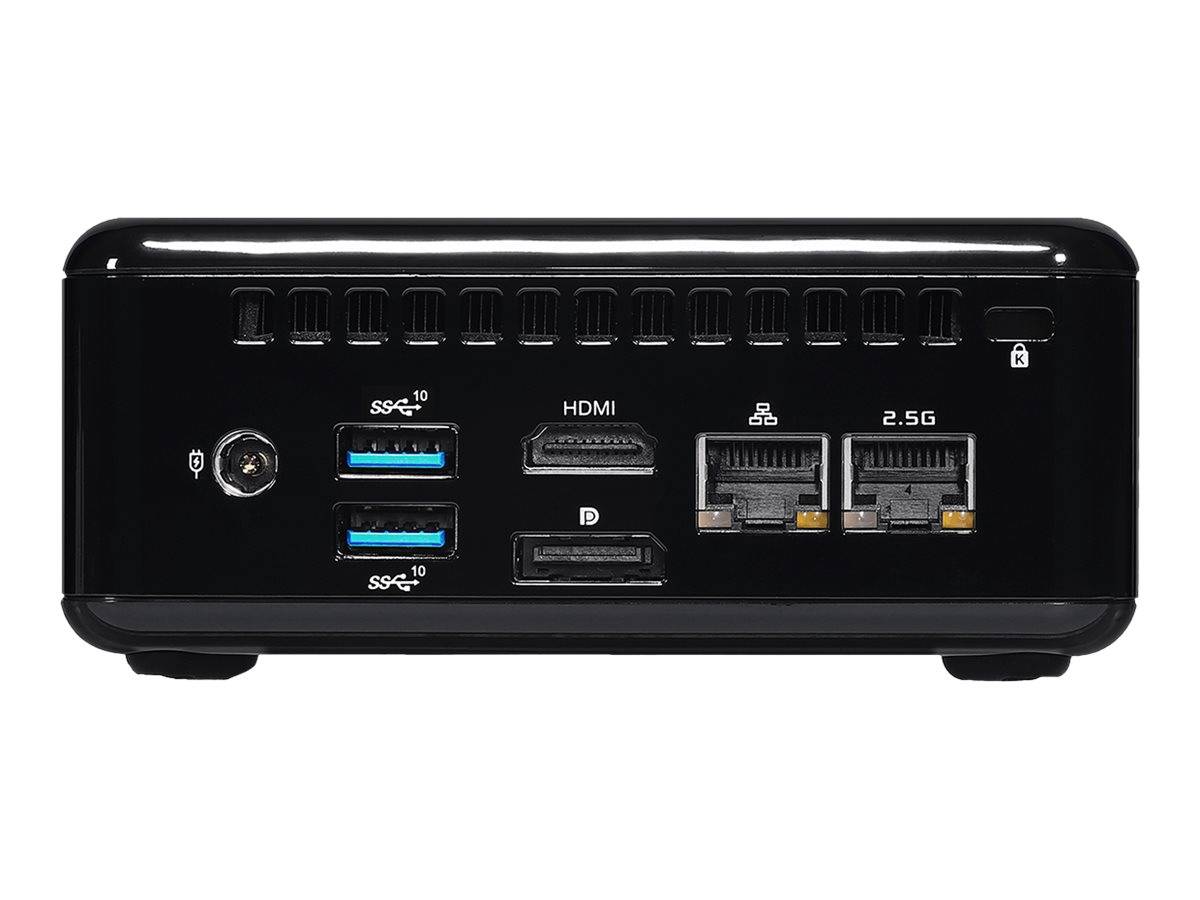

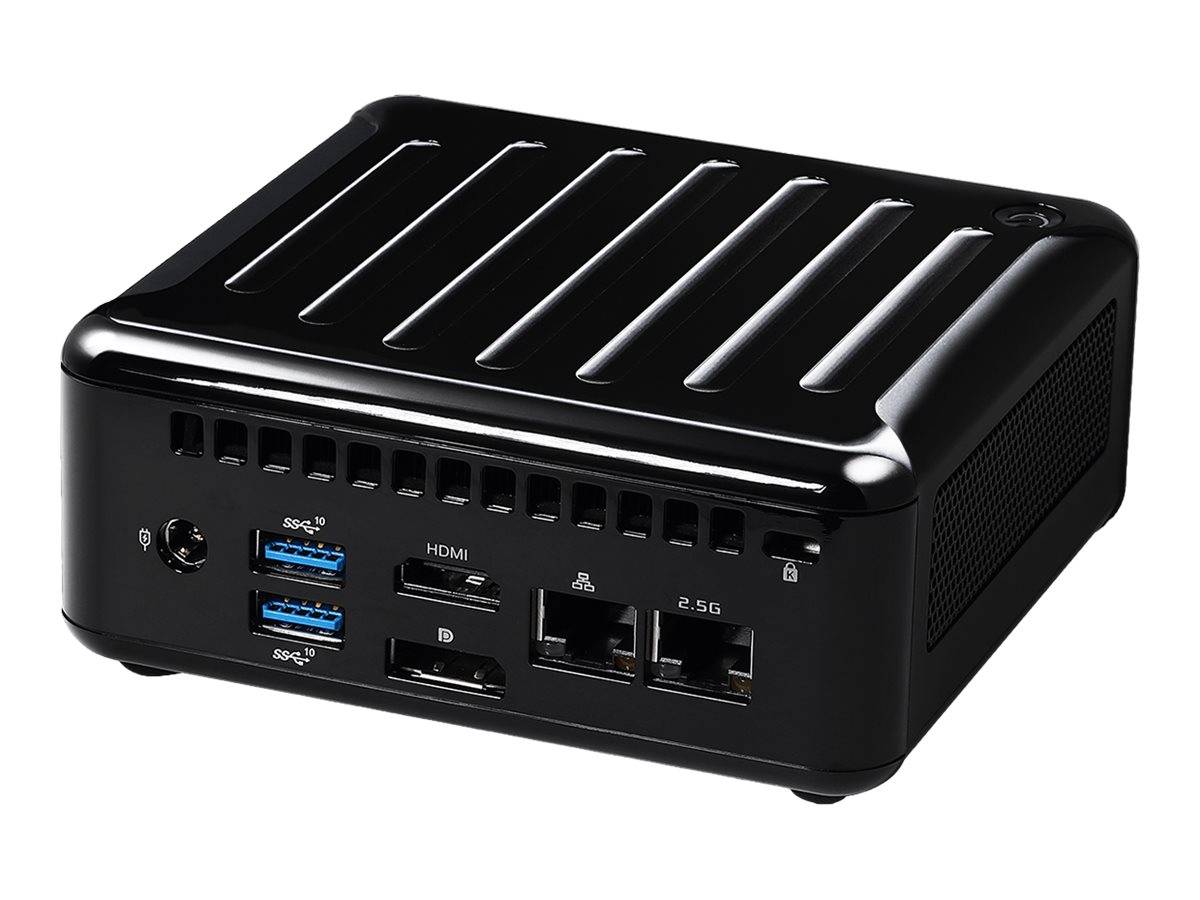

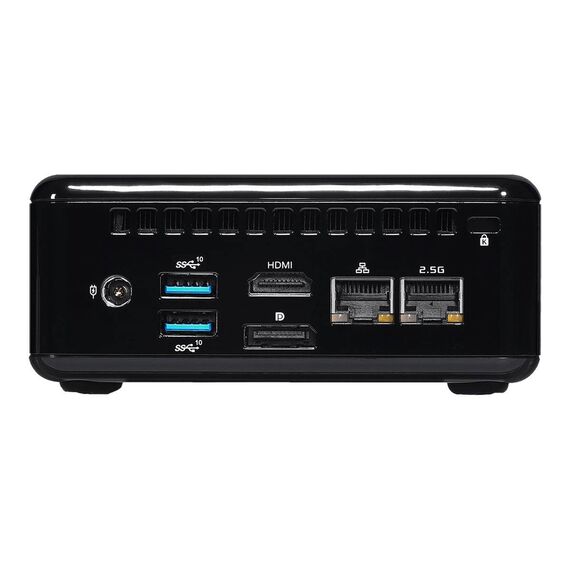

| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 1 x LAN (2.5Gigabit Ethernet) ¦ 1 x LAN (Gigabit Ethernet) ¦ 3 x USB 3.2 Gen 2 (1 front, 2 rear) ¦ 2 x DisplayPort/USB-C 3.2 Gen 2 (1 in front) ¦ 1 x headphones/microphone (1 in front) |
| Miscellaneous | Miscellaneous |
| Included Accessories | VESA mounting kit, screw set |
| VESA Mounting Interface | Yes |
| Compliant Standards | FCC Class A certified, DisplayPort 1.4 |
| Power | Power |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11 cm |
| Depth | 11.75 cm |
| Height | 4.785 cm |
| Weight | 1 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% |
Features - Asrock - 90PXG7T0-P0EAY100
CPU Type
- Intel Core i7
More Details
Product Code
04:471692
EAN Code
4710483934308
Manufacturer
Asrock
