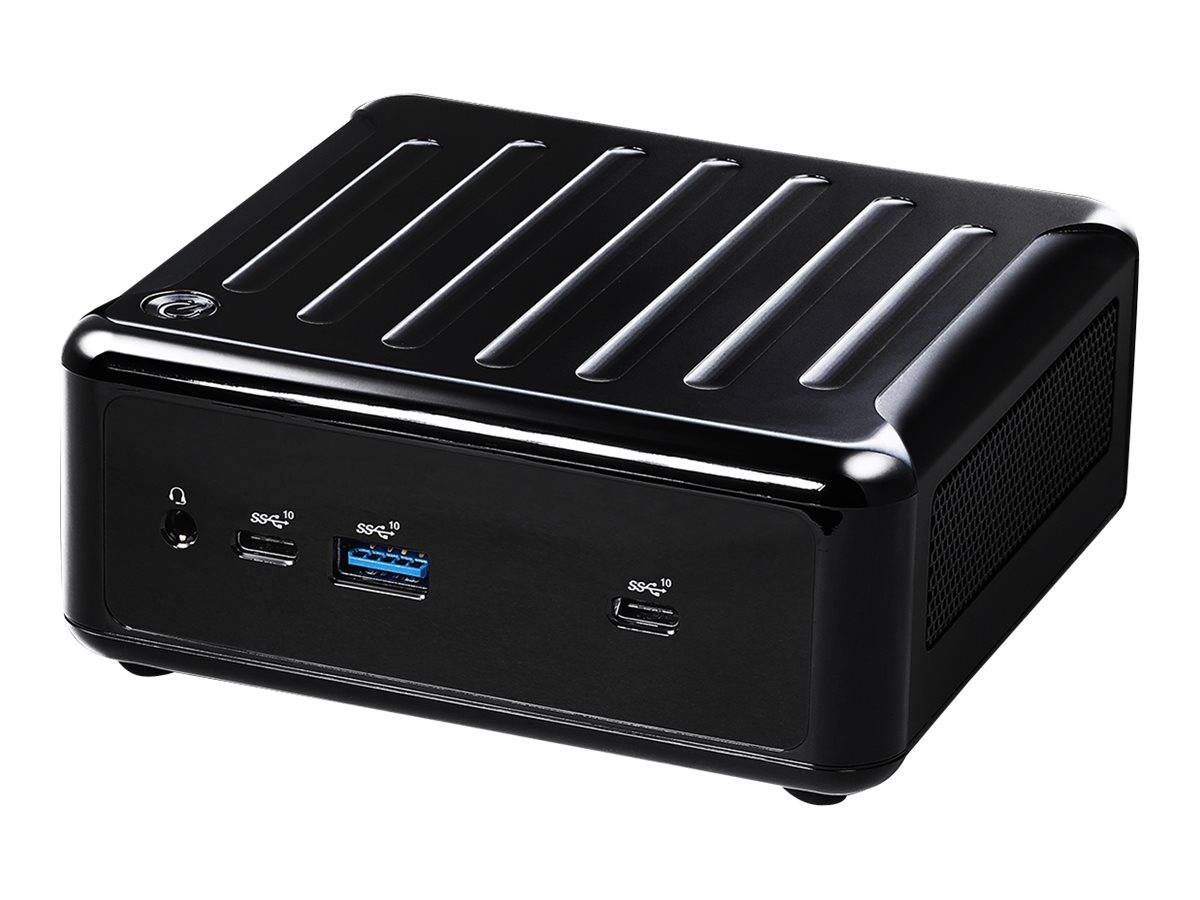

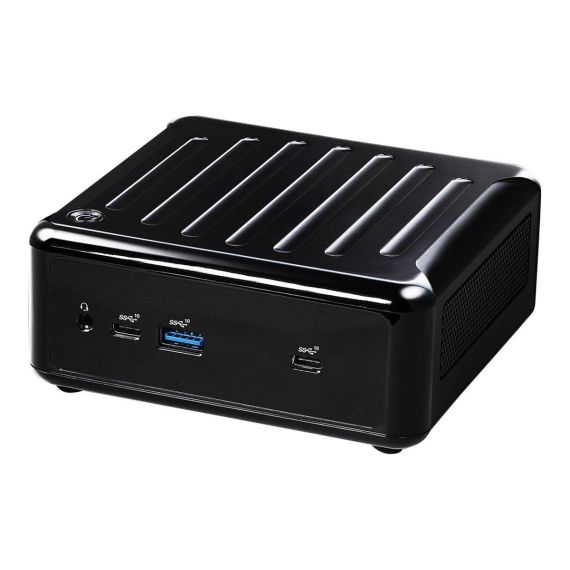

ASRock Industrial NUC BOX-J6412 / Barebone / box / 1 x Celeron J6412 / 2 GHz / RAM 0 GB / UHD Graphics / GigE / WLAN: 802.11a/b/g/n/ac, Bluetooth 4.2 | 90PXG8M0-P0EAY100
Please sign in so that we can notify you about a reply
Product Features
- Sleek and compact
Sleek and space-saving in design, a beautiful exterior that is super compact with fanned barebone. - Built-in intel Elkhart Lake
The NUC 6000 BOX series mini PE is powered by Intel Celeron processor for upgraded EPU and graphics performance. - Rich and diverse I/Os
Provides dual Gigabit LAN, diverse I/Os such as two USB 3.2 Gen2 (Type A), two USB 3.2 Gen2 (Type C), one USB 2.0, one audio jack, along with great visual through dual displays with one HDMI and one DP 1.2. - Dual gigabit Lan
The NUC 6000 BOX series is cost-effective with built-in dual Gigabit LAN for Ethernet connectivity. - Dual display outputs
Supports two display outputs: HDMI and DP 1.2 up to 4096 x 2160@60 Hz for enhanced work productivity and awesome gaming/home theater experience. - TPM 2.0 onboard
TPM 2.0 provides enhanced data protection through hardware-based security in support of software upgrade.
Special Features
- Sleek and compact
- Built-in intel Elkhart Lake
- Rich and diverse I/Os
- Dual gigabit Lan
- Dual display outputs
- TPM 2.0 onboard
Product Specification
| Type | PC barebone |
| Product Form Factor | Box |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Processor / Chipset | Processor / Chipset |
| CPU | Intel Celeron J6412 |
| Clock Speed | 2 GHz |
| Max Turbo Speed | 2.6 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Cache Memory | Cache Memory |
| Installed Size | L2 Cache - 1.5 MB |
| Cache Per Processor | 1.5 MB |
| RAM | RAM |
| Installed Size | 0 GB / 32 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Hard Drive | Hard Drive |
| Type | No HDD |
| Storage Controller | Storage Controller |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | Optical Storage |
| Type | No optical drive |
| Monitor | Monitor |
| Monitor Type | None. |
| Graphics Controller | Graphics Controller |
| Graphics Processor | Intel UHD Graphics |
| Video Interfaces | HDMI, DisplayPort |
| Max Monitors Supported | 2 |
| Audio Output | Audio Output |
| Sound Output Mode | Stereo |
| Networking | Networking |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 4.2 |
| Expansion / Connectivity | Expansion / Connectivity |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 |
| Interfaces | 1 x HDMI ¦ 1 x DisplayPort ¦ 2 x LAN (Gigabit Ethernet) ¦ 2 x USB-C Gen 2 ¦ 2 x USB 3.2 Gen 2 (1 front, 1 rear) ¦ 1 x USB 2.0 ¦ 1 x headphones/microphone |
| Miscellaneous | Miscellaneous |
| Included Accessories | VESA mounting kit, screw set |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Compliant Standards | FCC Class A certified, DisplayPort 1.4 |
| Power | Power |
| Device Type | Power adapter |
| Power Provided | 65 Watt |
| Operating System / Software | Operating System / Software |
| OS Provided | No operating system |
| Dimensions & Weight | Dimensions & Weight |
| Width | 11 cm |
| Depth | 11.75 cm |
| Height | 4.785 cm |
| Weight | 1 kg |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% |
Features - Asrock - 90PXG8M0-P0EAY100
CPU Type
- Intel Celeron
More Details
Product Code
04:471695
EAN Code
4710483935916
Manufacturer
Asrock
