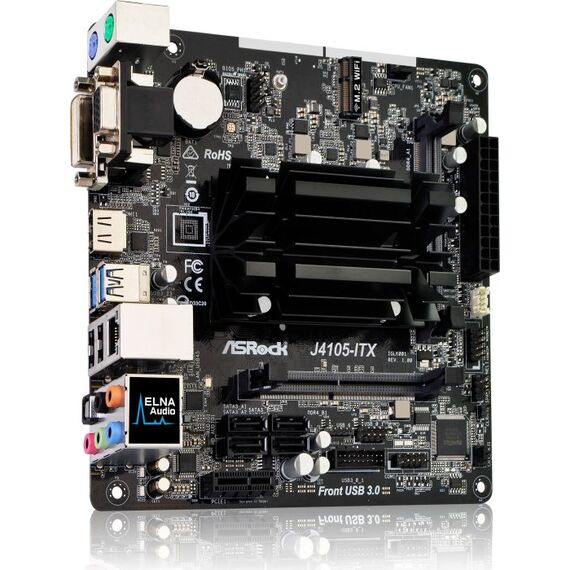

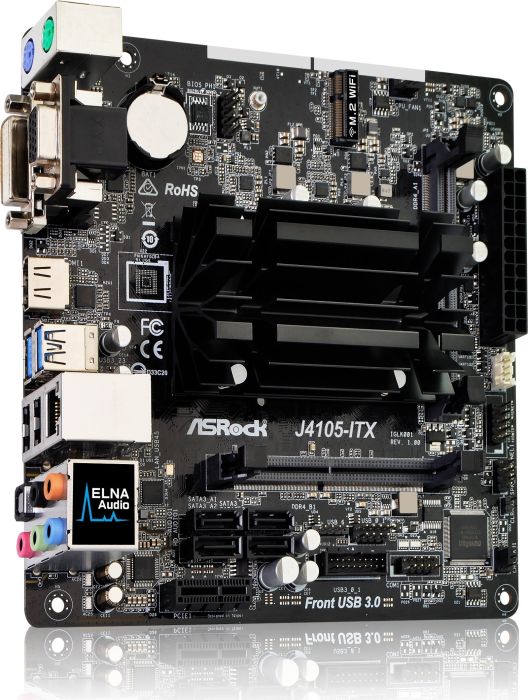

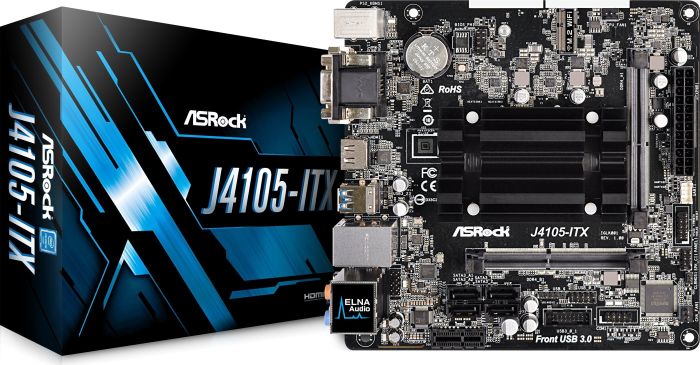

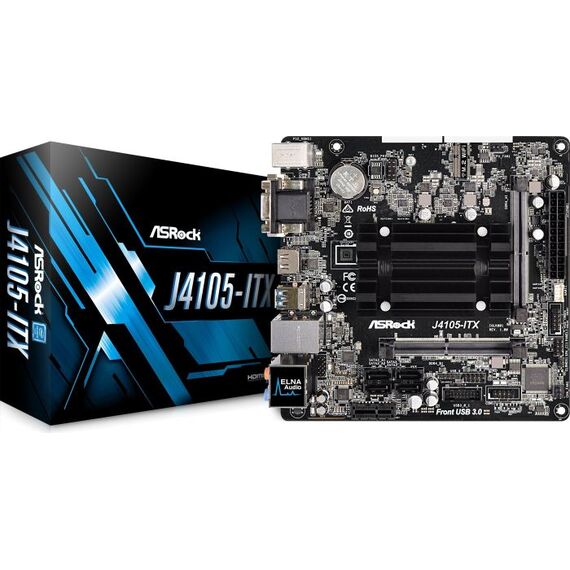

ASRock J4105-ITX / Motherboard / mini ITX / Intel Celeron J4105 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics / HD Audio (8-channel) | 90-MXB6N0-A0UAYZ
ASRock J4105-ITX / Motherboard / mini ITX / Intel Celeron J4105 / USB 3.1 Gen 1 / Gigabit LAN / onboard graphics / HD Audio (8-channel) | 90-MXB6N0-A0UAYZ
Description This motherboard supports HEVC 10-bit decoding/encoding to provide substantially improved video quality and a higher bit depth video experience. ASRock J4105-ITX / Motherboard / mini ITX / Intel Celeron J4105 | 90-MXB6N0-A0UAYZSpecial Features
Product features
|
Product Specification
Product Type | Motherboard - mini ITX |
Processor | Intel Celeron J4105 (Quad-Core) |
Max Size | 8 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz |
Supported RAM Integrity Check | Non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture |
Graphics Controller | Intel UHD Graphics 600 |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC892 |
Compliant Standards | High Definition Audio, Premium Blu-ray audio support |
Network Controller | Realtek RTL8111H |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 2 x SO-DIMM 260-pin ¦ 1 x PCIe 2.0 x1 ¦ 1 x M.2 socket (Key E) |
Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA ¦ ASMedia ASM1061: SATA-600 -connectors: 2 x 7pin Serial ATA |

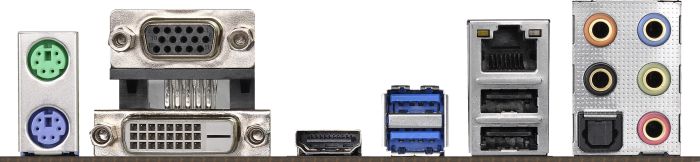

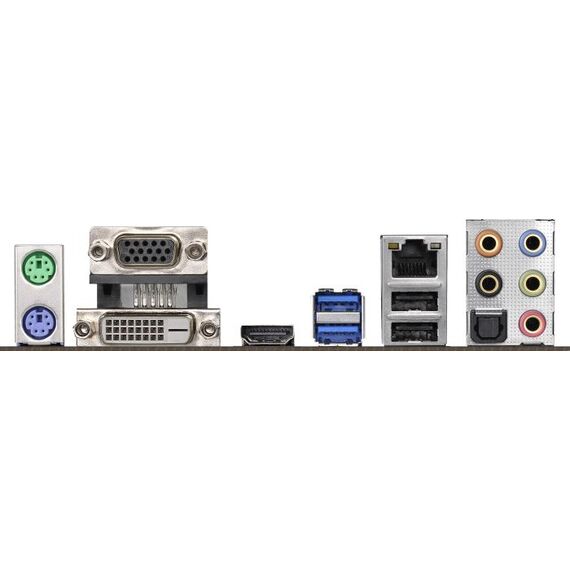

Interfaces | 1 x HDMI ¦ 1 x LAN (Gigabit Ethernet) ¦ 2 x USB 3.1 Gen 1 ¦ 1 x PS/2 keyboard ¦ 1 x PS/2 mouse ¦ 2 x USB 2.0 ¦ 1 x DVI-D ¦ 1 x VGA ¦ 1 x TOSLINK ¦ 1 x audio line-in - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x audio line-out (front surround) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack |
Internal Interfaces | 2 x USB 3.1 Gen 1 - header ¦ 3 x USB 2.0 - header ¦ 1 x audio - header ¦ 1 x speaker - header ¦ 1 x serial - header |
Power Connectors | 24-pin main power connector |
BIOS Type | AMI |
BIOS Features | JumperFree, UEFI BIOS, ACPI 5.0 support, SMBIOS 3.0 support |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | ASRock Instant Flash, All-Solid Capacitor motherboard Design, ASRock Internet Flash, ESD Protection, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, Sapphire Black PCB, ASRock Live Update |
Compliant Standards | Plug and Play, FCC, EuP Ready, ErP Ready, ACPI 5.0 |
Width | 17 cm |
Depth | 17 cm |
Service & Support | Limited warranty - 3 years |
