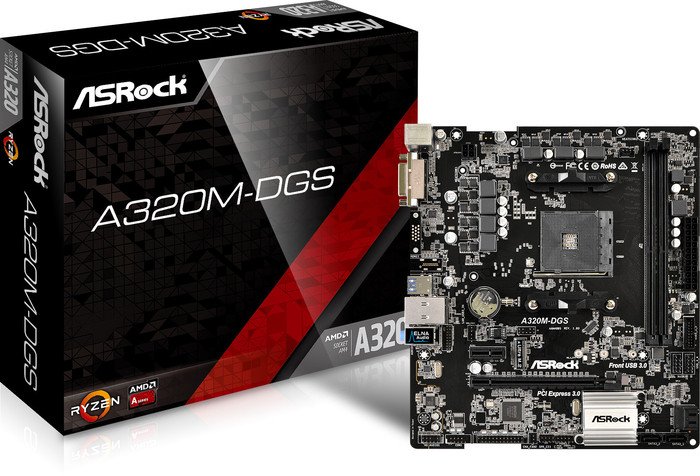

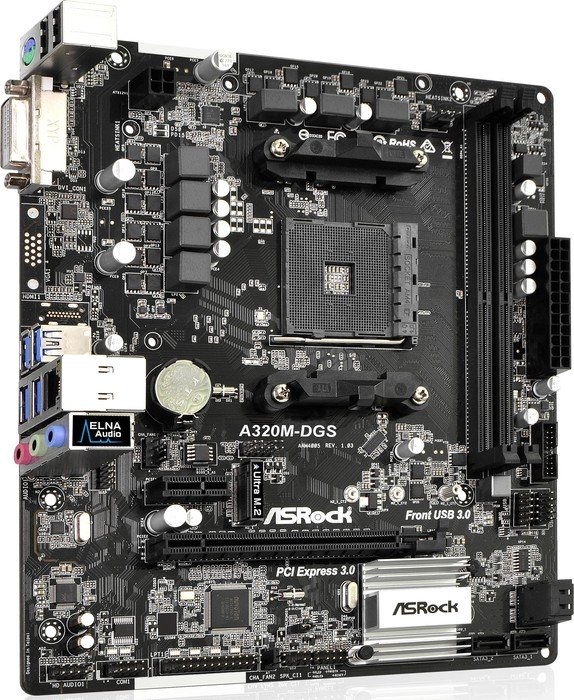

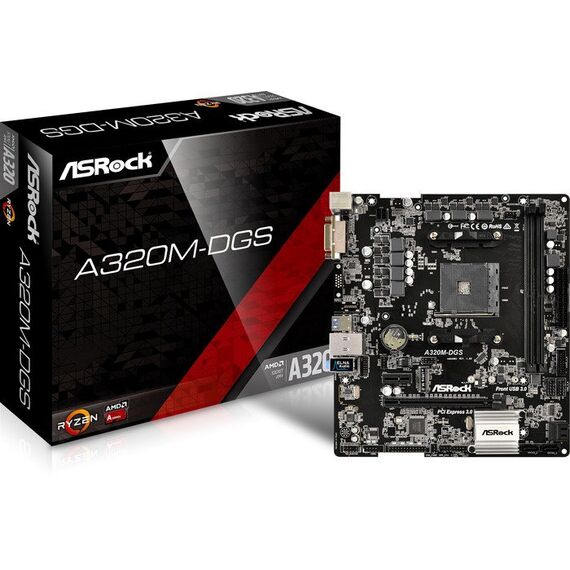

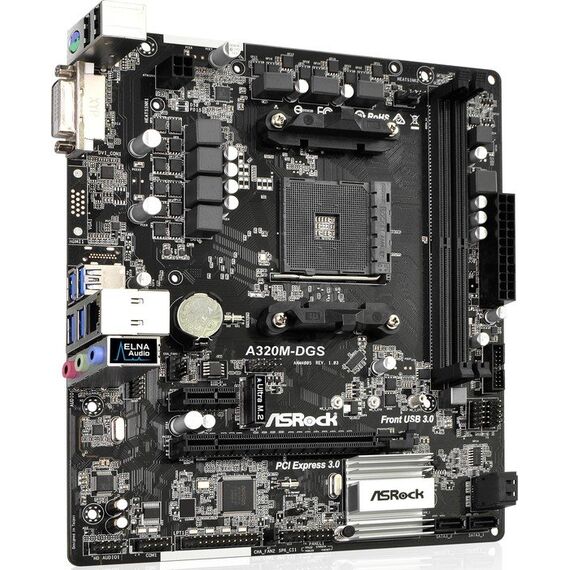

ASRock A320M-DGS / Motherboard / micro ATX / Socket AM4 / AMD A320 / USB 3.0 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB5A0-A0UAYZ
ASRock A320M-DGS / Motherboard / micro ATX / Socket AM4 / AMD A320 / USB 3.0 / Gigabit LAN / onboard graphics (CPU required) / HD Audio (8-channel) | 90-MXB5A0-A0UAYZ
Description Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical components and ASRock's VR Ready motherboards are definitely the one you're looking for. The premium qualify is assured by rigorous testing during development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced. Special Features
Product features
|
Product Specification
Product Type | Motherboard - micro ATX |
Chipset Type | AMD A320 |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon) |
Max Size | 32 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2667 MHz, 2933 MHz (O.C.), 3200 MHz (O.C.) |
Supported RAM Integrity Check | Non-ECC, ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture |
Max Allocated RAM Size | 2 GB |
Type | HD Audio (8-channel) |
Audio Codec | Realtek ALC887 |
Compliant Standards | DirectX, High Definition Audio |
Network Controller | Realtek RTL8111GR |
Network Interfaces | Gigabit Ethernet |
Expansion Slots | 1 x CPU ¦ 2 x DIMM 288-pin ¦ 1 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 2.0 x1 |
Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2 |

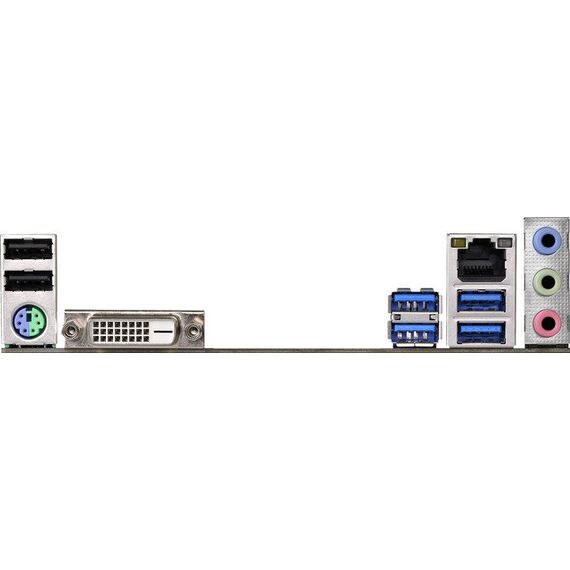

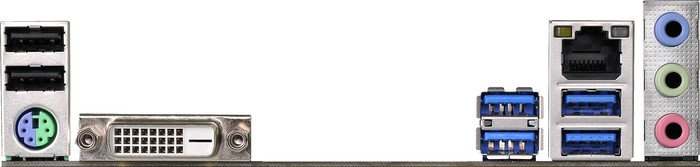

Interfaces | 1 x PS/2 keyboard / mouse ¦ 1 x LAN (Gigabit Ethernet) ¦ 1 x DVI-D ¦ 2 x USB 2.0 ¦ 4 x USB 3.0 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack |
Internal Interfaces | 2 x USB 2.0 - header ¦ 1 x USB 3.0 - header ¦ 1 x serial - header ¦ 1 x audio - header ¦ 1 x parallel - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector |
BIOS Type | AMI |
BIOS Features | JumperFree, SMBIOS 2.3 support, UEFI BIOS |
Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage, opened case detection |
Sleep / Wake Up | Wake on LAN (WOL) |
Hardware Features | ASRock Instant Boot, ASRock Instant Flash, 15µ Gold Contact, ASRock APP Charger, 7 Phase Power Design, ASRock XFast LAN, ASRock Crashless BIOS, ASRock Internet Flash, Digi Power Design, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), Triple Monitor, 4K resolution support, ELNA Audio Capacitors, ASRock Full Spike Protection, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, ASRock Live Update, ASRock VR Ready |
Included Accessories | I/O back plate, 1 x M.2 screw |
Cables Included | 2 x Serial ATA cable |
Software Included | Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar |
Compliant Standards | Plug and Play, WHQL, FCC, EuP Ready, ErP Ready, ACPI 5.1 |
Width | 23.1 cm |
Depth | 20.6 cm |
