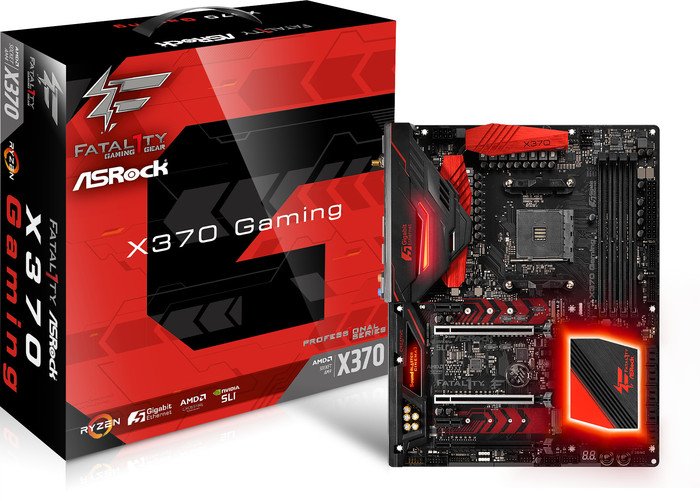

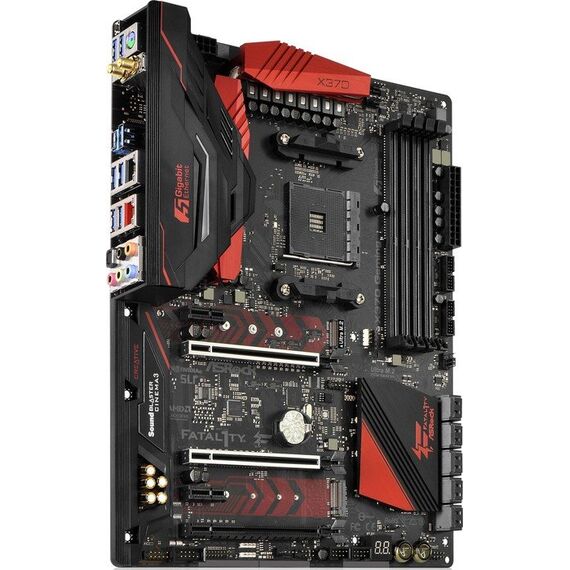

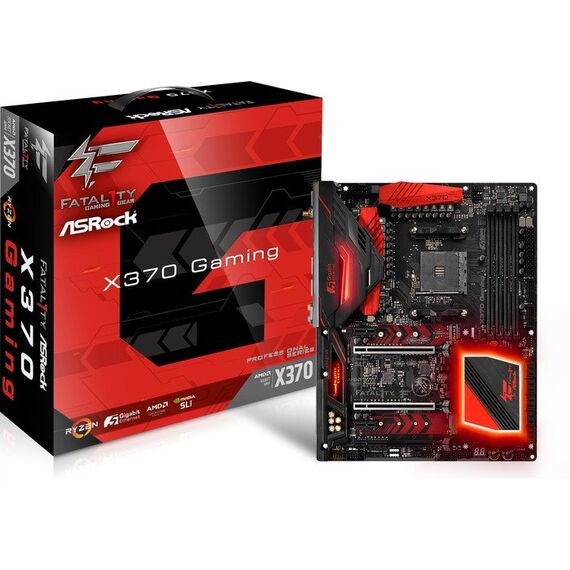

ASRock Fatal1ty X370 Professional Gaming / Motherboard / ATX / Socket AM4 / AMD X370 / USB 3.0, USB 3.1, USB-C / Bluetooth, 2 x Gigabit LAN, Wi-Fi / HD Audio (8-channel) | 90-MXB4L0-A0UAYZ

90-MXB4L0-A0UAYZ
304.12
330.56 (361.90 inc. VAT)
Out of stock
Find similar
Delivery
Payment options
Product Code03:214581 EAN Code4717677333114 ManufacturerAsrock

ASRock Fatal1ty X370 Professional Gaming / Motherboard / ATX / Socket AM4 / AMD X370 / USB 3.0, USB 3.1, USB-C / Bluetooth, 2 x Gigabit LAN, Wi-Fi / HD Audio (8-channel) | 90-MXB4L0-A0UAYZ

Description

Prepare yourself well to enjoy the impressive world of virtual reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connect every critical component and ASRock's VR ready motherboards are definitely the one you're looking for. The premium qualify is assured by thorough development. The sturdy components and rock-slid performance makes you completely immersive in the VR scenario. Users can be assured to experience VR enjoyments without any compatibility problems.

Special Features

  • PCI-E steel slots
  • RGB LED
  • Gaming armor - built to kill
  • IR digital PWM
  • Dual USB 3.1 (Type A + Type C)
  • Water pump header

Product features

  • PCI-E steel slots
    The advanced PCI-E steel slots, packed with solid cover, that prevent any signal interference with graphics cards. It also ensures the heavy graphics cards to be well-installed in the PCI-E slots safely.
  • RGB LED
    Build your own colorful lighting system! RGB LED and header allows users to connect LED strip and create their unique PC style easily.
  • Gaming armor - built to kill
    Allows ASRock to be your trustworthy ally, providing hardware support.
  • IR digital PWM
    The onboard IR digital PWM controller delivers the precise and stable power, so that users may achieve optimal performance.
  • Dual USB 3.1 (Type A + Type C)
    This motherboard has a pair of onboard Type A and Type C USB 3.1 ports, built on the rear I/O for supporting USB 3.1 devices and to deliver faster data transfer rates.
  • Water pump header
    This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum power for supporting the popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
  • Base-T Ethernet
    The improved network standard was specially designed to satisfy the users, who are seeking for immediate performance improvements but can't afford more expensive networking products. Based on the advanced client controller, this motherboard offers blazingly fast transfer speeds over CAT 5e/CAT 6 cables, which is quicker.
  • Hyper BCLK Engine II
    An additional external base clock generator, that supports PCIe frequency overclocking. It provides a wider range of frequencies and more precise clock waveforms, allowing any user to get optimal from their CPU investment with precise, stable overclocking.
  • Power phase design
    Constructed with power phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the low temperature for advanced gamers as well.

Product Specification

Product Type Motherboard - ATX
Chipset Type AMD X370
Processor Socket Socket AM4
Max Processors Qty 1
Compatible Processors Athlon, A series, Ryzen (supports 7th Generation A-series / Athlon)
Max Size 64 GB
Technology DDR4
Bus Clock 2400 MHz, 2133 MHz, 2667 MHz
Supported RAM Integrity Check Non-ECC, ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture
Type HD Audio (8-channel)
Audio Codec Realtek ALC1220
Compliant Standards High Definition Audio, Premium Blu-ray audio support, Sound Blaster Cinema 3
Network Controller Intel I211-AT / Aquantia AQC108
Network Interfaces Bluetooth, 2 x Gigabit Ethernet, 802.11a/b/g/n/ac
Expansion Slots 1 x CPU ¦ 4 x DIMM 288-pin ¦ 2 x PCIe 3.0 x16 (x16/x8 mode (with AMD Ryzen CPU); x8 mode (with AMD 7th Generation A-series/Athlon CPU)) ¦ 1 x PCIe 2.0 x16 (x4 mode) ¦ 2 x PCIe 2.0 x1 ¦ 1 x M.2 socket
Storage Interfaces SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 -connectors: 2 x 7pin Serial ATA ¦ PCIe 3.0 -connectors: 1 x M.2 ¦ SATA-600 / PCIe 3.0 -connectors: 1 x Ultra M.2

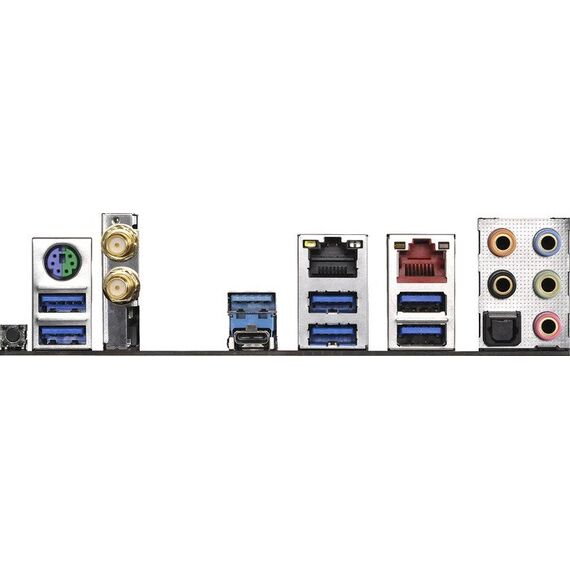

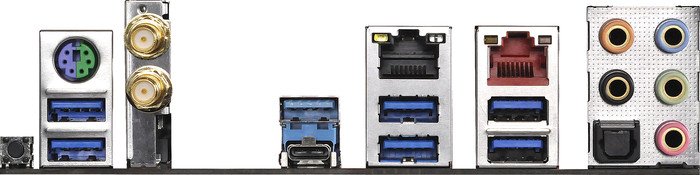

Interfaces 1 x PS/2 keyboard / mouse ¦ 2 x LAN (Gigabit Ethernet) ¦ 1 x TOSLINK ¦ 1 x USB-C ¦ 1 x USB 3.1 ¦ 6 x USB 3.0 ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack
Internal Interfaces 2 x USB 2.0 - header ¦ 2 x USB 3.0 - header ¦ 1 x serial - header ¦ 1 x audio - header
Power Connectors 24-pin main power connector, 8-pin ATX12V connector
BIOS Type AMI
BIOS Features JumperFree, SMBIOS 2.3 support, UEFI BIOS
Hardware Monitoring CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage
Sleep / Wake Up Wake on LAN (WOL)
Hardware Features ASRock Instant Boot, NVIDIA SLI Technology Support, NVIDIA Quad SLI Technology Support, 15µ Gold Contact, ASRock APP Charger, 16 Phase Power Design, ASRock XFast LAN, ASRock Crashless BIOS, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, ASRock Internet Flash, Digi Power Design, ASRock F-Stream, Energy Efficient Ethernet 802.3az, Preboot eXecution Environment (PXE), ASRock Key Master, Premium Headset Amplifier, ELNA Audio Capacitors, ASRock APP Shop, ASRock Super Alloy, High Density Glass Fabric PCB, ASRock Full HD UEFI, ASRock Easy RAID Installer, Sapphire Black PCB, XXL Aluminum Alloy Heatsink, Nichicon Fine Gold Series Audio Capacitors, I/O Armor, ASRock Hyper BCLK Engine II, Nichicon 12K Black Caps, Matte Black PCB, ASRock Steel Slots, Premium 60A Power Choke, ASRock RGB LED
Included Accessories I/O back plate, 2 x ASRock WiFi 2.4/5GHz Antennas, 2 x M.2 screws, ASRock SLI_HB_Bridge_2S Card
Cables Included 4 x Serial ATA cable
Software Included Drivers & Utilities, Antivirus (Trial version), Google Chrome Browser, Google ChromeToolbar
Compliant Standards WHQL, FCC, EuP Ready, ErP Ready
Width 30.5 cm
Depth 24.4 cm

Features - Asrock - 90-MXB4L0-A0UAYZ

More Details
Product Code
03:214581
EAN Code
4717677333114
Manufacturer
Asrock
