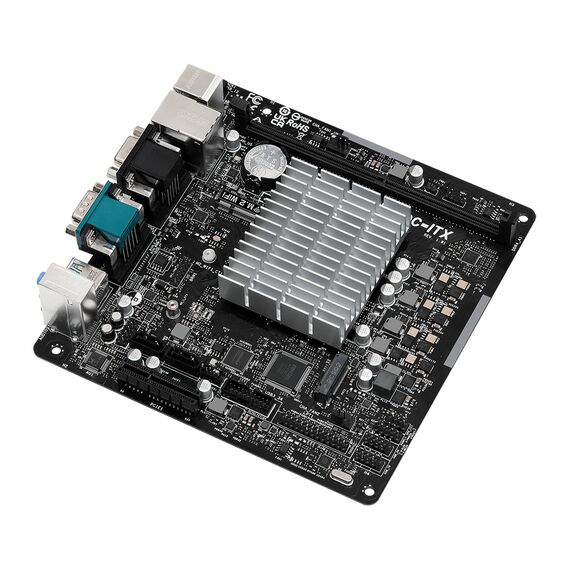

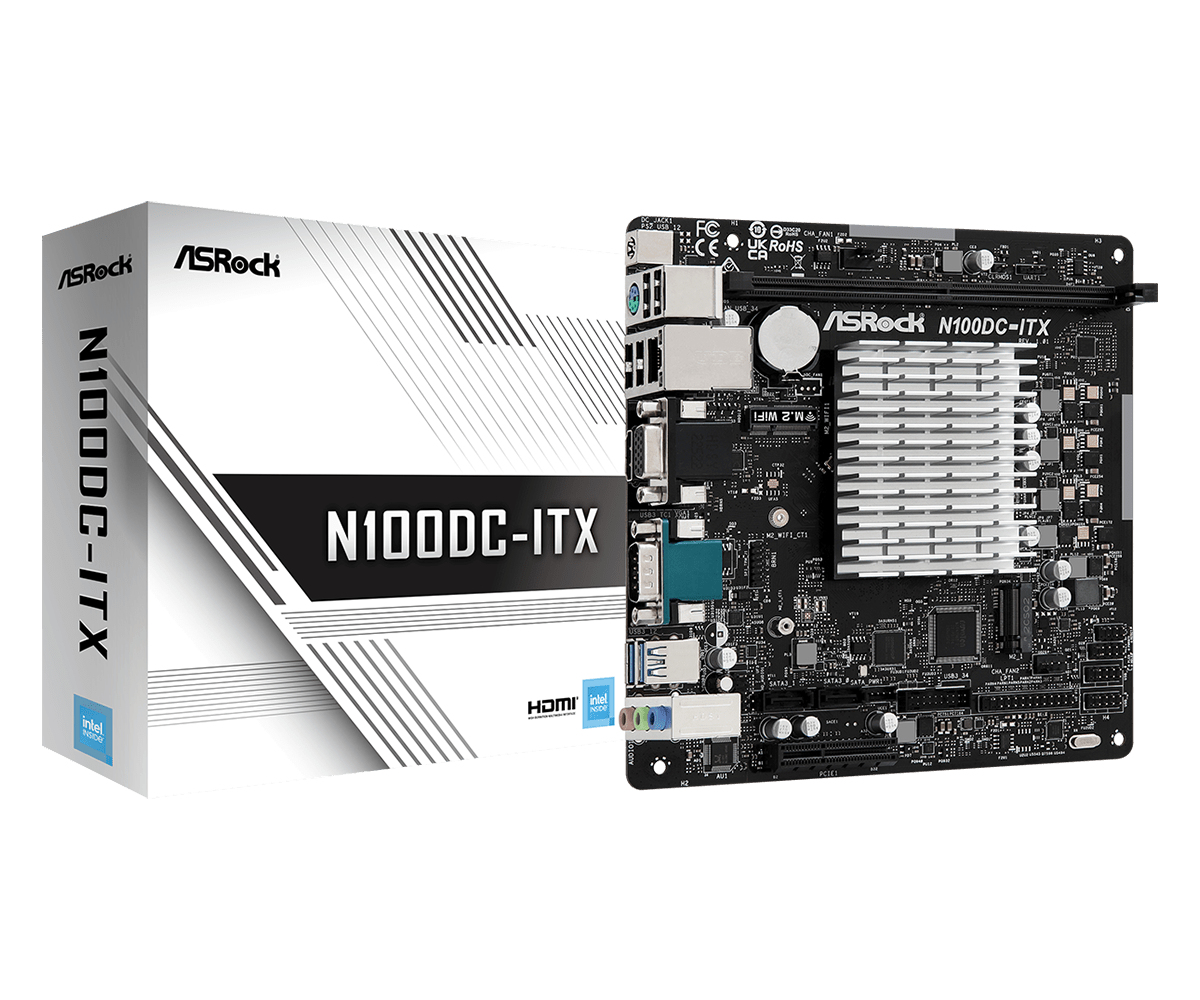

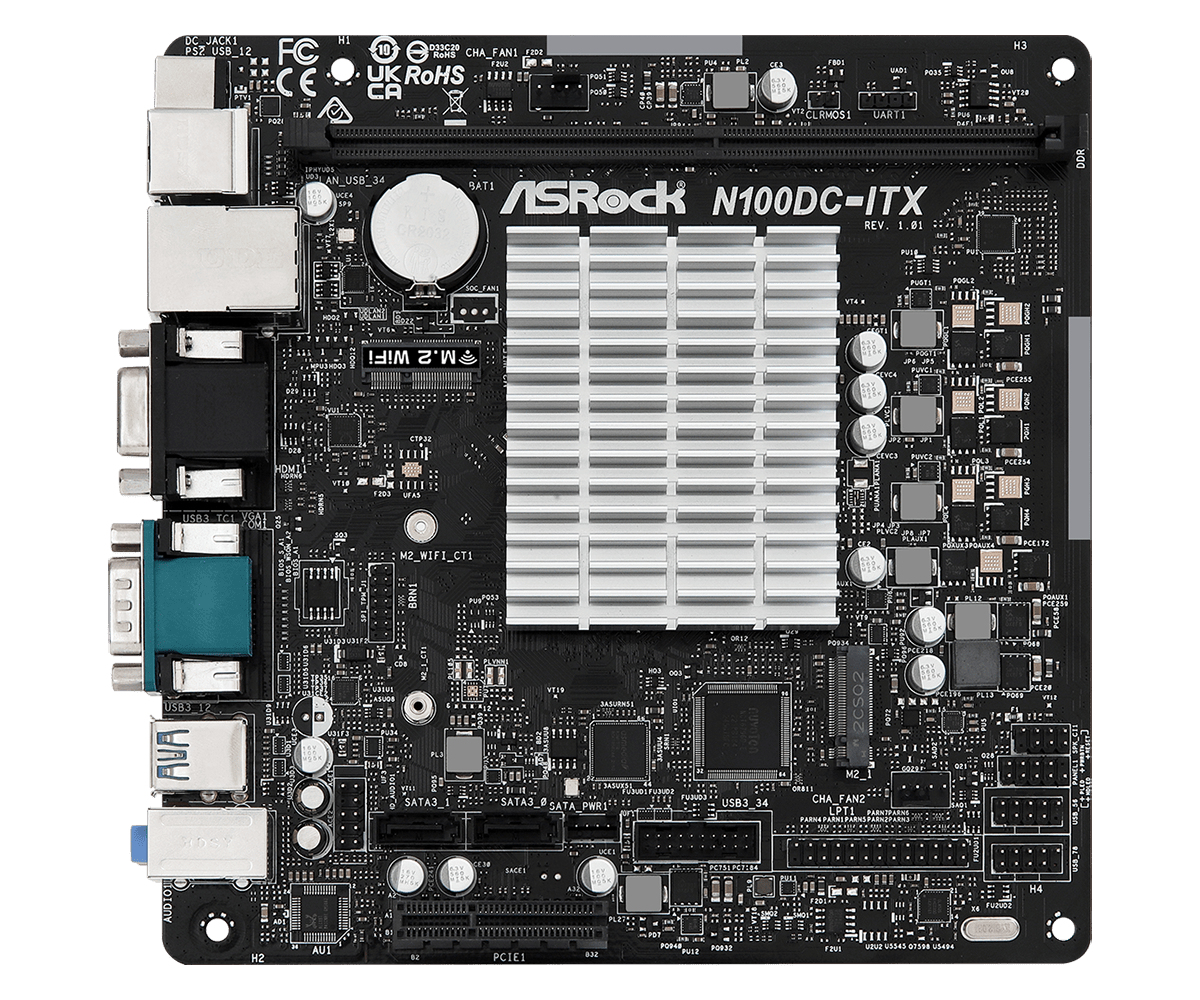

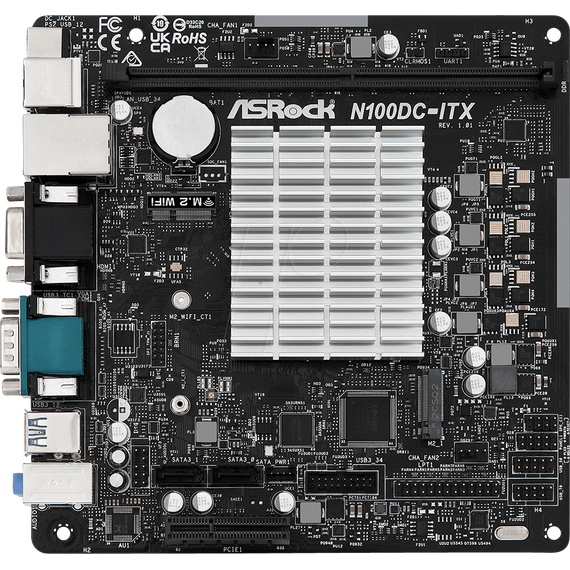

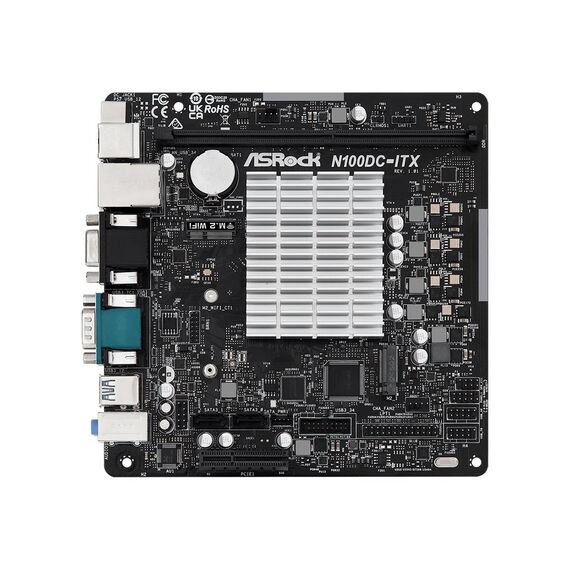

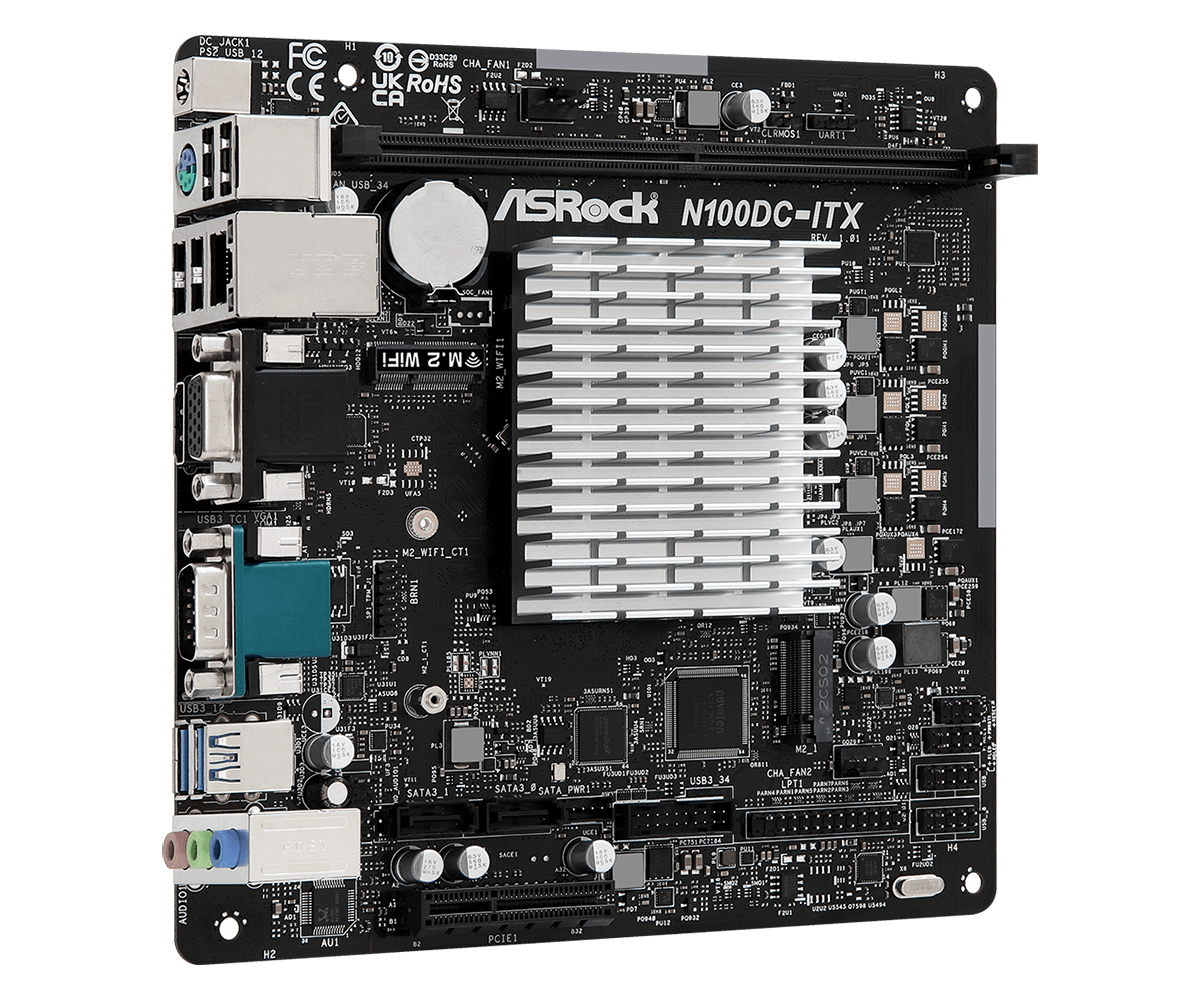

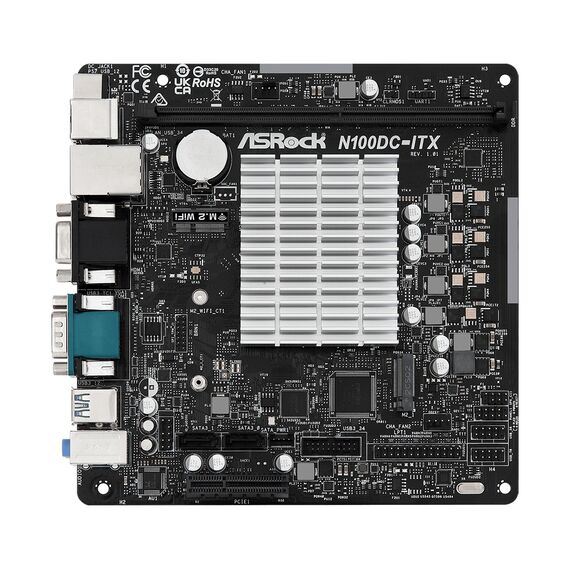

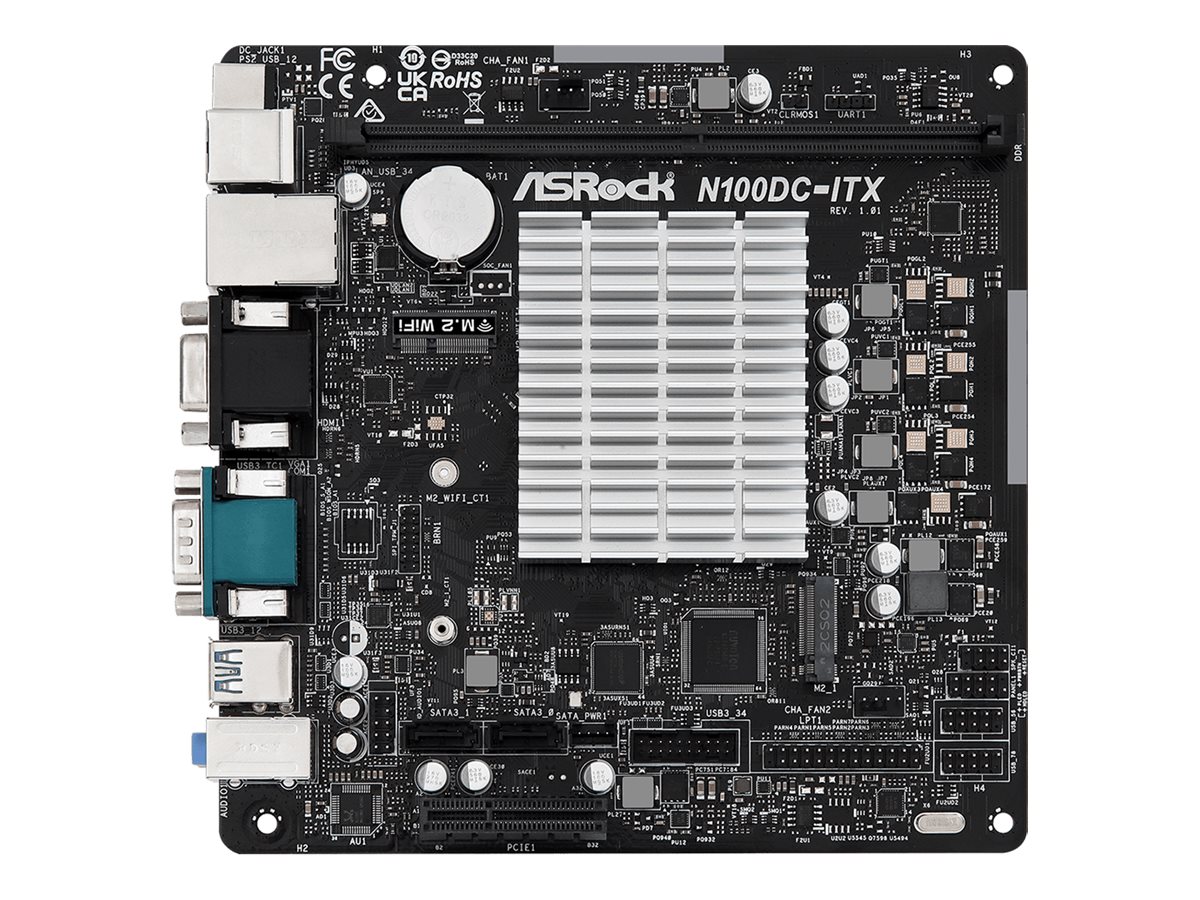

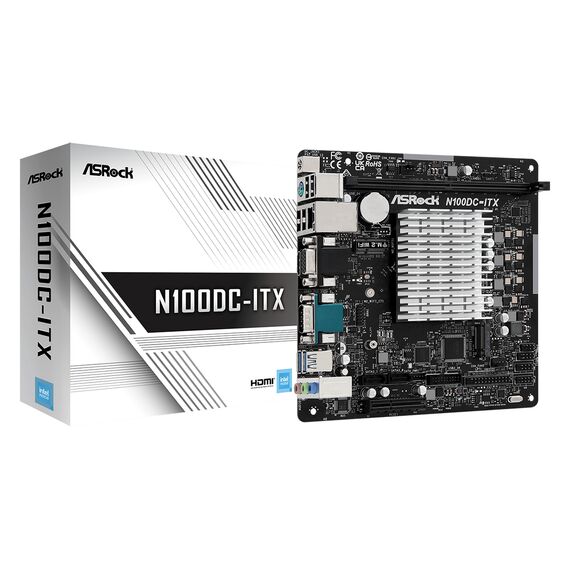

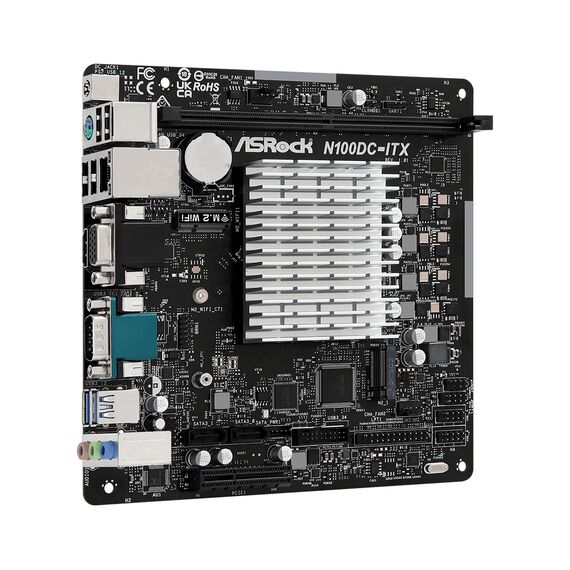

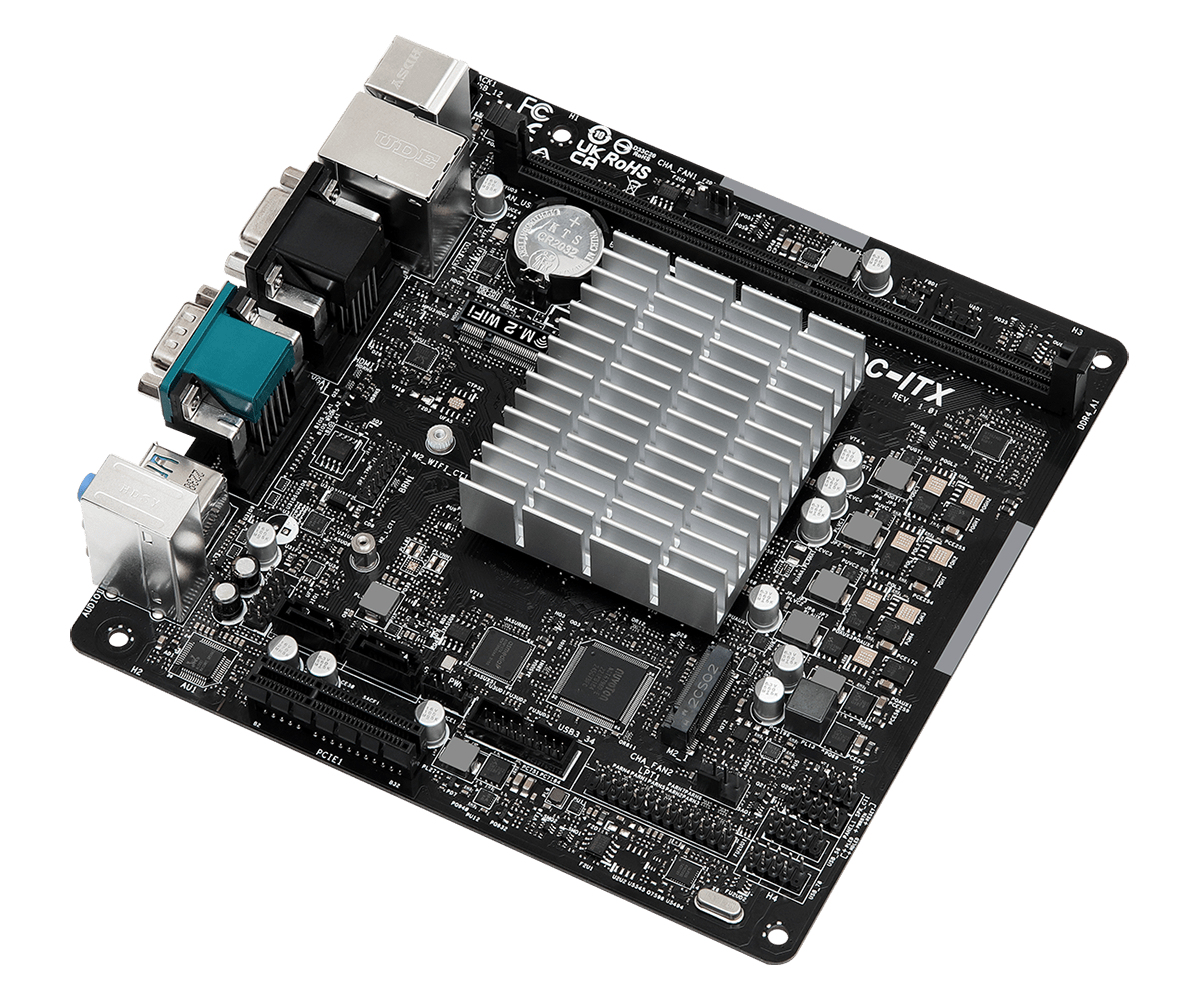

ASRock N100DC-ITX - Motherboard - mini ITX - Intel N-series N100 - Gigabit LAN - onboard graphics - HD Audio (8-channel) | 90-MXBLM0-A0UAYZ
Please sign in so that we can notify you about a reply
Product Features
- DC-in design
The DC-in jack is compatible with 19 V power adapters (5.5 2.5 mm DC-in jack). Without a bulky power supply unit, this unique design allows this motherboard to fit in compact chassis. - Fanless design
The CPU is covered by a specially designed heatsink which allows advanced heat dissipation. Utilizing an ultra quiet fanless design, this ASRock motherboard provides the most silent computing environment. - AV1 decoding + 4K
Supports 10-bit HEVC and VP9 encoding/decoding, hardware-accelerated AV1 decoding, and a max. resolution of up to 4K x 2K 60 Hz. - Auto driver installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
Special Fetures
- DC-in design
- Fanless design
- AV1 decoding + 4K
- Auto driver installer
Product Specification
| Product Type | Motherboard - mini ITX |
| Processor | Intel N-series N100 / 3.4 GHz (Quad-Core) |
| Supported RAM | |
| Max Size | 32 GB |
| Technology | DDR4 |
| Bus Clock | 3200 MHz |
| Supported RAM Integrity Check | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered | Unbuffered |
| Graphics | |
| Graphics Controller | Intel HD Graphics |
| Audio | |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC897 |
| Compliant Standards | High Definition Audio |
| LAN | |
| Network Controller | Realtek RTL8111H |
| Network Interfaces | Gigabit Ethernet |
| Expansion / Connectivity | |
| Expansion Slots | 1 x DIMM 288-pin <br /> 1 x PCIe 3.0 x4 (x2 mode) <br /> 1 x M.2 socket (2230 M.2 Key E slot) <br /> 1 x M.2 socket (2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 2 x 7pin Serial ATA <br /> PCIe 3.0 -connectors: 1 x M.2 |

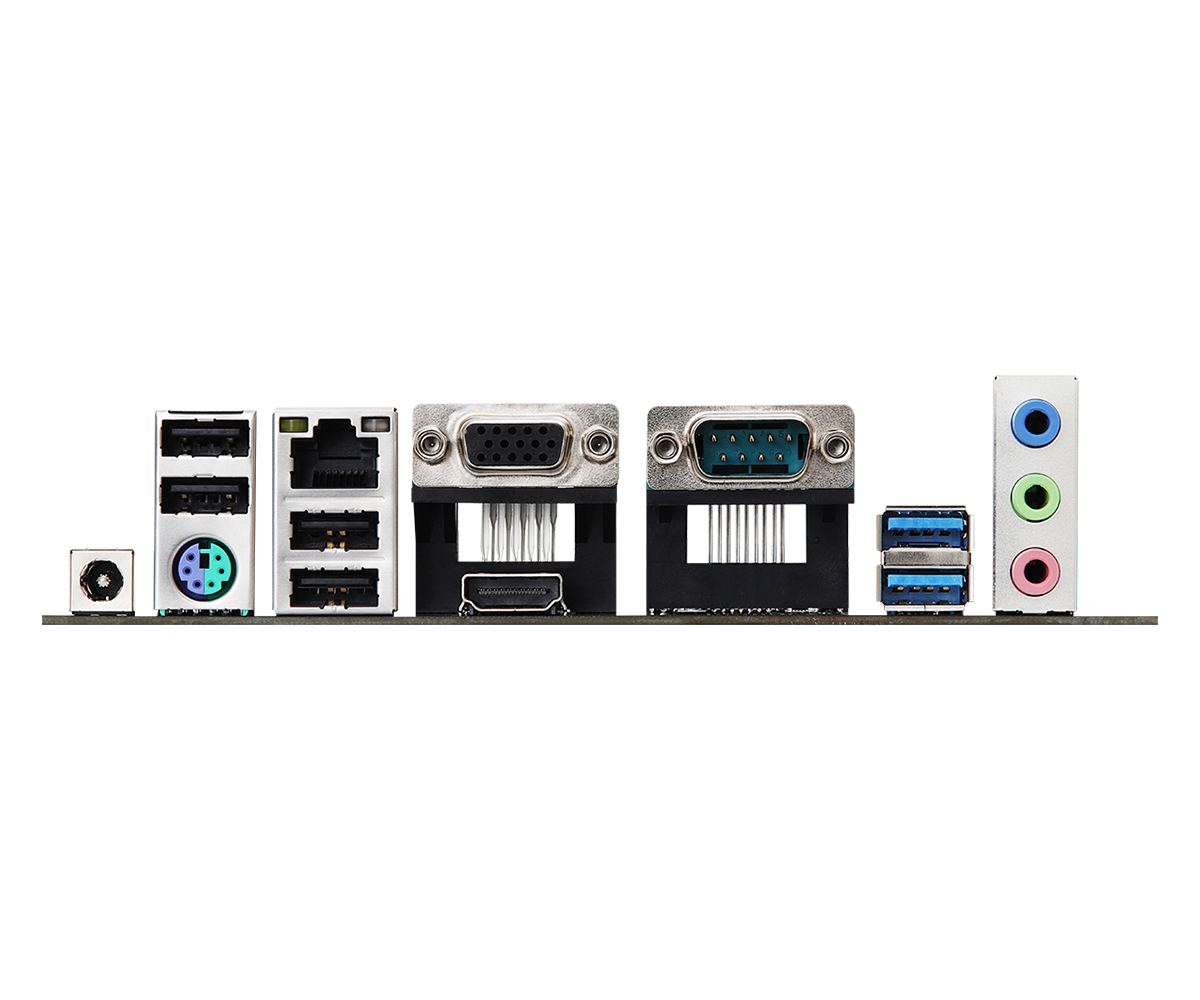

| Interfaces | 1 x HDMI <br /> 1 x VGA <br /> 2 x USB 3.2 Gen 1 <br /> 4 x USB 2.0 <br /> 1 x audio line-out - mini-jack <br /> 1 x microphone - mini-jack <br /> 1 x audio line-out - mini-jack <br /> 1 x PS/2 keyboard / mouse <br /> 1 x LAN (Gigabit Ethernet) <br /> 1 x serial |
| Internal Interfaces | 1 x SPI - header <br /> 4 x USB 2.0 - header <br /> 2 x USB 3.2 Gen 1 - header <br /> 1 x audio - header <br /> 1 x speaker - header |
| Power Connectors | DC-in power connector |
| Features | |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | ASRock Instant Flash, Intel Turbo Boost Technology, Fanless Design Heatsink, ASRock Full HD UEFI, ASRock EZ Mode, ASRock Auto Driver Installer, 2+1+1 Phase Power Design |
| Miscellaneous | |
| Included Accessories | 2 x M.2 screws, IO shield |
| Cables Included | 2 x Serial ATA cable <br /> 1 x Serial ATA power cable |
| Software Included | ASRock A-Tuning, ASRock XFast LAN |
| Compliant Standards | FCC, RoHS, EuP Ready, ErP Ready, UKCA |
| Width | 17 cm |
| Depth | 17 cm |
Features - Asrock - 90-MXBLM0-A0UAYZ
More Details
Product Code
04:496143
EAN Code
4710483943188
Manufacturer
Asrock
