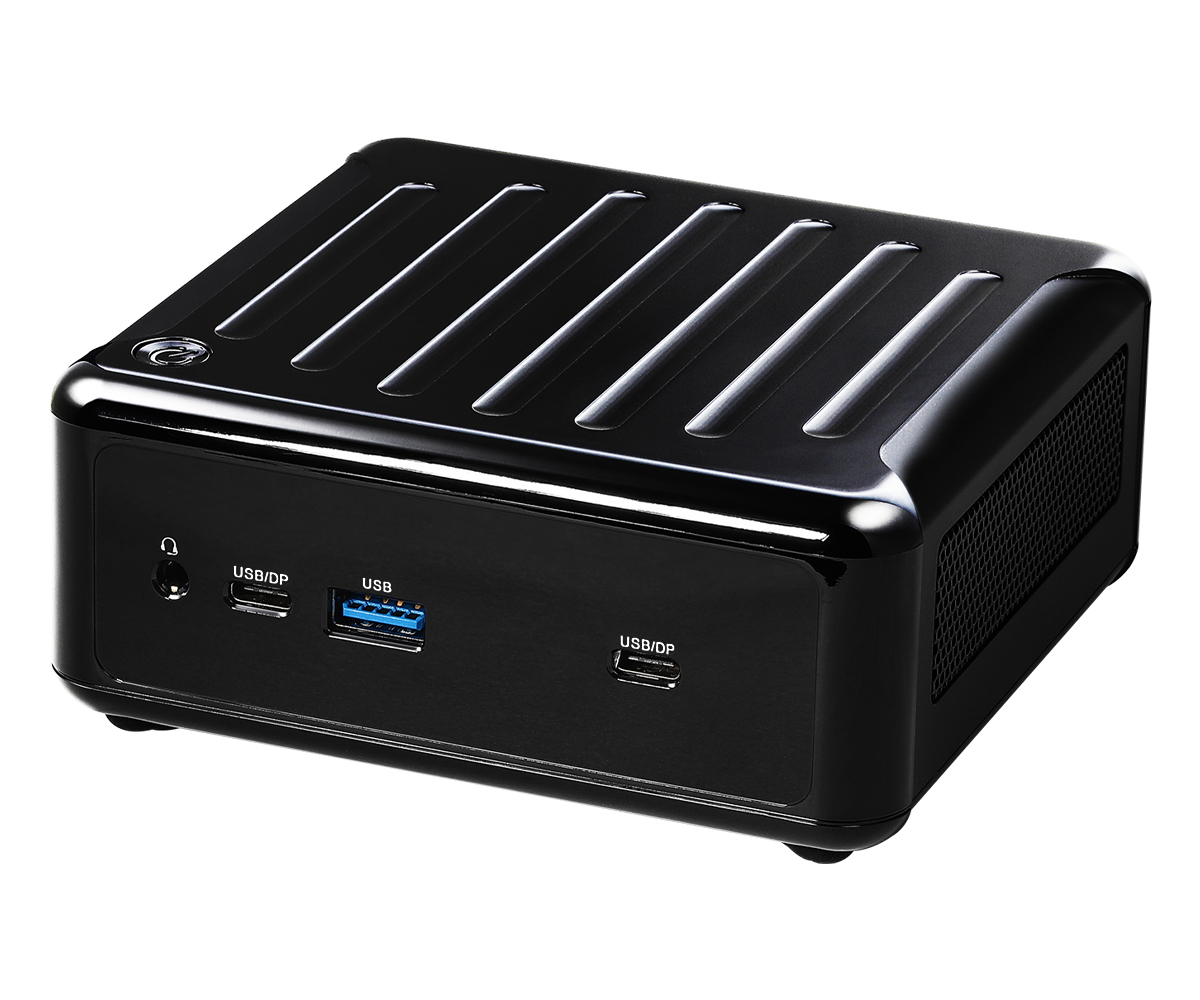

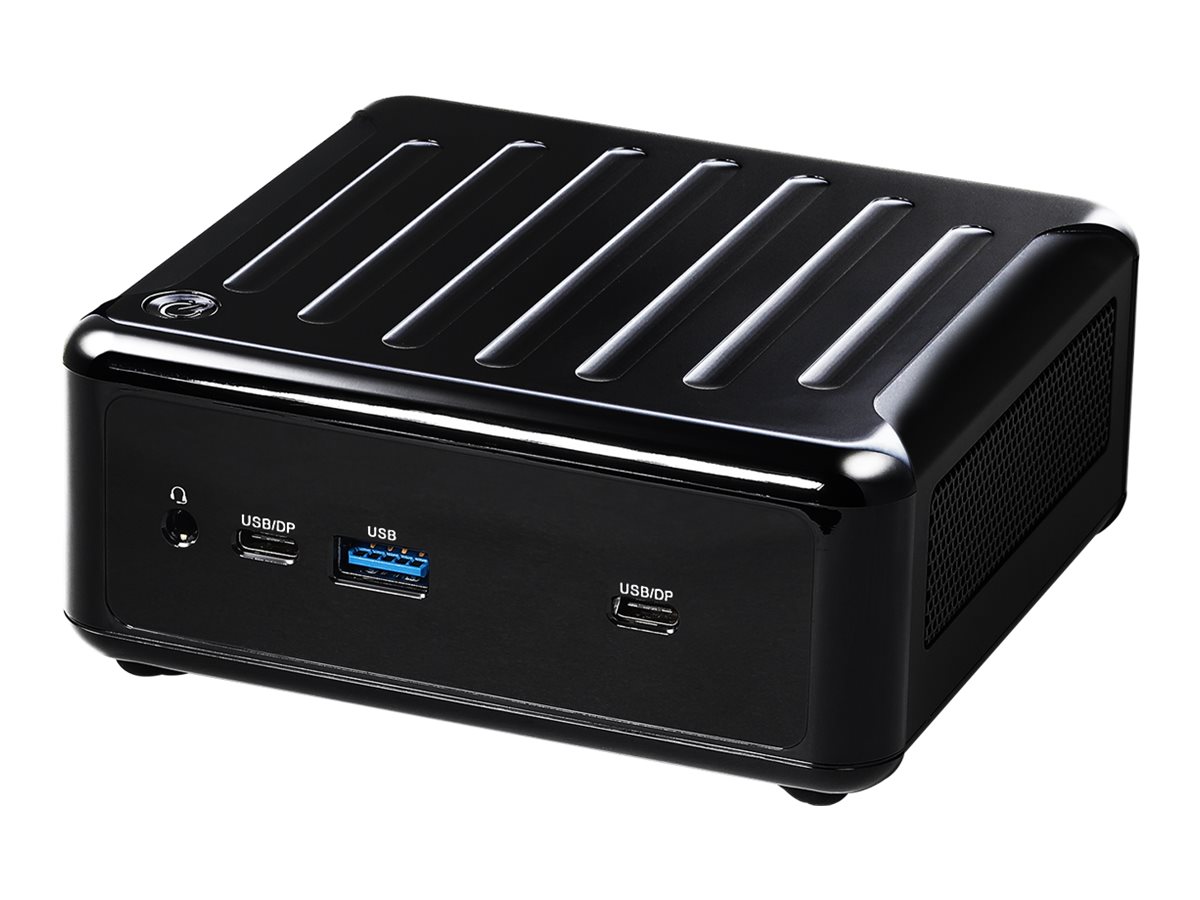

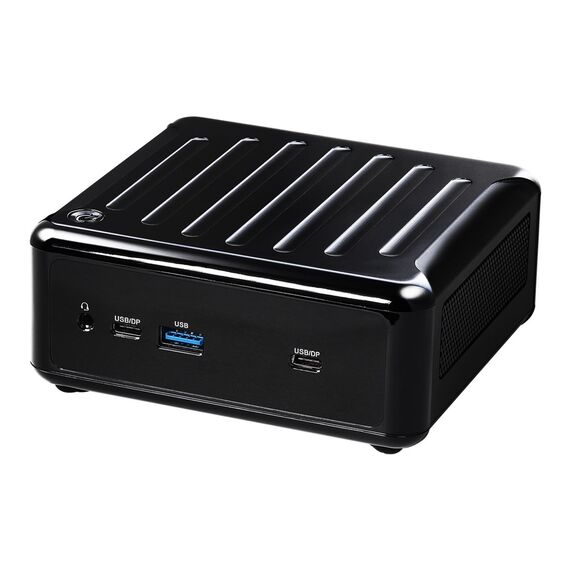

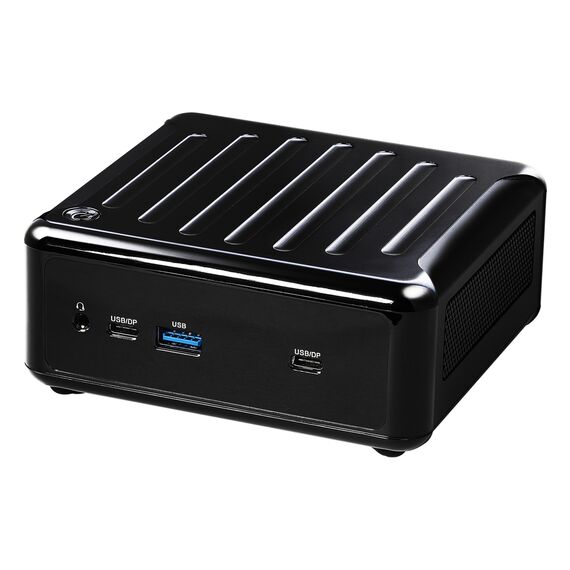

ASRock Industrial NUC BOX-1240P - Barebone - box - 1 x Core i5 1240P - RAM 0 GB - Intel Iris Xe Graphics - Gigabit Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 WLAN: - 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3 | 90PXG9H0-00E
Please sign in so that we can notify you about a reply
Product Specification
| Type | PC barebone |
| Product Form Factor | Box |
| Built-in Devices | Watchdog timer |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Processor / Chipset | |
| CPU | Intel Core i5 (12th Gen) 1240P |
| Max Turbo Speed | 4.4 GHz |
| Number of Cores | 12-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| Processor Main Features | Intel Smart Cache |
| Cache Memory | |
| Installed Size | 12 MB |
| Cache Per Processor | 12 MB |
| RAM | |
| Installed Size | 0 GB / 64 GB (max) |
| Technology | DDR4 SDRAM |
| Form Factor | SO-DIMM 260-pin |
| Slots | 2 (Total) / 2 (empty) |
| Features | Dual channel memory architecture |
| Hard Drive | |
| Type | No HDD |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Intel Iris Xe Graphics |
| Video Interfaces | HDMI, DisplayPort, USB-C |
| Max Monitors Supported | 4 |
| Audio Output | |
| Compliant Standards | High Definition Audio |
| Networking | |
| Ethernet Ports | 2 x 2.5 Gigabit Ethernet |
| Ethernet Controller | 2 x Intel I225-LM |
| Wireless LAN Supported | Yes |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, 2.5 Gigabit Ethernet, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.3 |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2242/2260/2280 |

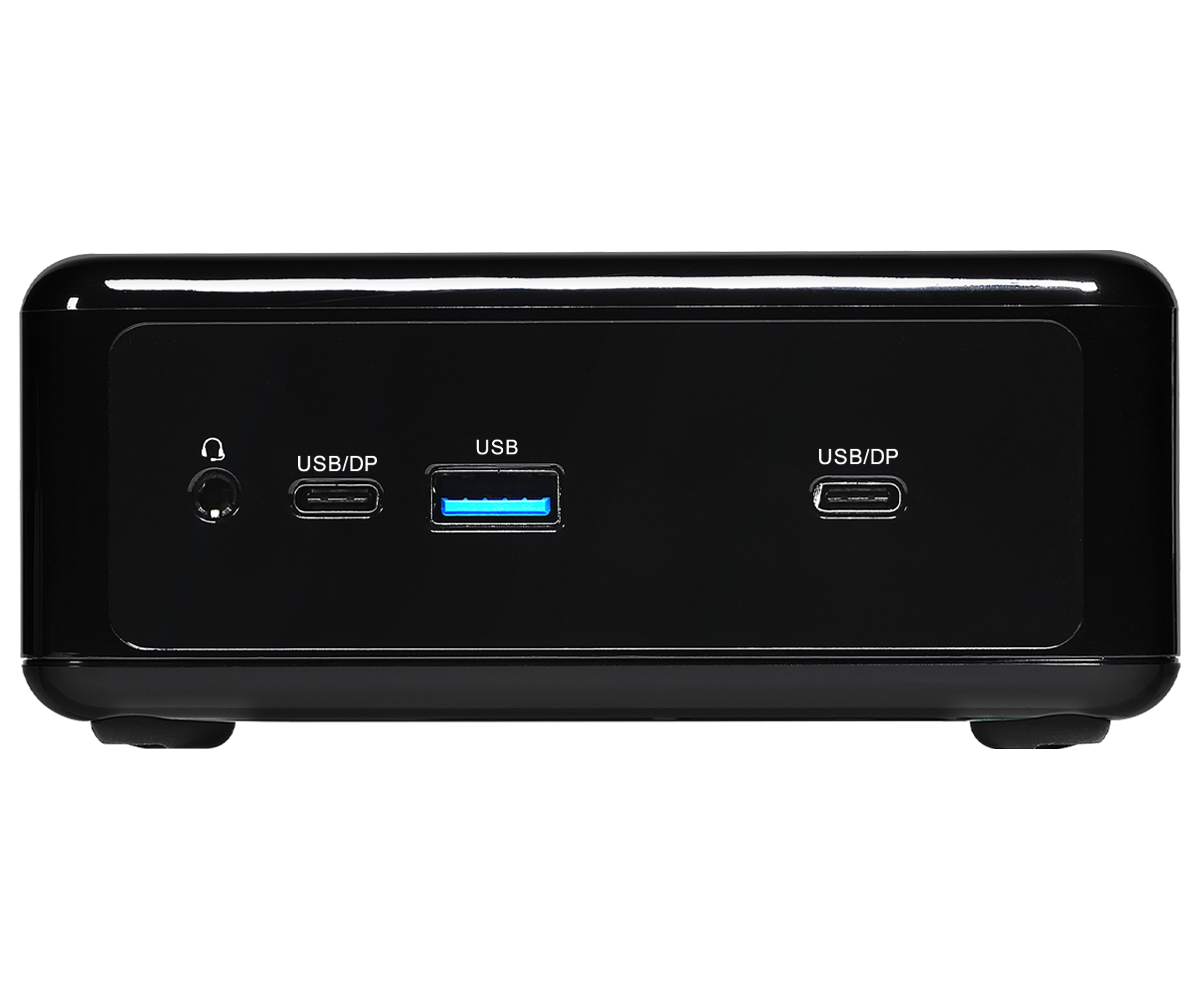

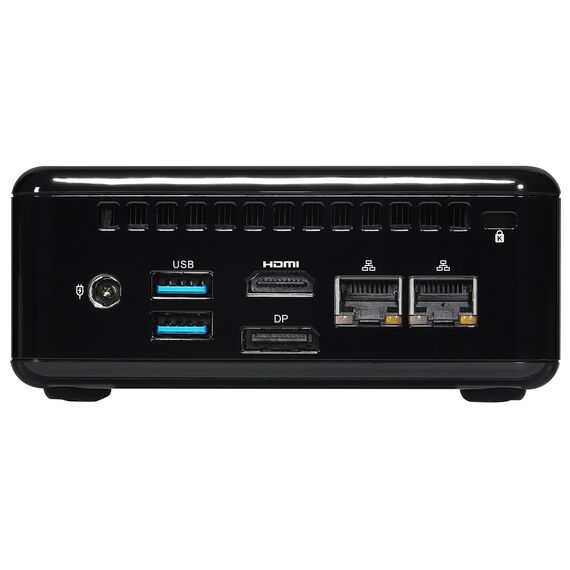

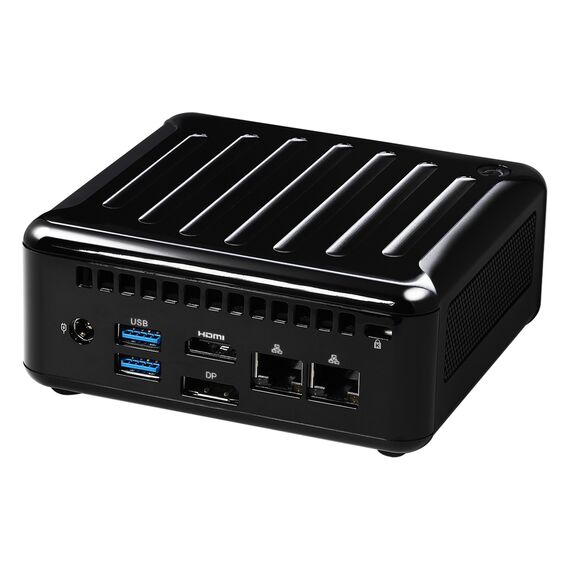

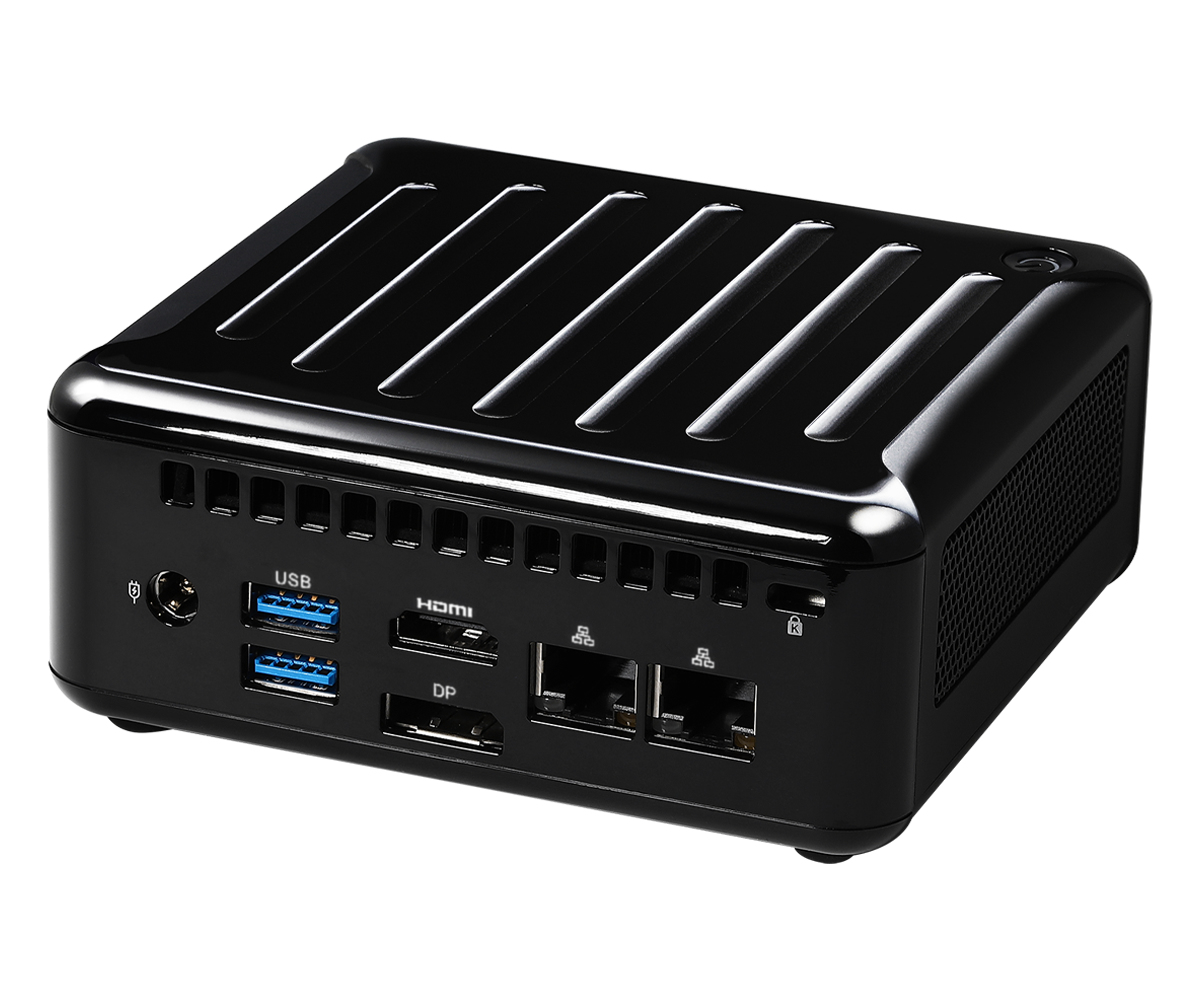

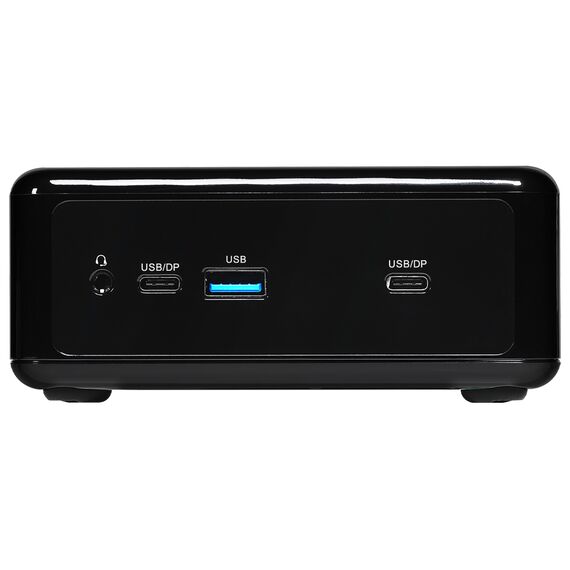

| Interfaces | 1 x HDMI <br /> 1 x DisplayPort <br /> 2 x LAN (2.5Gigabit Ethernet) <br /> 3 x USB 3.2 Gen 2 (1 front, 2 rear) <br /> 1 x DisplayPort1.4a/USB-C 3.2 Gen 2 (1 front) <br /> 1 x headphones/microphone (1 in front) <br /> DisplayPort 1.4a/USB4 (1 in front) |
| Miscellaneous | |
| Included Accessories | VESA mounting kit |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| VESA Mounting Interface | Yes |
| Compliant Standards | FCC, DisplayPort 1.4 |
| Power | |
| Device Type | Power adapter |
| Power Provided | 90 Watt |
| Operating System / Software | |
| OS Provided | No operating system |
| Dimensions & Weight | |
| Width | 11 cm |
| Depth | 11.75 cm |
| Height | 4.785 cm |
| Weight | 1 kg |
| Environmental Parameters | |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 40 °C |
| Humidity Range Operating | 5 - 90% |
Features - Asrock - 90PXG9H0-00EAY100
CPU Type
- Intel Core i5
More Details
Product Code
04:471689
EAN Code
4710483939488
Manufacturer
Asrock
