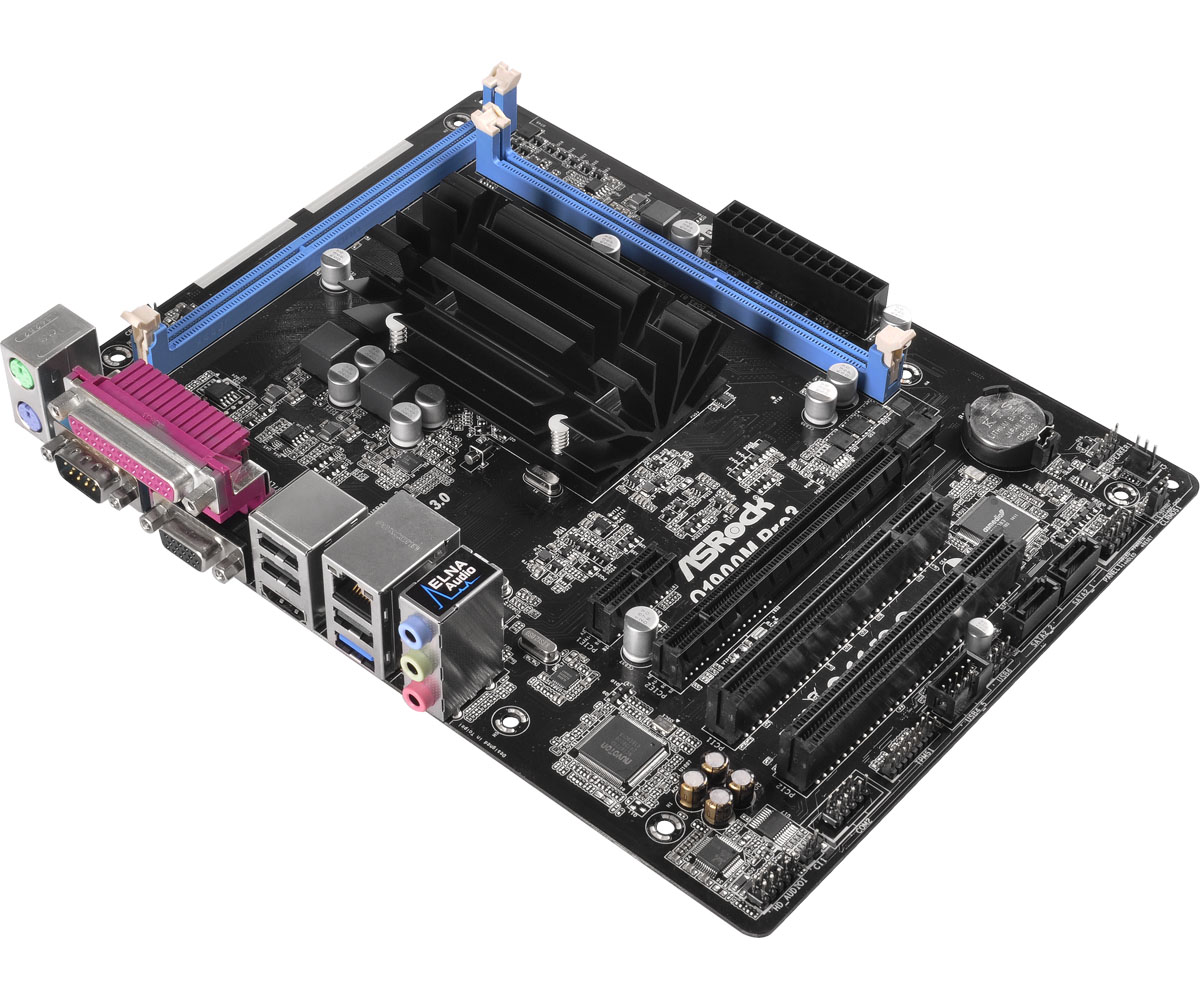

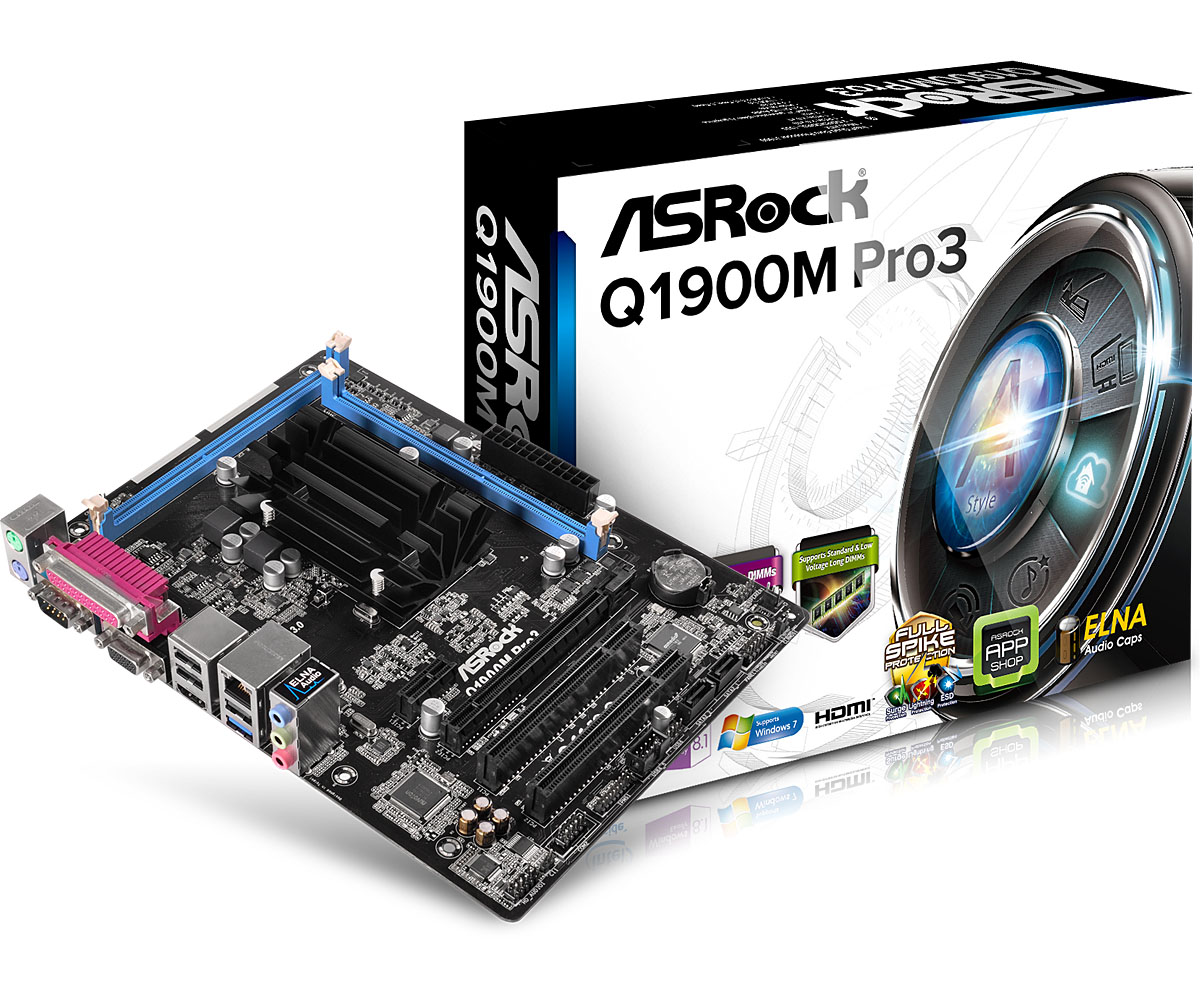

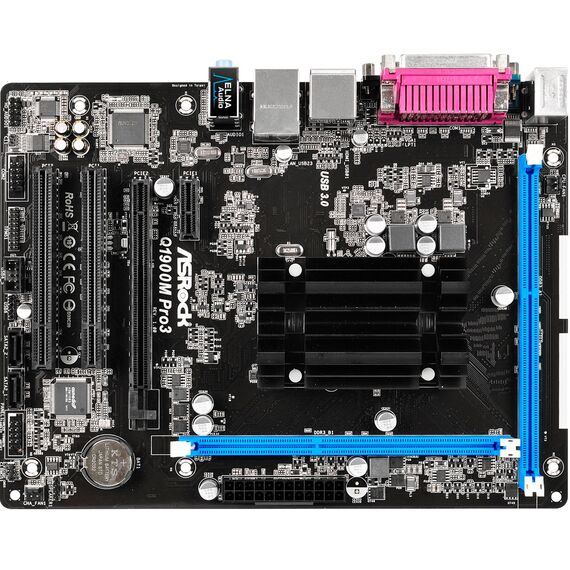

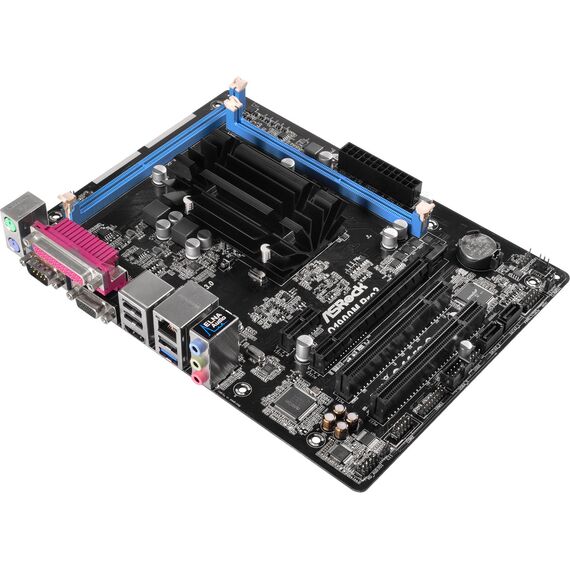

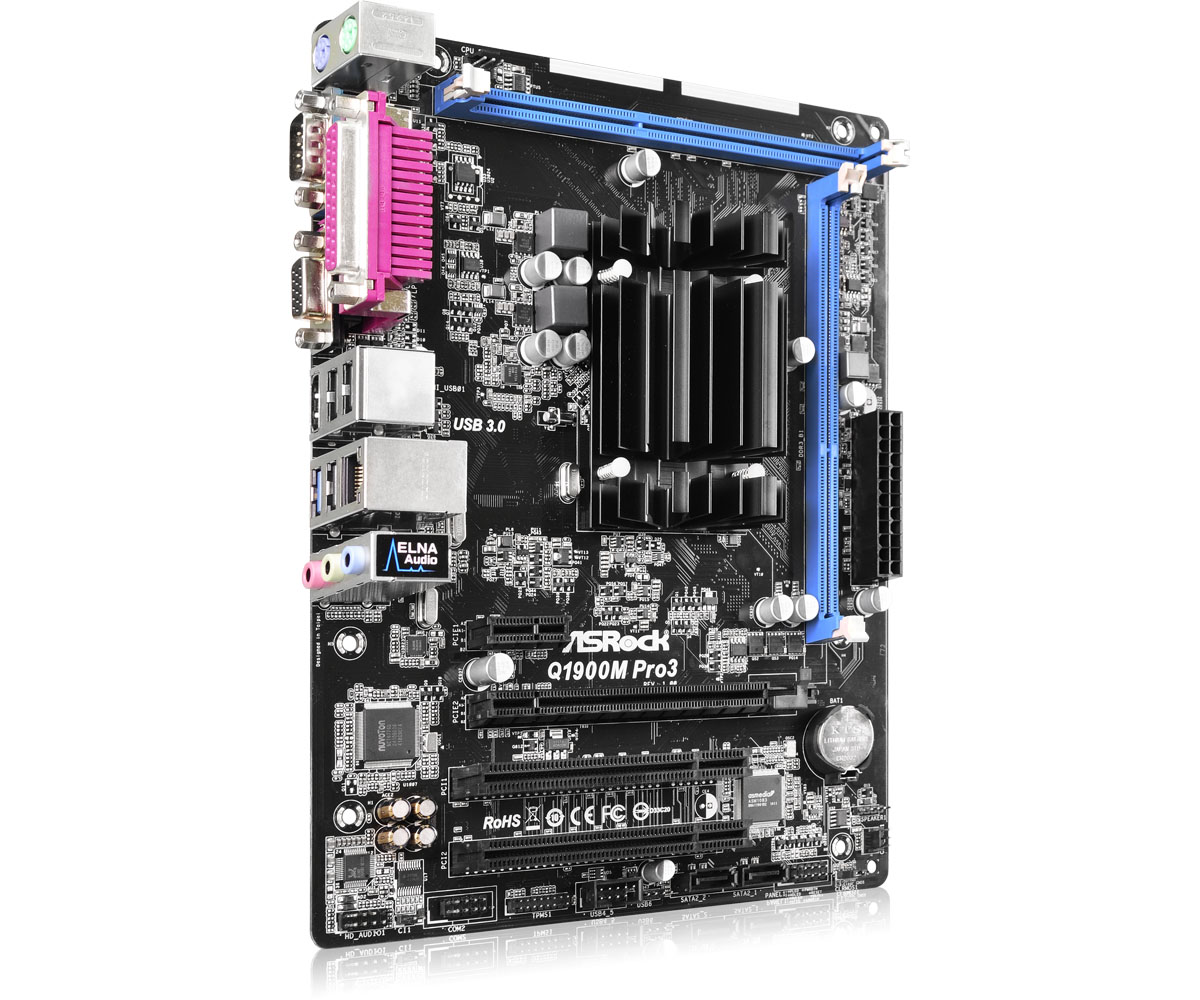

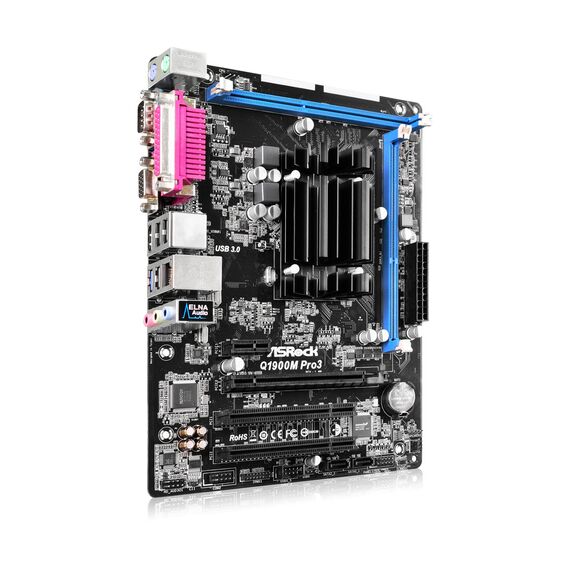

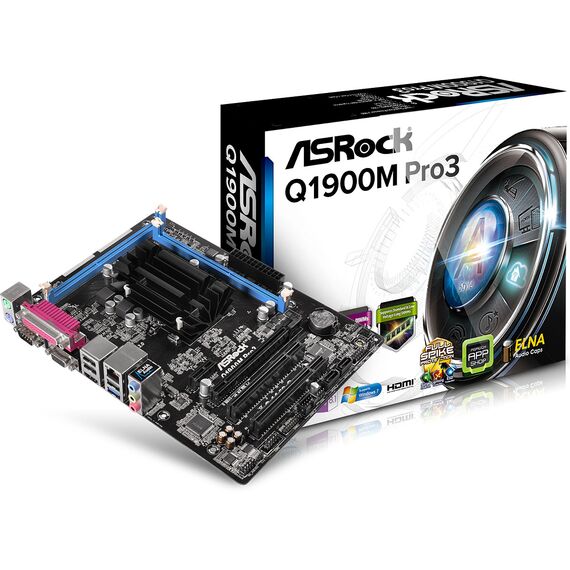

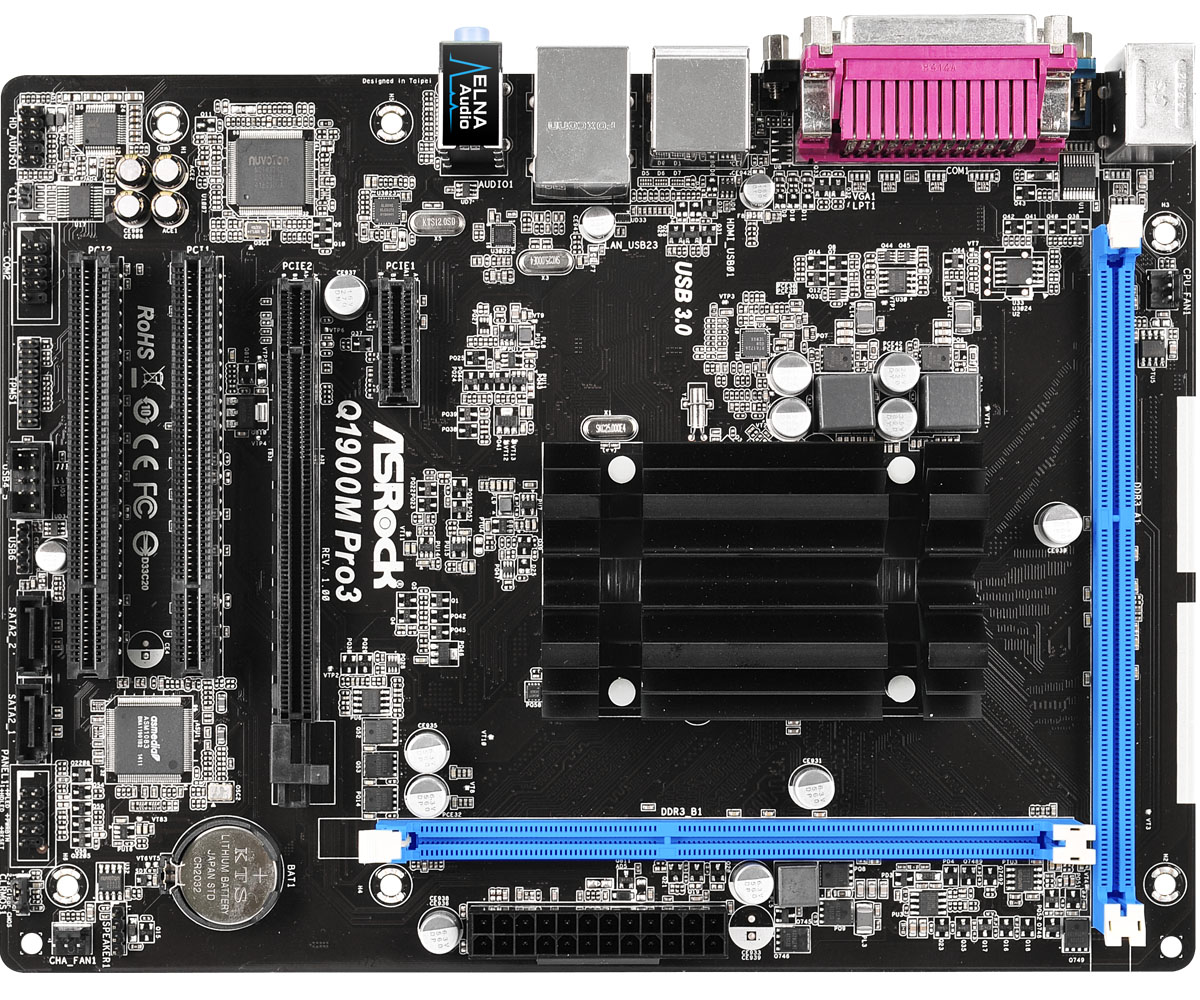

ASRock Q1900M Pro3 motherboard micro ATX, Intel Celeron J1900, USB3.0, onboard graphics (Q1900M PRO3)
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
.jpg "Asrock Q120548")
Q1900M PRO3
Find similar
Delivery
Payment options
Please sign in so that we can notify you about a reply
- Intel® Quad-Core Celeron® Processor J1900
- Supports DDR3 1333 Long DIMM Slots
- 1 PCIe 2.0 x16, 1 PCIe 2.0 x1, 2 PCI
- Graphics Output Options : D-Sub, HDMI
- Built-in Intel® 7th generation (Gen 7) graphics, DirectX 11.0, Pixel Shader 5.0
- 1 x COM Port, 1 x Printer Port, 1 x COM Port Header
- 1 x USB 3.0, 6 x USB 2.0 (3 Front, 3 Rear), 2 x SATA2
- Realtek Gigabit LAN
- 5.1 CH HD Audio (Realtek ALC662 Audio Codec)
- Supports ASRock Cloud, APP Shop, Full Spike Protection
Specifications
| General | |
| Unique Feature | ASRock Full Spike Protection ASRock Cloud ASRock APP Shop |
| CPU | - Intel® Quad-Core Processor J1900 (2 GHz) |
| Memory | - Dual Channel DDR3/DDR3L Memory Technology - 2 x DDR3/DDR3L DIMM Slots - Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory - Max. capacity of system memory: 16GB** If only one DIMM module is installed, please install it into DDR3_A1. *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation. |
| BIOS | - 64Mb AMI UEFI Legal BIOS with GUI support - Supports Plug and Play - ACPI 5.0 Compliant wake up events - Supports jumperfree - SMBIOS 2.7 Support |
| Audio, Video and Networking | |
| Graphics | - Intel® 7th generation (Gen 7) graphics - DirectX 11.0, Pixel Shader 5.0 - Dual graphics output: support HDMI and D-Sub ports by independent display controllers - Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz - Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) - Supports HDCP with HDMI Port - Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port |
| Audio | - 5.1 CH HD Audio (Realtek ALC662 Audio Codec) - Supports Surge Protection (ASRock Full Spike Protection) - ELNA Audio Caps |
| LAN | - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111GR - Supports Wake-On-WAN - Supports Wake-On-LAN - Supports Lightning/ESD Protection (ASRock Full Spike Protection) - Supports LAN Cable Detection - Supports Energy Efficient Ethernet 802.3az - Supports PXE |
| Expansion / Connectivity | |
| Slots | - 1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode) - 1 x PCI Express 2.0 x1 Slot - 2 x PCI Slots |
| Storage | - 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug |
| Connector | - 1 x COM Port Header - 1 x TPM Header - 1 x Chassis Intrusion Header - 1 x CPU Fan Connector (3-pin) - 1 x Chassis Fan Connector (3-pin) - 1 x 24 pin ATX Power Connector - 1 x Front Panel Audio Connector - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |

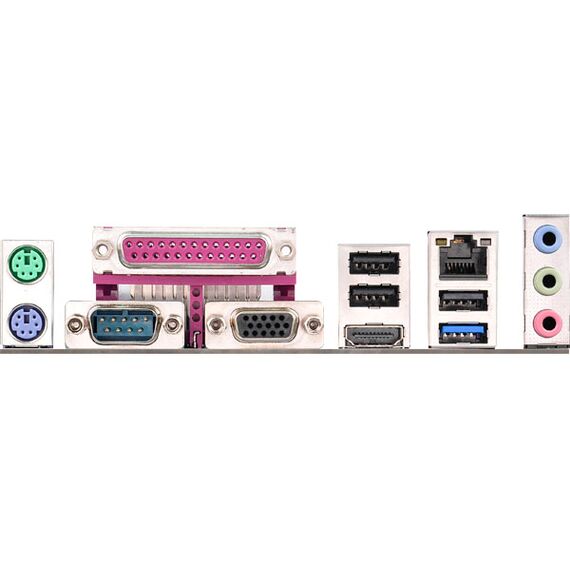

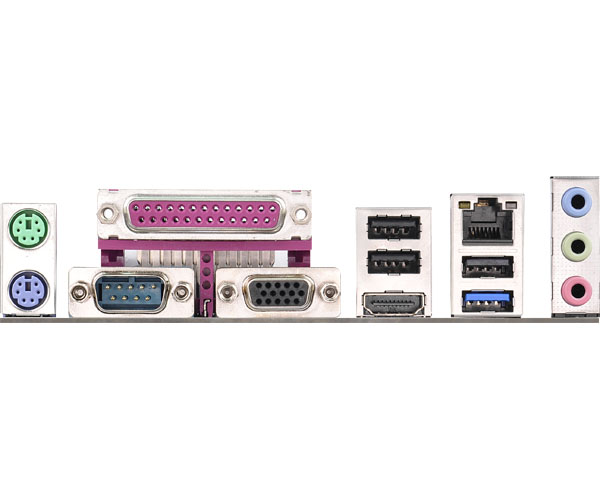

| Rear Panel I/O | - 1 x PS/2 Mouse Port - 1 x PS/2 Keyboard Port - 1 x Serial Port: COM1 - 1 x Parallel Port (ECP/EPP support) - 1 x D-Sub Port - 1 x HDMI Port - 3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection)) - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) - HD Audio Jacks: Line in / Front Speaker / Microphone |
| Other Features / Miscellaneous | |
| Software and BIOS | Software - ASRock A-Tuning - ASRock USB Key - ASRock XFast LAN - ASRock XFast RAM - ASRock Restart to UEFI UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Crashless BIOS |
| Support CD | - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial), Orbweb.ME Professional (Win 8.1 / 7) |
| Accessories | - Quick Installation Guide, Support CD, I/O Shield - 2 x SATA Data Cables |
| Hardware Monitor | - CPU/Chassis temperature sensing - CPU/Chassis Fan Tachometer - CPU/Chassis Quiet Fan (Auto adjust chassis fan speed by CPU temperature) - CPU/Chassis Fan multi-speed control - CASE OPEN detection - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore |
| Form Factor | - Micro ATX Form Factor - Solid Capacitor design - High Density Glass Fabric PCB |
| OS | - Microsoft® Windows® 10 64-bit / 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit |
| Certifications | - FCC, CE, WHQL - ErP/EuP ready (ErP/EuP ready power supply is required) |
