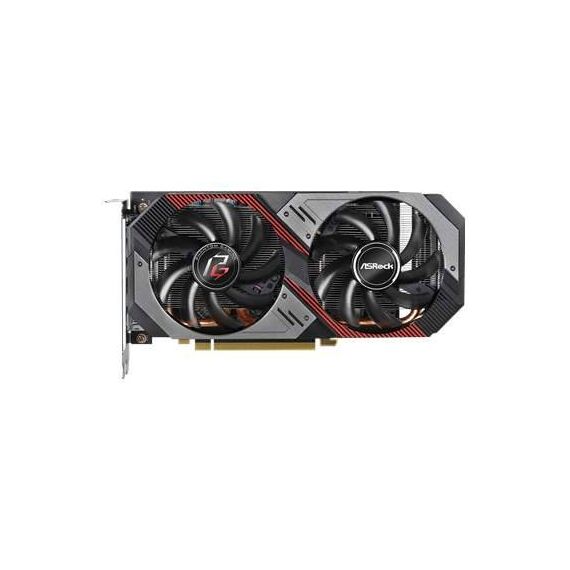

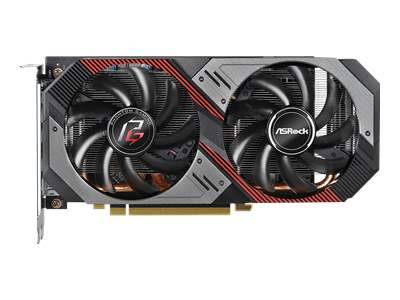

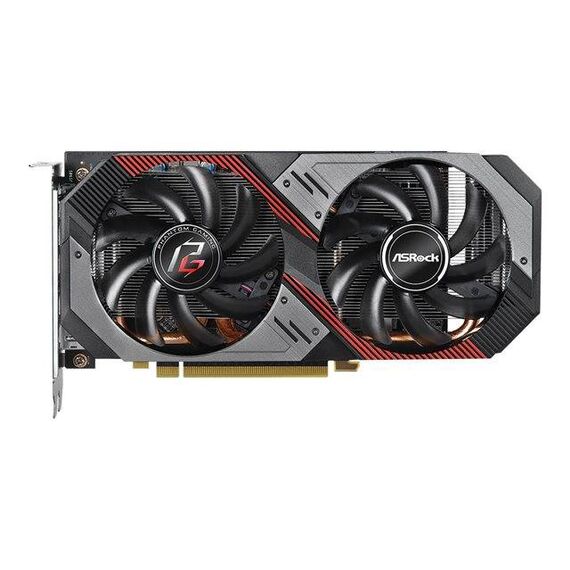

ASRock Radeon RX 5600 XT Phantom Gaming D2 6G OC / OC Edition / graphics card / Radeon RX 5600 XT / 6GB GDDR6 / PCIe 4.0 x16 / HDMI, 3 x DisplayPort | 90-GA1WZZ-00UANF
ASRock Radeon RX 5600 XT Phantom Gaming D2 6G OC / OC Edition / graphics card / Radeon RX 5600 XT / 6 GB GDDR6 / PCIe 4.0 x16 / HDMI, 3 x DisplayPort | 90-GA1WZZ-00UANF
Description
Create your own unique colorful light effects with the integrated ARGB LEDs. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC.With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. The thermal pad at the backside also helps enhance the thermal efficiency.Two fans provide strong cooling performance and make your gaming rig stay cool. They are optimized for delivering excellent gaming experience with a stylish and streamlined design.0dB Silent Cooling makes the fan stop when the temperature goes low for the complete silence.AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.Radeon Image Sharpening combines contrast-adaptive sharpening with GPU upscaling to deliver crisp and detailed visuals with virtually no performance impact.Take your gaming experience to the next level with higher response times. Features like AMD FreeSync technology, Radeon Anti-Lag and Radeon Boost deliver stutter-free, tear-free, highly responsive gameplay.
ASRock Radeon RX 5600 XT Phantom Gaming D2 6G OC / OC Edition | 90-GA1WZZ-00UANF
Special Features
- Polychrome SYNC support
- Stylish metal backplate
- Dual fan design
- 0dB Silent Cooling
- AMD Eyefinity technology
- Radeon Image Sharpening
- AMD Radeon FreeSync Technology
Product features
- Polychrome SYNC support
Create your own unique colorful light effects with the integrated ARGB LEDs. It can also be synchronized with your ASRock motherboards that support Polychrome SYNC. - Stylish metal backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. The thermal pad at the backside also helps enhance the thermal efficiency. - Dual fan design
Two fans provide strong cooling performance and make your gaming rig stay cool. They are optimized for delivering excellent gaming experience with a stylish and streamlined design. - 0dB Silent Cooling
0dB Silent Cooling makes the fan stop when the temperature goes low for the complete silence. - AMD Eyefinity technology
AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive. - Radeon Image Sharpening
Radeon Image Sharpening combines contrast-adaptive sharpening with GPU upscaling to deliver crisp and detailed visuals with virtually no performance impact. - AMD Radeon FreeSync Technology
Take your gaming experience to the next level with higher response times. Features like AMD FreeSync technology, Radeon Anti-Lag and Radeon Boost deliver stutter-free, tear-free, highly responsive gameplay.
Product Specification
Device Type | Graphics card |
Bus Type | PCI Express 4.0 x16 |
Graphics Engine | AMD Radeon RX 5600 XT |
Core Clock | 1420 MHz |
Boost Clock | 1750 MHz |
Stream Processors | 2304 |
Process Technology | 7 nm |
Max Resolution | 7680 x 4320 at 60 Hz |
Max Monitors Supported | 4 |
Interfaces | 3 x DisplayPort ¦ HDMI |
API Supported | DirectX 12, OpenGL 4.6 |
Features | AMD Eyefinity Technology, Dual Fan Design, FreeSync Technology, 2.7-slot Fan Cooler, 0dB Technology, Radeon Boost, Radeon Image Sharpening, RDNA Architecture, Radeon Anti-Lag, Radeon FidelityFX, Polychrome SYNC, HDCP |
Size | 6 GB |
Technology | GDDR6 SDRAM |
Bus Width | 192-bit |
Required Power Supply | 550 W |
Additional Requirements | 8 pin PCI Express power connector |
Compliant Standards | DisplayPort 1.4 |
Width | 5.3 cm |
Depth | 24.03 cm |
Height | 12.65 cm |
