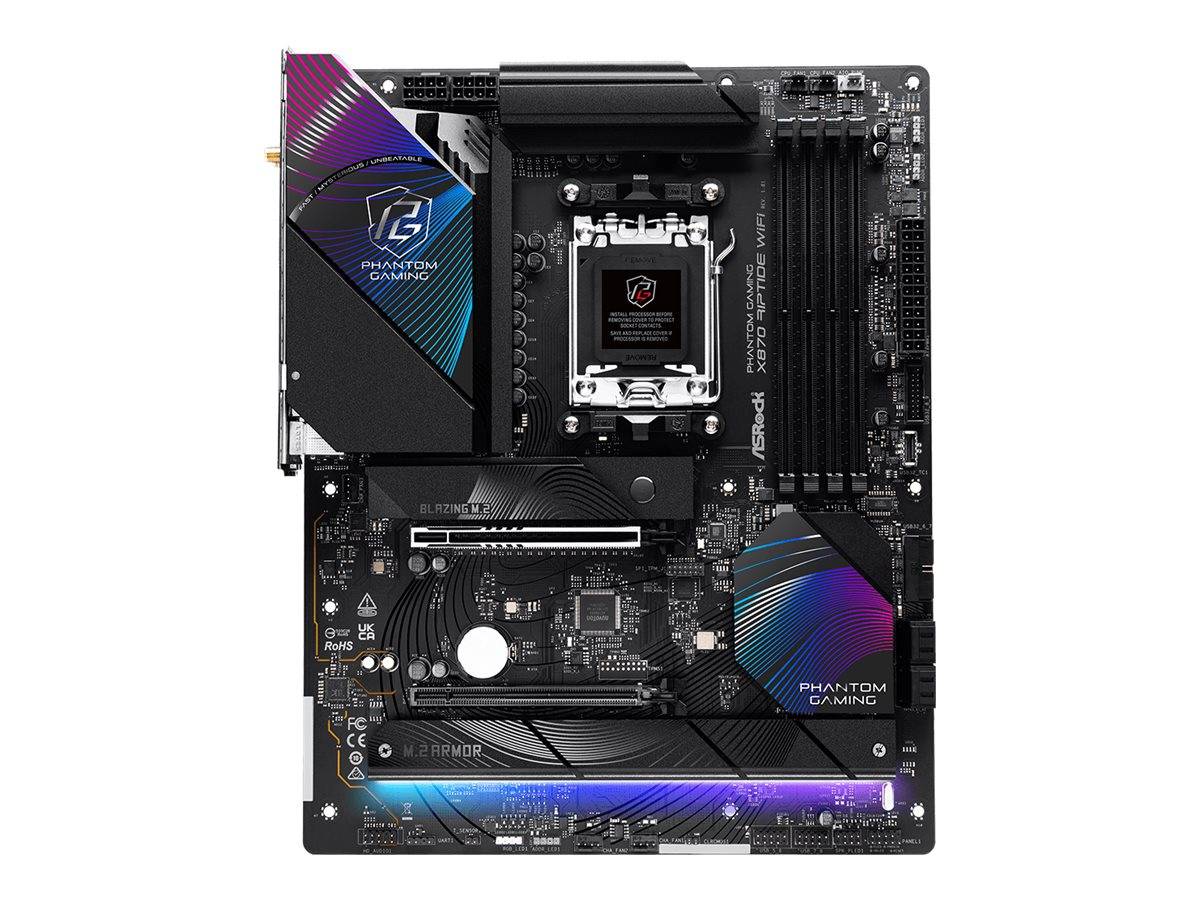

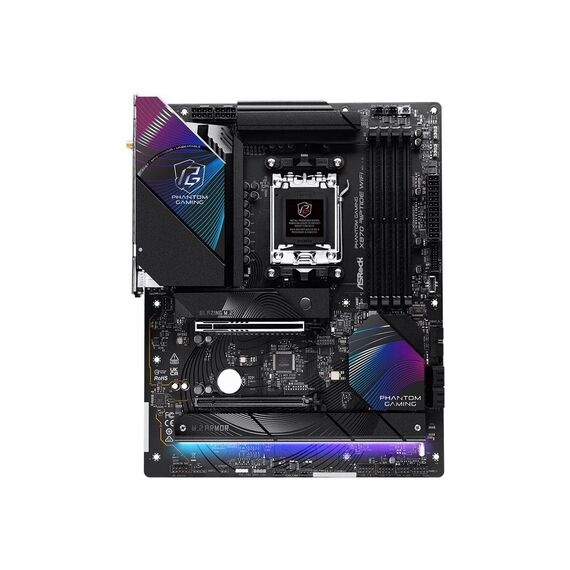

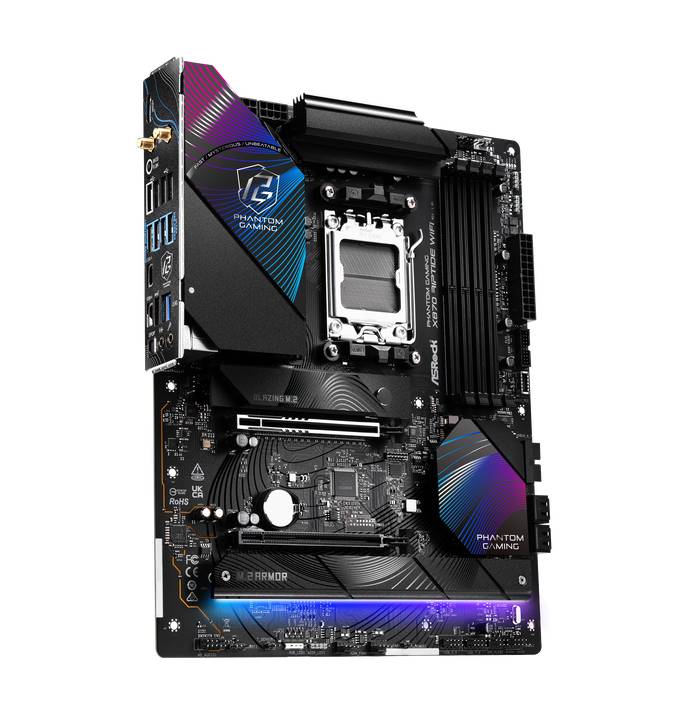

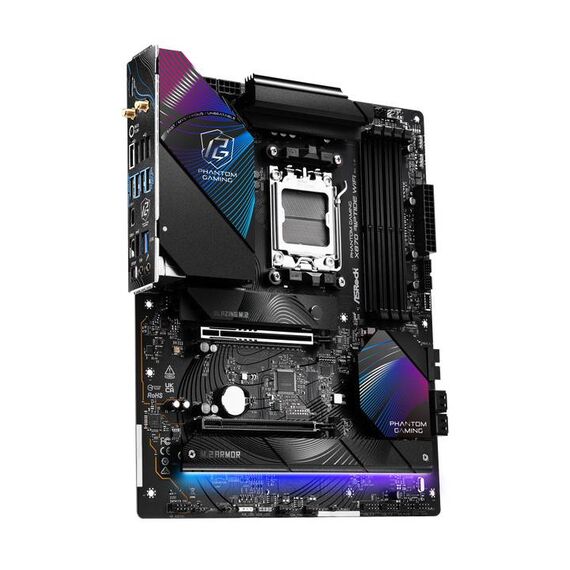

ASRock Phantom Gaming X870 RIPTIDE WiFi / Motherboard / ATX / Socket AM5 / AMD X870 Chipset / USB4, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2 / 2.5 Gigabit LAN, Wi-Fi, Bluetooth / onboard graphics (CPU required) / HD Audio (8-cha | 90-MXBPP0-A0UAYZ
90-MXBPP0-A0UAYZ
Find similar
Delivery
Payment options
Συνδεθείτε για να μπορέσουμε να σας ειδοποιήσουμε σχετικά με μια απάντηση
Product Specification
| Product Type | Motherboard - ATX |
| Chipset Type | AMD X870 |
| Processor Socket | Socket AM5 |
| Max Processors Qty | 1 |
| Compatible Processors | (supports Ryzen 7000/8000/9000 Series) |
| Supported RAM | Supported RAM |
| Max Size | 256 GB |
| Technology | DDR5 |
| Bus Clock | 8000 MHz (O.C.) |
| Supported RAM Integrity Check | Non-ECC, ECC |
| Registered or Buffered | Unbuffered |
| Features | Dual channel memory architecture, AMD EXPO technology, Intel Extreme Memory Profiles (XMP) |
| Audio | Audio |
| Type | HD Audio (8-channel) |
| Audio Codec | Realtek ALC4082 |
| Compliant Standards | High Definition Audio |
| LAN | LAN |
| Network Controller | Killer E3100G |
| Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4 |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x M.2 socket (Key E) 1 x M.2 socket (2230/2260/2280 M.2 Key M slot) 1 x M.2 socket (2280 M.2 Key M slot) 1 x M.2 socket (2260/2280 M.2 Key M slot) |
| Storage Interfaces | SATA-600 -connectors: 4 x 7pin Serial ATA PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 PCIe 5.0 -connectors: 1 x Blazing M.2 - RAID 0 / RAID 1 / RAID 10 |
| Interfaces | 2 x aerial 1 x HDMI 1 x SPDIF out 2 x USB4 2 x USB 3.2 Gen 2 3 x USB 3.2 Gen 1 4 x USB 2.0 1 x LAN (2.5Gigabit Ethernet) 1 x audio line-out - mini-jack 1 x microphone - mini-jack |
| Internal Interfaces | 4 x USB 2.0 - header 4 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header |
| Power Connectors | 24-pin main power connector, 8-pin ATX12V connector |
| Features | Features |
| BIOS Type | AMI |
| BIOS Features | UEFI BIOS |
| Hardware Features | Hi-Density Power Connectors, Surface Mount Technology (SMT), reinforced PCIe slots, 8 Layer PCB, 14+2+1 Phase Power Design, 80A Smart Power Stage, M.2 heatsink, 20K black capacitors, anti-drop M.2 heatsink screw, ASRock Polychrome RGB, DIY Friendly Design, pre-mounted I/O shield, BIOS FlashBack button, ASRock Auto Driver Installer, ASRock POST Status Checker (PSC), ASRock Lightning Gaming Ports, Nahimic Audio Enhacer, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Instant Flash |
| Miscellaneous | Miscellaneous |
| Included Accessories | Thermistor cable, 1 to 2 ARGB LED splitter cable, Wi-Fi aerial |
| Cables Included | 2 x Serial ATA cable |
| Software Included | ASRock Phantom Gaming LAN Software, ASRock Phantom Gaming Tuning, ASRock Polychrome SYNC |
| Compliant Standards | HDCP 2.3, ErP Ready, EuP Ready, FCC |
| Width | 30.5 cm |
| Depth | 24.4 cm |
