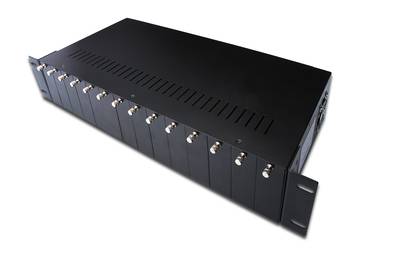

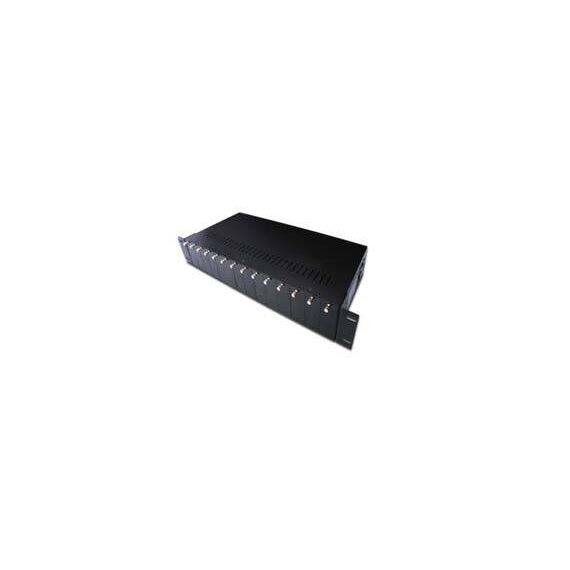

DIGITUS Professional DN-82000 / Modular expansion base / 2U / rack-mountable | DN-82000
Please sign in so that we can notify you about a reply
Product Features
· Suitable for the Media Converter Series DN-82x1x, DN-82x2x and DN-82x3x· Equipped with a second, redundant Power Supply for maximum stability and reliability
· Hot Swap Support for the Converters to ensure a flexible connection
· For up to 14 Media Converters
· Circuit Breaker for Overvoltage, Overflow and Short-Circuit
· 2 Height Units for 483mm (19")Rack Installation
· Dimensions (L x W x H): 231mm x 485mm x 90mm
· Operating temperature: 0 to 50 °C
· Storage temperature: -20°C ... +85°C
Special Features
- Suitable for the media converter series DN-82x1x, DN-82x2x and DN-82x3x
- Equipped with a second, redundant power supply for maximum stability and reliability
- Hot swap support for the converters to ensure a flexible connection
- For up to 14 media converters
- Circuit breaker for overvoltage, overflow and short-circuit
- 2 height units for 483 mm rack installation
Product Specification
| Device Type | Modular expansion base |
| Height (Rack Units) | 2U |
| Installed Modules Qty (Max) | 0 (14) |
| Width | 48.3 cm |
| Depth | 23.1 cm |
| Height | 9 cm |
| Networking | Networking |
| Form Factor | Rack-mountable |
| Connectivity Technology | Wired |
| Expansion / Connectivity | Expansion / Connectivity |
| Expansion Slots | 14 (total) / 14 (free) x expansion slot |
| Power | Power |
| Power Device | Internal power supply |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 120/230 V / DC 48 V |
| Environmental Parameters | Environmental Parameters |
| Min Operating Temperature | 0 °C |
| Max Operating Temperature | 50 °C |
| Humidity Range Operating | 5 - 95% |
Features - Assmann - DN-82000
More Details
Product Code
04:136485
EAN Code
4016032307211
Manufacturer
Assmann
